Old 05-22-2008, 05:39 AM   #41
Newb
Thread Starter

Join Date: Oct 2007
Location: Pacific Northwest
Posts: 22
Total Cats: 0
Default

So assuming MS-I for now ... this is the parts list I'm looking at:
  • MS1357-C Assembled Megasquirt-I with V3.57 PCB
  • MOD_13571GDSM Preconfigured 4G63 / Miata ignition output
  • JimStim-C Assembled JimStim diagnostic board
  • MSPiggy 18" wiring harness pigtail
  • IATwPiggy IAT Sensor (if not sharing temp signals with the MAF)
  • 38NPT-Bung_S Steel Bung for mounting IAT sensor (Alumimum or stainless also available)
  • TuneCable 6' DB9 tuning cable (unless I have one in my junk pile)

In addition, I need the boomslang extension, which I can splice into with the MS Piggy. I don't quite have all those details straight, but I'll figure that out later.

Now my question is, considering that I'm running stock, how important would it be for me to have a wideband? Can I tune via default maps and educated guesses and then wait on the wideband until I start making engine mods (turbo!)? My goal is to have no CELs. I want to be able to drive the car right up to the emissions testing center and pass the OBD-II test without any issues.
maharashii is offline   Reply With Quote
Old 05-22-2008, 10:01 AM   #42
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Quote:
Originally Posted by badboy88000 View Post
i just read through the manual, still trying to comprehend those circuits. seems to be more complicated than i expected? or is it shown in excess on where exactly the signal is going through?

EDIT: examining more, it seems like some circuits will be needed to changed out of the original holes on the PCB board? for the CAM sensor, i understand that the circuit shown requires to be built using the listen components. the crank sensors input has my head spinning
What part of 2 identical simple circuits did you not understand? Reread my post.
patsmx5 is offline   Reply With Quote
Old 05-22-2008, 01:03 PM   #43
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by badboy88000 View Post
i just read through the manual, still trying to comprehend those circuits. seems to be more complicated than i expected? or is it shown in excess on where exactly the signal is going through?

EDIT: examining more, it seems like some circuits will be needed to changed out of the original holes on the PCB board? for the CAM sensor, i understand that the circuit shown requires to be built using the listen components. the crank sensors input has my head spinning
Trying to comprehend what you wrote is making my head hurt. Seriously, is English your primary language?


Quote:
Originally Posted by maharashii View Post
So assuming MS-I for now ... this is the parts list I'm looking at:
  • MS1357-C Assembled Megasquirt-I with V3.57 PCB
  • MOD_13571GDSM Preconfigured 4G63 / Miata ignition output
  • JimStim-C Assembled JimStim diagnostic board
  • MSPiggy 18" wiring harness pigtail
  • IATwPiggy IAT Sensor (if not sharing temp signals with the MAF)
  • 38NPT-Bung_S Steel Bung for mounting IAT sensor (Alumimum or stainless also available)
  • TuneCable 6' DB9 tuning cable (unless I have one in my junk pile)
Any details on what, exactly MOD_13571GDSM consists of? I ask because, given that you're doing a parallel install, some other modification might still be necessary. For that reason, it might be preferable to go with the 3.0 PCA as opposed to the 3.57.

Since you have an NB, I would suggest that you at least consider the MS-II CPU. It'll pay for itself in the savings you realize from not having to procure and install an NA CAS and associated wiring.

Quote:
Now my question is, considering that I'm running stock, how important would it be for me to have a wideband?
I wouldn't even dream of tuning a standalone ECU without one, even on an otherwise stock vehicle, but that's just me.
Joe Perez is offline   Reply With Quote
Old 05-22-2008, 01:12 PM   #44
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

Quote:
Originally Posted by Joe Perez View Post
Trying to comprehend what you wrote is making my head hurt. Seriously, is English your primary language?

Finals left me brain dead. I haven't been able to talk straight for the past week

Anyway, electrical stuff isn't my forte, so I tend to ask more about it before I tackle anything regarding electronics. The last thing I would wanna do is **** something before i used the wrong capacitor or I didn't read the schematics for the circuits right (i.e. where things connect and what to follow)
Marc D is offline   Reply With Quote
Old 05-22-2008, 01:21 PM   #45
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

The MOD_13571GDSM code is for Miata / DSM ignition mods with the pull-ups on the ignition inputs and 5 volt ignition outputs. Not quite the same mod version we use on the MSPNP but close.

We'd need to do a bit more testing in-house before we offered any MS-II products set up in our shop for the '99 and later Miata. We stick to mods we've either tested in-house and can guarantee they'll work or a couple mods that have had very extensive testing and we have a good way of bench testing.
Matt Cramer is offline   Reply With Quote
Old 05-22-2008, 01:57 PM   #46
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

I have been following this thread with interest, as I am an NB'er. I have both a 95 and a 96 CAS. It appears that the 96 will offer some benefit over the 95 CAS? I should add, I know the 95 is a 26K mile CAS, whereas, I can only assume the 96 has 150K on it. Are miles an issue?
Stein is offline   Reply With Quote
Old 05-22-2008, 04:32 PM   #47
Newb
Thread Starter

Join Date: Oct 2007
Location: Pacific Northwest
Posts: 22
Total Cats: 0
Default

Quote:
Since you have an NB, I would suggest that you at least consider the MS-II CPU. It'll pay for itself in the savings you realize from not having to procure and install an NA CAS and associated wiring.
I agree with you completely ... but as Matt said they don't have one built yet, and as much as I love a good DIY project, I don't think I have the time to learn to build my own MS-II and do it right.

I've been reading the threads of all the folks who are much more experienced than I when it comes to engine management and building circuits, and I suspect that it would take me a long time to get it built (I travel all week for work, and only have Fri afternoon - Sun evening at home. I can only devote so much time to car projects). By then DIY might just have one for sale.

Now, if Arga or AbeFM would like to build it and come to Seattle to help me install / troubleshoot a parallel install ...

Otherwise, I'm thinking an MS-I is going to be more manageable for me, even if I do have to do some extra wiring.
maharashii is offline   Reply With Quote
Old 05-22-2008, 05:33 PM   #48
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by Matt Cramer View Post
The MOD_13571GDSM code is for Miata / DSM ignition mods with the pull-ups on the ignition inputs and 5 volt ignition outputs. Not quite the same mod version we use on the MSPNP but close.
Cool. I'd not heard of this particular mod package- the OP didn't mention the inputs and I couldn't find a schematic (or even a description) on the website.

Quote:
Originally Posted by Matt Cramer
We'd need to do a bit more testing in-house before we offered any MS-II products set up in our shop for the '99 and later Miata. We stick to mods we've either tested in-house and can guarantee they'll work or a couple mods that have had very extensive testing and we have a good way of bench testing.
What mods do you typically do to the boards?

The reason I ask is that, insofar as I can tell, the hardware side of it would nearly identical for both MS1 and MS2 (and for that matter, NA vs. NB), at least insofar as the "basic" and "intermediate" mods are concerned. The second trigger input is the only one I can think of off-hand that changes- JS10 vs. JS8. Even EBC, Constant Baro, Launch Control and TachOut can use the same pins on MS2 as on MS1. Knock would be a different pin, as would table switching. Same circuit, just a different CPU pin. (and truthfully, I don't expect you guys to be enabling all those features, as getting them to work is probably outside the scope of your average PNP customer's comfort range)

I do understand needing to test the product prior to shipping however. I wonder if this might be a case where a collaborative effort would be in order? IOW- mod a 3.57 PCA to your "standard" Miata spec, then have a third party document the process of getting it reworked and operating to MS-II specs. I don't think it would be all that tricky, particularly if said third party also built and documented the Boomslang harness prior to delivering the complete assembly to the end-user. Said third party might even be able to find someone with an unmolested '99-'00 in the San Diego or LA area willing to be a guinea pig, in exchange for receiving unit #2.


Quote:
Originally Posted by Stein View Post
I have been following this thread with interest, as I am an NB'er. I have both a 95 and a 96 CAS. It appears that the 96 will offer some benefit over the 95 CAS? I should add, I know the 95 is a 26K mile CAS, whereas, I can only assume the 96 has 150K on it. Are miles an issue?
In terms of their design, the '95 and '96 CASs are absolutely identical. The same part. BPE8-18-230. Mazda did not change the cam sensor until '99, even though they added a crank sensor in '96. All Miatas '94 to '97 got the same cam sensor. I would go with the lower-mileage unit.
Joe Perez is offline   Reply With Quote
Old 05-22-2008, 05:38 PM   #49
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Joe Perez View Post
Mazda did not change the cam sensor until '99, even though they added a crank sensor in '96. All Miatas '94 to '97 got the same cam sensor. I would go with the lower-mileage unit.
I was confused and misread crank sensor for cam sensor earlier in the thread. Thanks for clearing that up.
Stein is offline   Reply With Quote
Old 05-22-2008, 07:55 PM   #50
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by maharashii View Post
Now my question is, considering that I'm running stock, how important would it be for me to have a wideband?
You should definitely get one IMO. It pays for itself pretty quickly by taking most of the guesswork out of the tuning; it saves a lot of time and frustration. A WBO2 coupled with data logging (megatune) and megalogviewer is a great tuning tool. I love mine.

You can damage a stock motor with an overly lean mixture. The turbo makes things riskier of course, but that does not mean you are safe with no turbo. I guess you could just load up the very conservative PNP map and be OK, but, you are really going to want one eventually (with the turbo), so why not play it safe now? Plus even NA (no turbo) you can get it running better versus the PNP map, and it gives you a chance to get your tuning skills in shape before the turbo goes in.

In short, play it smart, get one.
ZX-Tex is offline   Reply With Quote
Old 05-23-2008, 02:09 AM   #51
Newb
Thread Starter

Join Date: Oct 2007
Location: Pacific Northwest
Posts: 22
Total Cats: 0
Default

Good point. The biggest reason I'm planning to install the MS now is so I can learn to tune it before I get the turbo. Wideband it is.
maharashii is offline   Reply With Quote
Old 05-23-2008, 09:29 AM   #52
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

Mod codes are not listed on our website - when special ordering something, we usually set up the order by email and have a chance to explain to the buyer what they are.

The thing with the MS2/Extra mods is that we'd like a bit more experience with what could potentially go wrong with the mods before we ship a unit. If there are any hidden "gotchas" to either the mods or the code, we don't want to find out from a frustrated customer first if it can be avoided.

For example, not long after the MS2/Extra direct coil control mods came out, a bunch of controversy erupted over whether VB921s needed 330 ohm or 750 ohm resistors, with people arguing over issues with the larger resistors not starting in cold weather and noise issues. If we'd picked the wrong version of the mod when it first came out, we'd have had quite a few recalls on our assembled units. So we waited a bit, and did some testing of our own. Those Bosch BIP373s we sell, we did all kinds of crazy things to make sure we knew what could go wrong - trying to fry them with too much current, sticking them in the freezer, virtually every torture test we could imagine.
Matt Cramer is offline   Reply With Quote
Old 05-23-2008, 04:03 PM   #53
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

I've not been keeping up with my beloved MiataTurbo.net. Sorry folks.

The biggest troubles I had with the whole standalone were 1) not enough electrical damping on the VICS valve. Needed a good diode, might need more than I gave it. It was masked by other problems. 2) The input circuits. As mentioned elsewhere, I just copied the OEM circuit. I figure it's reliable enough for mazda, it must be reasonable. So far I've had no reason to doubt it.

Honestly, in a no-holds-barred build, I'd do a multi-toothed wheel, though I'm not sure about decoding the VR in the MS verses on the sensor. But it seems to work, so I can't really argue with that. The cam sensor is used so poorly by the MS I don't know why they bother. In fact, there was a bug in the code where it ALWAYS thought it was on cylce one, never two, and it didn't change anything, except the motor starts slower.

As fas as the inputs go, it's really very simply, a handful of resistors, one cap, and one 8 pin chip. That gets you from DB37 to CPU.



Quote:
Originally Posted by Joe Perez View Post
I went through the ECU wiring pretty carefully (or at least, as carefully as a person can while standing on his head for three hours under the baking sun in a flat black car on a 100 day, watching other people drink his beer)...
Still bitter about it? :-) I'll either bring by the two liter growler, or you come down and get it. :-) Last night we had 4 MS folks in the house - with 5 MS between them. Three mazdas. Pretty good times, though it's shocking how fast that bores the girlfriend. :-)

Quote:
While trying to figure this out, Abe pointed out that we had no idea what the stock ECU was trying to do with the IAC valve- aargh! One of the frustrations of a parallel install.
That's my biggest issue with parallel installs. You're always guessing what's going on.

Quote:
Originally Posted by Joe Perez View Post
On the other hand, there are some things with MS1 that are easier. As far as I know, MS2 does not have a working closed-loop idle, so in a standalone configuration you have to fiddle around with duty cycles and such. With MS1, you just enter a couple of target RPM values and some DC limits, and it auto-seeks the idle you've told it to.


.... In my case, dealing with my CAS (which I believe to have simply been marginal) was a living nightmare- hence my crankwheel project.
The MS-II does indeed have closed loop idle. They brush over the details and call it a PID closed loop, when really it's just some weird, poorly written function the takes an input and varies an output (not quite at random), but many people have it set up well enough. But my MS idles so smooth, I've found it much more prudent to just raise the RPM 100, and let the loads come as they may. It's never flinched or misbehaved since the switch.

The crankwheel is the way to go. I only did the stock sensors to prove it could be done.


Quote:
Originally Posted by Joe Perez View Post
Here is some further info on the NB wheels: http://www.msextra.com/ms2extra/MS2-Extra_Miata.htm I'm not sure why it says '99-'00 only, it's possible that the wheels changed in '01. I only have parts catalogs and docs going up to '99.
The wheels on the later car are identical, only the phasing varies with VVT. Unless the angle varies so much as to move the pulses out of the range between the two crank teeth, there's no issue - as you said, it's only used for determiing TDC. As I understand it, you could just put it on any NB miata, but no garuntees. However, if there was an issue, I'm pretty sure just a small phase difference (moving either sensor a few degrees) would solve it.



Lastly, just a bit of advice. If it were me, I'd run a standalone. More of my problems came from either wiring or operational issues trying to get the two computers to work nicely together. If I was concerned for smog, I could put the system together with a well thought out boomslang, and just swap to the OEM ECU (and maybe injectors if applicable) for the tests. Absolutely not worth the headache.

Someday, someday, I'll write a 99+ guide.
AbeFM is offline   Reply With Quote
Old 05-26-2008, 04:19 PM   #54
Senior Member
iTrader: (19)

Join Date: Oct 2007
Location: MoCo, MD
Posts: 703
Total Cats: 0
Default



I spent a couple hours Friday night with the soldering iron and I have a "functional" MS-II board.

I am about to begin:

"Input Section Construction & Testing

42. Remove the processor from the 40-pin socket - use a thin screwdriver and pry it from the socket, first one end, then the other - place it back on the foam pad it was shipped with. Now, you are going to install all of the input sensor components. "

What I'm having trouble with is:


Quote:
22. Now you need to make a decision on the first 'optional' component: if you are going to use an IAC stepper motor with MegaSquirt-II, you must install a jumper from the hole marked S12C to the hole marked JS9 (+12C). These are on the bottom side of the board, on the DB9 side of the processor.

On a '99, do I want to install this jumper?

Also, about the crank input I want to duplicate for the cam. Could someone explain what I'm doing here? This is where I am really lost. If someone can give me pin by pin instructions () I will make it worth your while; beer, MS Parts, etc.

Thanks
pschmidt is offline   Reply With Quote
Old 05-26-2008, 04:22 PM   #55
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

We don't use a stepper IAC so you don't need that mod. Can't answer your input mod question, sorry.
cjernigan is offline   Reply With Quote
Old 05-26-2008, 04:35 PM   #56
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by pschmidt View Post
Also, about the crank input I want to duplicate for the cam. Could someone explain what I'm doing here? This is where I am really lost.
Which circuit did you build for the crank input?

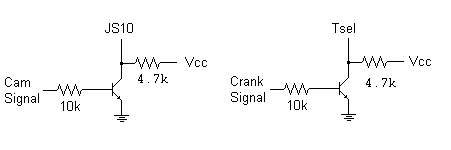

The most basic cam input circuit, which most people use, is the one described in DIY's How to Megasquirt your Mazda Miata article. The article is written for an NA, however the electrical characteristics of the sensors on the NB are virtually identical.
Quote:
"CMP Signal" -- Lay a 1k 1/4watt resistor across the bottom of the PCB with one end at pin 11 of the processor (U1) and the other end at the IAC1A hole. Bend the resistor leads to raise the resistor just a bit off of the PCB and allow a lead on one end to drop through IAC1A and solder that end in place (while making sure the other end is in place near pin 11 still, and with the resistor still raised a bit off the board so the leads don't short against anything). Then use needle-nose pliers to hold the resistor lead to pin 11 and solder it to the pin. Now to get the 5v pullup use a 470 ohm 1/4w resistor and solder one end of it to the leg of the first resistor to IAC1A and the other leg of it to the 5v+ hole just above the proto area. (This is a long reach so you'll need to use a bit of wire to get across the board.) Once again raise this just enough off of the PCB to prevent it from shorting with any of the leads sticking out on the board. (Heatshrink tubing over the whole wire/resistor assembly works nicely)
Alternately, you could follow the instructions in the MS2Extra manual. Their circuit is, in my opinion preferable, since it optoisolates the CPU and is more or less identical to the primary input circuit: http://www.msextra.com/ms2extra/MS2-...tion.htm#2hall
Joe Perez is offline   Reply With Quote
Old 05-26-2008, 07:37 PM   #57
Senior Member
iTrader: (19)

Join Date: Oct 2007
Location: MoCo, MD
Posts: 703
Total Cats: 0
Default

Thanks guys.

I built both inputs for the crank signal like the manual suggests. From Braineaks's DIY it looks like I didn't need both. Is that an issue, or can I just jumper what I need active?

The circuit here:
http://www.msextra.com/ms2extra/MS2-...tion.htm#2hall

I think I understand it. I apologize for being so new to this.

I understand where the resistors go, and what to solder to with JS10 for example. Where I get lost is with the meaning of the numbers next to the right angles in the diagram? Are those the pins for the 4N25 opto isolator? If so, where do I want to build that circuit? Proto area? If so, I think I have it down.

Thanks again.
pschmidt is offline   Reply With Quote
Old 05-26-2008, 08:02 PM   #58
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by pschmidt View Post
Thanks guys.

I built both inputs for the crank signal like the manual suggests. From Braineaks's DIY it looks like I didn't need both. Is that an issue, or can I just jumper what I need active?
You built both the VR and the Opto input? No problem. Leave the VR circuit alone and just jumper the opto circuit.

Quote:
The circuit here:
http://www.msextra.com/ms2extra/MS2-...tion.htm#2hall

I think I understand it. I apologize for being so new to this.

I understand where the resistors go, and what to solder to with JS10 for example. Where I get lost is with the meaning of the numbers next to the right angles in the diagram? Are those the pins for the 4N25 opto isolator? If so, where do I want to build that circuit? Proto area? If so, I think I have it down.
Again, you can make the CMP input circuit simple or complex. If you do it with just the two resistors like everybody else, that's simple. Or you can build the one linked to above, and personally I think it's a better design.

The numbers are indeed the pin numbers on the 4N25.

Are you building standalone or parallel?
Joe Perez is offline   Reply With Quote
Old 05-26-2008, 08:17 PM   #59
Junior Member

Join Date: Oct 2005
Location: New Hampshire
Posts: 248
Total Cats: 0
Default

While I can see Abe's point on going parallel I don't agree with him 100% once you have control of idle, fuel and spark I don't see how the OEM ECU can effect anything other then the EGR valve.

But, as Abe mentioned I built a boomslang like harness with a couple SPDT switches that allow enabling and disabling the megasquirt. I also have a MS-II built, I used the standard spark outputs and 2N2222A transistors for inputs coupled to TSEL and JS-10. I hope to test the system next weekend.

Here is the circuit for a Parallel install, Arga designed it.
Attached Images
File Type: bmp isolator.bmp (8.8 KB, 173 views)

Last edited by kingofl337; 05-27-2008 at 01:34 AM.
kingofl337 is offline   Reply With Quote
Old 05-26-2008, 09:33 PM   #60
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Quote:
Originally Posted by kingofl337 View Post
While I can see Abe's point on going parallel I don't agree with him 100% once you have control of idle, fuel and spark I don't see how the OEM ECU can effect anything other then the EGR valve.
Exactly. YOU don't see it, but the fact is it still happens. Listen to Abe. He knows his ****. I ran MS parallel on my 99. I had too many problems. I'm going standalone now to get rid of all the nonsense and headache.
patsmx5 is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Project Gemini - Turbo Civic on the Cheap Full_Tilt_Boogie Build Threads 57 07-19-2017 05:11 PM
WTB MP62 (Hotside) (NB2) Rick02R WTB 3 01-03-2016 08:18 PM
Expected intake temps on the track? tazswing Race Prep 20 10-03-2015 12:04 PM
Going back to stock. Need some 1.6 parts. Trent WTB 2 10-01-2015 01:15 PM
1996 Turbo Build Goldwar DIY Turbo Discussion 2 09-29-2015 10:20 AM


Tags
1999, megasquirt

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 10:23 AM.
