Default MPG gauge in MT

I thought it may serve to provide some interesting data feedback... I just can't find any info on setting it up.

Anyone done this?
chucker is offline   Reply With Quote
Old 08-10-2008, 11:22 PM   #2
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

I'm more interested in hooking up the VSS so the logs can be used for calculating torque/HP curves.
Arkmage is offline   Reply With Quote
Old 08-10-2008, 11:26 PM   #3
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

<-- VSS for me too.
Splitime is offline   Reply With Quote
Old 08-10-2008, 11:33 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

datalog hp curves are ok for run-to-run tuning but pretty worthless for anything else.

I wonder if i can make an equation in MLV to calculate instant MPG on the hydra.
y8s is offline   Reply With Quote
Old 08-10-2008, 11:44 PM   #5
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

there's an "instant mpg" gauge in MLV, only problem is it only lets you enter 1 gear ratio so i guess it would only make sense on the highway unless you knew what gear you were in
Mach929 is offline   Reply With Quote
Old 08-11-2008, 12:42 AM   #6
Junior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2007
Location: santa cruz
Posts: 246
Total Cats: 0
Default

Quote:
Originally Posted by Mach929 View Post
there's an "instant mpg" gauge in MLV, only problem is it only lets you enter 1 gear ratio so i guess it would only make sense on the highway unless you knew what gear you were in
Cruise is all I would be concerned with anywayz... can you link it? I ain't fuond ****
chucker is offline   Reply With Quote
Old 08-11-2008, 09:19 AM   #7
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

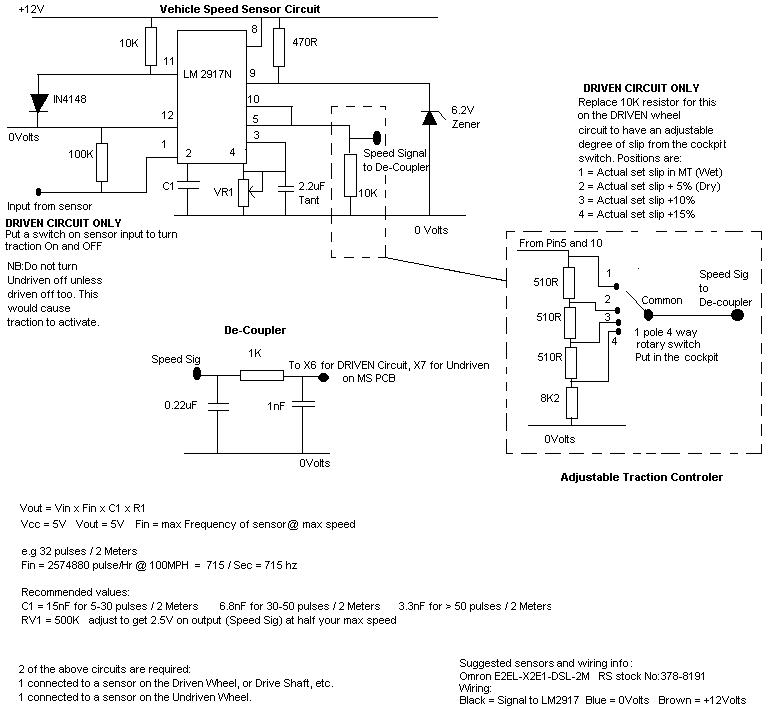

The VSS input was experimental and the documentation vanished when they moved from Sourceforge to MSExtra. But I saved a copy of the schematic - here it is. I haven't tested it myself.
Attached Thumbnails
MPG gauge in MT-vss.jpg
Matt Cramer is offline   Reply With Quote
Old 08-11-2008, 10:39 AM   #8
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

Quote:
Originally Posted by chucker View Post
Cruise is all I would be concerned with anywayz... can you link it? I ain't fuond ****
it's in mlv not in megatune so you'll only be able to see it through logs, it's in optional fields i think, you need to enter the parameters, i played with it quickly seems accurate enough based on my mileage calculations at the pump
Mach929 is offline   Reply With Quote
Old 08-11-2008, 11:34 AM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

sadly the hydra uses weird variable names so I have to go in and rebuild all the equations with the different names... i'll have to check out the EQ if it's editable.
y8s is offline   Reply With Quote
