Default Ms1 help

95 MS1 turbo with built motor. Car starts and runs for 2-3 seconds and dies. I'm new to this computer tuning so please bear with me. I have a base tune that was a mega tune file. I updated the ecu firmware and loaeded the msq I have. any help is appreciated
Attached Files
File Type: msl 2014-08-25_18.21.40.msl (58.4 KB, 76 views)
LooneyJam is offline   Reply With Quote
Old 08-25-2014, 08:54 PM   #2
Newb
Thread Starter

Join Date: Nov 2013
Posts: 32
Total Cats: 0
Default

I got it to run for a longer amount of time..... hope this helps
Attached Files
File Type: msl 2014-08-25_18.40.36.msl (16.0 KB, 65 views)
LooneyJam is offline   Reply With Quote
Old 08-25-2014, 09:11 PM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I'm not going to take the time to look, but is it the non-AFM map from this site?

MegaSquirtPNP by DIYAutoTune.com
curly is offline   Reply With Quote
Old 08-25-2014, 09:31 PM   #4
Newb
Thread Starter

Join Date: Nov 2013
Posts: 32
Total Cats: 0
Default

no its that came with the turbo kit I purchased from a good guy. It's a tune from Synapse in NY. the only difference from my set up to the guy I purchased from is I have stock intake, tb and ignition. He had custom int, big tb and cop ign
LooneyJam is offline   Reply With Quote
Old 08-25-2014, 09:43 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Take a screen shot of the dwell settings and spark settings menus, post them here.
curly is offline   Reply With Quote
Old 08-25-2014, 10:17 PM   #6
Newb
Thread Starter

Join Date: Nov 2013
Posts: 32
Total Cats: 0
Default

Here ya go
LooneyJam is offline   Reply With Quote
Old 08-25-2014, 10:27 PM   #7
Newb
Thread Starter

Join Date: Nov 2013
Posts: 32
Total Cats: 0
Default

sorry files are too big. working on it
LooneyJam is offline   Reply With Quote
Old 08-25-2014, 10:33 PM   #8
Newb
Thread Starter

Join Date: Nov 2013
Posts: 32
Total Cats: 0
Default

got it
Attached Thumbnails

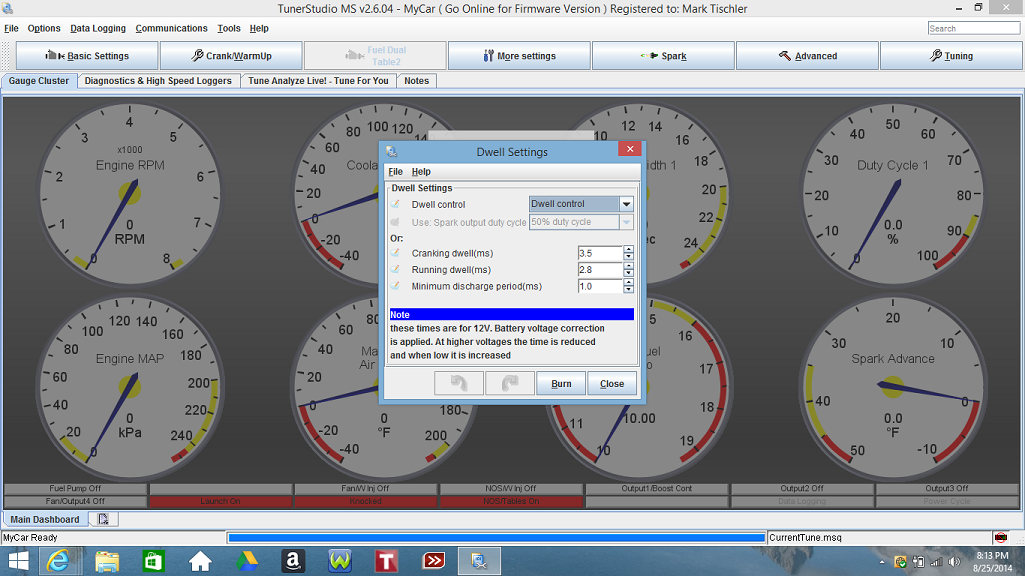

Ms1 help-screenshot-1-.png
LooneyJam is offline   Reply With Quote
Old 08-25-2014, 10:34 PM   #9
Newb
Thread Starter

Join Date: Nov 2013
Posts: 32
Total Cats: 0
Default

and.....
Attached Thumbnails

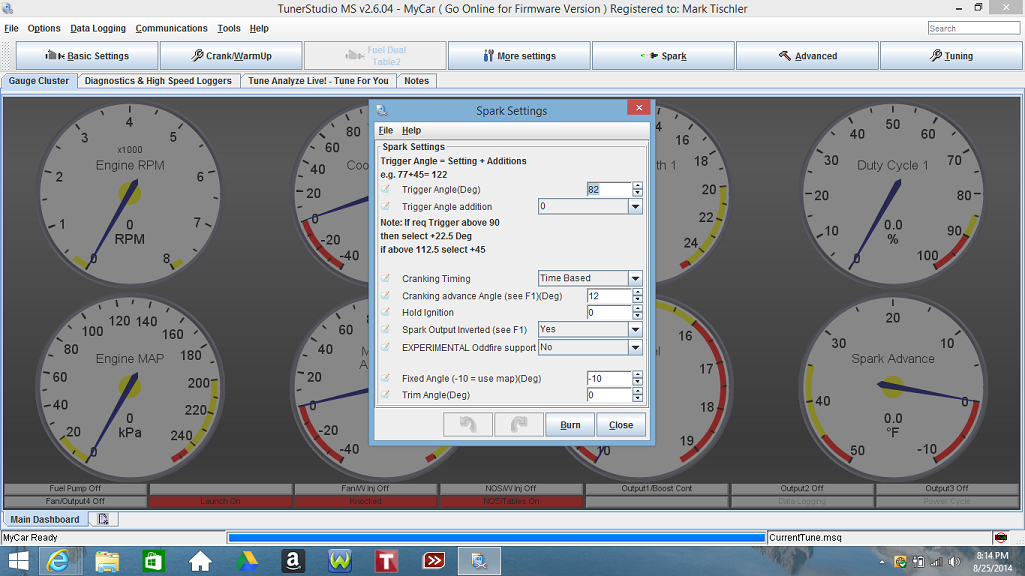

Ms1 help-screenshot-2-.png
LooneyJam is offline   Reply With Quote
Old 08-26-2014, 12:04 AM   #10
Senior Member
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

Dwell is too short for oem coils, good for cops though.

Try these dwell settings:

crank = 10
running = 5
min discharge = 0.5

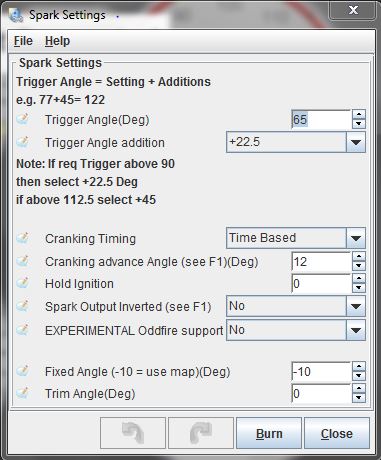

Also do this:

Attached Thumbnails
Ms1 help-capture.jpg
inferno94 is offline   Reply With Quote
Old 08-26-2014, 12:08 AM   #11
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Yeah careful though, if you switched MS units, one could have the spark mod, one could not. So that "spark output inverted" could mean the difference between ruining your coils, and not ruining your coils.

I believe inferno is referring to your trigger angle addition.
curly is offline   Reply With Quote
Old 08-26-2014, 12:16 AM   #12
Newb
Thread Starter

Join Date: Nov 2013
Posts: 32
Total Cats: 0
Default

So I should add the +22.5, I didn't fully understand this in all the reading I've done. All directions were pretty short. I was assuming you add the 22.5 if your angle was over 92 or something like that. The help is really appreciated and I will make the changes after work tomorrow.
LooneyJam is offline   Reply With Quote
Old 08-26-2014, 12:24 AM   #13
Senior Member
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

Quote:
Originally Posted by curly View Post
Yeah careful though, if you switched MS units, one could have the spark mod, one could not. So that "spark output inverted" could mean the difference between ruining your coils, and not ruining your coils.

I believe inferno is referring to your trigger angle addition.
Exactly, should've circled that.
inferno94 is offline   Reply With Quote
Old 08-26-2014, 06:44 PM   #14
Newb
Thread Starter

Join Date: Nov 2013
Posts: 32
Total Cats: 0
Default

Ok, put in the settings recommended and it still does the same thing. Even worse, now it starts and runs for one second and dies. I'm starting to get aggrevated and loose hope that I will ever drive this thing
LooneyJam is offline   Reply With Quote
Old 08-26-2014, 06:48 PM   #15
Newb
Thread Starter

Join Date: Nov 2013
Posts: 32
Total Cats: 0
Default

Coils are hot and prob fried as it has no spark all of the sudden.
LooneyJam is offline   Reply With Quote
Old 08-26-2014, 10:45 PM   #16
Newb
Thread Starter

Join Date: Nov 2013
Posts: 32
Total Cats: 0
Default

So with the settings mentioned it would fire and die. Then it lost spark. The coils were pretty hot so I figured I fried them. The resistance checks out ok across the posts tho. Kinda lost now. Any ideas?
LooneyJam is offline   Reply With Quote
Old 08-27-2014, 01:04 AM   #17
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Reload base map, ditch this current one. Figure out if you have the spark mod or not, change spark inversion accordingly. Try again with a fresh set of coils, either off another car or new.
