Old 10-19-2008, 08:14 PM   #21
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by apariah View Post
Their are 3 of us around here now? BTW, my VE Table shows whole numbers nothing with a decimal, or anything that I recognize as a A/F Ratio Hustler where did you go to get that table?
hustler is offline   Reply With Quote
Old 10-19-2008, 08:49 PM   #22
Senior Member

Join Date: Apr 2008
Location: NHR, TX
Posts: 536
Total Cats: -2
Default

Quote:
Originally Posted by johndoe View Post
maybe you should post a screen shot of your AFR table before you get ahead of yourself.

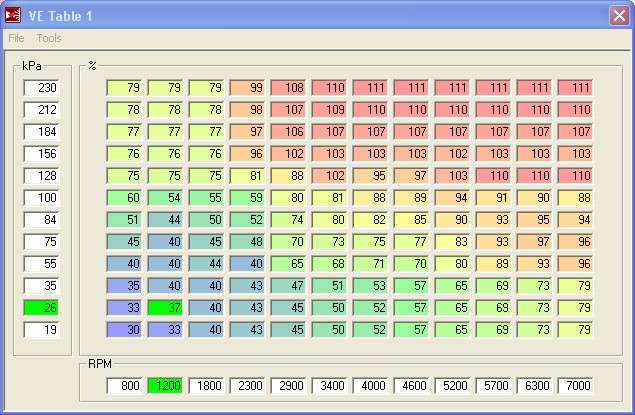

Johndoe, I think this is the table you were asking about.
Attached Thumbnails
NA car, WOT, how lean is OK-vetableapariah.jpg
apariah is offline   Reply With Quote
Old 10-19-2008, 11:21 PM   #23
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

nope. go to "More Settings" and then "AFR Targets for VE Table 1" in megatune
johndoe is offline   Reply With Quote
Old 10-19-2008, 11:44 PM   #24
Senior Member

Join Date: Apr 2008
Location: NHR, TX
Posts: 536
Total Cats: -2
Default

Quote:
Originally Posted by johndoe View Post
nope. go to "More Settings" and then "AFR Targets for VE Table 1" in megatune
Both Tables 1 and 2 are gray, I can't access them.
apariah is offline   Reply With Quote
Old 10-20-2008, 12:30 AM   #25
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

That's because also under "More Settings" and then under "Lambda AFR Settings" you have the 8x8 AFR Table for VE Table 1 turned off. Which is fine if you're not using EGO and you're not using this table to tune with Megalogviewer. But you should use Megalogviewer to tune if you're not tuning in real time with someone else driving. So if you do use MLV (use it!) you either have to use the AFR table I've described in Megatune or use the AFR table in MLV itself which looks like this:

The actual numbers for either table you will have to input yourself. Read up on what is a sensible AFR for different load and RPM situations. The one I've posted is on the rich side in boost and biased towards emissions in cruise instead of MPG. Also, reading the Megamanual again will make some of this stuff more clear.
johndoe is offline   Reply With Quote
Old 10-20-2008, 12:44 AM   #26
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

johndoe,
why are you running your **** so fat at max boost?
hustler is offline   Reply With Quote
Old 10-20-2008, 12:49 AM   #27
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by hustler View Post
johndoe,
why are you running your **** so fat at max boost?
If I had to guess, because he likes his **** to run and not break. Also some engines make more power with richer mixtures than others. My 99 likes 12:1 at no boost. I run 12.5 or 13 and it's slow and will get a high RPM miss. Hell it misses if I idle it leaner than 12.5. But it's butter smooth at 11:1 idle. I dunno why but some motors like fuel. And plus it gives him a safety margin. Some people will take reliability over a possible 5% gain in power, or just dial in an extra pound of boost and run rich and make the same power with less chance for knock or any lean condition.
patsmx5 is offline   Reply With Quote
Old 10-20-2008, 12:53 AM   #28
Senior Member

Join Date: Apr 2008
Location: NHR, TX
Posts: 536
Total Cats: -2
Default

Is that why I couldn't use VE Analyze a second ago. The only thing really strange about that is I used it a few days ago, and everything went fine. The only difference is I updated to the most recent version of MLV today, I'm about to reinstall from the CD and try it again.
apariah is offline   Reply With Quote
Old 10-20-2008, 12:57 AM   #29
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

Quote:
Originally Posted by patsmx5 View Post
And plus it gives him a safety margin. Some people will take reliability over a possible 5% gain in power, or just dial in an extra pound of boost and run rich and make the same power with less chance for knock or any lean condition.
Bingo. It's my only car and my only way to get to work. If I lose a little bit of HP I'm okay with that if that means I have a better chance of it not blowing up my stock motor. Anywho compared to N/A it is fast as ****. I can live without that extra 5%.
johndoe is offline   Reply With Quote
Old 10-20-2008, 12:59 AM   #30
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by apariah View Post
Is that why I couldn't use VE Analyze a second ago. The only thing really strange about that is I used it a few days ago, and everything went fine. The only difference is I updated to the most recent version of MLV today, I'm about to reinstall from the CD and try it again.

No
paul is offline   Reply With Quote
Old 10-20-2008, 01:00 AM   #31
Senior Member

Join Date: Apr 2008
Location: NHR, TX
Posts: 536
Total Cats: -2
Default

I'm getting the message "Please set top table to the VE table yo wish to analyze" I'm also not getting the prompt to accept the new table when I open the new table in MLV.

Quote:
Originally Posted by johndoe View Post
Bingo. It's my only car and my only way to get to work. If I lose a little bit of HP I'm okay with that if that means I have a better chance of it not blowing up my stock motor. Anywho compared to N/A it is fast as ****. I can live without that extra 5%.

Last edited by apariah; 10-20-2008 at 01:18 AM.
apariah is offline   Reply With Quote
Old 10-20-2008, 01:24 AM   #32
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

#1 make sure you have your most recent MSQ loaded in MLV that you were using when you made your log. #2 Make sure you are using sensible AFR table with the VE analyzer. #3 Reread the Megamanual and search posts here about MLV. There are several. It's kind of pointless to tune if you don't know what's going on.
johndoe is offline   Reply With Quote
Old 10-20-2008, 01:28 AM   #33
Senior Member

Join Date: Apr 2008
Location: NHR, TX
Posts: 536
Total Cats: -2
Default

Clearly I'm confused "Again" back to reading again.
apariah is offline   Reply With Quote
Old 10-20-2008, 02:19 AM   #34
Senior Member

Join Date: Apr 2008
Location: NHR, TX
Posts: 536
Total Cats: -2
Default

Everything I read tells me to do this, "Please set top table to the VE table you wish to analyze".

The only difference I see is the upgrade, and i've reinstalled since, and now I get a please register prompt, could that be the cause?
apariah is offline   Reply With Quote
Old 10-20-2008, 11:42 PM   #35
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

so how do I determine what my target AFR's should be?
hustler is offline   Reply With Quote
Old 10-21-2008, 12:04 AM   #36
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

you go by what some others on this forum that have more experience than you have gone with and posted
paul is offline   Reply With Quote
Old 10-21-2008, 11:24 AM   #37
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Deleted
Saml01 is offline   Reply With Quote
