Default Noob struggles SURPRISE!

1991 Miata 1.6
Td04 16t
Megasquirt plug and play
Afm delete
GM IAT
MTUNED COOLANT REROUTE
FM Radiator
Aem uego wideband
Flow force injectors 620
Dw300 fuel pump
DIYAUTOTUNE ebc not hooked up until I get the tune dialed in
FM intercooler
Gated at 6psi

So I set up my injectors per ff injectors recommended settings. I set timing to 10 running fixed timing. I set up my uego and it's reading identical to gauge.

My question why do I keep getting erratic idle speeds and afrs without even changing any settings. With the car up to temp it still fluctuates.
I thought maybe my manifold gasket leak so I sprayed a little started fluid around each runner and I didn't get fluctuations. The only thing I can do to make it manageable is ten and ground jumper.
Also it took a ton more fuel to control some rediculous lean spikes in idle throttle increase. A lot a lot . I got the majority of my afr to be below 14 and I can get it to idle around 14.7 with fluctuations even with the jumper.
Does this make any sense to anyone. Tomorrow I'm gonna try to post up some data logs and screen shots. My ve tables are wacked now so I could get it to kinda idle right and get my afrs in check


I bought the upgraded tuner studio a while ago and the never sent me the registration number so I can't autotune dick lol.
Hificruzer226 is offline   Reply With Quote
Old 04-16-2016, 10:11 PM   #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Screenshot of your deadtime settings? Originally the GT500 injector deadtimes were measured incorrectly.

https://www.miataturbo.net/diy-turbo...or-help-86901/
aidandj is offline   Reply With Quote
Old 04-16-2016, 10:15 PM   #3
Junior Member
Thread Starter

Join Date: Dec 2015
Posts: 203
Total Cats: -6
Default

1.12ms @ 13.2v with a 0.144ms/v battery voltage correction
Hificruzer226 is offline   Reply With Quote
Old 04-16-2016, 10:17 PM   #4
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Should be fine. What is your idle valve set to?

grounding ten wont do anything with the megasquirt. So if thats changing something then its just placebo.
aidandj is offline   Reply With Quote
Old 04-16-2016, 10:33 PM   #5
Junior Member
Thread Starter

Join Date: Dec 2015
Posts: 203
Total Cats: -6
Default

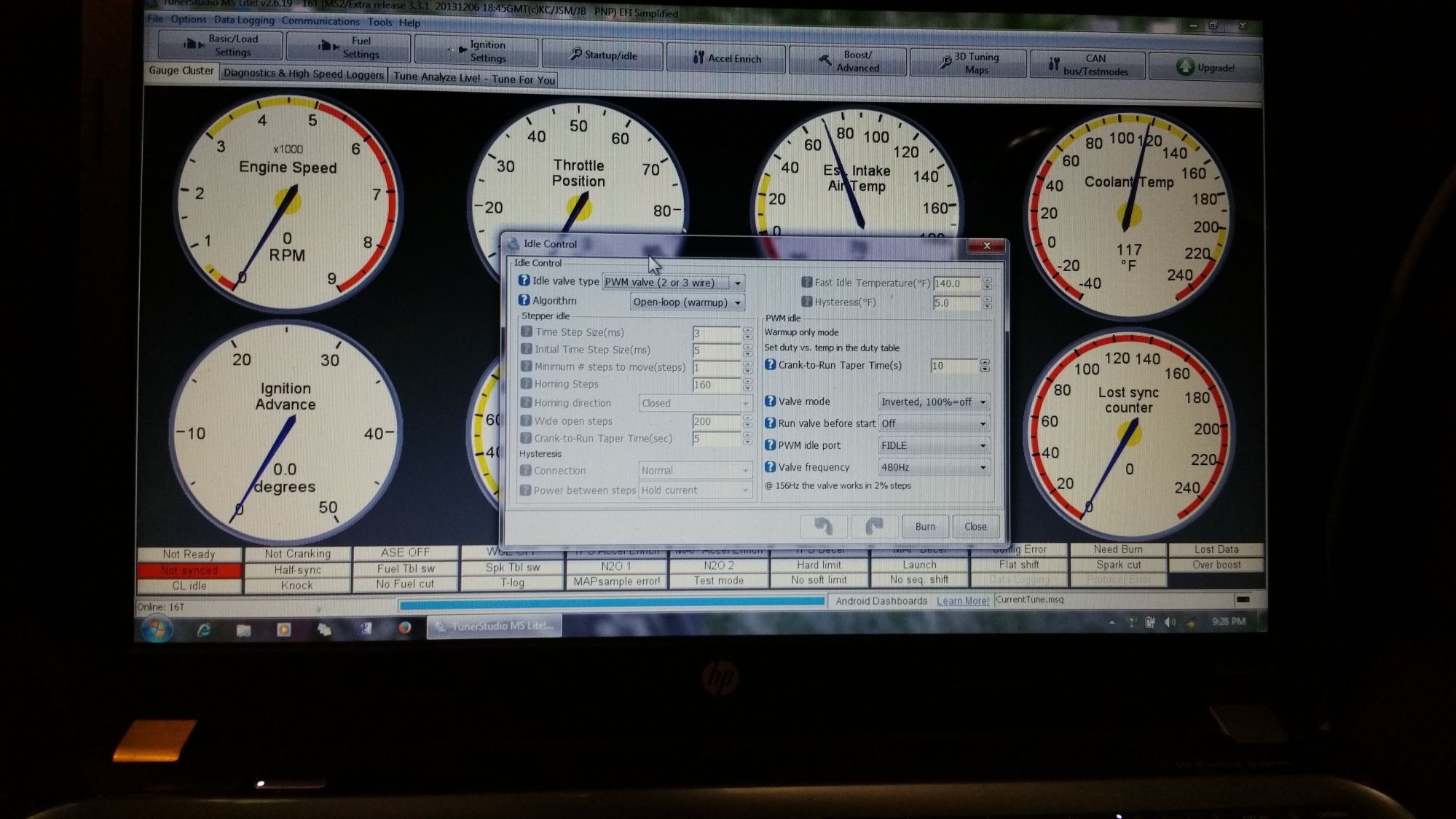

Open loop and pwm valve.<br/>Crank to run 10<br/>Inverted ,100%=off valve mode<br/>Fidle pwm idle port,<br/>Run valve before start is off<br/>Valve frequency 480
Attached Thumbnails
Noob struggles SURPRISE!-80-1460856538276_406157777_2fc480472ac3571ee9ba13b3037b9cf7bacffb58.jpg
Hificruzer226 is offline   Reply With Quote
Old 04-16-2016, 10:37 PM   #6
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Post tune and log.
aidandj is offline   Reply With Quote
Old 04-16-2016, 10:40 PM   #7
Junior Member
Thread Starter

Join Date: Dec 2015
Posts: 203
Total Cats: -6
Default

Quote:
Originally Posted by aidandj View Post
Post tune and log.
OK I will load it up tomorrow. I appreciate all the rediculously fast help.
Hificruzer226 is offline   Reply With Quote
