Old 07-14-2015, 06:08 AM   #1
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default Reverent MS3 basic, My tune, NB 05 VCT NA 149hp !

FM's Randall intake

Magnaflow cat

Racing beat header

Squaretop from the factory (EUDM car)

Basic MS3 from Rev

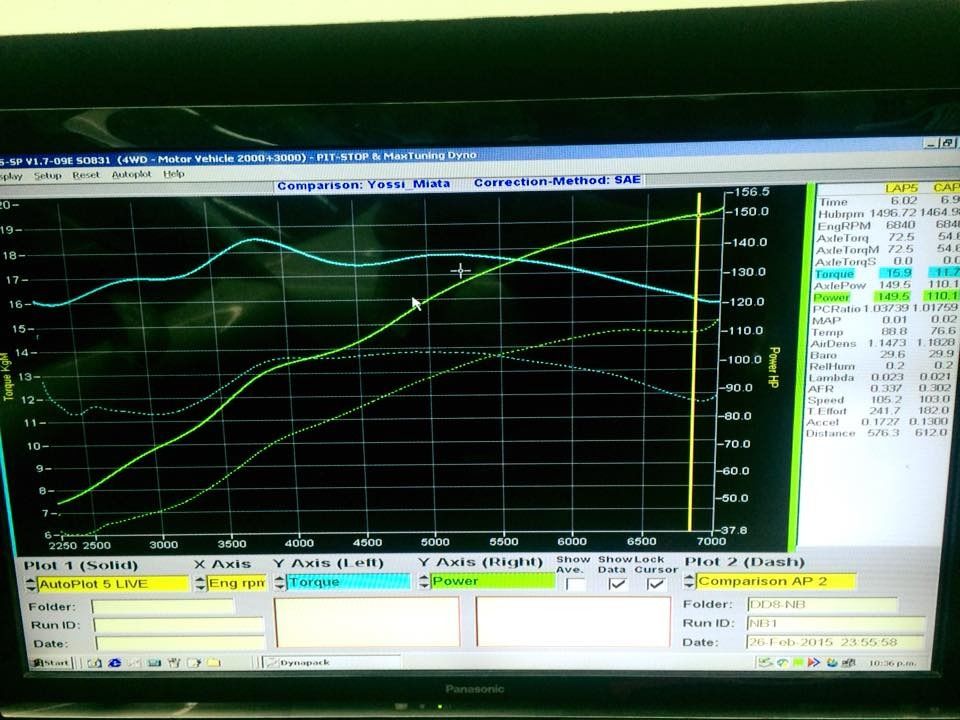

149 whp at 6850 rpm and 181 nm peak numbers.

Lower graph is stock + intake only.

Job done !


Attached Thumbnails
Reverent MS3 basic, My tune, NB 05 VCT NA 149hp !-80-11742826_10153438095359719_6932421107326419394_n_zpsgczcr039_9264f92a010a1886728c5639490f3391.jpg

Last edited by elior77; 07-20-2015 at 03:51 PM.
elior77 is offline   Reply With Quote
Old 07-16-2015, 10:23 AM   #2
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Almost 200 views and no replay... Much haters...
elior77 is offline   Reply With Quote
Old 07-16-2015, 10:30 AM   #3
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 698
Total Cats: 48
Default

jpreston is offline   Reply With Quote
Old 07-16-2015, 11:55 AM   #4
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,048
Total Cats: 4
Default

Seems high


Happy now?
Efini~FC3S is offline   Reply With Quote
Old 07-16-2015, 12:41 PM   #5
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Don't know why I come back here every time, I'm not even really gay.
elior77 is offline   Reply With Quote
Old 07-16-2015, 12:42 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Denial is the 1st hurdle to overcome.
So you want us to believe you picked up 40hp from a header and ms3?
18psi is offline   Reply With Quote
Old 07-16-2015, 12:50 PM   #7
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Attached Thumbnails
Reverent MS3 basic, My tune, NB 05 VCT NA 149hp !-80-homosexuals_are_gay_142108_e50b28f797e663db2e87c300485cc469a044f059.png
elior77 is offline   Reply With Quote
Old 07-16-2015, 12:59 PM   #8
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

What do you suggest ? it is a fake ?

How can dynapack lie ?
elior77 is offline   Reply With Quote
Old 07-16-2015, 06:43 PM   #9
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

Quote:
Originally Posted by elior77 View Post
What do you suggest ? it is a fake ?

How can dynapack lie ?
Dynapack is a heartbreaker, and that number is really high even for a dynojet. Either you've got some secret sauces, or something ain't right.

Stock exhaust?
Stealth97 is offline   Reply With Quote
Old 07-16-2015, 07:01 PM   #10
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Racing beat
elior77 is offline   Reply With Quote
Old 07-17-2015, 12:07 AM   #11
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 420
Total Cats: 8
Default

They do that pull in 4th on your 6 sp? or its calculated flywheel power? Im with 18psi on this one. 40 hp with a header and tune.....
Twibs415 is offline   Reply With Quote
Old 07-17-2015, 05:02 AM   #12
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

4th.

Reverent, with similar setup, got similar results.
elior77 is offline   Reply With Quote
Old 07-17-2015, 11:11 AM   #13
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 420
Total Cats: 8
Default

Yeah you guys messed up....
Twibs415 is offline   Reply With Quote
Old 07-17-2015, 12:41 PM   #14
Junior Member

Join Date: Sep 2013
Location: Israel
Posts: 418
Total Cats: -43
Default

The car is mine. I followed Emilio's 150~ whp plan step by step. What's the problem?
yossi126 is offline   Reply With Quote
Old 07-17-2015, 12:50 PM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

What's emilio's 150whp step by step again? Cause I actually went through several of his threads and they all involved a whole lot more than header + tune to gain 40hp or 150whp total.
At first I thought the dyno is high reading (most dynapacs are), but your baseline of 110 is about what would be expected.

I'm not saying anything is fake, but I know for a fact a miata doesn't gain 40hp with a header and tune.

If you counted the flattop, intake, etc. as mods that might make sense, but he said your baseline included all those, so again, this makes no sense.

I'm not calling anything fake or anyone a liar.....But we all have enough brains to see things not adding up here.
18psi is offline   Reply With Quote
Old 07-17-2015, 01:03 PM   #16
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 420
Total Cats: 8
Default

The pulls were done in the wrong gear. 4th on a 6 sp isn't 1:1
Twibs415 is offline   Reply With Quote
Old 07-17-2015, 01:05 PM   #17
Junior Member

Join Date: Sep 2013
Location: Israel
Posts: 418
Total Cats: -43
Default

European and US cars outputs the same horsepower stock, It's when you start tuning you see gains from a squaretop. Fuel is 98 ron which is equivalnet to your 93 so it also helped.
yossi126 is offline   Reply With Quote
Old 07-17-2015, 01:09 PM   #18
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

A higher flowing manifold is going to flow more air regardless. Maybe it's the better fuel (we have 91 here). I don't know. IF it's actually putting down those numbers, congrats
18psi is offline   Reply With Quote
Old 07-17-2015, 08:46 PM   #19
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,308
Total Cats: 1,326
Default

Stock airbox, MAF, mid pipe and muffler?

I'm not seeing 155whp. I'd guess more like 130-135whp. So it's clear his is not our "rental" formula. We always ditch the stock airbox, run a 2.5" intake pipe on the coldside, run speed-density calibration, high flow exhaust and mid pipe. Even with that, a bone stock NB2 long block will have a hard time seeing 150whp on pump gas.
emilio700 is offline   Reply With Quote
Old 07-17-2015, 09:00 PM   #20
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Quote:
Originally Posted by elior77 View Post

How can dynapack lie ?
It's a calibrated load cell. It measures torque, then calculates power. Calibrate it wrong and it reads wrong. The Dynapack I tune with locally reads ~10% low. There's a Dynapack in LA that reads 8-9% high.

The only dyno that is accurate from unit to unit (within 2% or so) is the Dynojet. That is a direct power measurement, based on the rotational acceleration of a known mass. Torque is then calculated based on RPM. You can actually get accurate power readings from a Dynojet without any RPM signal.

Quote:
Originally Posted by yossi126 View Post
European and US cars outputs the same horsepower stock
Not true AFAIK. 02+ Euro cars were 155bhp, US cars were 142bhp.
Savington is offline   Reply With Quote
