Default Setup AFR Target Table for VE

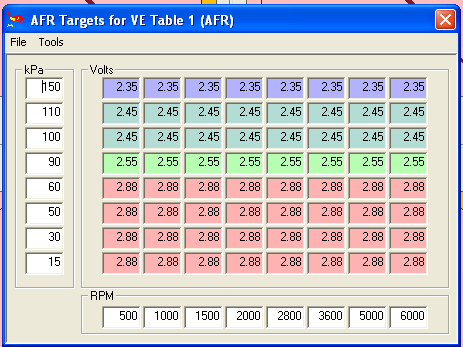

I want to setup my AFR Targets for VE Table and I have the one that Al unless i'm mistaken but i don't know what AFR values his voltages reference. Anyone know what AFR's i should look for at certain map pressure? I plan to tune the car for up to 15 psi on this nissan T25 so I think i should increase my max map value to 200. I can enter all the correct voltages I just don't know what AFRs to use.

Name:  Picture28.png
Views: 48
Size:  15.0 KB
cjernigan is offline   Reply With Quote
Old 04-10-2007, 03:56 PM   #2
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

that's not mine, I know that for sure. i actually don't find GEGO very useful. I found it easier to tweak my map.

for now, aim for 11.5:1 under anything over 5psi. lean it out later.

200kpa is only 14.7 psi. you'll want some headroom.
Al Hounos is offline   Reply With Quote
Old 04-10-2007, 04:02 PM   #3
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

K, i'll shoot for 220 then, that's around 17.14 psi which is beyond my turbo's efficiency.
I'd rather just tune the map, but i figure i could let Megalogviewer do some of it for me and if i setup a target table right it can rough it in for me.
If that doesn't work i'll do it all by hand.
cjernigan is offline   Reply With Quote
Old 04-10-2007, 04:14 PM   #4
Supporting Vendor
iTrader: (5)

Join Date: Jun 2006
Location: Duluth, GA 30097
Posts: 798
Total Cats: 0
Default

This is what I'm using on my car at the moment- should be pretty close...

FoundSoul is offline   Reply With Quote
Old 04-10-2007, 04:19 PM   #5
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

That's what I was looking for.
Thanks Jerry.
cjernigan is offline   Reply With Quote
Old 04-10-2007, 04:20 PM   #6
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Wait.. How do i change the table to AFR instead of Volts?
cjernigan is offline   Reply With Quote
Old 04-10-2007, 04:47 PM   #7
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

I think you have to configure MS with the afr/volts chart that comes with your wideband.... if it's programmable you may need to set both of them to a standard.
Arkmage is offline   Reply With Quote
Old 04-10-2007, 05:21 PM   #8
Supporting Vendor
iTrader: (5)

Join Date: Jun 2006
Location: Duluth, GA 30097
Posts: 798
Total Cats: 0
Default

What kind of wideband are you using?
FoundSoul is offline   Reply With Quote
Old 04-10-2007, 05:27 PM   #9
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by cjernigan View Post
Wait.. How do i change the table to AFR instead of Volts?
It's kind of subtle. Go into the Configurator and bring up your car's project (car1, if you haven't added any more). Click the little + sign to expand settings.ini, then expand Settings and select LAMBDA_SENSOR. Change it to one that matches your sensor's output. You'll get the table in volts if it's set to an unknown sensor or a narrow band, AFR for a known setting.
Matt Cramer is offline   Reply With Quote
Old 04-10-2007, 05:48 PM   #10
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

AEM Uego Wideband. I have a chart for the voltage values relative to the equivalent AFR values.
cjernigan is offline   Reply With Quote
Old 04-10-2007, 05:52 PM   #11
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Guess i could just convert your table over to voltages then i suppose.
cjernigan is offline   Reply With Quote
Old 04-10-2007, 06:49 PM   #12
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

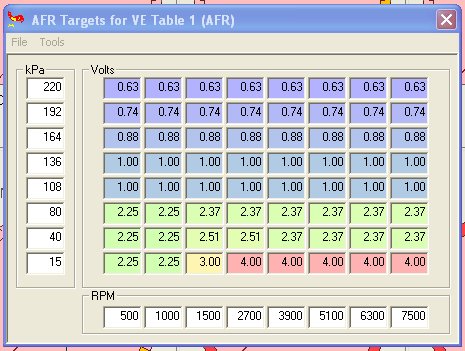

What i came up with from the AEM voltage equivalents.

Name:  Picture2.png
Views: 50
Size:  14.4 KB
cjernigan is offline   Reply With Quote
Old 04-10-2007, 11:15 PM   #13
Supporting Vendor
iTrader: (5)

Join Date: Jun 2006
Location: Duluth, GA 30097
Posts: 798
Total Cats: 0
Default

So you've got it set to AEM wideband in the configurator and it's still displaying voltage in the AFR target table? Honestly I've not run an AEM as we run the Innovate goodies here... it should be setup with the tables built in to convert voltage to AFR but if not they may just have it using voltage tables so you can set it like a generic wideband. Maybe there's a reason for this-- does AEM have different models with different V=AFR curves?

I know where you can get an LC-1
FoundSoul is offline   Reply With Quote
Old 04-10-2007, 11:33 PM   #14
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I have no idea about there being different models. All i know is I have one and i know the V=AFR curves for it. I should have gone LC1 but i bought the AEM way before i thought of going MS and the complete AEM package looked nice at the time.
I do have the AEM Linear setting right in configurator and it still gives me a voltage reading.

Do you use megalog viewer much?
If I had a dyno I wouldn't use it much but for road tuning it's pretty nice if you get good long datalogs.
cjernigan is offline   Reply With Quote
Old 04-11-2007, 11:04 AM   #15
Supporting Vendor
iTrader: (5)

Join Date: Jun 2006
Location: Duluth, GA 30097
Posts: 798
Total Cats: 0
Default

Just played around with it a bit, and it appears that they (MegaTune programmer and the guys that maintain it) do not have the voltage to AFR curves programmed in for either AEM Linear or AEM Non-Linear from what I can see. If you're using an AEM you'll need to use target voltages which is admittedly not pretty, or (as this is open source) update the appropriate .ini with the voltage=afr curve so that everyone can benefit. I've not tried that before but I'm betting it wouldn't be that hard since you have the data... you could probably dig up some info on it on the msextra.com forums if you want to go that route.
FoundSoul is offline   Reply With Quote
Old 04-11-2007, 12:34 PM   #16
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I'll look into it tonight. If I can accomplish something editing the code i'll post it for everyone.
cjernigan is offline   Reply With Quote
Old 04-11-2007, 03:45 PM   #17
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I just checked out out and found where and what I would need to edit. It doesn't look easy and some of the values that it needs I have no idea where to get the. Think i'll post on msextra later on but for now my 8x8 volts table will work fine.
cjernigan is offline   Reply With Quote
Old 10-03-2007, 11:53 PM   #18
Newb

Join Date: Feb 2007
Location: Marietta, GA
Posts: 42
Total Cats: 0
Default

First off sorry for digging up an old thread but its pretty relative to my problem. I finally started messing around with my car again and got it started but its idling at around 10:1 AFR according to the readout on the display of my WB. I currently have unknown wideband selected in the settings portion of the configurator but I'm not very confident in that choice. I have the NGK AFX that puts out 0-5V 9.00 to 16.00 linear. Before I go changing AFR targets and such I wanted to make sure that the WB was interfacing with MS as efficiently as possible. I don't mind tuning by voltage but I was just wondering what all I would need to change to set tuning by voltage properly and what all is affected by it. Or an update to Megatune to work with the AFX would be nice too. But anyway if anyone has any helpful input I would appreciate it. Thanks guys.
STravisVrooman is offline   Reply With Quote
Old 10-04-2007, 12:00 AM   #19
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

talk to splitime, he just setup his for the exact same wb.
neogenesis2004 is offline   Reply With Quote
Old 10-04-2007, 12:11 AM   #20
Junior Member

Join Date: Jun 2006
Location: LV, NV
Posts: 225
Total Cats: 0
Default

I'm using the AFX also, and as far as I know there isn't a work around for the volts/afr issue. As for getting it setup, you have to modify the lambdasensors.ini file. Directions are here in post 7;

http://www.msefi.com/viewtopic.php?t...hlight=ngk+afx
mschlang is offline   Reply With Quote
