Old 10-16-2012, 05:04 PM   #41
Junior Member

Join Date: Apr 2010
Posts: 107
Total Cats: 0
Default

Quote:
Originally Posted by WestfieldMX5 View Post
nexus 7 large enough or should we get a 10'?
Depends on how you're planning on using it. Personally I like the size of the Nexus 7 for my needs and think something as large as my iPad would be too bulky.
bearda is offline   Reply With Quote
Old 10-16-2012, 05:07 PM   #42
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Works like a bauce on my gs3 with CM10 btw.
Bryce is offline   Reply With Quote
Old 10-26-2012, 08:42 PM   #43
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

couple questions

I see the in the bluetooth adaptor's description this: Powered by Pin 9 or supplied power adapter

Are all MS using Pin 9 to power?


Packaging constraints under the dash are tight, and I will have to use a serial cable. This cable should work with MS2 and the bluetooth, right?

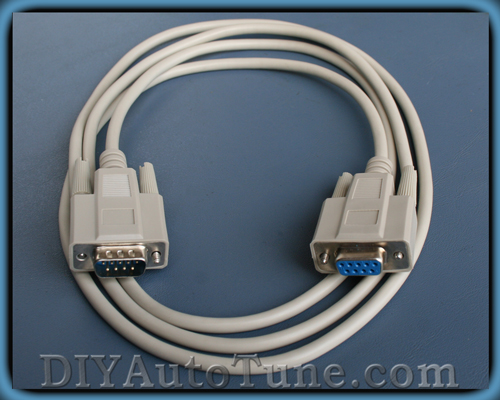

MegaSquirt Tuning Cable (DB9 Straight Thru) DIYAutoTune.com
Attached Thumbnails
Shadow Dash MS for Android-tunecable6_med.jpg
94mx5red is offline   Reply With Quote
Old 10-26-2012, 11:41 PM   #44
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Don't know about every MS, but it works without modifications on my Reverant built MS2. That cable should be fine.

Took a little drive today and did some logging with Shadow Dash. Fantastic little app, works great and makes data logging a snap. First time I ever got a decent log to import into virtual dyno and actually remembered which gear was used for the pull.
midpack is offline   Reply With Quote
Old 10-27-2012, 12:10 AM   #45
Junior Member

Join Date: Apr 2010
Posts: 107
Total Cats: 0
Default

Quote:
Originally Posted by 94mx5red View Post
couple questions

I see the in the bluetooth adaptor's description this: Powered by Pin 9 or supplied power adapter

Are all MS using Pin 9 to power?


Packaging constraints under the dash are tight, and I will have to use a serial cable. This cable should work with MS2 and the bluetooth, right?
Not all MS do, but there's a jumper on the DIYPNP units to send power to pin 9. There are some times when you may not want to power pin 9 though, so YMMV.
bearda is offline   Reply With Quote
Old 10-27-2012, 01:05 AM   #46
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

I did the jumper swap on my DIYPNP, works just fine with the BT adapter that EFI sells.
aaronc7 is offline   Reply With Quote
Old 10-27-2012, 07:23 AM   #47
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by midpack View Post
First time I ever got a decent log to import into virtual dyno and actually remembered which gear was used for the pull.
When I am out logging pulls and need to remember which gear I am in I hit the spacebar on my laptop the number of times for the gear I am in. That way when I pull up the log in MLV I can count the marks then know the which gear the next pull is in.
shuiend is offline   Reply With Quote
Old 10-27-2012, 09:19 AM   #48
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Are brain built units going to power up this awesomeness?
94mx5red is offline   Reply With Quote
Old 10-29-2012, 10:27 AM   #49
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Can we display oil temp and oil pressure (obviously input to MS) with this? I'd love to dump all my gauges for a 7" tablet that fits in the dash/cluster.
hustler is offline   Reply With Quote
Old 10-29-2012, 10:49 AM   #50
Junior Member
iTrader: (1)

Join Date: Apr 2011
Posts: 119
Total Cats: 1
Default

Quote:
Originally Posted by shuiend View Post
When I am out logging pulls and need to remember which gear I am in I hit the spacebar on my laptop the number of times for the gear I am in. That way when I pull up the log in MLV I can count the marks then know the which gear the next pull is in.
Brilliant. I can figure out which gear im in by just playing around in virtual dyno, though... I know I chose the wrong gear in VD when my WOT pull gives 80hp or 800hp. It's pretty simple to figure that out.
event is offline   Reply With Quote
Old 10-29-2012, 10:50 AM   #51
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I just installed the Shadow Dash APK and have not connected it to the car yet. I only have one dashboard, is this normal? Is there some way to get get the others in green or blue, or "make a new dash"?
hustler is offline   Reply With Quote
Old 10-29-2012, 10:53 AM   #52
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
Can we display oil temp and oil pressure (obviously input to MS) with this? I'd love to dump all my gauges for a 7" tablet that fits in the dash/cluster.
Quote:
Originally Posted by hustler View Post
I just installed the Shadow Dash APK and have not connected it to the car yet. I only have one dashboard, is this normal? Is there some way to get get the others in green or blue, or "make a new dash"?
You need to head over to the actual MS forums and post in the TS section about those questions. Phil is very active there and should be able to quickly reply to you about those.
shuiend is offline   Reply With Quote
Old 10-29-2012, 11:02 AM   #53
Senior Member

Join Date: Aug 2010
Location: Maumelle, AR
Posts: 618
Total Cats: 2
Default

Quote:
Originally Posted by hustler View Post
Can we display oil temp and oil pressure (obviously input to MS) with this? I'd love to dump all my gauges for a 7" tablet that fits in the dash/cluster.
Yup, I have oil temp via a gm coolant sensor in my oil pain going to a ms3x analog in, made the dash in tunerstudio and copied it to the tablet which works every bit as good as tuner.studio... Even shows my pwm out gauge that shows what duty cycle I'm sending to my fuel pump controller.
ianferrell is offline   Reply With Quote
Old 10-29-2012, 11:52 AM   #54
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by ianferrell View Post
Yup, I have oil temp via a gm coolant sensor in my oil pain going to a ms3x analog in, made the dash in tunerstudio and copied it to the tablet which works every bit as good as tuner.studio... Even shows my pwm out gauge that shows what duty cycle I'm sending to my fuel pump controller.
More info on using GM coolant temp sensor for oil temp.
shuiend is offline   Reply With Quote
Old 10-29-2012, 12:06 PM   #55
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by shuiend View Post
More info on using GM coolant temp sensor for oil temp.
Tap it into your pan and set up a generic sensor input, not much to it really.
Ben is offline   Reply With Quote
Old 10-29-2012, 12:10 PM   #56
Senior Member

Join Date: Aug 2010
Location: Maumelle, AR
Posts: 618
Total Cats: 2
Default

Quote:
Originally Posted by shuiend View Post
More info on using GM coolant temp sensor for oil temp.
Read dis: Megasquirt-3 MS3 Generic Sensor Inputs

its easy, though you want a 2.49k bias resistor, I'm using a 2.47k and its 'close enough' it seems.
ianferrell is offline   Reply With Quote
Old 11-01-2012, 10:09 PM   #57
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

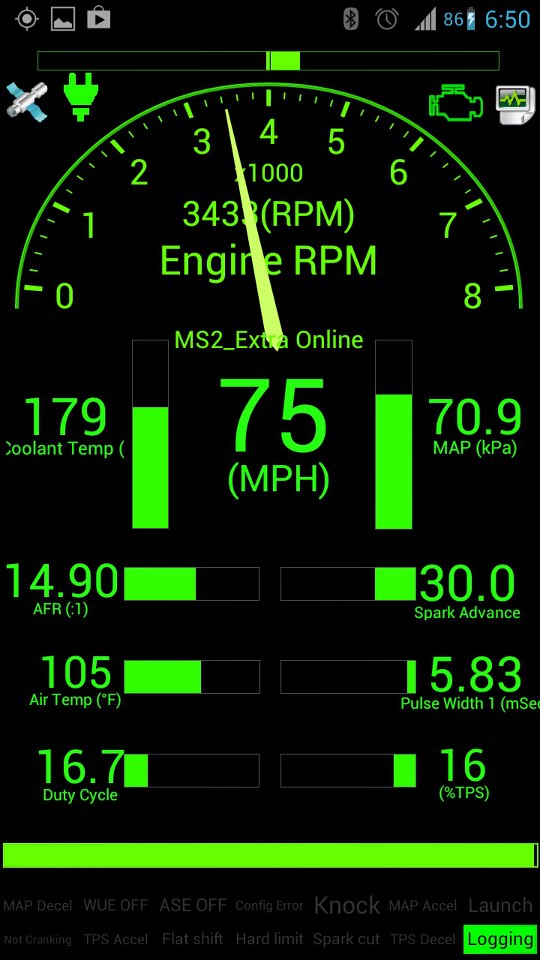

This is bauce:
Attached Thumbnails
Shadow Dash MS for Android-553978_10101197653844130_356753564_n.jpg
hustler is offline   Reply With Quote
Old 11-02-2012, 12:33 AM   #58
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default



Time to start fabbing a phone mount.
thenuge26 is offline   Reply With Quote
Old 11-02-2012, 12:34 AM   #59
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

The idle is jacked when connected, but otherwise this is cool. It's nice to take a log on the phone, go upstairs and review it on the computer, make minor adjustments, save new MSQ to the phone, then get in the car for work the next day, load the tune, drive to work.
hustler is offline   Reply With Quote
Old 11-03-2012, 09:20 AM   #60
Junior Member
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

Shadow logger works fine but shadow dash loses connection constantly, anyone have any issues like this?

This would be sweet passenger entertainment, since my wife complained she couldn't watch the MTX-l blinky lights since it is in the vent by the driver door.
AkaZero is offline   Reply With Quote
