Simple evap system control with megasquirt
03-28-2019, 11:40 AM
#1
Supporting Vendor
Thread Starter
iTrader: (10)
Join Date: Aug 2014
Location: Bainbridge Island, WA
Posts: 1,461
Total Cats: 388
Simple evap system control with megasquirt
I have an NB2 with ms3 pro Evo. The car has an engine swap, but that's irrelevant to this topic, and it's boosted. I want to do something with my evap system. It's a street and track car.
Removing the entire system means building pressure in the gas tank, and drilling a hole in the gas cap means sloshing gas onto the track.
Moving to a simple breather under the car means being a bad person and killing penguins.
I'd like to do some kind of simple evap system that could keep the tank as a closed system and then vent into the intake under the right circumstances, like stock.
Has anyone done this? I presume I could just run a simple valve that opens when the car is at mid-throttle and mid vacuum, and stays open when the car is off.
Removing the entire system means building pressure in the gas tank, and drilling a hole in the gas cap means sloshing gas onto the track.
Moving to a simple breather under the car means being a bad person and killing penguins.
I'd like to do some kind of simple evap system that could keep the tank as a closed system and then vent into the intake under the right circumstances, like stock.
Has anyone done this? I presume I could just run a simple valve that opens when the car is at mid-throttle and mid vacuum, and stays open when the car is off.
__________________
Reply
2
2
03-28-2019, 12:11 PM
#2
Senior Member
Join Date: Jul 2015
Posts: 1,014
Total Cats: 140
Pos-cat for the question; this is highly interesting to me as well (for the stock system, and I admit I have not searched yet). I assume it would be rather simple, since you already have the inputs (MAP & TPS), so you could wire an output to trigger the OEM "actuator"/valve?
Reply
0
0
03-28-2019, 01:33 PM
#3
Tweaking Enginerd
iTrader: (2)
Join Date: Mar 2013
Location: Boulder, CO
Posts: 1,770
Total Cats: 351
I personally eliminated the solenoid valve and simply installed a check valve. The flow at idle is low enough that I have no issues idling as low as 600 RPM. You could use a spare digital output if you wanted to control a solenoid with RPM/map qualifiers.
IMO evap is required for applications similar to mine. Return-style system running e85. The fuel temp increase coupled with the sealed tank can cause a significant amount of pressure. I relocated the evap canister to the rear driver fender-well (where the fuel filter is located on passenger side NA). I have been through inspection and passed.
Edit: and parked in a garage, that I prefer doesn't smell like a refinery.
IMO evap is required for applications similar to mine. Return-style system running e85. The fuel temp increase coupled with the sealed tank can cause a significant amount of pressure. I relocated the evap canister to the rear driver fender-well (where the fuel filter is located on passenger side NA). I have been through inspection and passed.
Edit: and parked in a garage, that I prefer doesn't smell like a refinery.
Reply
1
1
03-28-2019, 02:52 PM
#4
Supporting Vendor
Thread Starter
iTrader: (10)
Join Date: Aug 2014
Location: Bainbridge Island, WA
Posts: 1,461
Total Cats: 388
I personally eliminated the solenoid valve and simply installed a check valve. The flow at idle is low enough that I have no issues idling as low as 600 RPM. You could use a spare digital output if you wanted to control a solenoid with RPM/map qualifiers.
IMO evap is required for applications similar to mine. Return-style system running e85. The fuel temp increase coupled with the sealed tank can cause a significant amount of pressure. I relocated the evap canister to the rear driver fender-well (where the fuel filter is located on passenger side NA). I have been through inspection and passed.
Edit: and parked in a garage, that I prefer doesn't smell like a refinery.
IMO evap is required for applications similar to mine. Return-style system running e85. The fuel temp increase coupled with the sealed tank can cause a significant amount of pressure. I relocated the evap canister to the rear driver fender-well (where the fuel filter is located on passenger side NA). I have been through inspection and passed.
Edit: and parked in a garage, that I prefer doesn't smell like a refinery.
What size injectors are you running? Any extra fuel could make it harder to idle big injectors.
__________________
Reply
0
0
03-28-2019, 02:58 PM
#5
Tweaking Enginerd
iTrader: (2)
Join Date: Mar 2013
Location: Boulder, CO
Posts: 1,770
Total Cats: 351
I have a 400hp e85 capable fuel system with ID850 injectors and a DW200 pump. I can maintain a stable static idle with this setup at 550 RPM. I bet I could go under 500 if I close the idle adjust screw.
Reply
0
0
02-11-2023, 06:48 AM
#9
Junior Member
Join Date: May 2022
Posts: 85
Total Cats: 3
Sorry if this is a dumb question but - would replacing the solenoid valve with a simple check valve also work on an NA with standalone / ms3?
I don't want to remove the canister and would like to have it actually work.
I don't want to remove the canister and would like to have it actually work.
Reply
0
0
02-11-2023, 10:26 AM
#10
Tweaking Enginerd
iTrader: (2)
Join Date: Mar 2013
Location: Boulder, CO
Posts: 1,770
Total Cats: 351
If I were doing a fresh install today, I would hook up the purge valve and drive it with the ECU. A little homework is probably required, but a good side project for a beginner where the risk is low, but one can experience satisfaction and provide something new in the community.
But yes, a check valve works on a NA chassis.
But yes, a check valve works on a NA chassis.
Reply
0
0
02-11-2023, 02:33 PM
#11
Retired Mech Design Engr
iTrader: (3)
Join Date: Jan 2013
Location: Seneca, SC
Posts: 5,009
Total Cats: 856
Anyone have an idea how much vapors a typical canister holds (days at temp) before they are released into the atmosphere anyway? Another way to ask... Ted, how many days in the garage before you begin to smell alcohol?
EDIT:
Also sparked by this thread... I'm idling at 800, but have been wondering if I could go lower. I might play with lower, now that I'm looking into improved fuel economy. When A/C is on, I like to run about 1200RPM, though, to make the system effective.
EDIT:
Also sparked by this thread... I'm idling at 800, but have been wondering if I could go lower. I might play with lower, now that I'm looking into improved fuel economy. When A/C is on, I like to run about 1200RPM, though, to make the system effective.
Reply
0
0
02-12-2023, 02:08 AM
#13
Junior Member
Join Date: May 2022
Posts: 85
Total Cats: 3
If I were doing a fresh install today, I would hook up the purge valve and drive it with the ECU. A little homework is probably required, but a good side project for a beginner where the risk is low, but one can experience satisfaction and provide something new in the community.
But yes, a check valve works on a NA chassis.
But yes, a check valve works on a NA chassis.
But what conditions ?
Reply
0
0
02-12-2023, 06:30 PM
#15
Tweaking Enginerd
iTrader: (2)
Join Date: Mar 2013
Location: Boulder, CO
Posts: 1,770
Total Cats: 351
Conditions are pretty simple, websearch should confirm, but I would think RPM greater than say 1500 and load between 40 and 60kpa would do the trick.
Last edited by Ted75zcar; 02-13-2023 at 08:16 AM.
Reply
1
1
02-12-2023, 06:34 PM
#16
Tweaking Enginerd
iTrader: (2)
Join Date: Mar 2013
Location: Boulder, CO
Posts: 1,770
Total Cats: 351
I did discover that with hot fuel and a low tank, the purged vapors at idle would cause a rich condition (especially with gasoline IIRC). A solenoid would presumably fix this.
Reply
0
0
02-13-2023, 12:59 AM
#17
Junior Member
Join Date: May 2022
Posts: 85
Total Cats: 3
Well I am drawing from memory, but I believe the solenoid is already wired to terminal "X" on an early NA, so one would simply need to route that to a spare open drain output (I would uwould an unused injector channel and wire I side the ECU case).
Conditions are pretty simple, websearch should confirm, but I would think RPM greater than say 1500 and load between 40 and 60kpa would do the trick.
Conditions are pretty simple, websearch should confirm, but I would think RPM greater than say 1500 and load between 40 and 60kpa would do the trick.
Ok thanks I'll look into that!
Reply
0
0
03-01-2023, 08:15 AM
#18
Junior Member
Join Date: May 2022
Posts: 85
Total Cats: 3
According to miata diagnostics wiki evap control on the 1.6 works like this.
The valve is activated when the RPMs are above 1000, idle switch is off, and O2 working in closed loop
And the '92 workshop manual states:
[quote]
Operation FUEL VAPOR VALVE
The solenoid valve (purge control) is controlled by duty signals from the engine control unit to perform purging
of the charcoal canister. Purging is done when these conditions are met:
(1) After warm-up.
(2) Driving in gear.
(3) Accelerator pedal depressed (idle switch OFF).
(4) Oxygen sensor functioning normally.
[quote]

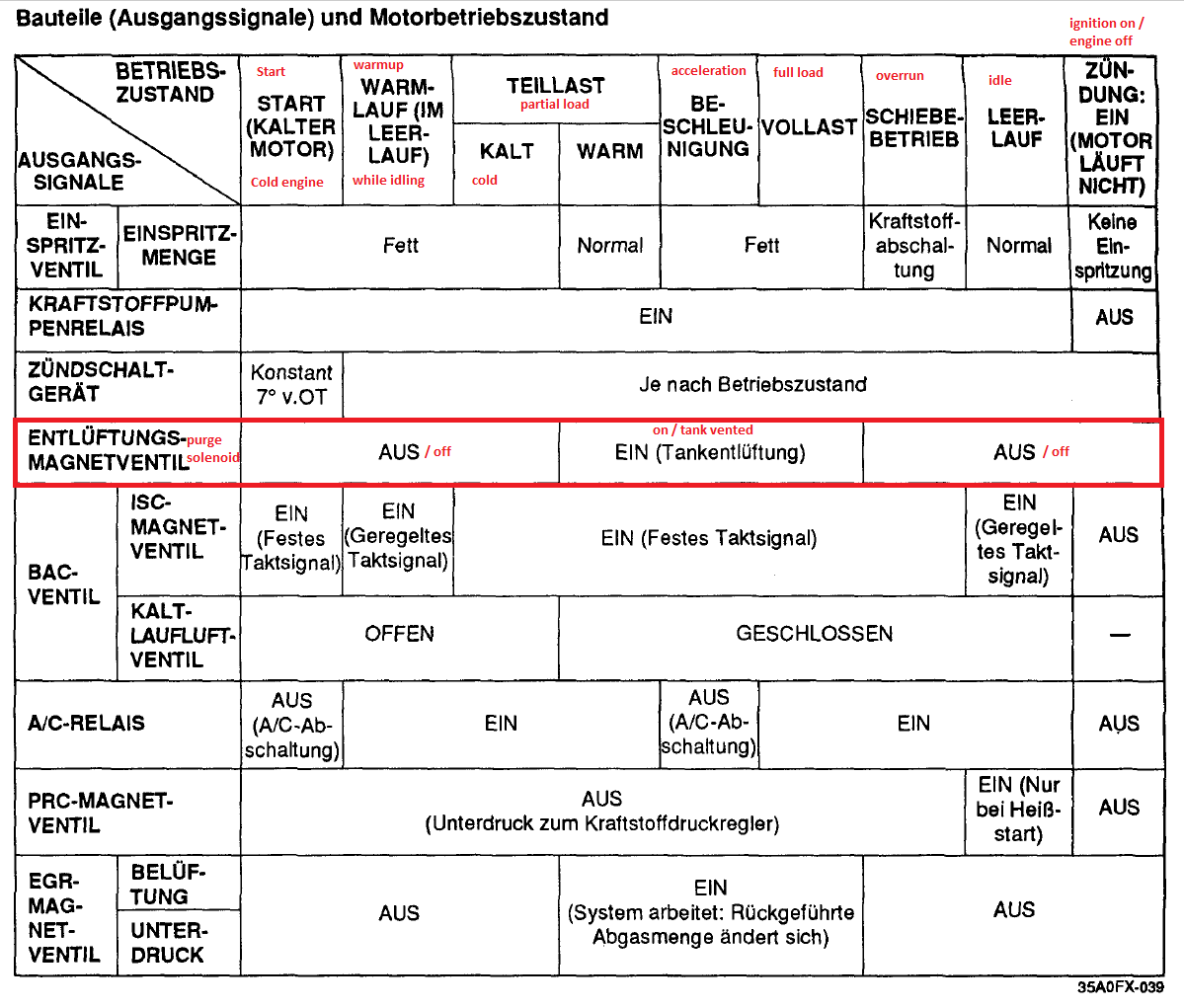

Now, regarding the 1.8 system I couldn't find any specifics on the web. Closest thing to working conditions I could dig out of the german 93 1.8 workshop manuals was this diagram:
So tl;dr during partial load with warmed up engine, acceleration and full load conditions the purge solenoid is venting. In all other conditions it is disabled.
So rpm > 1000 + map(40-60kpa) would also cover partial load on a cold engine where the solenoid should stay disabled. How can I also cover coolant temp with only 2 possible conditions for my programmable output ?
Reply
0
0
03-01-2023, 04:06 PM
#20
Elite Member
iTrader: (10)
Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,976
Total Cats: 355
Activating the EVAP without calculating the consumed fuel volume and just letting it apply a strong vacuum inside the fuel tank is a bad idea and will likely cause the fuel tank to crack in the long run.
Reply
