Default Spring is here, tuning time.

I am just now getting started tuning my mspnp(finally). Car is a 1.6 1990 with mspnp, greddy turbo, FMIC, 2.5" downpipe/exhaust, 550cc rx7 injectors, afm delete(iat added), etc. If it matters, I live at about 7200ft above sea level.

I started with forum member benr's map(also 550cc inj, greddy turbo, and closer to my altitude at 5200ft). I adjusted his map for my wbo2, reset the dwell settings back to stock(he has cops), and set the base timing for my car.

Now, ive just started tuning so only thing I have touched is the idle, I really just want to make sure I'm on the right track at this point.

I attached my current .msq and a datalog of my car idling. Ive actually yet to tune anything over idle because I have a new fuel pump and fuel filter waiting to go in on my day off. Let me know if anything jumps out at you.

Thanks for your time,

Nate.


Edit: Im mainly concerned about the log file. Looks to me like there might be some noise, but i r a noob. Also, that log was done with the rad fan on.
Attached Files
File Type: msq Current550ccAEMwbo2Nate.msq (35.0 KB, 97 views)
File Type: xls Idle.xls (436.8 KB, 55 views)

Last edited by Fireindc; 04-20-2009 at 06:09 AM.
Fireindc is offline   Reply With Quote
Old 04-24-2009, 10:16 PM   #2
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Heh what was I thinking, nobody wants to open these files. Here is a screenshot with a log of the car at idle and the msq open in mlv. Installed my fuel pump and filter and now I'm ready to start datalogging/analyzing. I really just want to know if this log looks normal or not to you, the lines seem all over the place to me, but the min/max values it recorded are correct. Just a little concerned after reading all these threads about noise etc.



Note that this is at idle with fans running, never revved the motor for this log.
Fireindc is offline   Reply With Quote
Old 04-24-2009, 10:28 PM   #3
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

That log is nothing like what it should be. You have major noise or connection issues.
cjernigan is offline   Reply With Quote
Old 04-25-2009, 07:36 AM   #4
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by cjernigan View Post
That log is nothing like what it should be. You have major noise or connection issues.
I was afraid of this. I grounded everything to the engine block near the factory ECU ground. I am also using a serial to usb adapter, the one diyautotune sells. I guess I get to play with grounds tomorrow. How major of an issue am i looking at?

Also, thanks for the reply cj.

Edit: Any hints for tomarrow when i try to tackle this problem? I assume start with wbo2/ecu grounds and go from there?

Last edited by Fireindc; 04-25-2009 at 08:45 AM.
Fireindc is offline   Reply With Quote
Old 04-25-2009, 12:59 PM   #5
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Why did you log Idle? VE analyzer never gets idle right you have to do it manually, and if you want to use VE analyzer for the rest of your tune turn off accel enrichments before you log or it will mess things up. Also I just looked at your log again and you may not have to much noise, because just idling you min and my of each variable are so close together that it takes up the whole graph with very little movement, for example since during your log you only changed not even 200 rpm a 150 rpm change takes up the whole graph, if you would have reved the engine up to 3 or 4,000 rpm and then stop the log you would notice that the graph would be closer normal looking.
Gotpsi? is offline   Reply With Quote
Old 04-25-2009, 08:12 PM   #6
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by Gotpsi? View Post
since during your log you only changed not even 200 rpm a 150 rpm change takes up the whole graph, if you would have reved the engine up to 3 or 4,000 rpm and then stop the log you would notice that the graph would be closer normal looking.
This is exactly what i was thinking. I logged the idle mainly just to have a log, I'm not tuning the idle using the ve analyzer i did it by hand. Ill take another log going through a larger rpm/map range and see how it comes out. Thanks for the input.
Fireindc is offline   Reply With Quote
Old 04-29-2009, 11:04 PM   #7
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Okay so a little bit of an update, would like to get some more insight from the masters. New fuel pump and filter are in, i cleaned up the grounds with sandpaper to expose more metal to metal surface, and moved the wbo2 ground from sharing the same post as the ecu.

I did a log going to and from the gas station that is right down the street today, and tried to hit quite a few more cells to get a better idea of my noise issues, and to see how my tune is looking.

Afrs were all over the place as expected, but analyzing a few logs through mlv should fix that. Mainly i just want to see if you think my noise issues are over, does this log look better?



I also attached the datalog pictured, and the .msq is included in my first post. I really appreciate your input and time.

Thanks!

-Nate
Attached Files
File Type: xls aftergas.xls (376.1 KB, 63 views)
Fireindc is offline   Reply With Quote
Old 04-30-2009, 02:09 PM   #8
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

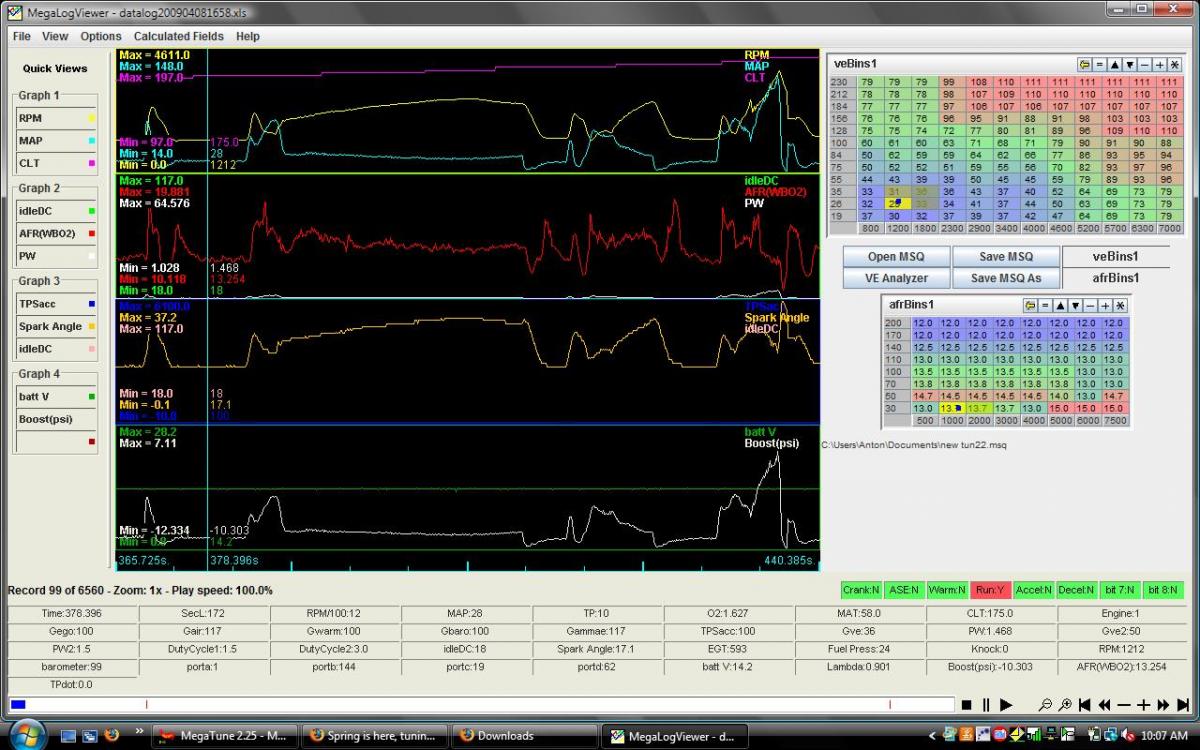

look at the difference as an example.
