tips for rev limiter - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



MEGAsquirt A place to collectively sort out this megasquirt gizmo

Reply



LinkBack Thread Tools
Old 05-11-2009, 05:07 AM   #1
N3v
Junior Member
Thread Starter

Join Date: May 2008
Location: Nashville/Knoxville, TN
Posts: 318
Total Cats: 1
Default tips for rev limiter

what does every one run for their rev limiter? Mine is set to 9/10 spark cut, soft cut at 7000, 7200 hard cut.

I've played with mine a little before, but it's kinda tough to mess with something that's only activated at maximum rpms. playing around and setting it to 3000 or so, i noticed that 9/10 sparks cut keeps it from exceeding the limit and sounds like a two step rev limiter (not to mention creates fireballs). I noticed that if you allow more sparks than that, you can whizz right by the set limit if you stay floored.

Now, over the past year my car has been megasquirted I haven't given it much thought, but now with the d-rifting season in full spin i find myself hanging around in the 7k rpm range more often. I've noticed that my rev limiter doesn't 'bounce' off the limit like a stock ecu does, it just hangs in the 7k range instead, and while I'm sliding I can't always pay attention to the tach and I don't know if my engine is just revving to the moon or not. I would experiment with it more, but it seems to work, and I also don't want to be jarring my engine too much at it's maximum rpm.
N3v is offline   Reply With Quote
Old 05-11-2009, 12:16 PM   #2
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

For a margin of safety, I set my soft at 6800 and hard at 7000. With the SR20 T25, I was well past my power/torque peaks and it didn't make sense to set it higher. With a larger, more efficient turbo running a little less boost, I'd rev it higher if I was still building hp.

Something a lot of people never do homework on when talking about rev-limiters and the track, is their final-drive ratio. Guys with money can build tranny's with different gearsets based on the track... but it's easier to swap in a new final drive in a Miata (not that those accomplish the same thing). Have you looked into a new r&p to help your buttsexxxing?
samnavy is offline   Reply With Quote
Old 05-11-2009, 12:43 PM   #3
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by samnavy View Post
For a margin of safety, I set my soft at 6800 and hard at 7000. With the SR20 T25, I was well past my power/torque peaks and it didn't make sense to set it higher. With a larger, more efficient turbo running a little less boost, I'd rev it higher if I was still building hp.
Same.
Saml01 is offline   Reply With Quote
Old 05-11-2009, 01:55 PM   #4
N3v
Junior Member
Thread Starter

Join Date: May 2008
Location: Nashville/Knoxville, TN
Posts: 318
Total Cats: 1
Default

Quote:
Originally Posted by samnavy View Post
Something a lot of people never do homework on when talking about rev-limiters and the track, is their final-drive ratio. Guys with money can build tranny's with different gearsets based on the track... but it's easier to swap in a new final drive in a Miata (not that those accomplish the same thing). Have you looked into a new r&p to help your buttsexxxing?
I think you misunderstood me, I'm revving that high on purpose and that's not what bothers me. That's the nature of drifting with an N/A car, you have to drive the **** out of it and keep it in the maximum powerband the whole time. Kinda like doing a moving sideways burnout I'm just worried about my revs continuing over my limit when I'm not paying attention.
Quote:
Originally Posted by Saml01 View Post
Same.
yeah but what do you guys run for spark and cut numbers?
N3v is offline   Reply With Quote
Old 05-11-2009, 02:48 PM   #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

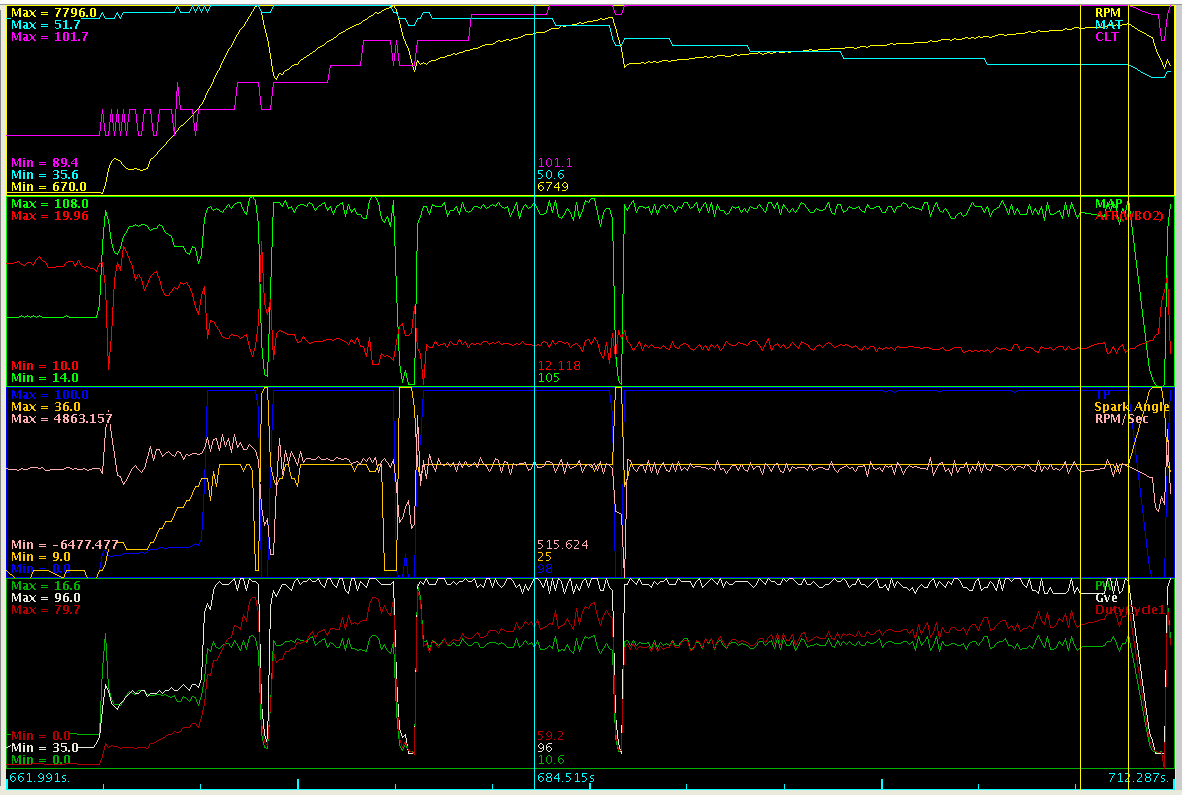

Pussies. 7800 for the win.

Jim
Attached Thumbnails
tips for rev limiter-keratea_large.png
Reverant is offline   Reply With Quote
Old 05-11-2009, 03:08 PM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

I don't understand soft cut rev limiters. I have my hard cut set at 7200 and the soft cut set at 7300 so it never activates. My car makes peak power over 7k, though.
Savington is offline   Reply With Quote
Old 05-11-2009, 03:52 PM   #7
N3v
Junior Member
Thread Starter

Join Date: May 2008
Location: Nashville/Knoxville, TN
Posts: 318
Total Cats: 1
Default

from what I understand it just retards the timing a ton to cut your power so you won't fly right past the hard cut limit.
N3v is offline   Reply With Quote
Old 05-11-2009, 04:47 PM   #8
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

I'm the same as Savington, disabled the soft limit, and then anhillate the hard when I hit it

Never bounced over my hard limit which is set at 7300 either, settings are spark cut only, 3 out of 5 sparks cut.
richyvrlimited is offline   Reply With Quote
Old 05-13-2009, 10:19 AM   #9
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

Quote:
Originally Posted by Reverant View Post
Pussies. 7800 for the win.

Jim
...is the coolant 101* F?
tyson87 is offline   Reply With Quote
Old 05-13-2009, 12:43 PM   #10
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

101 Celsius = 214F

Jim
Reverant is offline   Reply With Quote
