Toyota Cops MS Misfire problem

Old 07-01-2012, 11:00 AM
  #1
Newb
Thread Starter

Join Date: Mar 2009
Location: Birmingham,England
Posts: 43
Total Cats: 0
Default Toyota Cops MS Misfire problem

Around 2 weeks ago i installed a set of toyota cops. They ran fine for around a week untill i touched the rev limiter one day.

After that point i've had a problem where under high load/in boost over 4500rpm i get a very bad misfire and backfire from the exhaust.

Flatshift/launch control is not enabled. This is a picture of the ignition settings im using:


Could it be a case of a bad cop, or is the a different ignition setting that may solve it?

Any ideas would be appreciated.
Mike
Valentinik is offline
Old 07-01-2012, 12:12 PM
  #2
Junior Member

Join Date: Sep 2010
Location: Denmark
Posts: 79
Total Cats: 1
Default

Eh, I don't see a picture.

- Tom
one-niner is offline
Old 07-01-2012, 12:17 PM
  #3
Newb
Thread Starter

Join Date: Mar 2009
Location: Birmingham,England
Posts: 43
Total Cats: 0
Default

I can see it fine?

here is a link to it anyway:
http://img.photobucket.com/albums/v2...c/ignition.jpg
Valentinik is offline
Old 07-01-2012, 12:26 PM
  #4
Junior Member

Join Date: Sep 2010
Location: Denmark
Posts: 79
Total Cats: 1
Default

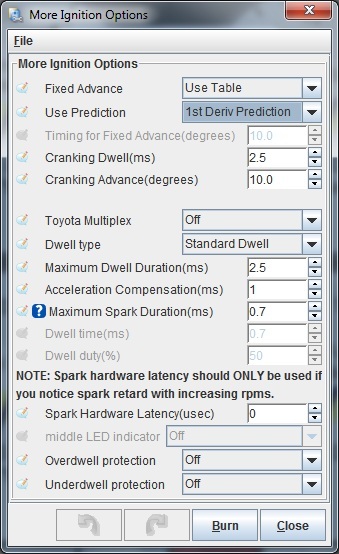

Here's mine:



- Tom
Attached Thumbnails Toyota Cops MS Misfire problem-miozb.jpg
one-niner is offline
Old 07-01-2012, 01:05 PM
  #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,535
Total Cats: 222
Default

Datalog please
__________________
Originally Posted by ninerwfo View Post
The “into to megasquirt thread” mentions that the MS3 basic has 5 inputs with built in pull up resistors - and I was just wondering why it would have so many, while the MS3Pro PnP has just 2 (with no pull ups?)
MS Labs: Plug and Play Megasquirt ECUs for ANY 90-05 Miata (NA, NB1, NB2 w/VVT, MSM), including basemaps to get you started ASAP. PM me or email or details.
For support on MS Labs ECUs: Please email, be sure to include the unit's serial number and include a datalog and your current map.
Reverant is offline
Old 07-01-2012, 03:08 PM
  #6
Newb
Thread Starter

Join Date: Mar 2009
Location: Birmingham,England
Posts: 43
Total Cats: 0
Default

Only a couple of short logs, but i the problem was pretty pronounced when i logged them.

Mike
Attached Files
File Type: msl
2012-07-01_18.59.42.msl (106.5 KB, 56 views)
File Type: msl
2012-07-01_18.57.31.msl (129.8 KB, 72 views)
Valentinik is offline
Old 07-01-2012, 04:21 PM
  #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,535
Total Cats: 222
Default

I'm only seeing a misfire in the first log, at partial throttle, while there is no misfire apparent during WOT?!?!
__________________
Originally Posted by ninerwfo View Post
The “into to megasquirt thread” mentions that the MS3 basic has 5 inputs with built in pull up resistors - and I was just wondering why it would have so many, while the MS3Pro PnP has just 2 (with no pull ups?)
MS Labs: Plug and Play Megasquirt ECUs for ANY 90-05 Miata (NA, NB1, NB2 w/VVT, MSM), including basemaps to get you started ASAP. PM me or email or details.
For support on MS Labs ECUs: Please email, be sure to include the unit's serial number and include a datalog and your current map.
Reverant is offline
Old 07-01-2012, 04:27 PM
  #8
Newb
Thread Starter

Join Date: Mar 2009
Location: Birmingham,England
Posts: 43
Total Cats: 0
Default

hmm, ok, il take another tomorrow. It seems to be during boost and i do get a slight misfire at very low revs in 5th gear.


Any indication of what it may be?

Thanks
Mike
Valentinik is offline
