Im not using megasquirt either, but im trying to get a screenshot of this MS fuel map.

kpa vs rpm.

if anyone could help me out... that would be fantatic.

i bought a turbo setup and would like to use his fuel settings as a basepoint.



thanks,
Matt

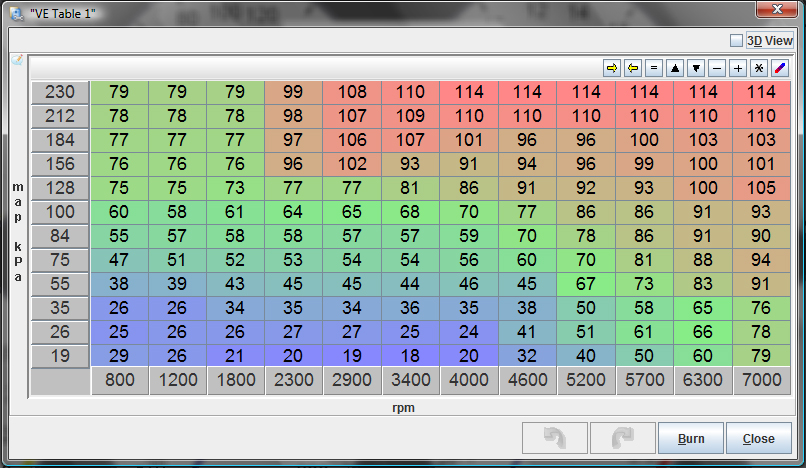

Here you go.



Thanks dude.



So what exactly ARE you using? You do realize that the fuel map is 100% subjective to the size of the engine/fuel injectors # of cylinders # of squirts per rotation,etc.etc.etc right? The #s don't actually MEAN anything outside of the context of that particular setup.



how about injector duration with kpa vs rpm?



the same manifold, same turbo, same downpipe, similar exhaust, slightly different size injectors (can rescale very easy) and im running aem ems. i am aware that it will vary, but it would be the best starting point since the startup cal doesnt have map ( read: positive pressure) so when i change to map, my breakpoints mess up and i need to have a tune in boost.

i have a wideband and such i just need to get it close.



AFAIK there isn't an easy way to view our fuel tables in terms of PW instead of a VE value. I could be wrong though.



Dang.

Also i suppose this would change too since AEM runs sequential fuel too.
would still be nice to see if possible.



Yeah there is know way to display actual duration that I am aware of. MS uses Volumetric Efficiency to calculate fueling.
