Default Upgraded to MS2 having erratic rpms

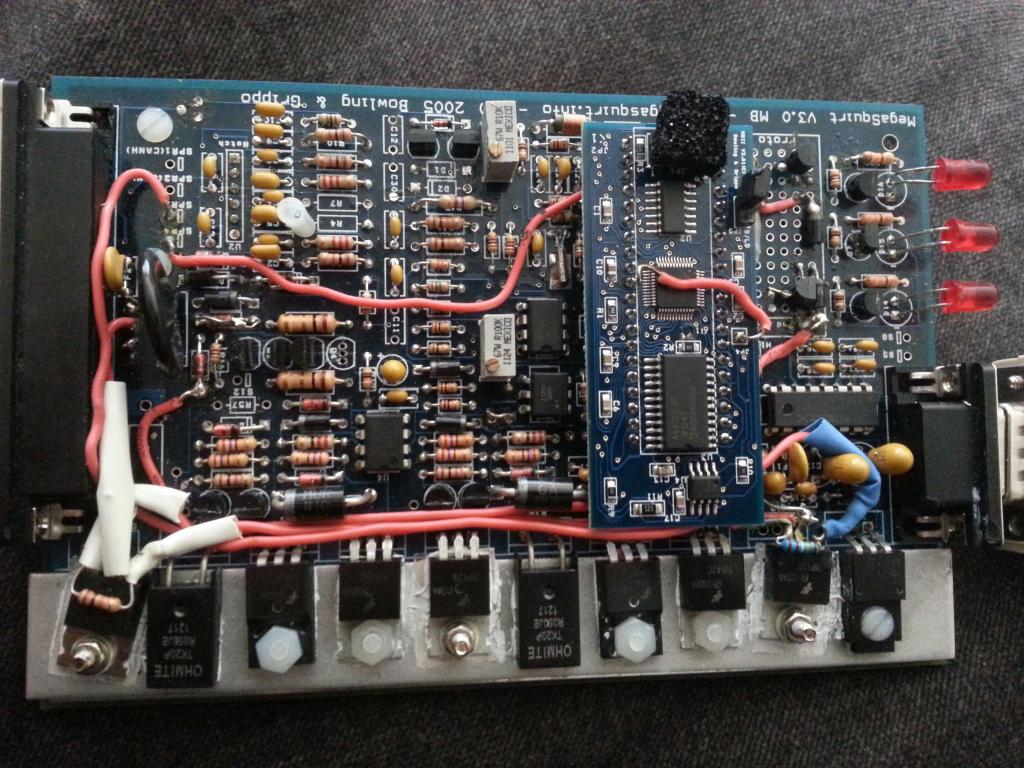

hello all i upgraded my ms1 working to ms2 every thing works except the rpms are jumping up and down on my stim not sure if it is a wiring issue or software issue.
been reading a lot of the other threads on the issue but i don't seem to be getting anywhere.

the rpms will go to the correct amount and then drop to 0

any help will be greatly appreciated



http://i1357.photobucket.com/albums/...ps4ea9af7f.jpg

http://i1357.photobucket.com/albums/...ps88b06b68.png
Attached Thumbnails
Upgraded to MS2 having erratic rpms-37690516718723820140410_102020_zpsd21a1a4a.jpg
willerdcraft is offline   Reply With Quote
Old 04-10-2014, 01:02 PM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Cam input.

Also, remove the antistatic protective thing from the MS2 daughterboard. It is conductive and may cause resets.
Reverant is offline   Reply With Quote
Old 04-10-2014, 01:08 PM   #3
Newb
Thread Starter

Join Date: Dec 2012
Location: KY
Posts: 24
Total Cats: 0
Default

foam thing removed

Cam input anything i can do to get my cam input working my settings has cam input enabled
willerdcraft is offline   Reply With Quote
Old 04-11-2014, 08:13 PM   #4
Newb
Thread Starter

Join Date: Dec 2012
Location: KY
Posts: 24
Total Cats: 0
Default

not to sound like a noob but does that mean that my stim does not generate a cam input and rpms are jumping because of that or does it mean there is wiring issue that i have to resolve
willerdcraft is offline   Reply With Quote
Old 04-14-2014, 08:37 PM   #5
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by willerdcraft View Post
not to sound like a noob but does that mean that my stim does not generate a cam input and rpms are jumping because of that or does it mean there is wiring issue that i have to resolve
Depends on which stim you are using. The JimStim outputs a 2nd trigger, the old MegaStim does not. Further, the JimStim simulates Miata trigger patterns, where the old MegaStim only simulates a basic distributor pattern.

If you have a JimStim, usage instructions are here:
JimStim Firmware V2.0
Ben is offline   Reply With Quote
Old 04-15-2014, 11:28 PM   #6
Newb
Thread Starter

Join Date: Dec 2012
Location: KY
Posts: 24
Total Cats: 0
Default

ok well i have a regular stim so i guess that possibly why i am getting an odd reading.

i will report back after trying in miata thanks
willerdcraft is offline   Reply With Quote
Old 04-17-2014, 10:26 AM   #7
Newb
Thread Starter

Join Date: Dec 2012
Location: KY
Posts: 24
Total Cats: 0
Default

ok so i installed the meagsquirt in my car and it works rpms are smooth and the ignition advances correctly.
i guess the megastim is not capable of delivering both signals as you said once again thanks to miataturbo forum and all its members.
willerdcraft is offline   Reply With Quote
Old 04-17-2014, 09:14 PM   #8
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by willerdcraft View Post
ok so i installed the meagsquirt in my car and it works rpms are smooth and the ignition advances correctly.
i guess the megastim is not capable of delivering both signals as you said once again thanks to miataturbo forum and all its members.
Thanks for the follow up.

I'd like to discontinue the MegaStim for reasons like this -- it's just not as helpful at the slightly more costly JimStim.
Ben is offline   Reply With Quote
Old 05-25-2014, 09:11 AM   #9
Newb

Join Date: Jul 2013
Posts: 16
Total Cats: 0
Default

Quote:
Originally Posted by willerdcraft View Post
ok so i installed the meagsquirt in my car and it works rpms are smooth and the ignition advances correctly.
i guess the megastim is not capable of delivering both signals as you said once again thanks to miataturbo forum and all its members.
Hi, when you upgraded from MS1 to MS2 did you have to redo all your MS1 Mods as I want to upgrade to MS2 as well, any help advice appreciated, Regards DM
