Default Use 90-93 MS on my 95M

I have a 9093 v1.3 Megasquirt.
Is it possible to modify this to use with my 95M?

Any suggestions? I'm new to boosting so thank you for your constructive comments!
merlotmako is offline   Reply With Quote
Old 01-22-2016, 08:41 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Need more info then that. Post a picture of what it looks like and we can tell you.
shuiend is offline   Reply With Quote
Old 01-23-2016, 12:24 AM   #3
Newb
Thread Starter

Join Date: Jan 2016
Posts: 15
Total Cats: 0
Default


Quote:
Originally Posted by shuiend View Post
Need more info then that. Post a picture of what it looks like and we can tell you.

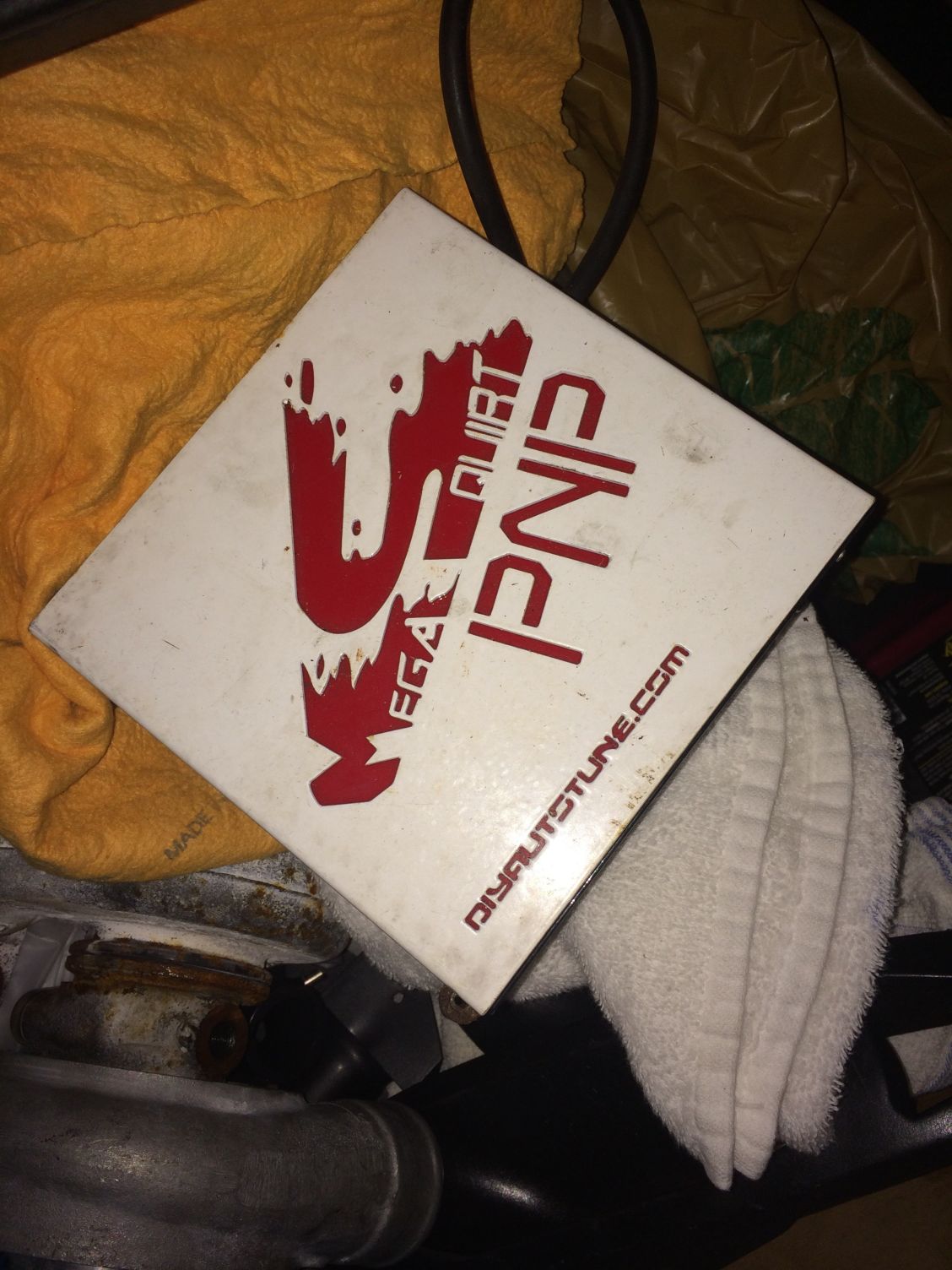

Attached Thumbnails
Use 90-93 MS on my 95M-80-image_52ace19e1903606dab61e9205bea2ba3e014ece1.jpg
merlotmako is offline   Reply With Quote
Old 01-23-2016, 09:23 AM   #4
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

nope, that's the main reason you should not buy model specific ecu's
WestfieldMX5 is offline   Reply With Quote
Old 01-23-2016, 01:01 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Unplug the battery and see if the 95 wiring harness even plugs into the ecu. If it does, you're in luck, if not I'd find a new ecu.

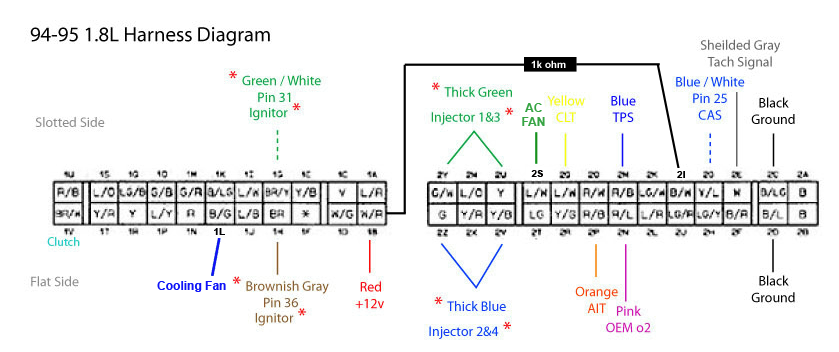

If they fit, open up the connectors, carefully remove the pins, and make them match this:

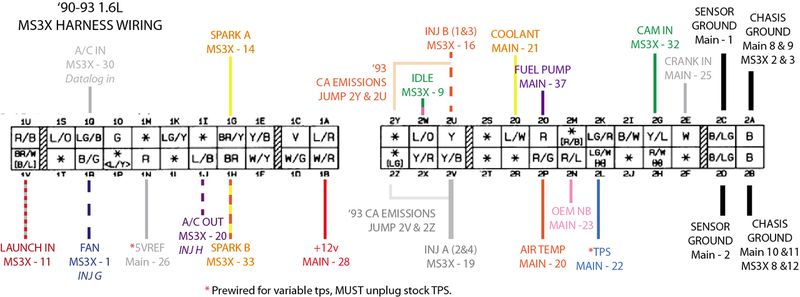

Instead of this:



Those diagrams were from way back when we had incredibly basic MS1s, but luckily that's what you bought. It's a very capable ecu, however you'll have to make the mods to use your VTPS, and I think the pre-OBD2 95s (which I think yours is) were still batch fire. If not you'll have to bridge injectors 3 and 2 with 1 and 4 respectively.
Attached Thumbnails
Use 90-93 MS on my 95M-80-57010d1349702637_please_check_my_ms2_harness_9093_standalone_ms3x_1b7ddc0ff58fb8202462eb43fb4.jpg   Use 90-93 MS on my 95M-80-fk4ole_b1d5bce78d3a86f34012de9b898a019dd73e4360.png
curly is offline   Reply With Quote
Old 01-23-2016, 06:17 PM   #6
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Won't work with a 95M, only with a non-m version.
aidandj is offline   Reply With Quote
Old 01-23-2016, 07:15 PM   #7
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Sell it and get the correct one for your chassis. There is to much work involved for you to try to make it work. Not worth the time or the effort for a MS1.
