Default Timing un-retard... How far can we go?

In the month or so since I got my DO kit installed and working I've more or less sorted out the fuel situation and have started to focus on the timing. Thus far I've just been incrementally adding equal amounts of advance (or reducing the retard) across the whole boosted area of my map, which itself is based on BGRacer's work.

Thus far I've added six degrees back into the lower half of my timing map, and no discernable ping as of yet. I'll probably try another two degrees this afternoon on the way home. Does anybody have a good feeling for what sort of limit on ignition advance (or un-retard) I should safely expect to reach?

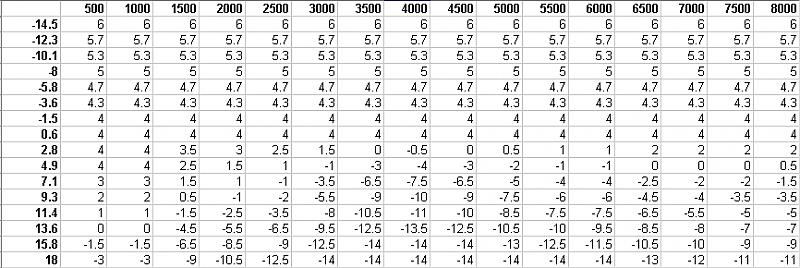

I've attached a screenshot of my current IGN map. (remember, these are relative advance/retard numbers, not actual timing) This is on a stock (10 BTDC) base timing, intercooled 1.6 Greddy, with D.O. injection. Currently reaching about 11PSI boost maximum. AFR is typically running an indicated 12.5 to 13.0, though I believe it's actually just a bit richer than this (based on observing the WBO2 as I switched the WI on and off manually). Fuel is California 91 (R+M/2) octane. I'm injecting about 50% Methanol and water.
Attached Thumbnails
Timing un-retard... How far can we go?-ign.jpg
Joe Perez is offline   Reply With Quote
Old 02-12-2007, 09:39 PM   #2
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

I think that you can add in a lot more timing than what you have now. I am at 8-9psi, and I am only pulling 3 degrees from a base of 12 degrees. I have absolutely no knock either, my only problem is that the fueling is a little lean, and the clutch is slipping.
boostinsteve is offline   Reply With Quote
Old 02-13-2007, 12:33 PM   #3
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Well, added another two degrees in last night, and still no pinging. This morning I also increased the boost to 12PSI, with initial surges to 14. (Yes, even the fancy TurboXS HPBC permits spikes...)

I'm now at +8 degrees vs. my old ignition timing map, which was right on the verge of detonation. I don't know why, but my engine loves to ping. And yes, I verified that the crank pulley hasn't slipped. I know there's a point of diminishing returns on ignition advance, not sure where it is for my engine yet. Add that to the list of things to figure out on the dyno...

So I guess this is one very happy DevilsOwn customer so far.

Now all I need is a bigger tank. The washer bottle ain't cutting it.
Joe Perez is offline   Reply With Quote
Old 02-13-2007, 01:07 PM   #4
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Awsome the results keep on pouring in great work joe.
magnamx-5 is offline   Reply With Quote
Old 02-13-2007, 01:41 PM   #5
Junior Member

Join Date: Jun 2006
Location: scotland/Houston
Posts: 127
Total Cats: 0
Default

Joe

your running similar boost to mine ,and youve seen my map
So maybe you can go a bit more, i was happy to push it as far as i could -since i had a decent Knock monitoring/sensing system and my CR ratio is i think a little lower than yours.
rockdoc is offline   Reply With Quote
Old 02-13-2007, 01:43 PM   #6
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

i should hope he can match a 12 psi m45 at least. we shall see.
magnamx-5 is offline   Reply With Quote
Old 02-13-2007, 01:52 PM   #7
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

How do I read that timing map? Does it say -1deg of timing at 12psi at 4500rpm???
Al Hounos is offline   Reply With Quote
Old 02-13-2007, 01:54 PM   #8
Junior Member

Join Date: Jun 2006
Location: scotland/Houston
Posts: 127
Total Cats: 0
Default

yeh,for sure itll be a good comparison
rockdoc is offline   Reply With Quote
Old 02-13-2007, 01:57 PM   #9
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by Al Hounos View Post
How do I read that timing map? Does it say -1deg of timing at 12psi at 4500rpm???
You're talking about mine? Those are whole degree increments, so it'd be -10 degrees at 11.4 PSI at 4500 RPM.
Joe Perez is offline   Reply With Quote
Old 02-13-2007, 01:58 PM   #10
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by rockdoc View Post
Joe

your running similar boost to mine ,and youve seen my map
Actually, I haven't seen your map. I think you described it to me, but I couldn't find a plot showing the map itself. Did I miss something?
Joe Perez is offline   Reply With Quote
Old 02-13-2007, 02:05 PM   #11
Junior Member

Join Date: Jun 2006
Location: scotland/Houston
Posts: 127
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
Actually, I haven't seen your map. I think you described it to me, but I couldn't find a plot showing the map itself. Did I miss something?
oh?- lemme go check my messages/email - i was sure you asked and i sent my timing map, gimme a mo
rockdoc is offline   Reply With Quote
Old 02-13-2007, 02:06 PM   #12
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Al, I don't see a single "-1" anywhere in the 4500 RPM column, so I'm not sure wtf you're talking about

He's running a piggyback, so I believe this chart shows the advance or retard of the stock total timing table (base timing plus advance). If his base timing is 10, his stock ECU might add ~17 advance at, say, 4500 RPM, for a total timing of 27, then his e-Manage is pulling ~10 at 11.5 PSI, for a total of 17.

That's what the graph looks like to me.
bripab007 is offline   Reply With Quote
Old 02-13-2007, 02:11 PM   #13
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

Ah ok. Too much math. 17 sounds pretty damn advanced for the peak torque area. Mine runs 12 through there I believe.
Al Hounos is offline   Reply With Quote
Old 02-13-2007, 02:12 PM   #14
Junior Member

Join Date: Jun 2006
Location: scotland/Houston
Posts: 127
Total Cats: 0
Default

Quote:
Originally Posted by rockdoc View Post
oh?- lemme go check my messages/email - i was sure you asked and i sent my timing map, gimme a mo
sent it to ya on 26th jan- you lost it
rockdoc is offline   Reply With Quote
Old 02-13-2007, 02:16 PM   #15
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

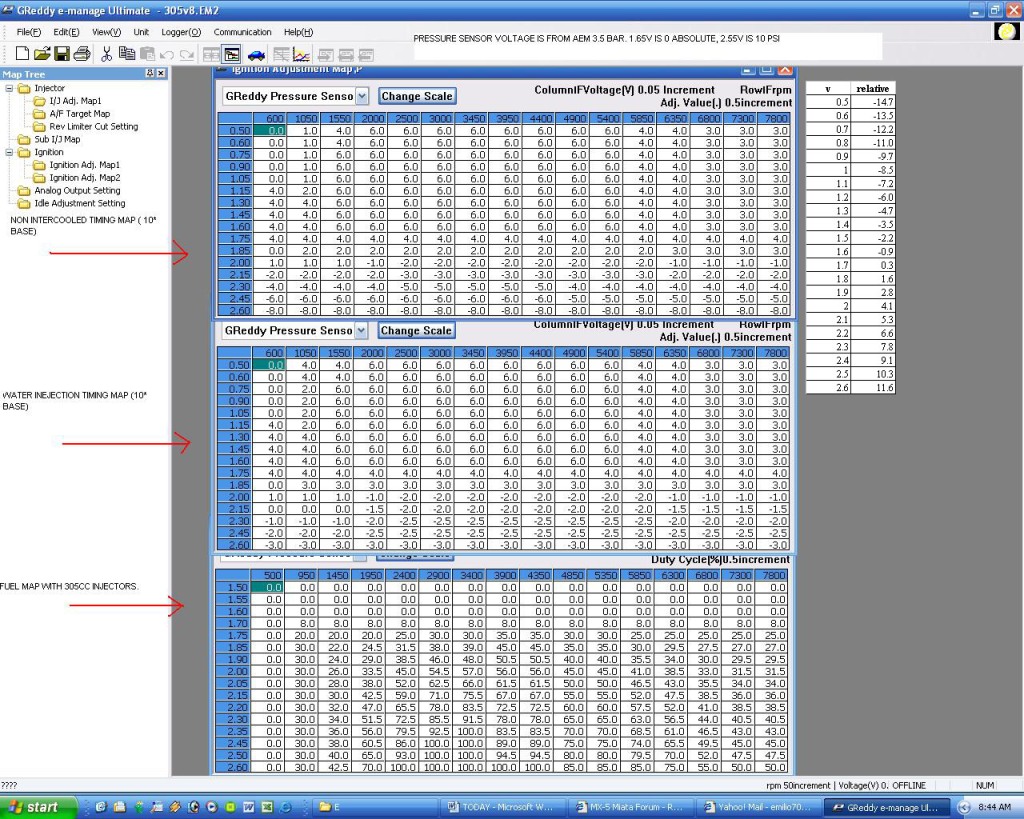

Joe, I have Emilio's (of 949Racing fame) e-Manage timing map which shows non-intercooled timing and water-injection timing, both at 8 PSI and 10 base on a '99 motor...not sure what octane gas, but I would guess it's either 91, 94 or a mixture of both to achieve ~93.

He's pulling less timing than you non-intercooled, FWIW.

Also, I'm pulling ~5.5-6 of timing, intercooled, at ~8 PSI, FWTW.
Attached Thumbnails
Timing un-retard... How far can we go?-8psi-99-stock-motor-timing-advance-retard-small.jpg
bripab007 is offline   Reply With Quote
Old 02-13-2007, 02:21 PM   #16
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Al, here's the stock 1.6L ECU timing advance (add 10 base to get the total timing).
Attached Files
File Type: pdf NA6C timing vs RPM at WOT.pdf (9.7 KB, 145 views)
bripab007 is offline   Reply With Quote
Old 02-13-2007, 02:54 PM   #17
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by Brian View Post
He's running a piggyback, so I believe this chart shows the advance or retard of the stock total timing table (base timing plus advance). If his base timing is 10°, his stock ECU might add ~17° advance at, say, 4500 RPM, for a total timing of 27°, then his e-Manage is pulling ~10° at 11.5 PSI, for a total of 17°.
We have a winner.

Those numbers are advance or retard done to whatever the stock ECU is putting out. The data we have for the stock timing is one-dimensional (advance vs. RPM) whereas the stock ECU takes load into account, by comparing airflow to RPM. And since I don't have the CAS hooked up, it's impossible for me to say what the actual ignition timing is in the less-then-boosted areas. But that's a more or less academic problem, not a practical limitation...

BTW- *VERY* nice chart, Brian.
Joe Perez is offline   Reply With Quote
Old 02-13-2007, 03:17 PM   #18
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by rockdoc View Post
sent it to ya on 26th jan- you lost it
Thanks, Rock. Don't know where I put that...
Joe Perez is offline   Reply With Quote
Old 02-13-2007, 08:10 PM   #19
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Quote:
Originally Posted by Joe Perez View Post
The data we have for the stock timing is one-dimensional (advance vs. RPM) whereas the stock ECU takes load into account, by comparing airflow to RPM.
Oh, sorry, you mean like this?

EDIT: Changed graph to 2D and format to .PDF for consistency and ease of use.
Attached Files
File Type: pdf na6c timing advance rpm vs load graph.pdf (14.3 KB, 212 views)

Last edited by bripab007; 02-13-2007 at 09:27 PM.
bripab007 is offline   Reply With Quote
Old 02-13-2007, 08:36 PM   #20
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Ladies and Gentlemen, I present the Smartass of the Year Award:
Quote:
Originally Posted by Brian View Post
Oh, sorry, you mean like this?
Yeah, pretty much like that.

Seriously, I'm amazed by this wealth of information. And also that there's not a sticky labeled "Everything Brian knows for some mysterious reason but hasn't shared with the rest of us until just recently."

Would you happen to have the original table that generated that chart?

Last edited by Joe Perez; 02-14-2007 at 02:44 AM.
Joe Perez is offline   Reply With Quote
