Default [NB] Powder-Coated: '01+ Valve Cover, PCV Catch Can

I have decided not to pursue the insanely-modded level of miata-ness and will be parting with a few nice items that I have yet to install. All of these were professionally cleaned and coated by Brian ("SignatureSound" on TheMazdaForum) and are clean and spotless, inside-and-out. All of the sharp, crude casting marks have been smoothed for a very natural look. Take a look at the pics from the coater, they have sat in their boxes for the past 7+ months. Prices are OBO and include shipping to CONUS.

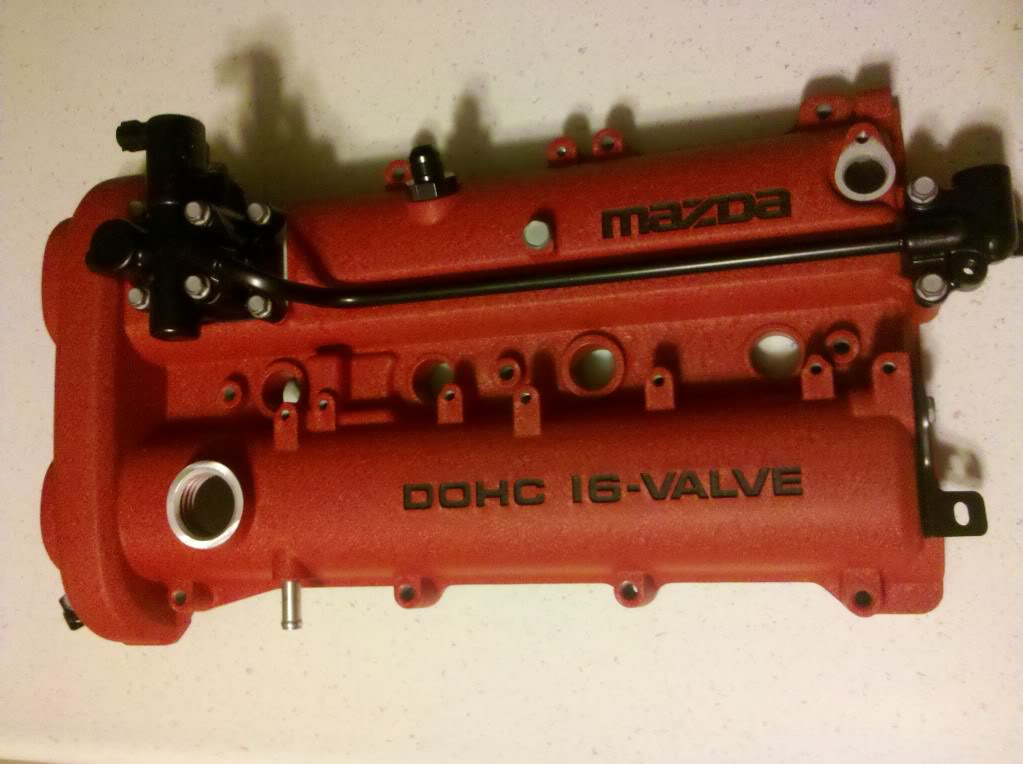

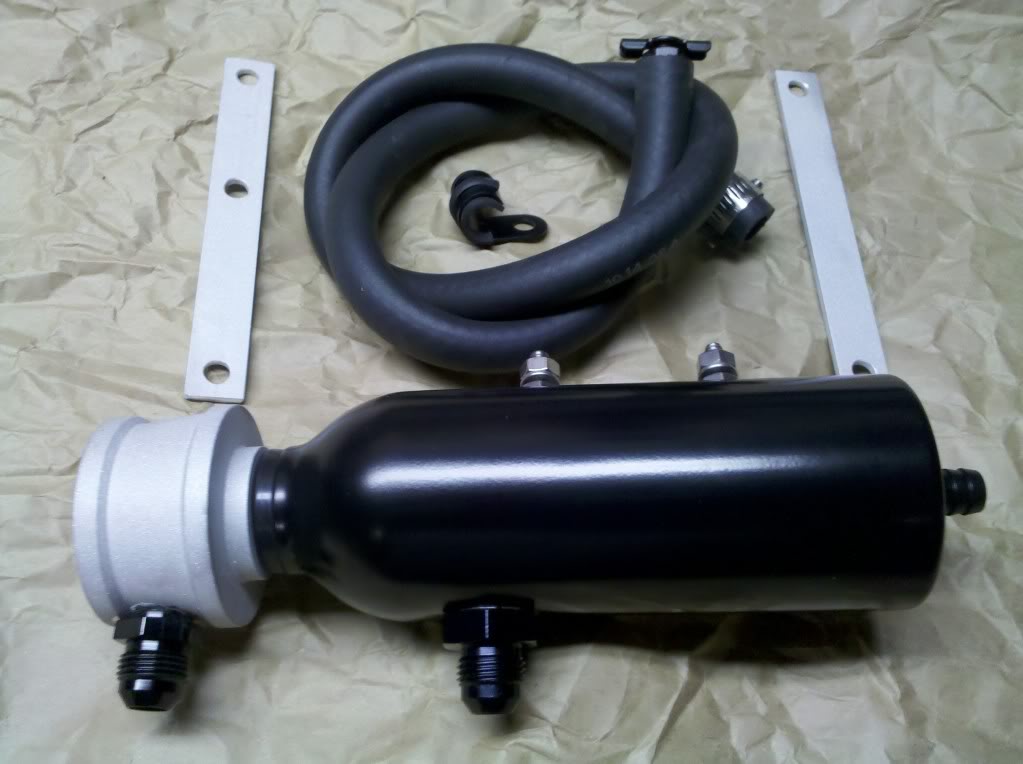

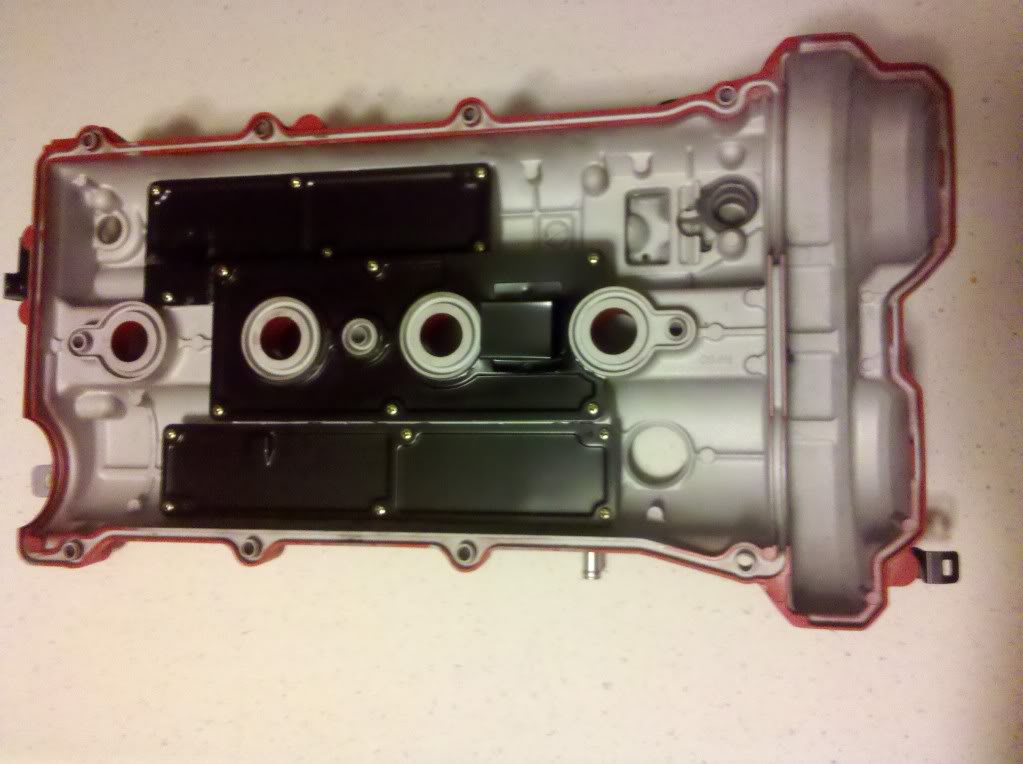

1. NB '01+ VVT valve cover, powder-coated wrinkle red with satin-black powder-coated oil tube, vvt actuator thing, and blackets. Black -8 AN oil fitting replaces stock PCV outlet. This fitting would have a line going to the black catch can (included) and then from the catch can back to the intake manifold. The catch can has a vacuum-operated one-way check valve that would replace the stock pcv system for a more robust (clean) breathing (no oil coming from the pcv into the intake/combustion). - $250 shipped

[NB] Powder-Coated: '01+ Valve Cover, PCV Catch Can-img_20120203_050203.jpg

[NB] Powder-Coated: '01+ Valve Cover, PCV Catch Can-img_20120203_050344.jpg

[NB] Powder-Coated: '01+ Valve Cover, PCV Catch Can-img_20120204_023224.jpg


2. '99-'00 VICS Intake Manifold, powder-coated satin black, with wrinkle-red coated brackets - SOLD

***Also, if you request, I can take some pics of my own in crisp lighting to really capture the color of the parts. The wrinkle red is a very true red (not like the red-orange it appears in the pics)***

Below are the links to more pics of when these parts were coated in the thread on TheMazdaForum (where the coater did his primary advertising):
Thread Page with Valve Cover and Catch Can
Thread Page with Intake Manifold

Last edited by JoeTheZoe; 08-30-2012 at 03:59 PM. Reason: Marked Sold item, Fixed an edit error on the first line.
JoeTheZoe is offline
Old 08-26-2012, 02:01 AM   #2
Junior Member
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 339
Total Cats: 39
Default

hey, your pics dont work for me. GLWS
scenturion is offline
Old 08-26-2012, 08:45 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Quote:
Originally Posted by scenturion View Post
hey, your pics dont work for me. GLWS
THANKS! Should be working now...
JoeTheZoe is offline
Old 08-28-2012, 10:23 AM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Still available, prices are OBO.
JoeTheZoe is offline
Old 08-30-2012, 12:11 AM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Intake Manifold is SOLD!
JoeTheZoe is offline
Old 08-30-2012, 02:51 PM   #6
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

Anypics of it installed?
90 Turbo is offline
Old 08-30-2012, 03:50 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Quote:
Originally Posted by 90 Turbo View Post
Anypics of it installed?
The Valve Cover? No...it never went on the car...has been in the box it was shipped in for 7 months. Is there something specific you're referring to? (Like where the catch can could go?)

Last edited by JoeTheZoe; 08-30-2012 at 05:40 PM.
JoeTheZoe is offline
Old 08-31-2012, 03:26 PM   #8
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

I just wanted to see how the setup would work/look.
How would it attach to the intake.
90 Turbo is offline
Old 08-31-2012, 05:52 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Well that depends on what route you would want to go with lines...

If you wanted all pretty braided lines (kinda the point of the nice threaded fittings):
1. Braided -8 AN line running from valve cover (where pcv used to be) to lower barb on catch can. Swivel hose ends on each end.

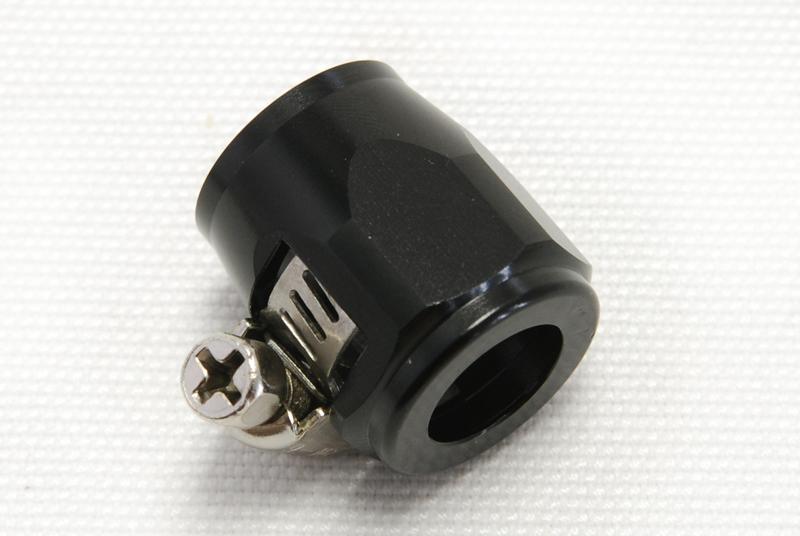

2. Braided -6 AN line running from upper barb (check valve) on catch can to the intake manifold vacuum barb previously used for the pcv hose. Swivel hose end on catch can side and a worm gear clamp on the intake barb, you would want to have a dressed-up one like this for a braided line:


***This would require a -8 AN to -6 AN reducer on the top fitting of the catch can, as the stock intake manifold barb is technically compatible with a -6 AN line***

^The reason for the reducer is because I had originally planned to use this catch can with my recently sold modified manifold that had a -8 AN fitting in place of the stock barb.

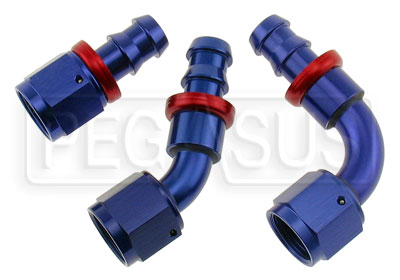

If you would prefer to use push-lock or regular vacuum lines, you would want barbed AN fittings like these:


-8 AN on valve cover, -8 AN on lower barb of catch can, -6 AN on upper barb of catch can (again, requires a -8 AN to -6 AN reducer). -8 AN line between VC and catch can, -6 AN line between catch can and intake manifold barb. Done. Reminder: As with any type of push-on vacuum hose, you would want to throw some worm-gear or stock-like pinch clamps on them to ensure they don't come off the barbs when driving.

As for the catch can....you could mount it wherever you want; that will influence how long the lines will be...it comes with 2 brackets that could be easily bent in any way to place it where you want. One note: make sure that the line going from the valve cover to the catch can always has a downhill slope from the VC to the catch, and does not rise back up or anything. This ensures that any blow-by makes it all the way to the catch can and does not coagulate in the line at some dip (this should be common sense).
Attached Thumbnails
[NB] Powder-Coated: '01+ Valve Cover, PCV Catch Can-8anhosecoverbig.jpg   [NB] Powder-Coated: '01+ Valve Cover, PCV Catch Can-3288.jpg
JoeTheZoe is offline
Old 09-03-2012, 01:04 AM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Still available! Make an offer!
JoeTheZoe is offline
Old 09-05-2012, 01:12 PM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Still available! Make an offer!!

*Keep in mind: This only includes Valve Cover as shown (with -8 AN fitting), catch can, 2 mounting brackets (to be used at your discretion), and remote drain line for catch can.
JoeTheZoe is offline
Old 09-07-2012, 05:38 PM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Bump.
JoeTheZoe is offline
Old 09-07-2012, 06:22 PM   #13
Junior Member
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

Would you be willing to part catch can separate from VC?
rkim is offline
Old 09-07-2012, 07:44 PM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Not at this time...but I have someone interested in the whole package and will check in with me next week. Until then, I do not plan to separate.
JoeTheZoe is offline
Old 09-13-2012, 11:57 AM   #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Still available! Have 2 good offers lined up, but just keeping interest up in case they fall through.
JoeTheZoe is offline
Old 09-14-2012, 03:02 PM   #16
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

sold!!!
