Old 05-08-2012, 05:18 PM   #1
Newb
Thread Starter

Join Date: Jul 2010
Posts: 31
Total Cats: 0
Default 2002 3.9 lsd differential

Hi, I have a 3.9 lsd differential complete carrier from an 02 with 50k mileage. At the moment, I would like to avoid shipping it. I live near Boston ma. $650 obo

Last edited by eb66; 05-09-2012 at 04:03 PM.
eb66 is offline   Reply With Quote
Old 05-08-2012, 11:29 PM   #2
Junior Member

Join Date: Mar 2011
Location: Louisville ky
Posts: 479
Total Cats: -110
Default

Will you this works in my 94?
atli126 is offline   Reply With Quote
Old 05-09-2012, 04:04 PM   #3
Newb
Thread Starter

Join Date: Jul 2010
Posts: 31
Total Cats: 0
Default

I think this is a direct bolt on for any 1.8l miata. Maybe someone else could verify. I'll try to find some evidence later.
eb66 is offline   Reply With Quote
Old 05-09-2012, 04:09 PM   #4
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Why can't you be on the left coast?

You are correct, it should bolt in to any 94-05, with the exception of the MSM. I'm using a 4.1 Torsen form a 94 in my 2000
EO2K is offline   Reply With Quote
Old 05-11-2012, 09:50 AM   #5
Junior Member

Join Date: Mar 2011
Location: Louisville ky
Posts: 479
Total Cats: -110
Default

How about just the 3.9 differential? I can swap it into my carrier?
atli126 is offline   Reply With Quote
Old 05-11-2012, 05:39 PM   #6
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

hmmm ... perhaps I should sell my 4.10 torsen which I just bought and buy this.

It's probably cheaper and easier then swapping in 3.9 gears.

Hows the carrier? Was the rear end pulled from a wreck?

-Zach
thasac is offline   Reply With Quote
Old 05-11-2012, 05:55 PM   #7
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by atli126 View Post
How about just the 3.9 differential? I can swap it into my carrier?
Yes. Pop the axles out, take the PPF and driveshaft off, remove the perimeter bolts, pull the entire diff out of the housing, insert new diff. Assembly is reverse of disassembly. I'm sure I'm leaving some steps out, like fluid and stuff. I think someone did a write-up on m.net a while ago but its dirt simple. I swapped my 4.3 open for a 4.1 torsen when I had the housing out to replace the bushings with MazdaComp units.

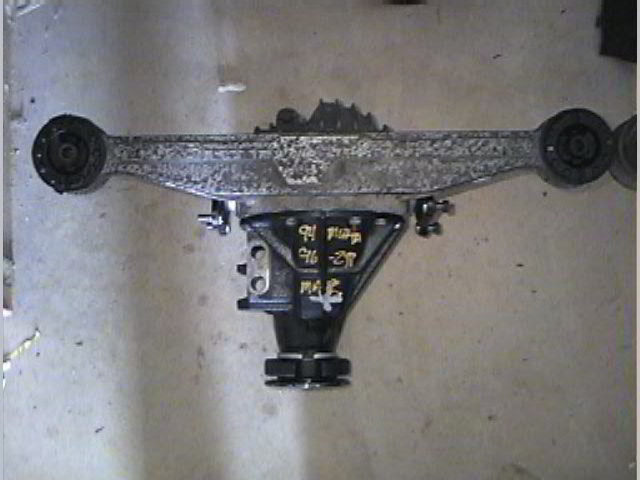

Take the thing that looks like this:


Remove the part that looks like this:

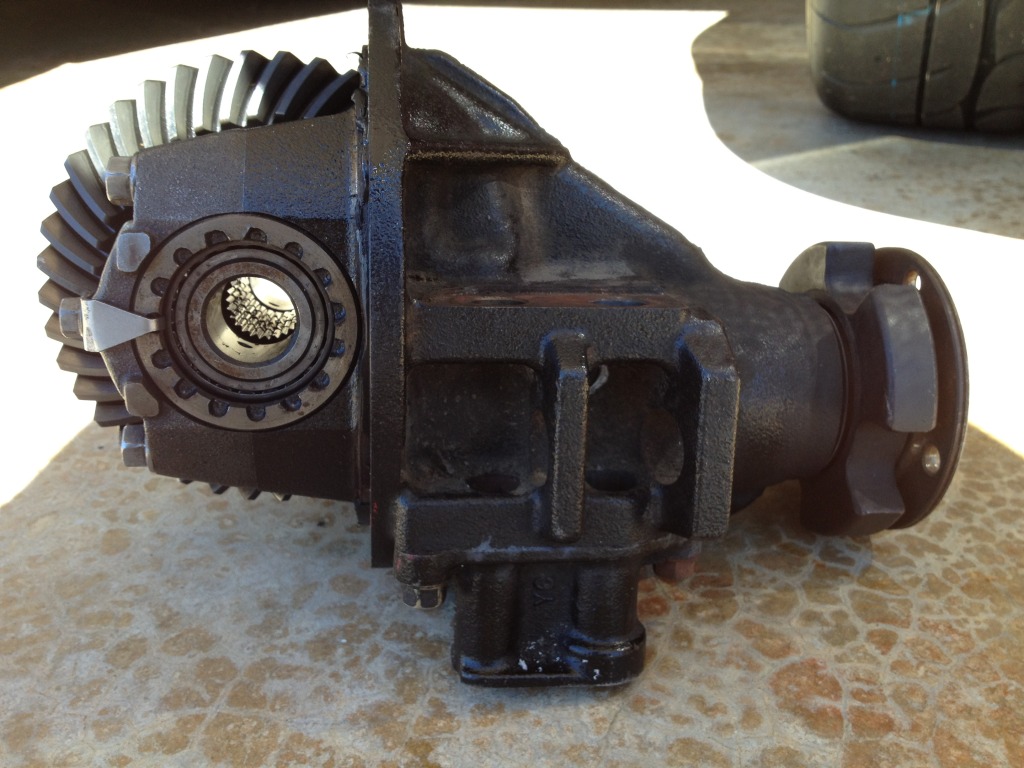

So the housing looks like this:

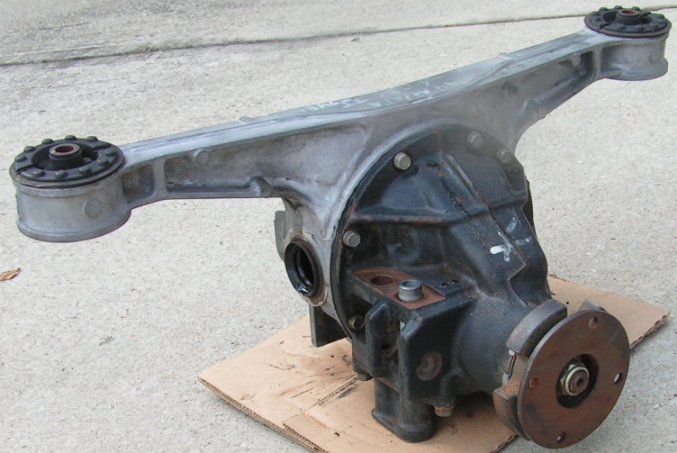

Then take your new 3.9 one of these:


Then make it look like this again:


Seriously guys, this is stupid simple and well documented on this forum and others. I'm feeling nice today so I'll throw you this bone: Miata Drivetrain Interchange Guide

Warning: Some of the above images may be 1.6 parts and should be used for reference only.
Attached Thumbnails
2002 3.9 lsd differential-mx5diff.jpg   2002 3.9 lsd differential-img_1623.jpg   2002 3.9 lsd differential-torsendx4.jpg

Last edited by EO2K; 05-11-2012 at 06:05 PM.
EO2K is offline   Reply With Quote
Old 05-12-2012, 01:10 PM   #8
Newb
Thread Starter

Join Date: Jul 2010
Posts: 31
Total Cats: 0
Default

Quote:
Originally Posted by thasac View Post
hmmm ... perhaps I should sell my 4.10 torsen which I just bought and buy this.

It's probably cheaper and easier then swapping in 3.9 gears.

Hows the carrier? Was the rear end pulled from a wreck?

-Zach

Carrier is really clean. I got it from a junk yard to replace my open, but then changed my mind on the 3.9 ratio and realized it was too expensive and too much trouble to switch the ratio/lsd unit and picked up a 4.3 lsd. I'll try to put up pictures later.
eb66 is offline   Reply With Quote
Old 05-12-2012, 01:14 PM   #9
Newb
Thread Starter

Join Date: Jul 2010
Posts: 31
Total Cats: 0
Default

Quote:
Originally Posted by atli126 View Post
How about just the 3.9 differential? I can swap it into my carrier?
Were asking if it was possible, or whether I wanted to ship just the differential? I might consider that.
eb66 is offline   Reply With Quote
Old 05-21-2012, 11:46 AM   #10
Newb
Thread Starter

Join Date: Jul 2010
Posts: 31
Total Cats: 0
Default

I am willing to ship now. Buyer pays for shipping. Local offers are still preferred.
eb66 is offline   Reply With Quote
Old 05-21-2012, 03:31 PM   #11
Junior Member
iTrader: (5)

Join Date: Nov 2010
Location: Maine
Posts: 407
Total Cats: -19
Default

Glws

Last edited by tuckermon; 05-21-2012 at 04:19 PM.
tuckermon is offline   Reply With Quote
Old 05-21-2012, 04:02 PM   #12
Junior Member

Join Date: May 2012
Location: Boston
Posts: 293
Total Cats: -7
Default

EB, was it a local Boston area junkyard? Any leads to who has Miatas at the local yards and is reasonable?
nile13 is offline   Reply With Quote
Old 05-22-2012, 01:16 PM   #13
Newb
Thread Starter

Join Date: Jul 2010
Posts: 31
Total Cats: 0
Default

No, I don't know any...
eb66 is offline   Reply With Quote
Old 05-22-2012, 09:17 PM   #14
Junior Member
iTrader: (1)

Join Date: Aug 2011
Location: Orlando, Fl
Posts: 57
Total Cats: -16
Default

Will this fit in a 90 just asking
svazquez104 is offline   Reply With Quote
Old 05-22-2012, 09:39 PM   #15
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by svazquez104 View Post
will this fit in a 90 just asking
Are you quite serious?

ಠ_ಠ

--> http://www.solomiata.com/Drivetrain.html <-- It's candy, like in the van. You know you like it...

eb66: Can you PLEASE get some pics all up in herr so people know what you are selling? Thanks!

Last edited by EO2K; 05-23-2012 at 03:48 PM.
EO2K is offline   Reply With Quote
Old 05-22-2012, 11:10 PM   #16
Junior Member
iTrader: (1)

Join Date: Aug 2011
Location: Orlando, Fl
Posts: 57
Total Cats: -16
Default

thanks missed it the first time
svazquez104 is offline   Reply With Quote
Old 05-23-2012, 03:53 AM   #17
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,769
Total Cats: 18
Default

Quote:
Originally Posted by EO2K View Post
Why can't you be on the left coast?

You are correct, it should bolt in to any 94-05, with the exception of the MSM. I'm using a 4.1 Torsen form a 94 in my 2000
No to thread jack but.....whats different on the MSM?
IcantDo55 is offline   Reply With Quote
Old 05-23-2012, 09:03 AM   #18
Junior Member
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Quote:
Originally Posted by IcantDo55 View Post
No to thread jack but.....whats different on the MSM?
^Axles are bigger. Right?

Bump. GLWS!
JoeTheZoe is offline   Reply With Quote
Old 05-23-2012, 03:47 PM   #19
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Correct, MSM uses bigger axles so they don't fit into the diff. I'm not sure about the hub, but I would imagine they are bigger on that side too.
EO2K is offline   Reply With Quote
Old 05-23-2012, 03:56 PM   #20
Newb
Thread Starter

Join Date: Jul 2010
Posts: 31
Total Cats: 0
Default

I'll get some pics up tonight. Sorry, picture uploading is blocked at work!
eb66 is offline   Reply With Quote
