Default BEGi Intake Manifold (NB)

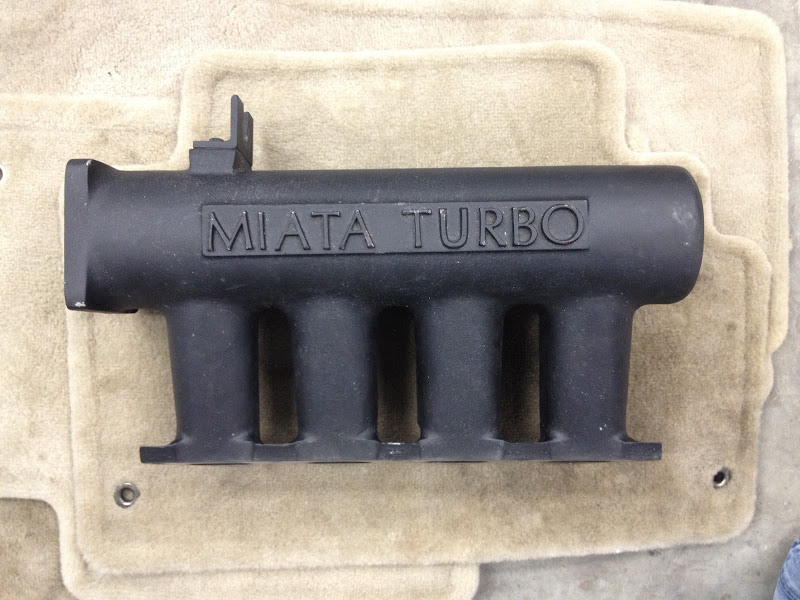

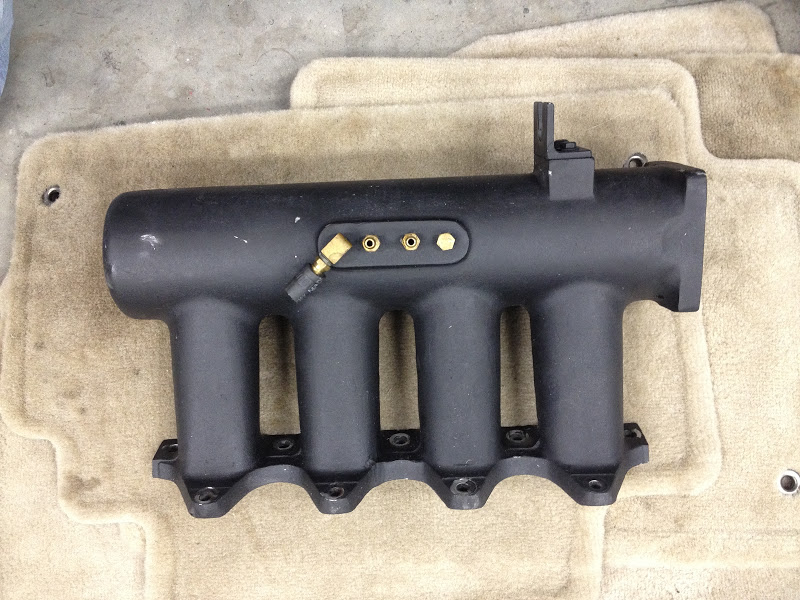

BEGi intake manifold. This came off of my '99 motor, so I'm guessing it is NB only. The current version BEGi sells for $639.

This version is no longer available new from BEGi, and these very, very rarely come up for sale used.

$450 $425 (3/18 price drop)



Attached Thumbnails
BEGi Intake Manifold (NB)-image_8bbd9bca-027b-487e-99ff-e2ef41750644.jpg   BEGi Intake Manifold (NB)-image_ad0daa70-ce49-4325-b5de-7e88d1166582.jpg

Last edited by nickt93; 03-18-2013 at 01:10 PM.
nickt93 is offline
Old 03-12-2013, 07:27 PM   #2
Junior Member

Join Date: Dec 2010
Location: DFW TX
Posts: 97
Total Cats: 2
Default

I probably would have purchased when I bought your old engine(i thought someone else bought it...?), but have since bought a house, and am broke :/ GLWS
LukeH is offline
Old 03-12-2013, 07:30 PM   #3
Newb

Join Date: Jun 2012
Posts: 13
Total Cats: -3
Default

so is this manifold for 1.8 miatas only? thank you
miatamaniatr is offline
Old 03-12-2013, 08:06 PM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by miatamaniatr View Post
so is this manifold for 1.8 miatas only? thank you
It is only for 99+ 1.8 heads. It will not fit on the 94-97 head. I have one of these and I love it. GLWS.
shuiend is offline
Old 03-12-2013, 10:26 PM   #5
Junior Member
iTrader: (4)

Join Date: May 2011
Posts: 132
Total Cats: -11
Default

What kind of hp gains/ losses should you expect with this manifold?
1FastMx5 is offline
Old 03-12-2013, 10:33 PM   #6
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

Link above? Google? Bing? Search button?
https://www.miataturbo.net/engine-pe...-43103/page28/
Dot3 is offline
Old 03-12-2013, 10:46 PM   #7
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

One reason that I love this manifold is because it is not a royal pita to install and remove injectors like the stock NB manifolds. You can also pull it off in less then 10min with a little practice.
shuiend is offline
Old 03-14-2013, 12:44 AM   #8
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 581
Total Cats: 4
Default

Quote:
Originally Posted by 1FastMx5 View Post
What kind of hp gains/ losses should you expect with this manifold?
Your car needs to be running 270 whp or greater than 14 psi in order to see any benefit from this manifold. Otherwise, lower horsepower cars will loose power.

from OP link BUT for the newer model, not sure about this one yet....
joyrider is offline
Old 03-14-2013, 10:52 AM   #9
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,237
Total Cats: 290
Default

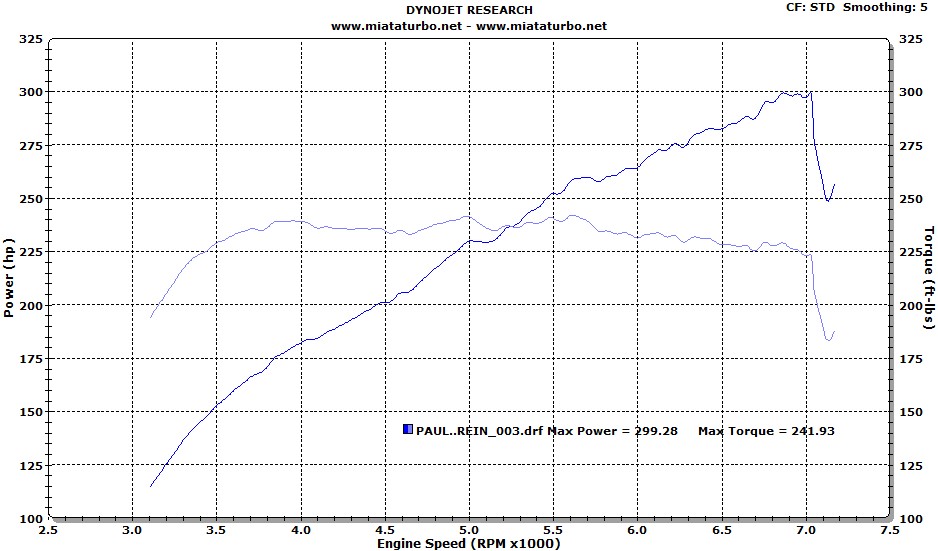

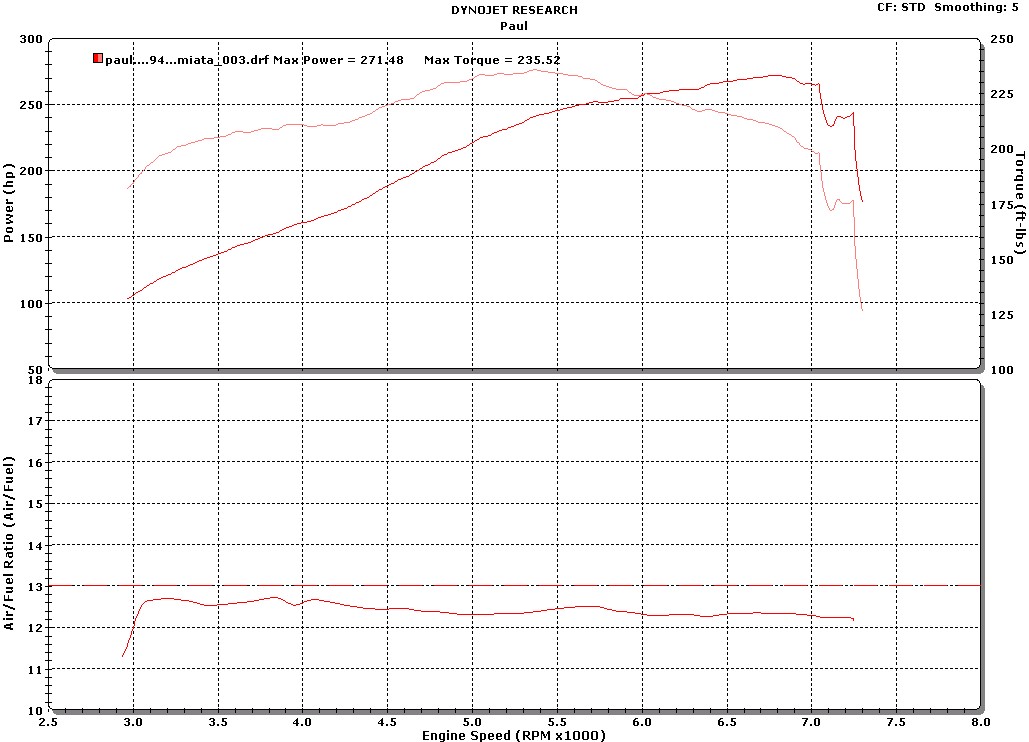

Before and after dynos for a 1.8. He added this manifold, a big throttle body and retuned. IIRC it was an NB head on an NA bottom end.
Attached Thumbnails
BEGi Intake Manifold (NB)-paul_before.jpg   BEGi Intake Manifold (NB)-paul_after.jpg
m2cupcar is offline
Old 03-14-2013, 01:03 PM   #10
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

Very, very interested. I'll be pushing 16psi and 300 (or more with this). I only a few questions if anyone knows the answers;

What is the suggested TB to use (I know it's a 70mm, not sure which one though), is there a specific TB that's suggested?
Am I still able to use my IAC with this? Or has anyone seen one made to work with an IAC?

Last edited by Der_Idiot; 03-14-2013 at 01:37 PM.
Der_Idiot is offline
Old 03-14-2013, 01:05 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

See Lars' build thread (shiuend). It will answer every single question.
18psi is offline
Old 03-14-2013, 01:19 PM   #12
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 129
Default

Quote:
Originally Posted by miatamaniatr View Post
so is this manifold for 1.8 miatas only? thank you
Cars with 99-05 heads. It won't fit a NA head.

*Edit - Durrr, just saw someone already answered*
pdexta is offline
Old 03-14-2013, 01:37 PM   #13
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by Der_Idiot View Post
Very, very interested. I'll be pushing 16psi and 300 (or more with this). I only a few questions if anyone knows the answers;

What is the suggested TB to use (I know it's a 70mm, not sure which one though)
Am I still able to use my IAC with this? Or has anyone seen one made to work with an IAC?
I am using a 70mm mustang TB on my car. It is was Begi sold with the IM. I currently am using a remote idle valve. It is a stock 97 idle valve that TurboTim fabbed up to work. I know if you are running an MS3 you can use a remote VW idle valve.

When I was running my car with DW1000's I did not use an idle valve and was able to somewhat idle with just the adjustment screw on the TB out a little bit. One of these days I may go back to trying to run without an idle valve as routing vacuum lines can be a PITA.
shuiend is offline
Old 03-18-2013, 01:09 PM   #14
Senior Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Atlanta
Posts: 581
Total Cats: 33
Default

Bump and price drop to $425.
nickt93 is offline
Old 03-18-2013, 01:28 PM   #15
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

Trade for vics and b18 2 stage intake manifold?
Dot3 is offline
Old 03-19-2013, 08:16 PM   #16
Senior Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Atlanta
Posts: 581
Total Cats: 33
Default

Quote:
Originally Posted by Dot3 View Post
Trade for vics and b18 2 stage intake manifold?
Sorry man - no use for that.
nickt93 is offline
Old 03-19-2013, 09:45 PM   #17
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

Couldn't hurt to ask.
I'll be interested if its still up in a few weeks.
Dot3 is offline
Old 03-26-2013, 03:52 PM   #18
Senior Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Atlanta
Posts: 581
Total Cats: 33
Default

Bump
nickt93 is offline
Old 03-26-2013, 11:32 PM   #19
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

pm sent
FowlerMotorsports is offline
