Default Borg Warner EFR 6758 IRL

SOLD SOLD SOLD

Hi guys,

So I have an IRL 6758 for sale. IRL turbos; so lightweight comp housing, more compact turbine housings, aluminum CHRA...ridiculously light turbos.


The 6758: asking SOLD
It had a tick of side to side shaft play (no thrust play) so I tore it down to inspect and you'll see results in the pics. It has some itty bitty dings, which you might have a hard time seeing. No signs of wheel to housing interference, so it isn't bad. Seriously very little side to side and normal thrust play. No signs in the turbine sign of oil abnormal oil consumption. It didn't have a mileage tag but having had over a dozen of these turbos, they all are mileaged out with the highest being 3800 miles and most around 2800-3200 miles.

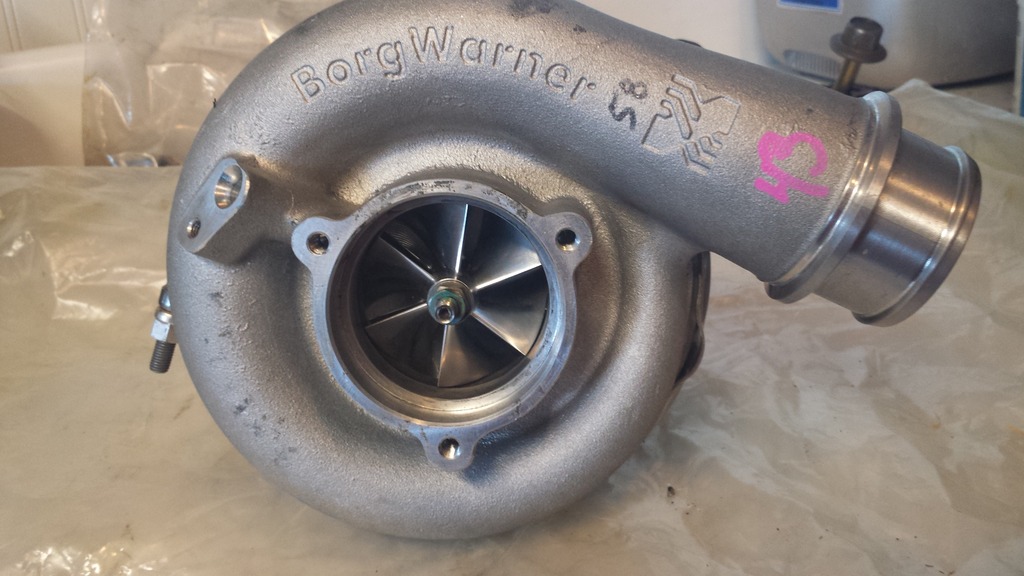

Name:  20170124_170032_zpssmxttkov.jpg
Views: 169
Size:  164.3 KB

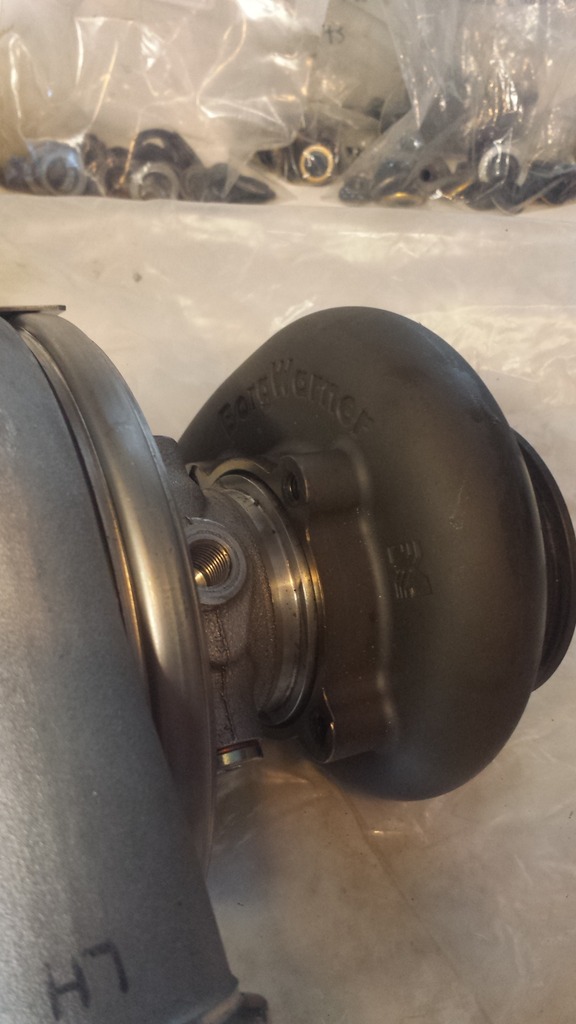

Name:  20170124_170301_zpsgffjcxbb.jpg
Views: 168
Size:  124.4 KB

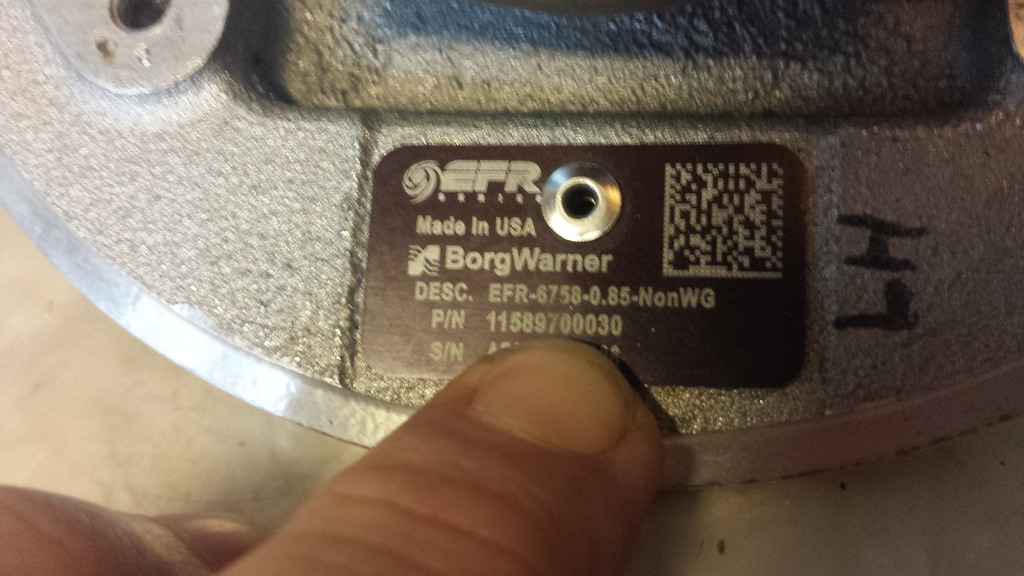

Name:  20170124_165106_zpsgusou2xe.jpg
Views: 164
Size:  170.8 KB

Name:  20170124_164838_zpsmk1drw5n.jpg
Views: 158
Size:  155.6 KB

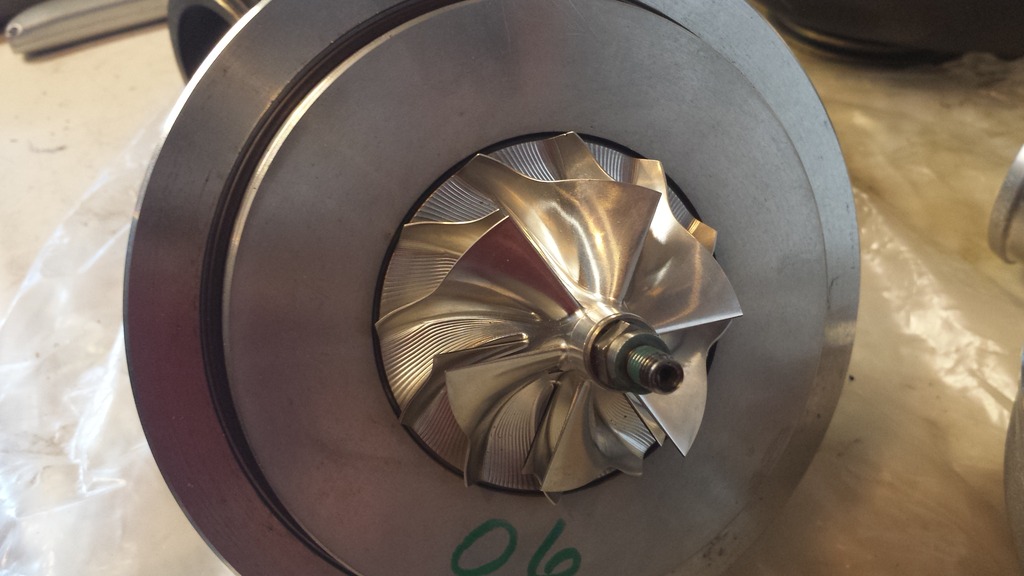

Name:  20170124_164826_zpscgvinmkt.jpg
Views: 164
Size:  136.8 KB

-Micah

Last edited by Homemade WRX; 02-16-2017 at 10:07 PM.
Homemade WRX is offline   Reply With Quote
Old 02-08-2017, 09:19 PM   #2
Junior Member
Thread Starter

Join Date: Mar 2012
Location: Mid-Atlantic
Posts: 60
Total Cats: 7
Default

More 6758 inspection pics:

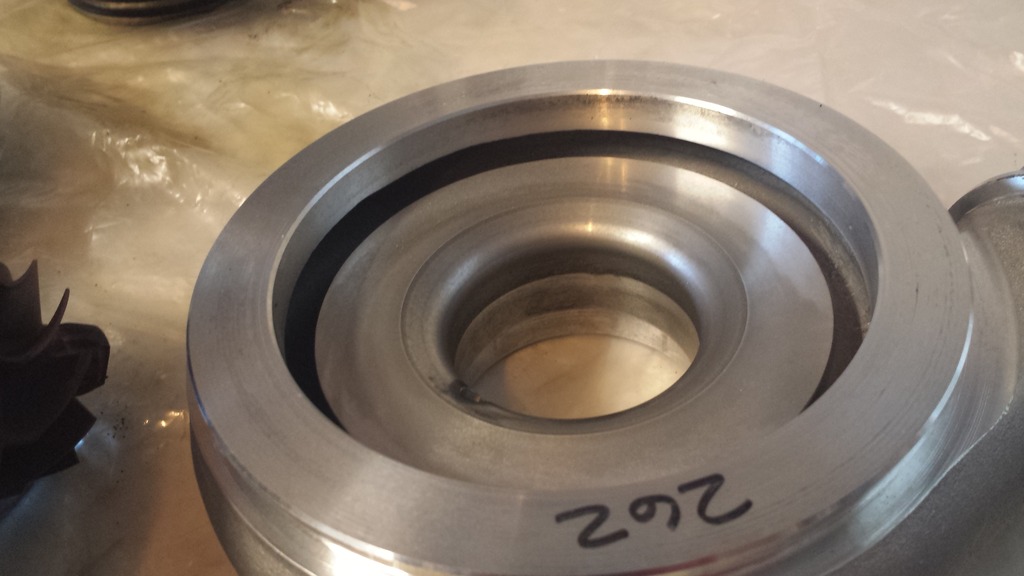

Name:  20170124_164856_zpsz0hgb8mg.jpg
Views: 166
Size:  120.0 KB

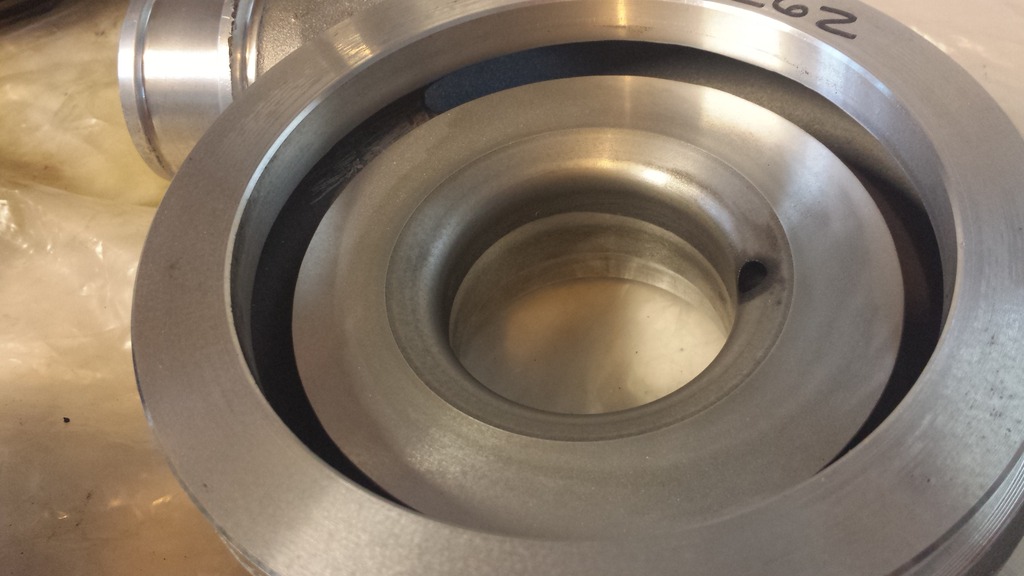

Name:  20170124_164817_zpsnvn4qbwp.jpg
Views: 160
Size:  130.4 KB

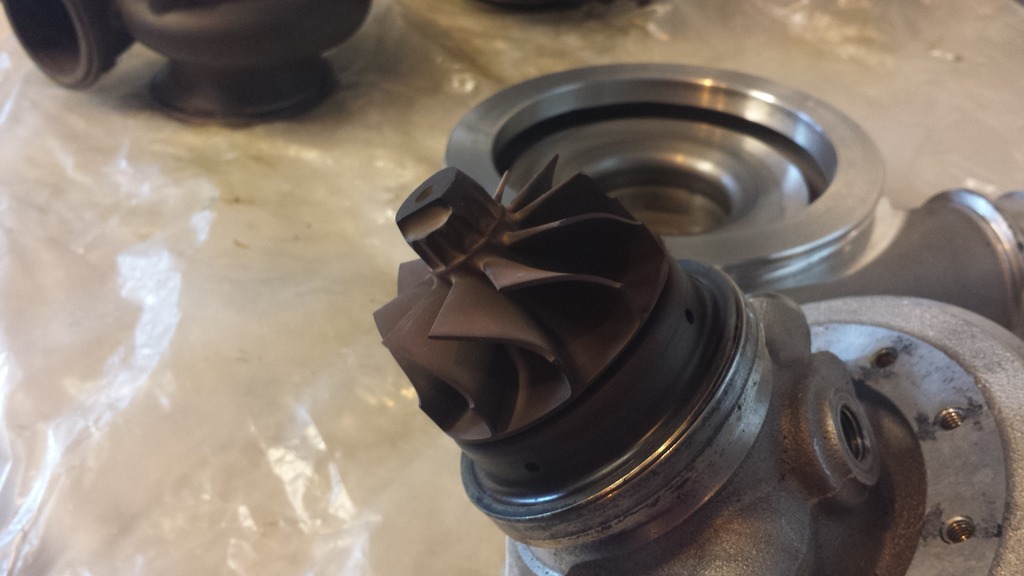

Name:  20170124_165033_zpswm9fdc6g.jpg
Views: 156
Size:  123.3 KB

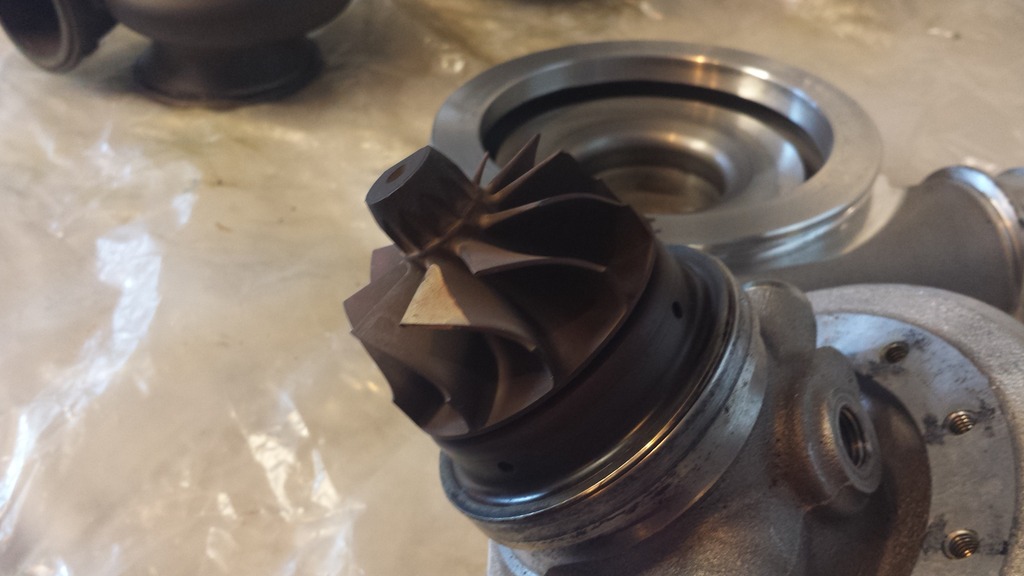

Name:  20170124_165048_zpsgn3f0alc.jpg
Views: 157
Size:  121.3 KB

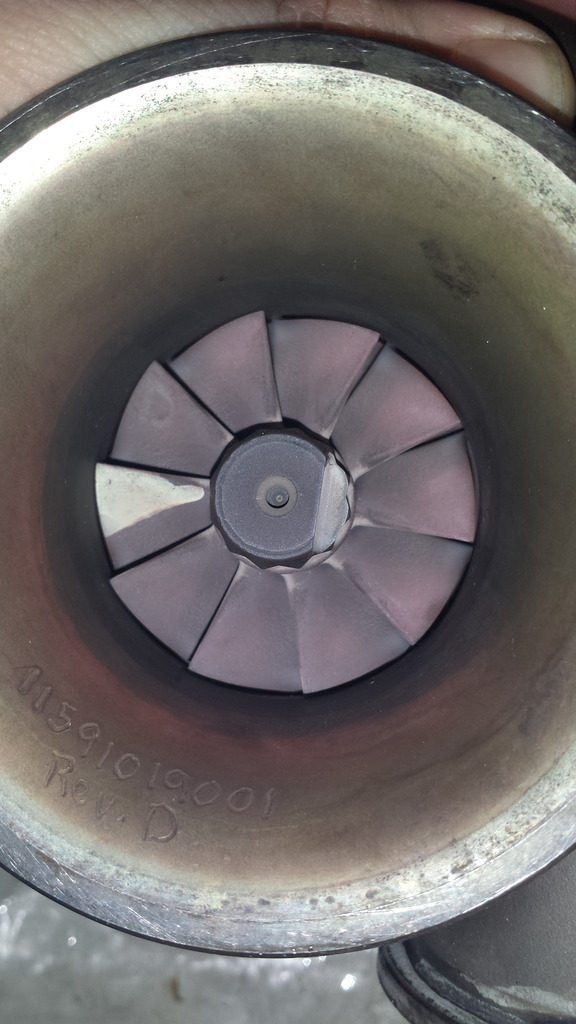

Name:  20170124_170320_zpsaasweavu.jpg
Views: 163
Size:  158.4 KB

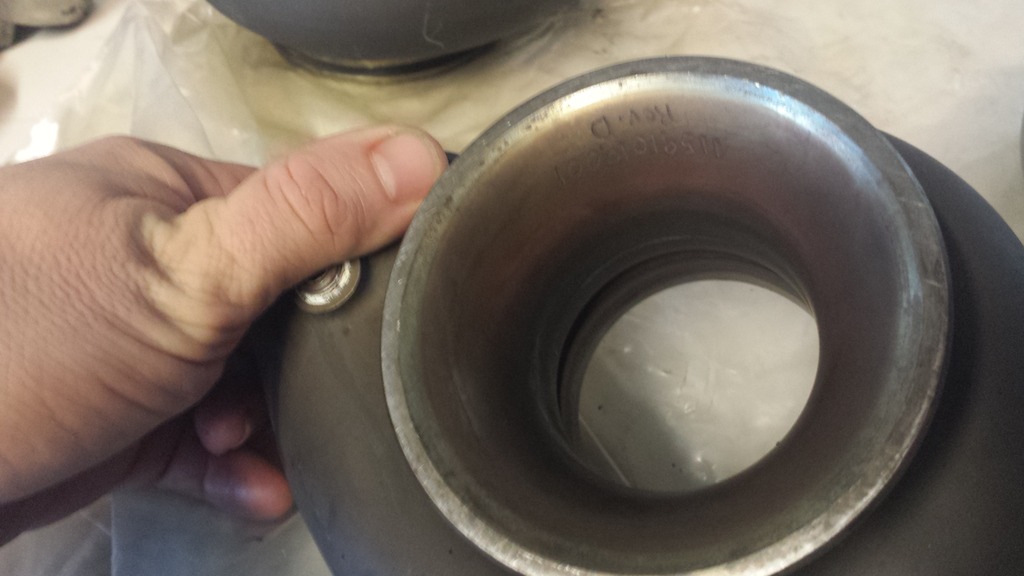

Name:  20170124_165130_zpske7vacfy.jpg
Views: 158
Size:  117.0 KB

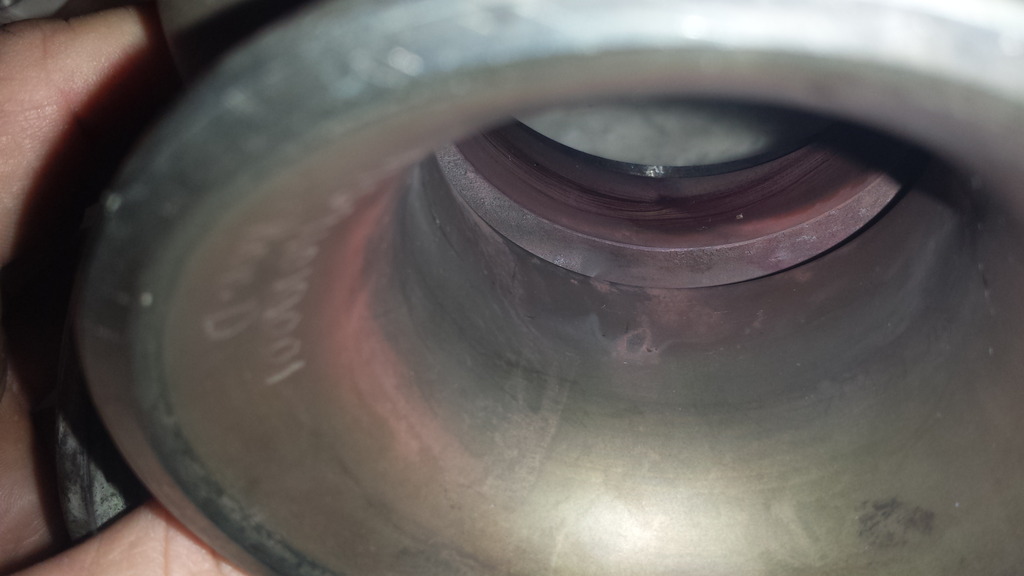

Name:  20170124_165200_zps7vcfu1gl.jpg
Views: 155
Size:  101.0 KB

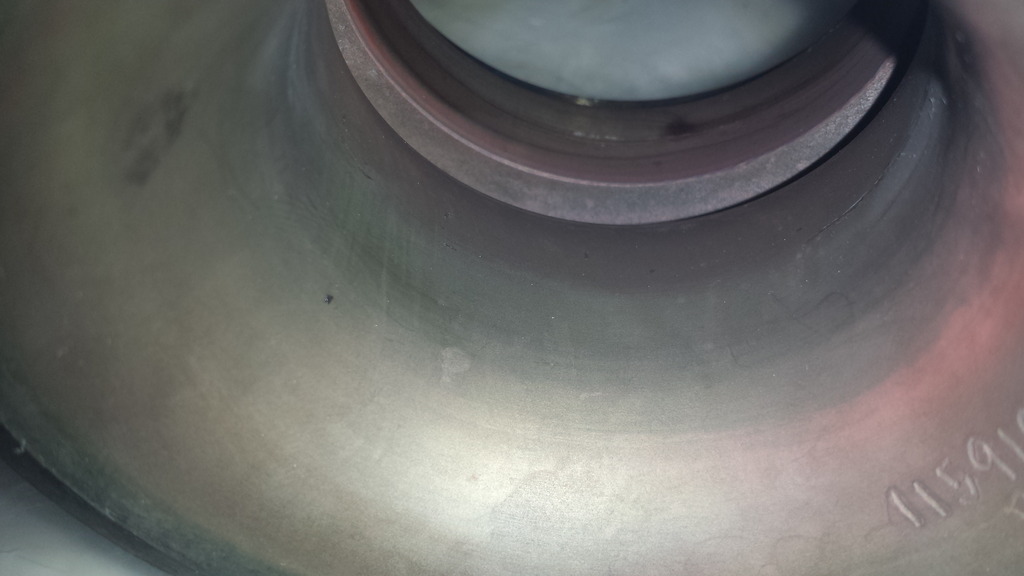

Name:  20170124_165210_zpst50lie4y.jpg
Views: 158
Size:  103.3 KB
Homemade WRX is offline   Reply With Quote
Old 02-10-2017, 11:10 AM   #3
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

Hmm.. Is that hand engraving done on all Borg Warner turbos from Borg? Not exactly a piece we want to add stress concentrations on.
NBoost is offline   Reply With Quote
Old 02-10-2017, 11:17 AM   #4
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,675
Total Cats: 316
Default

That's not an area of high stress concentration.
psyber_0ptix is offline   Reply With Quote
Old 02-10-2017, 11:58 AM   #5
Junior Member

Join Date: Jun 2015
Posts: 126
Total Cats: 4
Default

Quote:
Originally Posted by NBoost View Post
Hmm.. Is that hand engraving done on all Borg Warner turbos from Borg? Not exactly a piece we want to add stress concentrations on.

You are mixing high temperature with high stress............neither of which with this engraved portion will have a negligible affect on.
RalliartRsX is offline   Reply With Quote
Old 02-10-2017, 02:06 PM   #6
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

Hmm, that's funny I don't believe I referred to that (or any) area to be a high stress area.. Read, instead of filling my mouth with your words.

But if you are comfortable with quite possibly the best, most advanced, ~$1000 turbocharger on the market, being engraved with a hand held engraver.. then be my guest. Only wanted to know if it was this way from BW.
NBoost is offline   Reply With Quote
Old 02-10-2017, 02:37 PM   #7
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,675
Total Cats: 316
Default

Perhaps you can elaborate what you mean by:

Quote:
Not exactly a piece we want to add stress concentrations on.

What garbage are you trying to back pedal on that justifies this conversation. That area is of little interest, and certainly will not feel any effect from some superficial dimples during or after thermal cycling. But before I put words in your mouth, why don't you finish vomiting whatever alternative facts you've got.

EDIT: Bump for Micah

Last edited by psyber_0ptix; 02-10-2017 at 03:00 PM.
psyber_0ptix is offline   Reply With Quote
Old 02-10-2017, 02:44 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,045
Total Cats: 2,559
Default

Y'all better not crap up this guys thread.

Quote:
Originally Posted by NBoost View Post

But if you are comfortable with quite possibly the best, most advanced, ~$1000 turbocharger on the market, being engraved with a hand held engraver.. then be my guest. Only wanted to know if it was this way from BW.
The guys that installed/tagged/used this forgot more about turbo's than you'll ever know. This is not some pc-pro owning retard with a dremel in the back of his garage drawing on his turbo.

This is also a good price for an EFR.

So I suggest you move on if you're not interested in buying it.
18psi is offline   Reply With Quote
Old 02-10-2017, 02:45 PM   #9
Junior Member

Join Date: Jun 2015
Posts: 126
Total Cats: 4
Default

Quote:
Originally Posted by NBoost View Post
Hmm, that's funny I don't believe I referred to that (or any) area to be a high stress area.. Read, instead of filling my mouth with your words.

But if you are comfortable with quite possibly the best, most advanced, ~$1000 turbocharger on the market, being engraved with a hand held engraver.. then be my guest. Only wanted to know if it was this way from BW.
​​​​​​

.........And that simple quote demonstrates your ignorance.

As a little background for your assistance: These are engraved for Indy Car teams by Borg Warner themselves as a way to track these turbos as they are timed out after a certain mileage regardless of use. But please, do tell Borg Warner and/or the Indy teams they have no idea on what they are doing when this was engraved and they purposefully engraved in this particular portion of the turbo to willfully cause an increase in localized "stress concentration"........ Function over form. Things don't necessarily have to look "good" for them to perform correctly.

Its a turbine discharge with very high energy and high movement exhausted gases. The gases, due to the high velocity, will cause very minimal stress risers (or in effect, perpendicular pressure in respect to flow path) in that particular area and the gases would have to move from path of least resistant to populate the engraved portion. Apart from a very minimal rise in temperature for that particular area, its a non issue.

EDIT: People have beat me to the punch lol

EDIT 2: Great price from a great seller!
RalliartRsX is offline   Reply With Quote
Old 02-10-2017, 04:06 PM   #10
Reverse Cerberus
iTrader: (10)

mrryanbaker's Avatar

Join Date: Oct 2008
Location: Vancouver, WA
Posts: 130
Total Cats: 5
Default

Uuuuugh. Want. How difficult is that three bolt inlet to get hold of?
mrryanbaker is offline   Reply With Quote
Old 02-10-2017, 04:12 PM   #11
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,756
Total Cats: 1,101
Default

Quote:
Originally Posted by mrryanbaker View Post
Uuuuugh. Want. How difficult is that three bolt inlet to get hold of?
The OP should be making some soon to go with it. Otherwise shoot me a PM and I can get you info of someone who might be able to make you one. Not sure what my guy would charge though.
shuiend is offline   Reply With Quote
Old 02-10-2017, 04:18 PM   #12
Reverse Cerberus
iTrader: (10)

mrryanbaker's Avatar

Join Date: Oct 2008
Location: Vancouver, WA
Posts: 130
Total Cats: 5
Default

Quote:
Originally Posted by shuiend View Post
The OP should be making some soon to go with it. Otherwise shoot me a PM and I can get you info of someone who might be able to make you one. Not sure what my guy would charge though.
If it's a thing that needs to be made,and there is a CAD available of the flange, I don't mind getting one cut. Was hoping there was just some dumb SR20 style elbow that could bolt on.
mrryanbaker is offline   Reply With Quote
Old 02-10-2017, 04:44 PM   #13
Junior Member

Join Date: Feb 2014
Location: Columbus, IN
Posts: 231
Total Cats: 16
Default

Quote:
Originally Posted by NBoost View Post
Hmm.. Is that hand engraving done on all Borg Warner turbos from Borg? Not exactly a piece we want to add stress concentrations on.
1) You have to have stress before you can have a stress concentration. This has neither.
2) The definition of a stress riser is a feature that reduces the area over which stress is distributed, such as a corner or rapid change in material thickness. Such features must be proportionately large relative to the thickness of the part in order to have any effect on strength, so the tiny "corners" created by the engraving do not qualify.
3) The only measurable effect the engraving could have is work hardening the surface in those areas and creating some minute residual compressive stress on the surface.
Engi-ninja is offline   Reply With Quote
Old 02-11-2017, 12:55 AM   #14
Newb

Join Date: Feb 2017
Posts: 5
Total Cats: -31
Default

Pm sent
Cnordelo is offline   Reply With Quote
Old 02-13-2017, 10:36 PM   #15
Junior Member
Thread Starter

Join Date: Mar 2012
Location: Mid-Atlantic
Posts: 60
Total Cats: 7
Default

Guys, all of Penske and Andretti Green's turbos had these. All of these turbos were run on Indy cars...I'm sure it'll handle anything you throw at it. I say this knowing that you'll kill the turbine wheels from EGT's before you crack that turbine housing.

We ran 6258's on our Roush Yates Daytona Prototype engines. We learned a great deal about them.
Homemade WRX is offline   Reply With Quote
Old 02-14-2017, 12:10 PM   #16
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,467
Total Cats: 245
Default

What A/R are these turbines? Is that what the .85 signifies in the part number? Care to trade for any valvetrain parts?
TurboTim is offline   Reply With Quote
Old 02-14-2017, 12:41 PM   #17
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,675
Total Cats: 316
Default

Quote:
Originally Posted by TurboTim View Post
What A/R are these turbines? Is that what the .85 signifies in the part number? Care to trade for any valvetrain parts?
0.85 responds to A/R; if I recall, there is no other size for the B1-framed EFR that comes in V-band
psyber_0ptix is offline   Reply With Quote
Old 02-14-2017, 08:16 PM   #18
Newb

Join Date: Nov 2015
Posts: 2
Total Cats: 0
Default

I dont suppose you could measure the side play in thousandths? I am contemplating between this or say a new precision turbo, but EFR!! Me want bad!
mgarc1973 is offline   Reply With Quote
Old 02-15-2017, 01:37 PM   #19
Junior Member
Thread Starter

Join Date: Mar 2012
Location: Mid-Atlantic
Posts: 60
Total Cats: 7
Default

Quote:
Originally Posted by psyber_0ptix View Post
0.85 responds to A/R; if I recall, there is no other size for the B1-framed EFR that comes in V-band
I had 4 of the IRL 0.64 V-band housings. Now I'm down to one...that I'm keeping for me. I think I sold all the rest of them on this site actually.

Quote:
Originally Posted by mgarc1973 View Post
I dont suppose you could measure the side play in thousandths? I am contemplating between this or say a new precision turbo, but EFR!! Me want bad!
You want trust and axial? Just want it compared to my other ones or what did you want as a standard?
Homemade WRX is offline   Reply With Quote
Old 02-15-2017, 01:48 PM   #20
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,675
Total Cats: 316
Default

Quote:
Originally Posted by Homemade WRX View Post
I had 4 of the IRL 0.64 V-band housings.
