Default Complete 1.6 Turbo Setup

Up for sale is the turbo kit that I purchased from a member on MT (underdog). It was on his car for about 2000 miles and I never got around to installing it (decided not to do turbo). I am selling this because I plan on selling the car in the spring. You can see all of the details, photos, dyno results, etc. in his build thread or you can see the various stages broken down by date/topic on his website.

Includes the following items:
-Godspeed/Ebay T3 turbocharger- 50 trim, .48 A/R with Earl's -3AN oil feed fitting and Ebay 5/8" oil drain fitting
-Ebay cast iron turbo manifold. Modified with relief cuts and a Tial v-band external wastegate flange
-Tial 38mm MVS v-band external wastegate
-Steel T3 inlet gasket
-V-band wastegate atmosphere dump tube
-ATP Turbo 5 bolt T3 turbo exhaust flange to 2.5" v-band adapter. Includes bolts and steel gasket
-2.5" v-band downpipe with a slip fit exit and heat wrapped. Includes O2 sensor fitting. Pipe is welded steel mandrel bends
-Autogauge fuel pressure gauge and fittings for installing inline with stock Miata fuel line
-CXRacing/Ebay Intercooler - 28x7x2.5 with 2.5" inlets and outlets
-2" hot side intercooler piping with silicone connectors/reducers and clamps. Pipes are welded steel mandrel bends
-2.5" cold side intercooler piping with silicone/rubber connectors and clamps. Flanged for a Tial 50mm blowoff valve
-Tial 50mm blowoff valve
-CoolingMist alcohol injection nozzle mounted in cold side pipe. The nozzle part was stuck, so I left it in the pipe.
-Ebay Slim radiator fan- allows easy installation of hot side intercooler piping
-Rubber turbo intake elbow with K&N Filter & rubber line with an inline filter for valve cover venting
-Paragon Performance M10 x 1.5 to -3AN oil feed fitting
-Earl's 36" -3AN oil feed line
-NAPA 5/8" Oil pan turbo oil drain fitting
-Drill bit and tap for installing oil pan drain fitting
-ATP Turbo high temp silicone 5/8" oil drain hose
-Extreme Motorsports Manual Boost Controller (old, but works great)



A couple notes:
-You will need to purchase one 2.5" v-band clamp. The one that connects to the downpipe broke when I removed it. You can find them on Ebay, just use some high temp anti-seize on the bolt threads when installing.

-The cold side pipe will need to be extended a few inches at its exit in order to mate up to the stock Miata throttle body. This may be accomplished with a silicone connector, but one way or another it will need done. Not a big deal, if you choose to have it welded on any exhaust or fab shop could do this quickly.

If you have any questions feel free to ask. I will do my best to answer.

Price is $1200 plus shipping or $1100 picked up near Bellingham, WA.
Attached Thumbnails

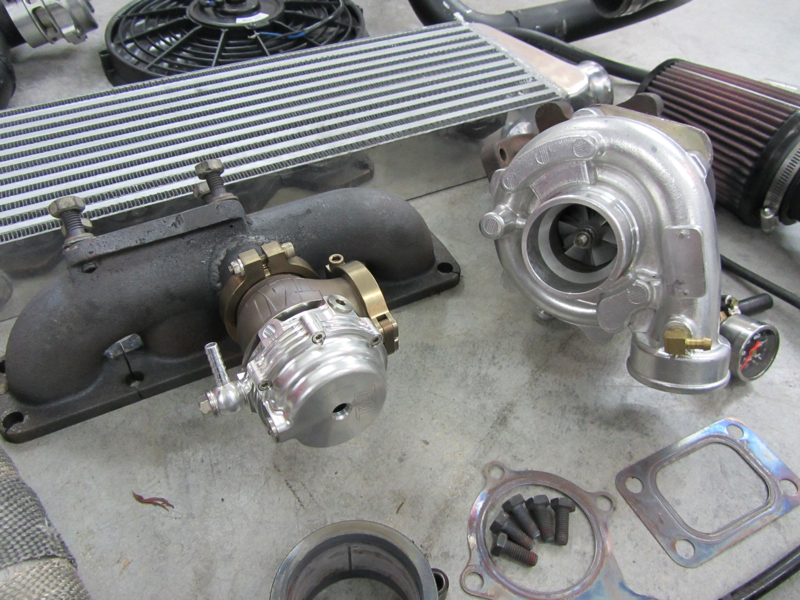

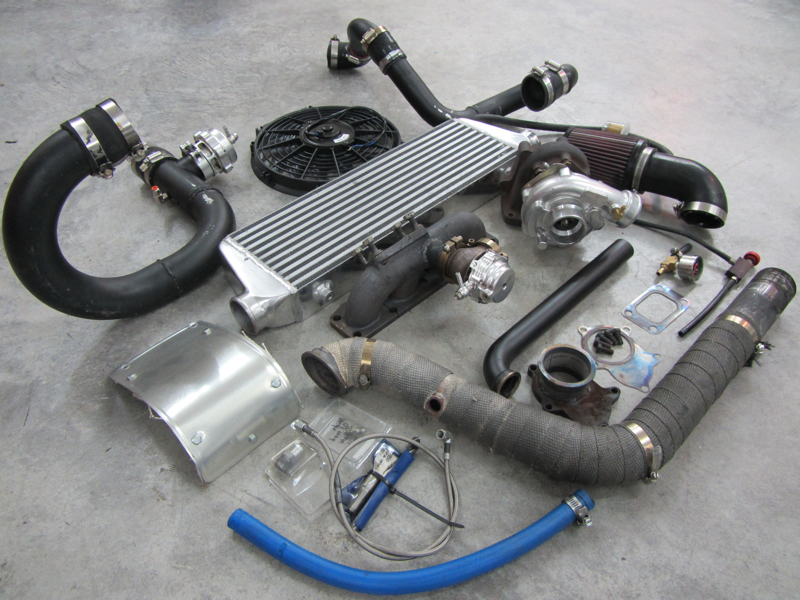

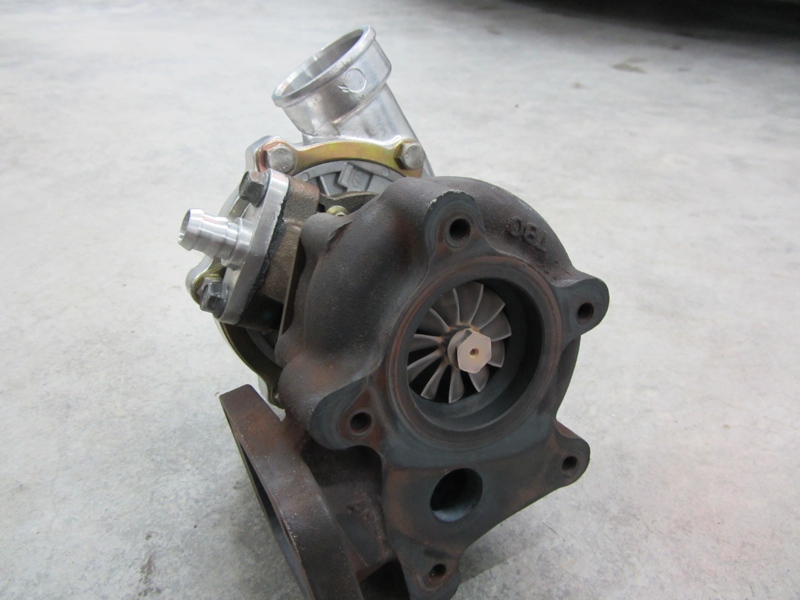

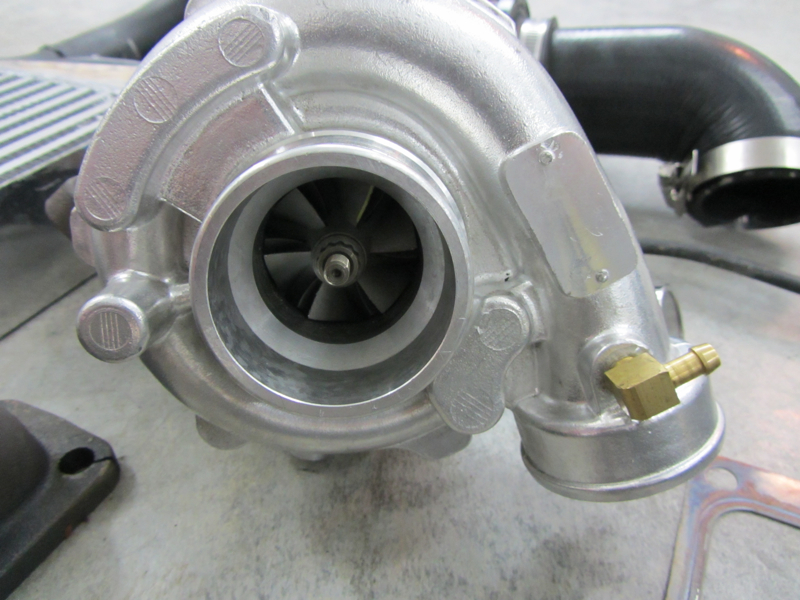

Complete 1.6 Turbo Setup-turbo_setup_close1_med.jpg   Complete 1.6 Turbo Setup-turbo_setup_turboclose1.jpg   Complete 1.6 Turbo Setup-turbo_setup_turboclose2.jpg   Complete 1.6 Turbo Setup-turbo_setup2_med.jpg
Evergreen is offline
Old 11-30-2012, 03:09 PM   #2
Junior Member
iTrader: (5)

Join Date: Nov 2010
Location: Originally from Germany. Now live in SoCal
Posts: 196
Total Cats: -5
Default

Hell of a deal. the Tial pieces alone are worth almost half the asking price.

GLWS!
MR.M!474 is offline
Old 11-30-2012, 06:32 PM   #3
Junior Member
iTrader: (2)

Join Date: Oct 2012
Location: MaryLand
Posts: 70
Total Cats: -4
Default

Is this the turbo kit Tom made on toms turbo garage for his "sunflower" miata?
Sebas is offline
Old 11-30-2012, 08:17 PM   #4
Junior Member
Thread Starter
iTrader: (6)

Evergreen's Avatar

Join Date: Apr 2012
Location: Washington
Posts: 158
Total Cats: 0
Default

Quote:
Originally Posted by Sebas View Post
Is this the turbo kit Tom made on toms turbo garage for his "sunflower" miata?
Yes.
Evergreen is offline
Old 12-01-2012, 11:01 AM   #5
Newb

Join Date: Aug 2012
Posts: 1
Total Cats: 0
Default

Hi , i am intrested , would it be possible to ship to the Netherlands?

Regards.
Johan Draijer , you can email me at johandraijer(at)hotmail.com
johand is offline
Old 12-02-2012, 01:36 AM   #6
Newb
iTrader: (1)

Join Date: Oct 2012
Location: Ottawa, Canada
Posts: 25
Total Cats: -1
Default

how much shipped to 13669?

Thank you
Rick
pls email me [email protected]
Rick249 is offline
Old 12-02-2012, 03:41 PM   #7
Junior Member
Thread Starter
iTrader: (6)

Evergreen's Avatar

Join Date: Apr 2012
Location: Washington
Posts: 158
Total Cats: 0
Default

Quote:
Originally Posted by johand View Post
Hi , i am intrested , would it be possible to ship to the Netherlands?

Regards.
Johan Draijer , you can email me at johandraijer(at)hotmail.com
I would prefer not to at this time.

Quote:
Originally Posted by Rick249 View Post
how much shipped to 13669?

Thank you
Rick
pls email me [email protected]
Emailed you
Evergreen is offline
Old 12-02-2012, 07:28 PM   #8
Newb

Join Date: Nov 2012
Location: surrey
Posts: 3
Total Cats: 0
Default

Txt me 604 839 9032, can probably pick up soon if everything goes well

Last edited by FrontYardigans; 12-02-2012 at 08:40 PM.
FrontYardigans is offline
Old 12-03-2012, 10:38 AM   #9
Junior Member
Thread Starter
iTrader: (6)

Evergreen's Avatar

Join Date: Apr 2012
Location: Washington
Posts: 158
Total Cats: 0
Default

Sale Pending
Evergreen is offline
Old 12-04-2012, 02:39 PM   #10
Senior Member

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Price on the tial wastegate?
miatamike203 is offline
Old 12-04-2012, 02:57 PM   #11
Junior Member
Thread Starter
iTrader: (6)

Evergreen's Avatar

Join Date: Apr 2012
Location: Washington
Posts: 158
Total Cats: 0
Default

Quote:
Originally Posted by miatamike203 View Post
Price on the tial wastegate?
Sale Pending on whole package. And I wont be parting out anyway.
Evergreen is offline
Old 12-04-2012, 11:40 PM   #12
Newb

Join Date: Nov 2012
Location: surrey
Posts: 3
Total Cats: 0
Default

Quote:
Originally Posted by Evergreen View Post
Sale Pending on whole package. And I wont be parting out anyway.
if he doesnt take it ill most likely pick it up
FrontYardigans is offline
Old 12-07-2012, 11:27 PM   #13
Newb

Join Date: Dec 2012
Location: KY
Posts: 24
Total Cats: 0
Default

sale still pending?
willerdcraft is offline
