Default Coolant Spacer Feeler Thread

I'm going to be machining myself a coolant spacer, and have been considering making a few extra while I'm at it to throw up here. Price would be ~$60 shipped. Anyone interested? No commitments, just curious if there is any interest in them. Would purchase enough stock to make ~7 minimum, and could go up from there. I would post pictures of the first completed one before taking yo cash and/or children.

Standard DIY spacer to go with the kia neck and 3/8" NPT fittings.

Sorry if there is a better section for this.
Schuyler is offline   Reply With Quote
Old 09-23-2014, 03:13 AM   #2
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,708
Total Cats: 269
Default

And sensor bung?
DNMakinson is offline   Reply With Quote
Old 09-23-2014, 05:01 AM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Yes, there will be (3) 3/8 NPT holes and one temp sensor bung (m12x1.5)
Schuyler is offline   Reply With Quote
Old 09-23-2014, 07:24 AM   #4
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,708
Total Cats: 269
Default

Interested in one unit.

And, there has been some talk lately of some versions not supporting the flanges of the Kia water neck. An improvement in that area (groove?) would be welcome.
DNMakinson is offline   Reply With Quote
Old 09-23-2014, 08:59 AM   #5
Junior Member
iTrader: (2)

Join Date: Oct 2013
Location: Arcade, New York
Posts: 116
Total Cats: -4
Default

Sounds like a good deal. Count me in if all goes well!!
Miatacrazy716 is offline   Reply With Quote
Old 09-23-2014, 10:28 AM   #6
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by DNMakinson View Post
Interested in one unit.

And, there has been some talk lately of some versions not supporting the flanges of the Kia water neck. An improvement in that area (groove?) would be welcome.
Just to be clear, the improvement here would be to have full through-bolt holes to fully support the waterneck rather than having material missing at the outer edge. That either requires a larger diameter basic piece (is there interference with other block components) or more complicated machining.

In the meantime, easy on torque.
hornetball is offline   Reply With Quote
Old 09-23-2014, 11:01 AM   #7
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

You can already buy a spacer from moss and tap that for 15 dollars.
aidandj is offline   Reply With Quote
Old 09-23-2014, 11:47 AM   #8
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by aidandj View Post
You can already buy a spacer from moss and tap that for 15 dollars.
Correct me if I'm wrong, but this comes with no machined lips, and basically just the piece of aluminum the correct diameter and width with the bolt holes drilled in it. So basically everything requiring a lathe and mill, aside from thinning the walls is left to still be done? and costs ~$22 shipped. So for those not looking for a drop-in unit and are willing to do the majority of the machine work themselves, sure, that is a viable option.

Quote:
Originally Posted by DNMakinson View Post
And, there has been some talk lately of some versions not supporting the flanges of the Kia water neck. An improvement in that area (groove?) would be welcome.
Could you post a link to any of this? First I've heard of it. The design I plan on replicating is the circular spacer with open bolt holes on either side.

Last edited by Schuyler; 09-23-2014 at 12:09 PM.
Schuyler is offline   Reply With Quote
Old 09-23-2014, 12:10 PM   #9
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

I'd be in for 1 unit depending on time frame.

I assume one of the 3/8" NPT would be for a barb in line with existing heater core line?

So you're planning on 2 more 3/8"NPT + the Factory sensor port?
bahurd is offline   Reply With Quote
Old 09-23-2014, 01:24 PM   #10
Junior Member
iTrader: (7)

Join Date: Mar 2013
Location: Des Moines, IA
Posts: 146
Total Cats: 37
Default

I'm in for a half price spacer, please keep us posted.
Scrambles is offline   Reply With Quote
Old 09-23-2014, 01:34 PM   #11
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,708
Total Cats: 269
Default

Quote:
Originally Posted by hornetball View Post
Just to be clear, the improvement here would be to have full through-bolt holes to fully support the waterneck rather than having material missing at the outer edge. That either requires a larger diameter basic piece (is there interference with other block components) or more complicated machining.

In the meantime, easy on torque.
Thanks for the clarification.

I have always wondered why they split like that. I wonder do they actually have a custom extrusion and did not want to drill the holes. Or, as you say, some issue with interference somewhere.
DNMakinson is offline   Reply With Quote
Old 09-23-2014, 01:37 PM   #12
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Count me in for one.
dieselmiata is offline   Reply With Quote
Old 09-23-2014, 02:32 PM   #13
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by bahurd View Post
I'd be in for 1 unit depending on time frame.

I assume one of the 3/8" NPT would be for a barb in line with existing heater core line?

So you're planning on 2 more 3/8"NPT + the Factory sensor port?
That's correct.
Schuyler is offline   Reply With Quote
Old 09-23-2014, 02:51 PM   #14
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

Quote:
Originally Posted by DNMakinson View Post
Thanks for the clarification.

I have always wondered why they split like that. I wonder do they actually have a custom extrusion and did not want to drill the holes. Or, as you say, some issue with interference somewhere.
The BEGI spacer isn't an extrusion (at least the one I have isn't). Making one that fully captures the bolt holes would be quite a bit more machining (primarily machining center vs. primarily lathe) and up the price significantly IMHO.

The left side and top have room but the right side and bottom don't have a lot of clearance (looking at the unit from the back of the engine).
bahurd is offline   Reply With Quote
Old 10-28-2014, 02:37 PM   #15
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Aluminum purchased. Enough to make 10. More updates soon.
Schuyler is offline   Reply With Quote
Old 10-28-2014, 02:45 PM   #16
Junior Member
iTrader: (2)

Join Date: Oct 2013
Location: Arcade, New York
Posts: 116
Total Cats: -4
Default

Just shot me a pm when your they are ready. I replied before I am in for sure. Maybe even take 2, one for my buddy. Thanks
Miatacrazy716 is offline   Reply With Quote
Old 10-28-2014, 02:46 PM   #17
Junior Member
iTrader: (3)

Join Date: Jul 2005
Location: AL
Posts: 200
Total Cats: 0
Default

+1, I'm interested, you thinking about making block off plates for the front of the head as well?
mx5roadster is offline   Reply With Quote
Old 10-28-2014, 07:12 PM   #18
Junior Member

Join Date: May 2011
Location: Signal Hill, CA
Posts: 246
Total Cats: 11
Default

Quote:
Originally Posted by mx5roadster View Post
+1, I'm interested, you thinking about making block off plates for the front of the head as well?

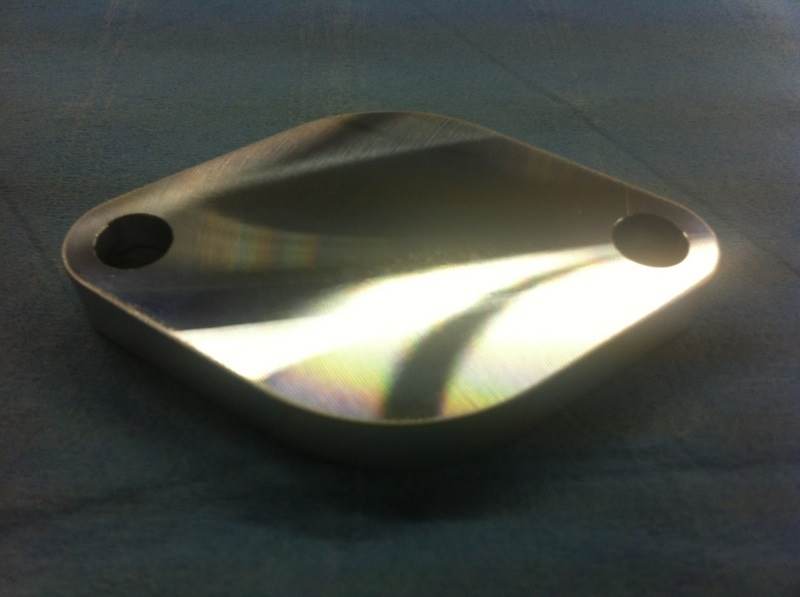

something like this?

.one lane is offline   Reply With Quote
Old 10-28-2014, 07:34 PM   #19
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,708
Total Cats: 269
Default

So far, I'm still in. What do you think of the O-ring idea? Maybe I can get the design work done before you start cutting.
DNMakinson is offline   Reply With Quote
Old 10-28-2014, 10:00 PM   #20
Junior Member

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Count me in for two.
whinin is offline   Reply With Quote
