Default Custom aluminum intake manifold 99-05

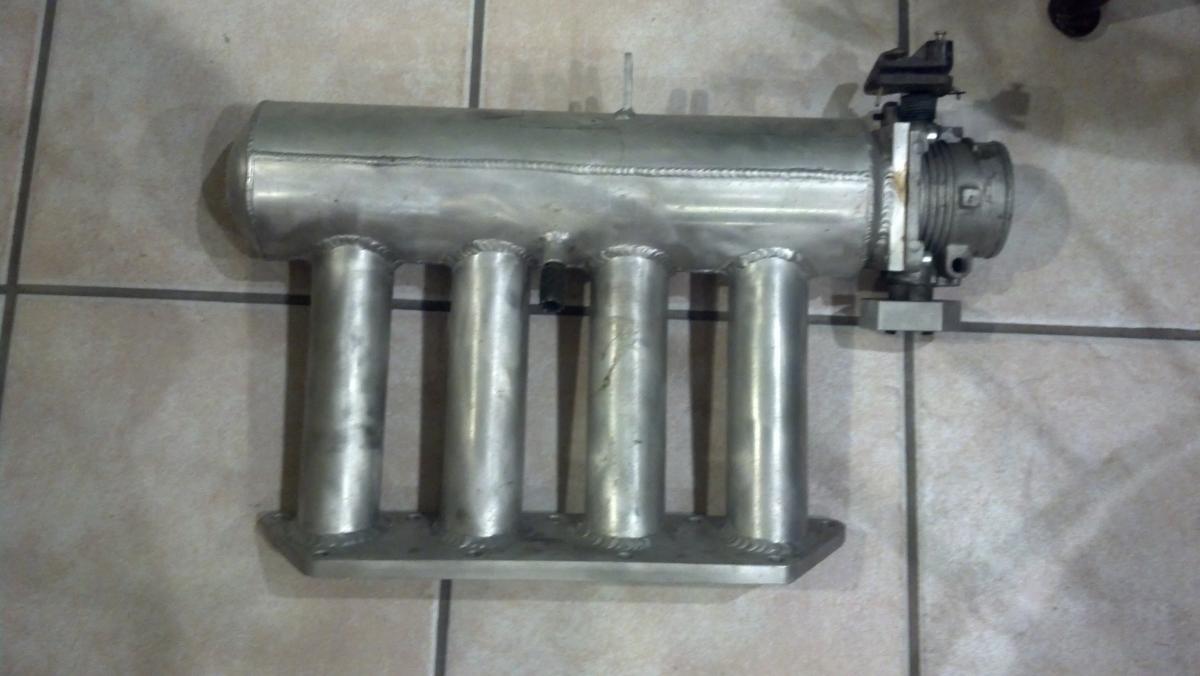

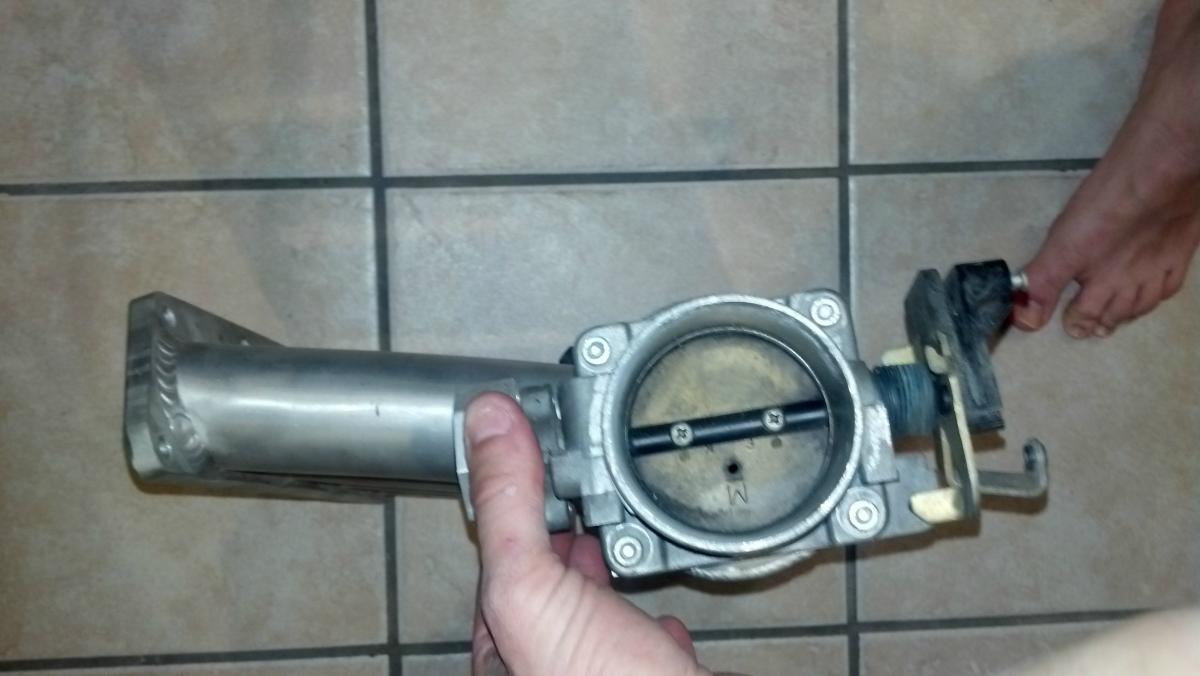

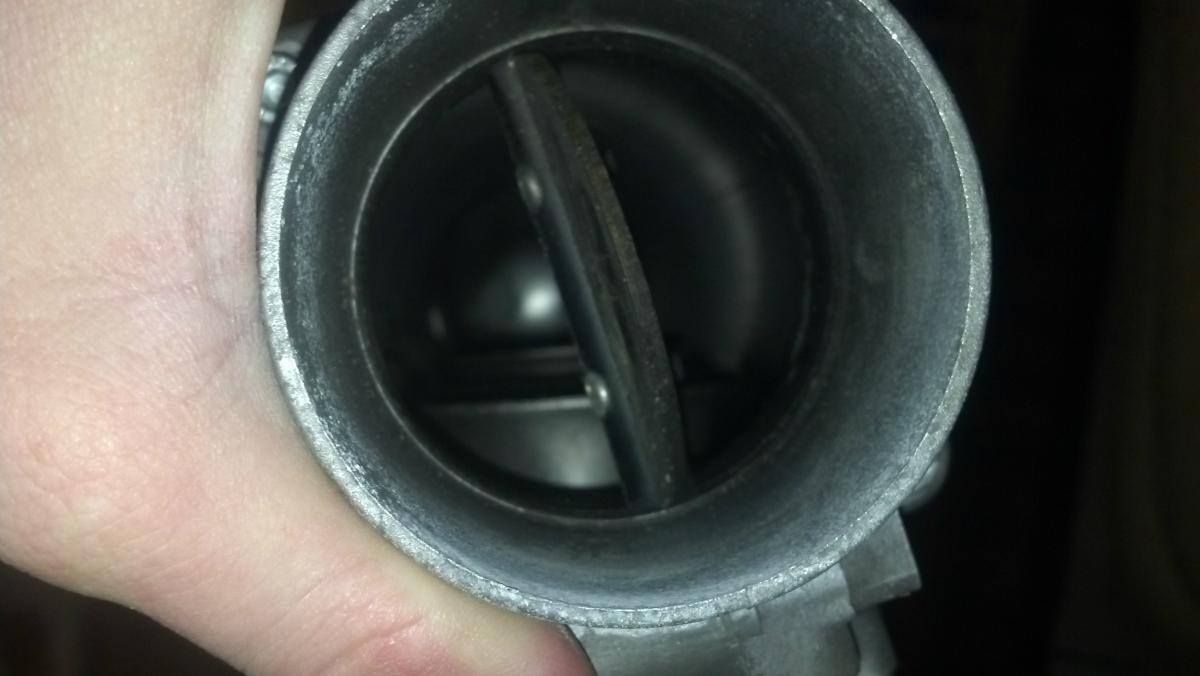

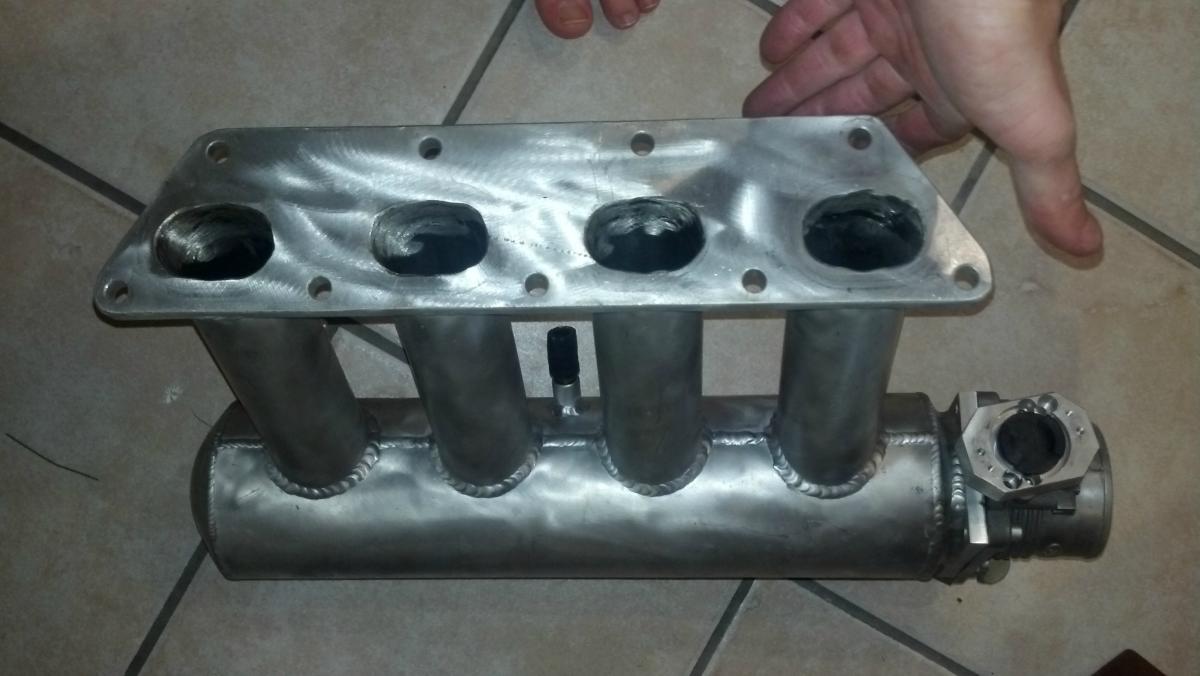

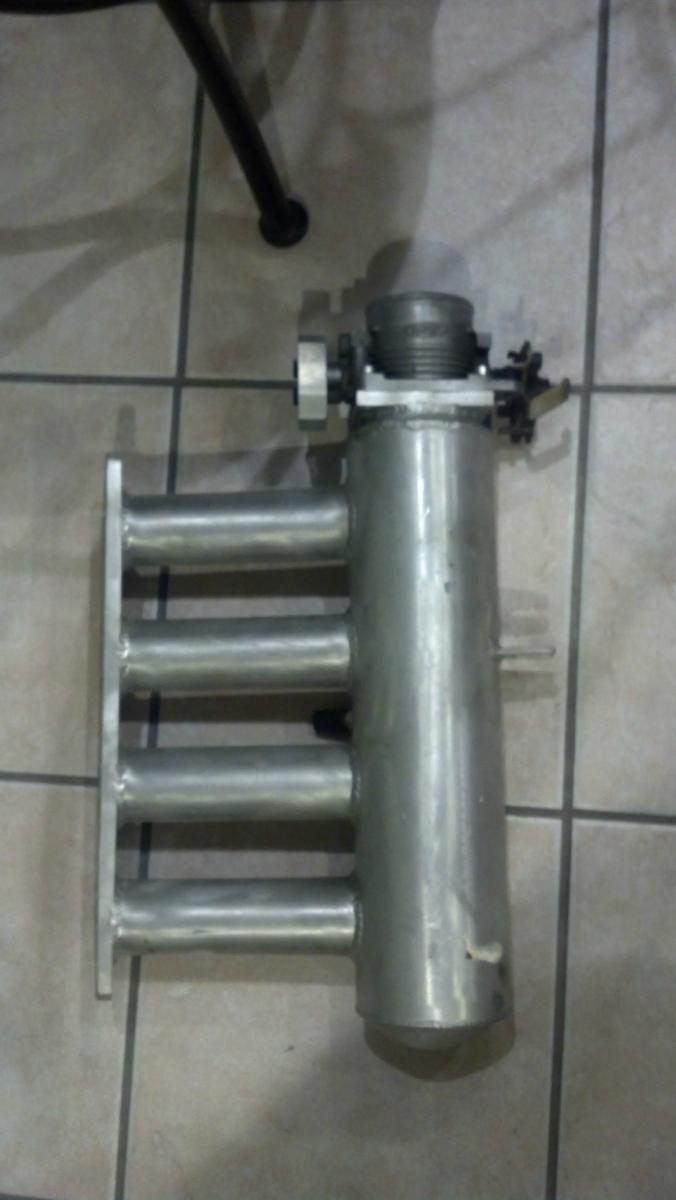

The manifold was made for me a while back but I have no use for it now. The runners are 6.5" long and the throttle body is 70mm with a matching flange. I used this on a built 99/00 motor so it should work fine on a 01-05 as well. $275









Attached Thumbnails
Custom aluminum intake manifold 99-05-hdfjfmx.jpg   Custom aluminum intake manifold 99-05-ha8bjfs.jpg   Custom aluminum intake manifold 99-05-mh3p7k0.jpg   Custom aluminum intake manifold 99-05-gvrvamu.jpg   Custom aluminum intake manifold 99-05-galhlnk.jpg

rharris19 is offline
Old 02-14-2014, 11:49 PM   #2
Newb

Join Date: Dec 2013
Posts: 40
Total Cats: 0
Default

Looks nice. What is the runner diameter?
SUV-ETR is offline
Old 02-15-2014, 01:13 AM   #3
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

6.5"? What's the rpm target on that?
triple88a is offline
Old 02-15-2014, 11:53 AM   #4
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Runner diameter is 1 7/8"
rharris19 is offline
Old 02-15-2014, 12:00 PM   #5
Senior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 524
Total Cats: 18
Default

What does it weigh with TB attached? Provisions for tps and iac?
hector is offline
Old 02-15-2014, 06:26 PM   #6
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

It weighs between 7-8 lbs. It has provisions to be able to adapt the miata TPS to the throttle body shaft. There is nothing for the IAC.
rharris19 is offline
Old 02-15-2014, 08:11 PM   #7
Senior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 524
Total Cats: 18
Default

OK stupid question then, does a stock 1.8 TB bolt up? If not can it be drilled for new holes or would you have to weld in the existing holes and drill new ones?

And yeah, what was the intended rev range? Is peak torque somewhere around 4k?
hector is offline
Old 02-15-2014, 10:11 PM   #8
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

This was built for maximum HP, but didn't seem to negatively effect torque on the dyno when we tested it. The stock TB will not bolt up to this as it is built to have the 70mm ford TB on there. You may be able to fit the stock one on there by re drilling, but that may create a bottleneck in itself.
