Default DIY Honda B18 intake manifold-on-miata kit

Hey all. You may or may not have seen the thread in engine performance about adapting a honda b18 intake manifold to the miata. The long of the short is that the intake port spacing on the Honda B16 and B18 is very similar to the miata bp. The honda manifold allows you to run a intake manifold with nice straight and balanced runners as well as a nice large plenum. Also the manifold allows you to run honda throttle bodies. You can find a used 70mm honda throttle body with iac and tps for well under $100! The manifold used is an ebay skunk2 knockoff manifold which can be purchased for ~$130. I have bought 3 different manifolds from three different vendors and each has been identical. This is what Im talking about:

EG EK Da DC2 B16A B16B B17A1 B18C5 Aluminum Cast Intake Manifold Upgrade Bolt On | eBay

As of now, If you wanted to do such a thing you either had to design a custom flange or do some sort of drill and slot job on the honda flange. Ive designed and machined a weld on flange for myself and a few of my buddies and would like to throw it out there if anyone wants to buy one. The thread about the manifolds is:

https://www.miataturbo.net/engine-pe...d-43103/page1/

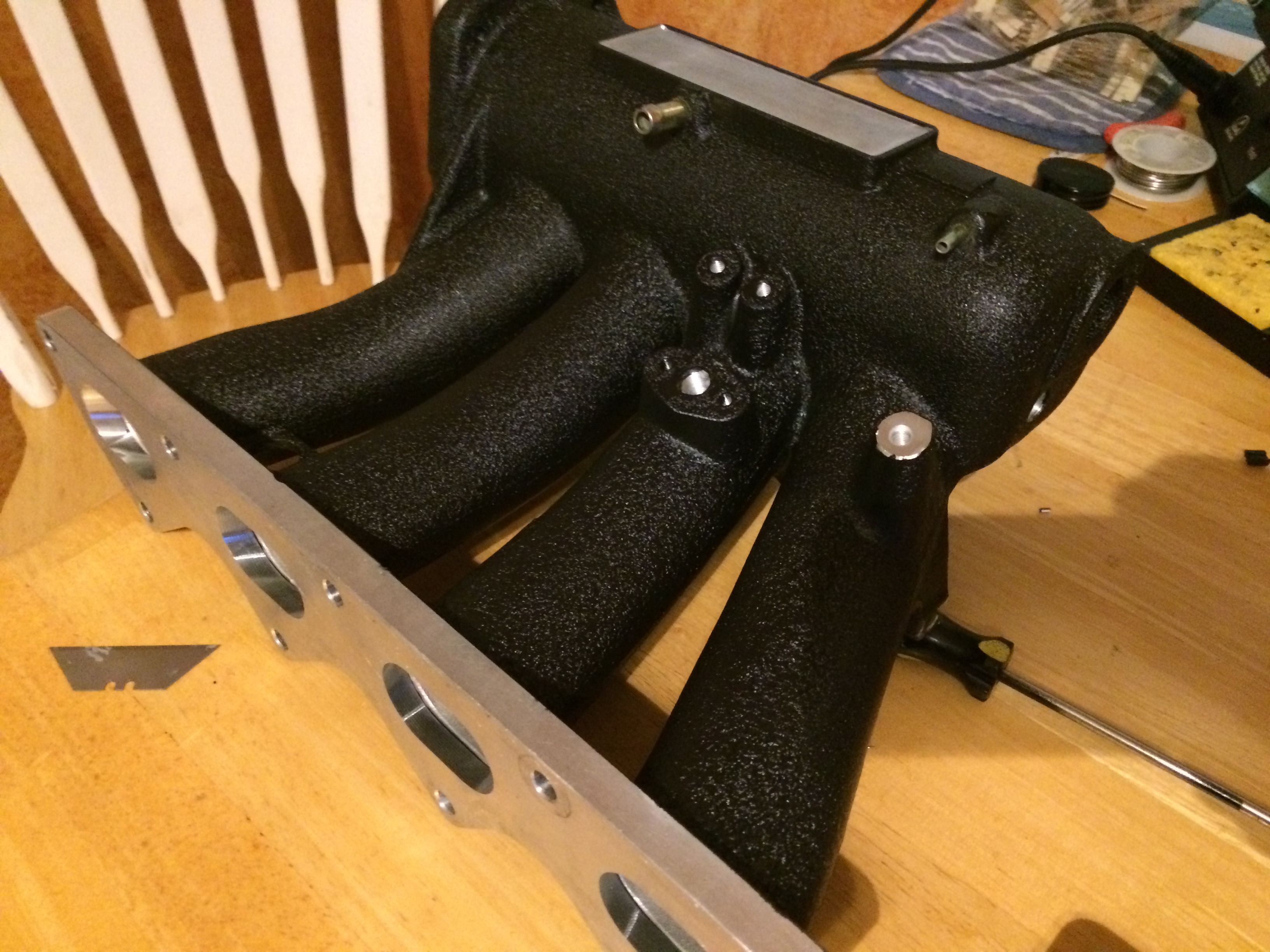

So what Im offering is a flange that is port matched between an ebay b18 manifold and a miata 1.8 head. As of right now I have the nb 1.8 flanged ready to cnc but I can easily do a na 1.8 head with a little cad work. The flange looks like this:






To do the job you would cut off the honda flange off the manifold like so:



and weld on like so:





Then weld.

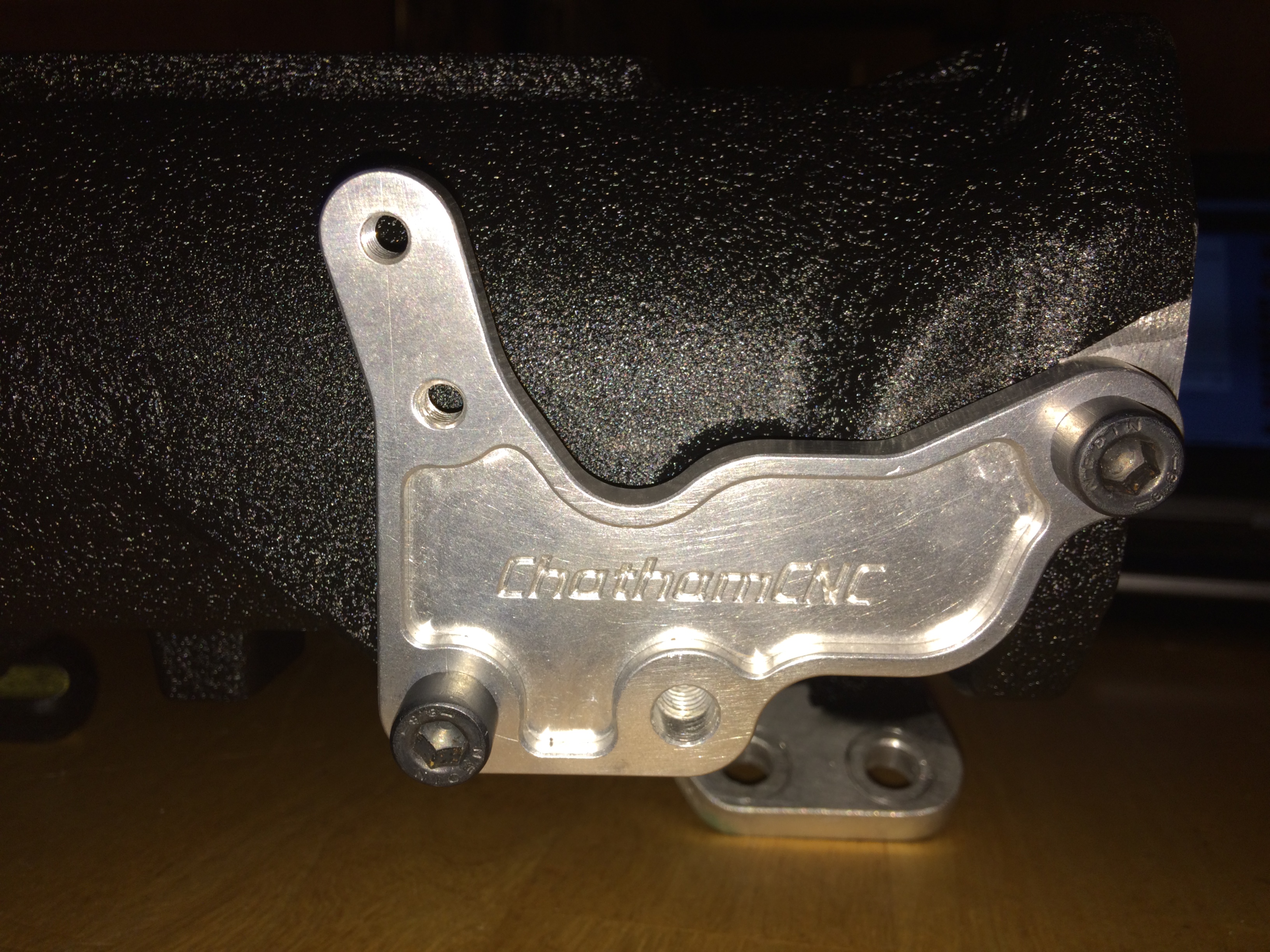

If you read through the original thread youll see that the biggest issue with this mod is the welds cracking. The fool proof way to prevent this is to use the stock miata manifold support. The honda manifold has the mass much further from the head then the miata manifold and puts a lot of stress on the welds. With the manifold I will include a weld on support bracket which will allow you to use the stock miata support. I have ran this setup for over a year (with poly engine mounts mind you) with out any issues. The support looks like this:




Im offering to make both parts to order for $100 plus shipping.

Also, If you want to run a miata throttle body, I have made an adapter flange and throttle cable mount which allows you to do just that. I can make these 2 parts for an additional $50. They look like this:










So if this is something you are interested in, let me know

Last edited by 4gordeev; 09-17-2016 at 04:24 PM.
4gordeev is offline   Reply With Quote
Old 09-17-2016, 03:59 PM   #2
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,429
Total Cats: 469
Default

Wow. That's incredibly slick how you machined the new flange so the Honda manifold slips in before welding. Pricing seems super reasonable too.

i likes this idea.
turbofan is offline   Reply With Quote
Old 09-17-2016, 09:35 PM   #3
Junior Member

Join Date: Jan 2015
Posts: 265
Total Cats: -18
Default

In!
Alternative is offline   Reply With Quote
Old 09-17-2016, 09:48 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,401
Total Cats: 2,249
Default

Very cool indeed. Group buys will probably need vendor status tho.
18psi is offline   Reply With Quote
Old 09-17-2016, 10:38 PM   #5
Junior Member
Thread Starter

Join Date: Dec 2011
Posts: 73
Total Cats: 26
Default

Right now I'm just a guy who has a cnc machine. I haven't thought far enough ahead for group buys or what not. I tried to price the parts as fair as possibly could though, there is no point to this if it winds up costing more then a fancy fabed manifold. Let me know what I need to do to stay mt.net legal.
4gordeev is offline   Reply With Quote
Old 09-17-2016, 11:31 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,401
Total Cats: 2,249
Default

Oh I have no issues with this thread, carry on. Just pointing out something to keep in mind if this takes off.
Want to keep the vendors happy.
18psi is offline   Reply With Quote
Old 09-18-2016, 10:23 AM   #7
Newb

Join Date: Feb 2016
Location: Charleston, SC
Posts: 27
Total Cats: 2
Default

Thats excellent! If I dont follow threw with installing carbs....
GreenNB is offline   Reply With Quote
Old 09-18-2016, 11:03 AM   #8
Junior Member
iTrader: (2)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 358
Total Cats: 20
Default

Should we PM to buy, or are you just gauging interest?

I would be in for a flange kit!
OneTwo is offline   Reply With Quote
Old 09-18-2016, 12:19 PM   #9
Junior Member
Thread Starter

Join Date: Dec 2011
Posts: 73
Total Cats: 26
Default

Quote:
Originally Posted by OneTwo View Post
Should we PM to buy, or are you just gauging interest?

I would be in for a flange kit!
Yes, pm me please.
4gordeev is offline   Reply With Quote
Old 09-18-2016, 01:16 PM   #10
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,585
Total Cats: 21
Default

Shipping to australia?


Dann
nitrodann is offline   Reply With Quote
Old 09-18-2016, 01:44 PM   #11
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 509
Total Cats: 41
Default

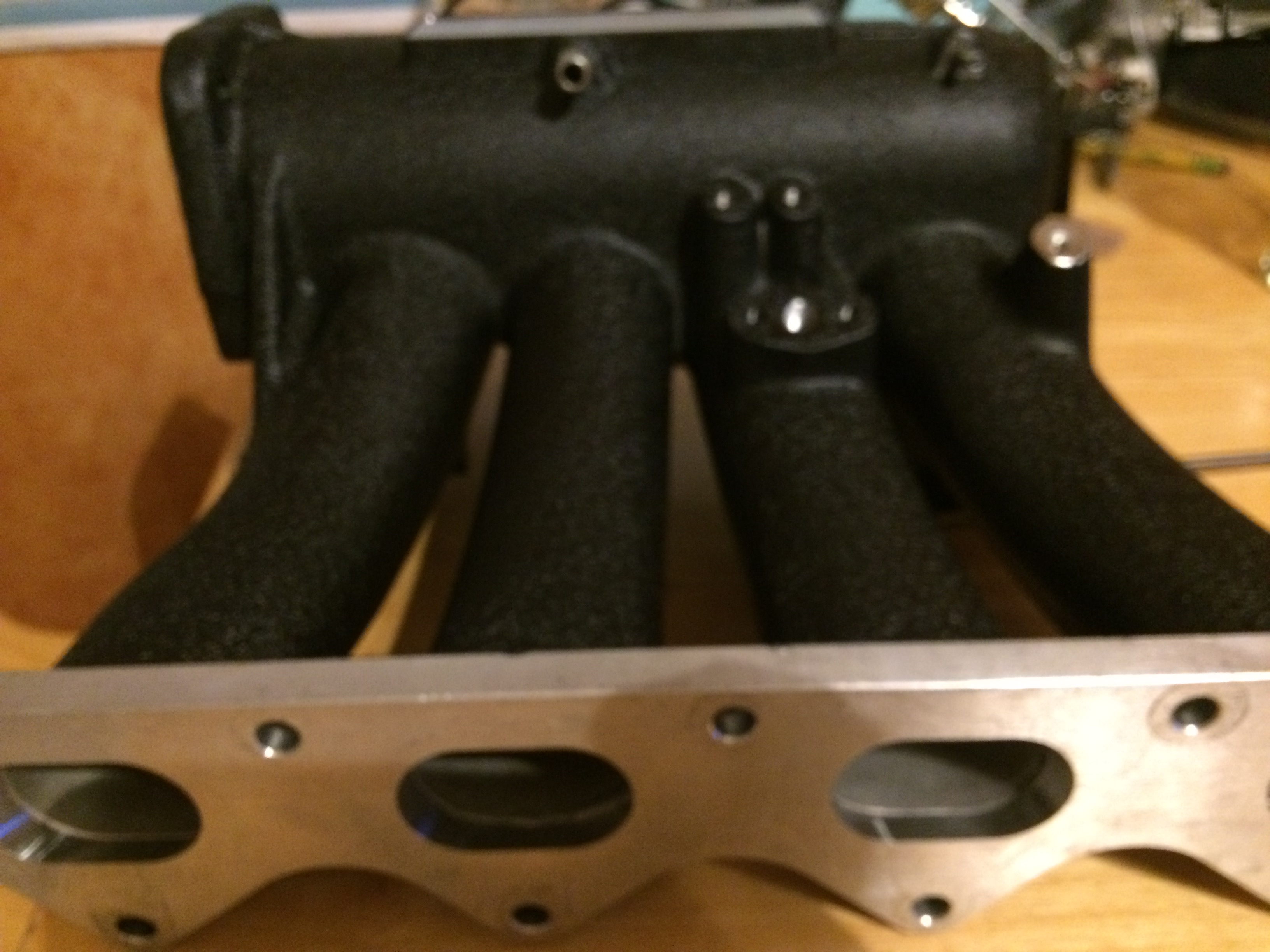

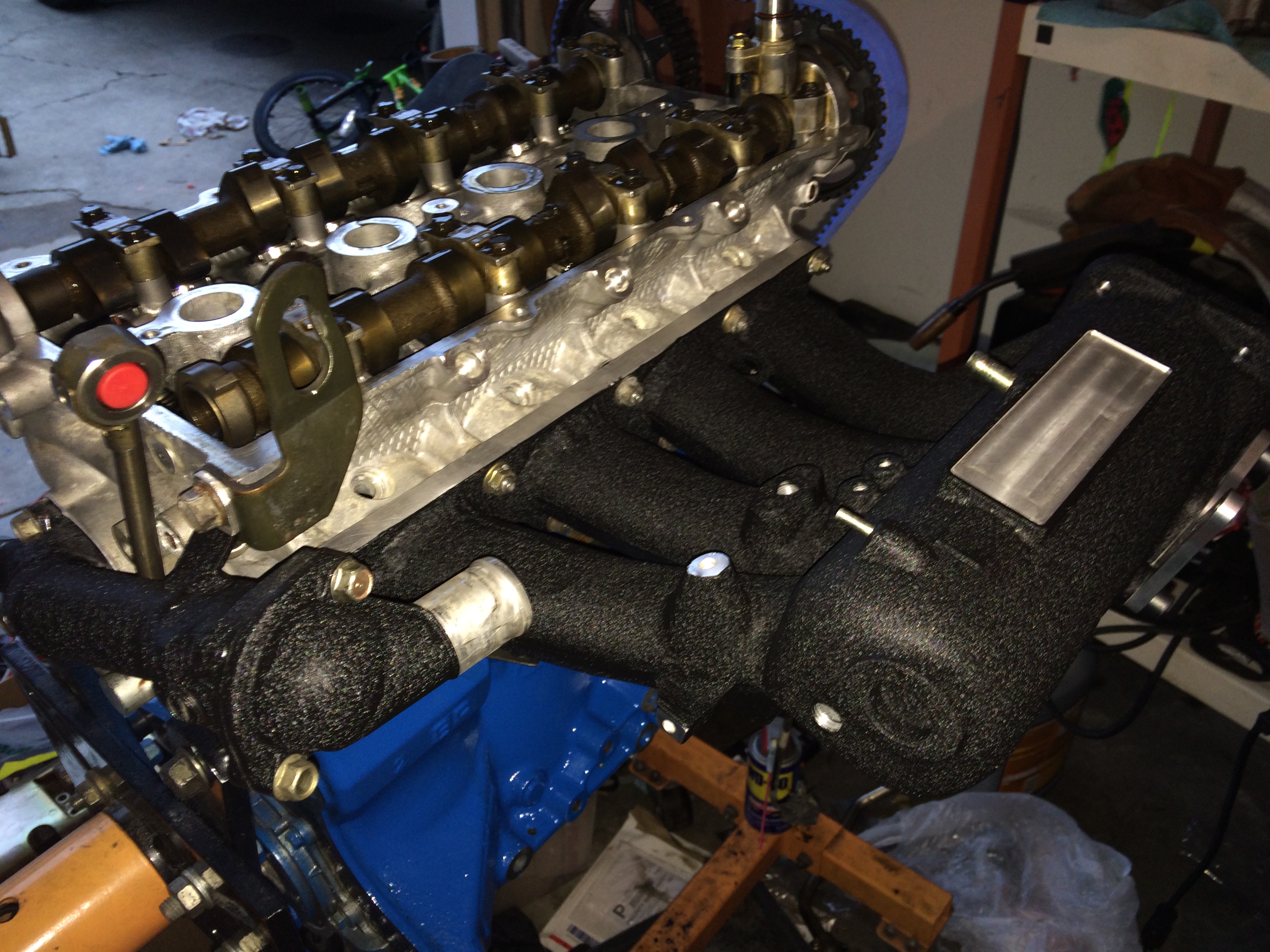

Here is mine by mike. He does a great job.




mmmjesse is offline   Reply With Quote
Old 09-18-2016, 01:59 PM   #12
Newb

Join Date: Feb 2016
Location: Charleston, SC
Posts: 27
Total Cats: 2
Default

Can I ask one of yall for a approximate center to center measurement of the intake ports?
GreenNB is offline   Reply With Quote
Old 09-18-2016, 03:14 PM   #13
Junior Member
Thread Starter

Join Date: Dec 2011
Posts: 73
Total Cats: 26
Default

Quote:
Originally Posted by nitrodann View Post
Shipping to australia?


Dann
I'll shoot you a pm.
4gordeev is offline   Reply With Quote
Old 09-18-2016, 05:10 PM   #14
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,634
Total Cats: 440
Default

Subbed for future forfeiture of my paycheck.
Monk is offline   Reply With Quote
Old 09-18-2016, 05:37 PM   #15
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 288
Total Cats: 16
Default

Any possibility of selling a completed manifold?
glade is offline   Reply With Quote
Old 09-18-2016, 06:45 PM   #16
Junior Member
Thread Starter

Join Date: Dec 2011
Posts: 73
Total Cats: 26
Default

Quote:
Originally Posted by GreenNB View Post
Can I ask one of yall for a approximate center to center measurement of the intake ports?
miata side: 91mm - 91mm - 91mm
honda side: 88.7mm - 86.2mm - 88.7mm
4gordeev is offline   Reply With Quote
Old 09-18-2016, 06:46 PM   #17
Junior Member
Thread Starter

Join Date: Dec 2011
Posts: 73
Total Cats: 26
Default

Quote:
Originally Posted by glade View Post
Any possibility of selling a completed manifold?
I would do a fully finished manifold for $150 extra but you would have to supply the honda manifold. This number can go up depending on what kind of shape the honda manifold is in and if there is any customization.
4gordeev is offline   Reply With Quote
Old 09-18-2016, 09:43 PM   #18
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 509
Total Cats: 41
Default

This is the one i bought.

Mike does a great job and is well worth the money.


Honda Acura B Series DOHC vtec B16A B17A1 B18C5 Cast Aluminum Intake Manifold | eBay
mmmjesse is offline   Reply With Quote
Old 09-19-2016, 10:27 AM   #19
Senior Member
iTrader: (8)

cyotani's Avatar

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,371
Total Cats: 80
Default

any before and after DYNOs with just the intake change?
cyotani is offline   Reply With Quote
Old 09-19-2016, 10:44 AM   #20
Junior Member
Thread Starter

Join Date: Dec 2011
Posts: 73
Total Cats: 26
Default

Quote:
Originally Posted by cyotani View Post
any before and after DYNOs with just the intake change?
I personally do not since when I did mine al also stuck a turbo on the car. There is a lot of good information in the thread I linked to in my original post, it just might take a week and a day to read through the whole thing.
4gordeev is offline   Reply With Quote
