Default EMB, main + ignition harness, pressure sensor, digital O2 clamp

As the title says: The emanage blue gave me 236 hp with 9.5 psi and 2" exhaust
super easy to install, I've done the mod for the hot wire afm

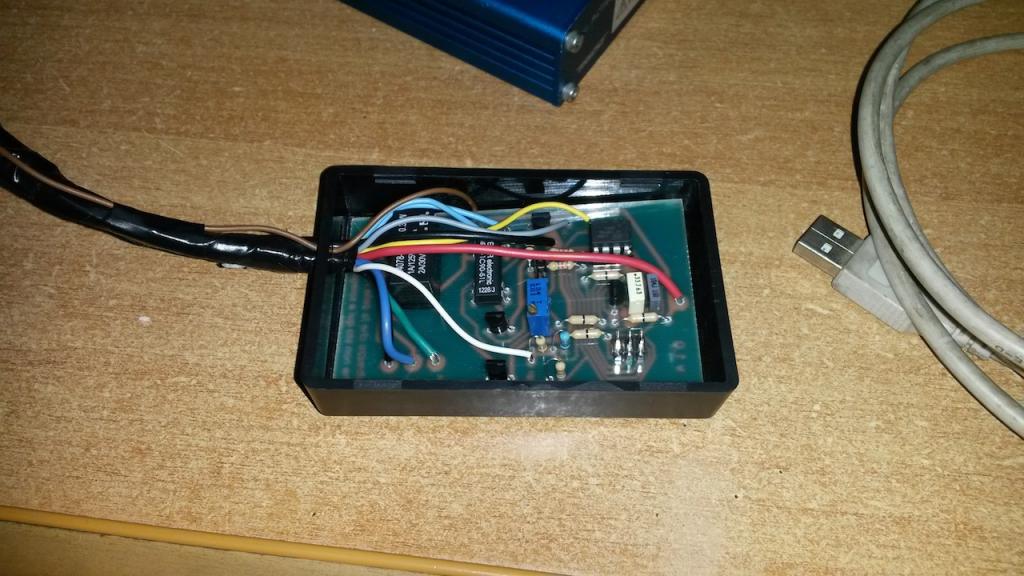

the O2 clamp is based on attiny85:
it reads the map directly from the emb sensor
o2 voltage is selected via a precision potentiometer (25 rounds)
1 programmable output (max 1A, unfused)
1 programmable rele
1 programmable input

I've done those outputs for run with bigger gasoline injectors and standard lpg injectors: when I run lpg, the rele disables the afm correction done by the emb.
you can program it via ISP (or with an arduino uno, google "arduino uno as a isp programmer"), I will send you the C code

tip: you can simply use it as an O2 clamp

Price: 300 or 350 USD plus shipment

you will have:

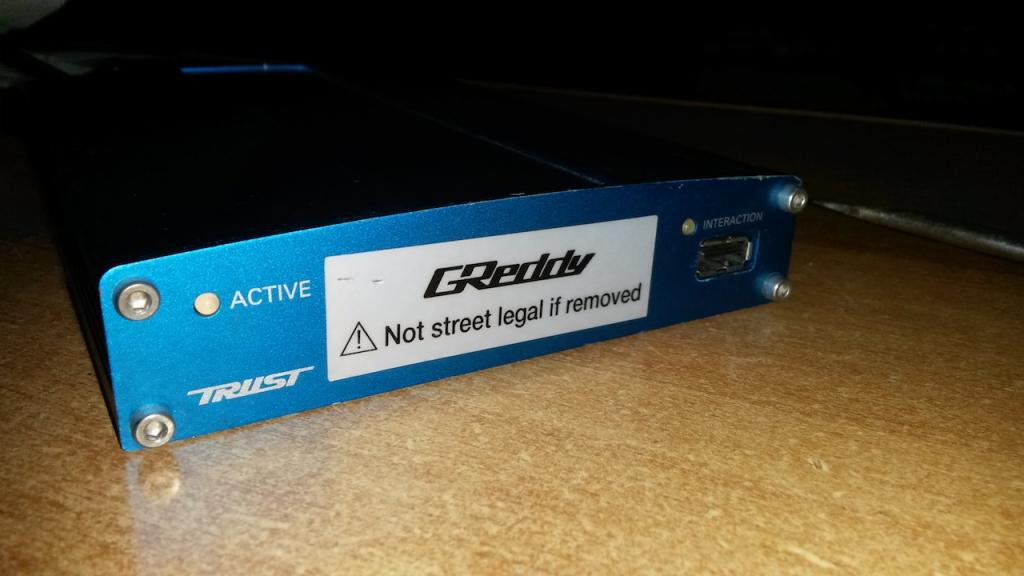

-emanage blue

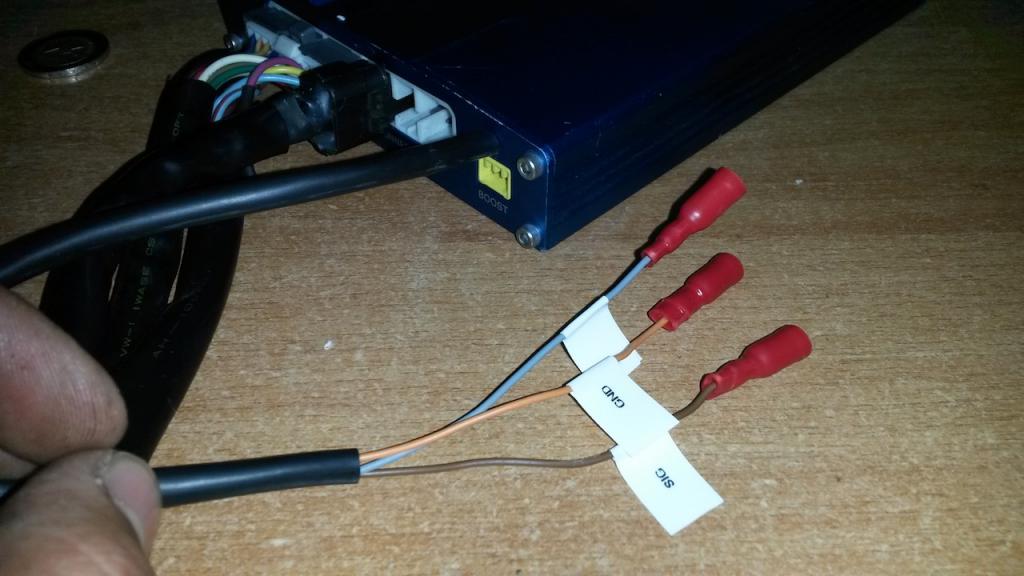

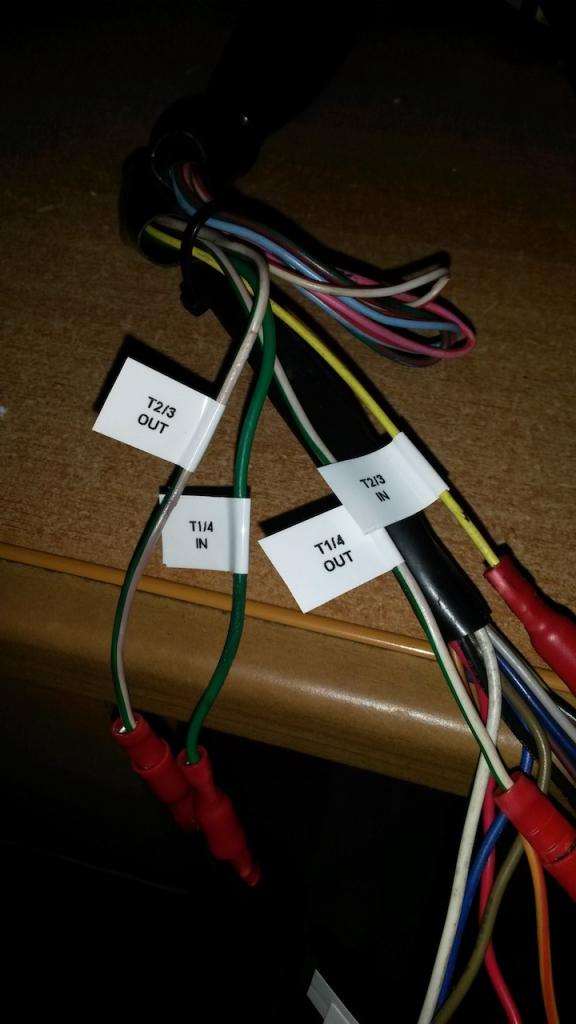

-main + ignition harness
-pressure sensor based on MPX4250
-original giff-tech software CD

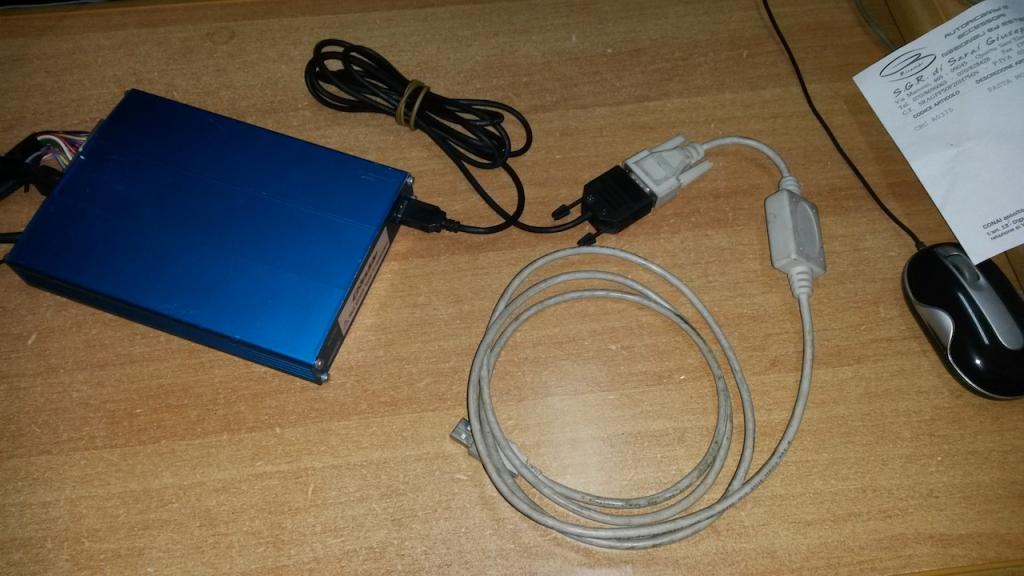

-giff-tech serial cable
-serial to usb cable
-O2 clamp

more pics? questions? ask
