Old 02-17-2014, 12:14 PM   #1
Junior Member
Thread Starter

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default FM11 turbo setup

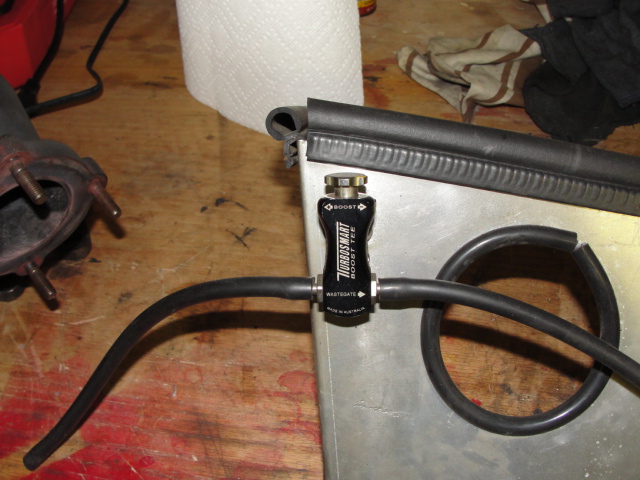

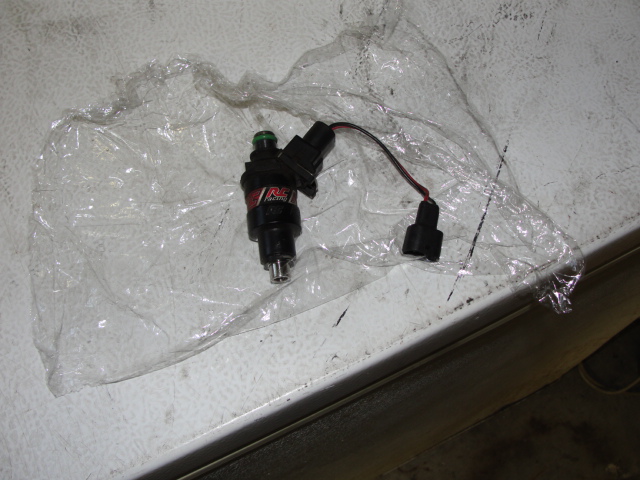

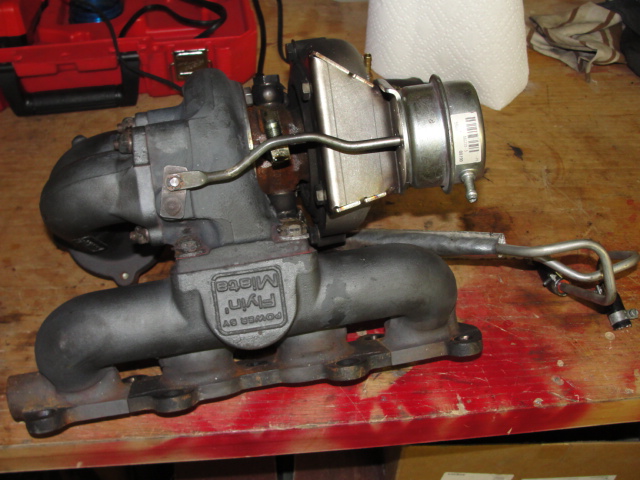

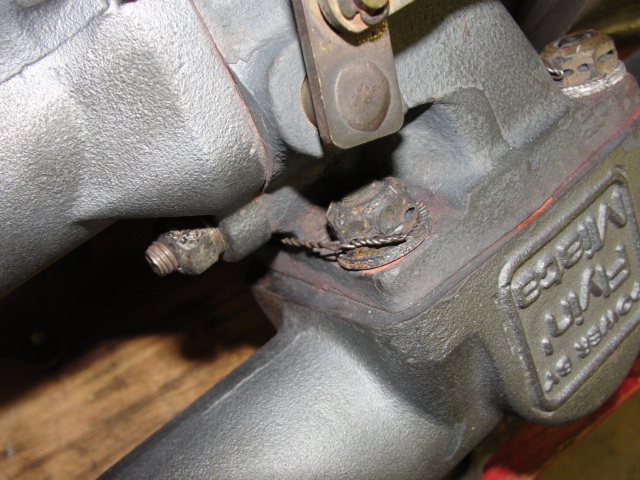

I have a 2560 FM11 turbo setup for sale. It is like NEW, used for approx. 12 -15 track days only, no street use other then a few short tune runs. It comes with the FM manifold with 10mm TSE Inconel studs and safety wired nuts, hard water lines, RC550 injectors with the plug and play adaptor harnesses, 3" downpipe, manual boost controller, air intake box, K&N air filter and piping. The car made 242 whp with this setup on a stock motor with forged rods. $1,700.00. Weight is approx. 40#, my zip is 98221 in Anacortes, Wa.. Shipping well depend on the box size also, so until boxed can't give a shipping cost. My phone nbr. is 360-299-4563. Here is the dyno tune KORACING :: High Quality Automotive Parts - Products
Attached Thumbnails
FM11 turbo setup-dsc00818.jpg   FM11 turbo setup-dsc00819.jpg   FM11 turbo setup-dsc00820.jpg   FM11 turbo setup-dsc00822.jpg   FM11 turbo setup-dsc00827.jpg

jmann is offline
Old 02-17-2014, 03:38 PM   #2
Newb
iTrader: (1)

Join Date: Jan 2014
Location: WA
Posts: 38
Total Cats: 25
Default

No intercooler included?
GtiKyle is offline
Old 02-17-2014, 04:57 PM   #3
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,460
Total Cats: 48
Default

PM sent.
Chilicharger665 is offline
Old 02-17-2014, 05:31 PM   #4
Junior Member
Thread Starter

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default

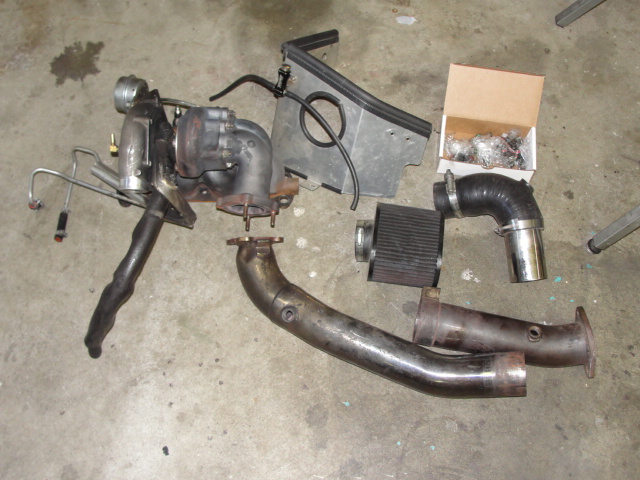

No intercooler or piping as I used that on the bigger setup. Everything in the first pic is what is for sale. Thanks
jmann is offline
Old 02-19-2014, 07:04 PM   #5
Junior Member
Thread Starter

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default

$1600 The setup came off a 99, the downpipe is for 99 to 05, don't know how much diff there is to fit it in a earlier NA car, I think that it is something that would be fairly easy to do, maybe a wedge cut here and there and reweld. The rest well fit all 1.8s.
jmann is offline
Old 02-19-2014, 08:31 PM   #6
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Seems like a really solid deal for a great setup. Some noob should snap this up. Or anyone else for that matter.
turbofan is offline
Old 02-20-2014, 12:36 AM   #7
Junior Member

Join Date: Feb 2014
Location: Chicago, IL
Posts: 95
Total Cats: 1
Default

How much would you like for the injectors?
AdrianD2 is offline
Old 02-20-2014, 01:07 AM   #8
Junior Member
Thread Starter

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default

Sale pending
jmann is offline
Old 02-20-2014, 02:20 PM   #9
Junior Member
Thread Starter

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default

Still for sale
jmann is offline
Old 02-21-2014, 03:56 AM   #10
Junior Member

Join Date: Oct 2011
Location: Montreal, QC
Posts: 194
Total Cats: 28
Default

Entertain a noob?

Aside from the intercooler and associated piping, gauge + pod, and ECU, what other parts would I have to source to make this a "complete" FM2 kit, ready to bolt on? Are the oil feed/drain lines still there? All the adapter fittings and clamps? Check valve?

As I understand it, the downpipe will bolt to the stock exhaust, yes?
Edit: I see now that it's a 3" downpipe. This will not fit the stock exhaust, correct?

I'm referencing FM's part list for the kit (page 5) from their install instructions: Flyin' Miata turbo install guide

Last edited by TalkingPie; 02-21-2014 at 04:02 AM. Reason: Reading comprehension
TalkingPie is offline
Old 02-21-2014, 10:58 AM   #11
Junior Member
Thread Starter

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default

Whatever ECU you use well determine what air sensor setup you well use as each ECU has its own system. The oil drain line is there, it is the large black line in the pics.. I have installed 2 of these setups on my cars so I do have a extra drill bit and 3/8" pipe tread tap from the kits that I can include for you. You just have to buy a 3/8" pipe thread barbed fitting at any hardware store to install in the oil pan for the oil return. I used the oil feed line on the bigger setup so you well have to fab one which is simple or buy FM's line and T fitting for the block. What comes is what is in the photos. Thanks and call me if you need to talk specifics. Thanks
jmann is offline
Old 02-21-2014, 01:03 PM   #12
Junior Member
Thread Starter

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default

Sale pending again, stay tuned
jmann is offline
Old 02-22-2014, 10:48 AM   #13
Junior Member
Thread Starter

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default

Sold, have money
jmann is offline
