Default FS: Flyin' Miata Turbo Manifold T3 W/External Wastegate

I have a Flyin Miata turbo manifold for sale. Funny enough I bought it here in like 2008.... I converted it to T3 flange and added an external wastegate. This manifold has worked reliably on a BP boosted from 17-28 PSI since 2008. It's painted with 2K temp flat black paint. Could be used on a Internally gated turbo if you remove and block off external wastegate port. Again T3 so don't ask me if your baby turbo is going to work, it won't, buy a man turbo. I also have a man turbo (EFR 7670) if you need one.

Wastegate is some cheap brand I bought it 2007, has a TIAL diagphram and spring in it. Has never missed a beat, works perfect, never leaked. Valve/seat in good condition. Wastegate is bottom mounted. I think it's an 8 PSI spring but who runs only 8 pounds?

All pictures are older pics, I can take new ones in a few days if you need newer pics. I'm moving right now....

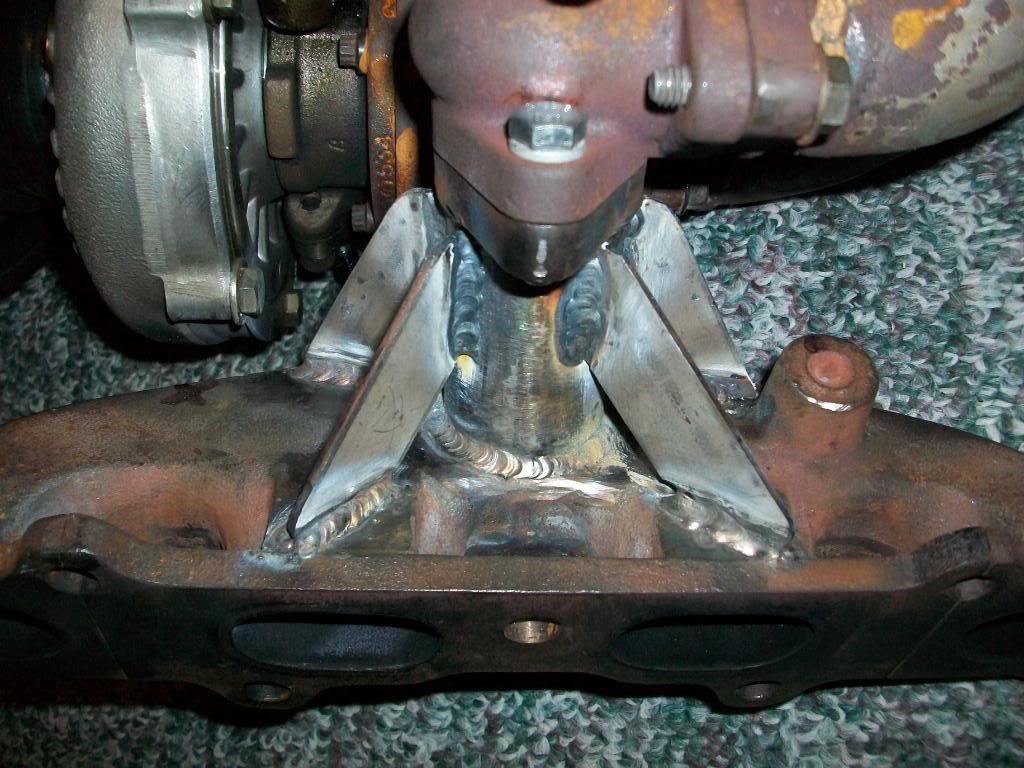

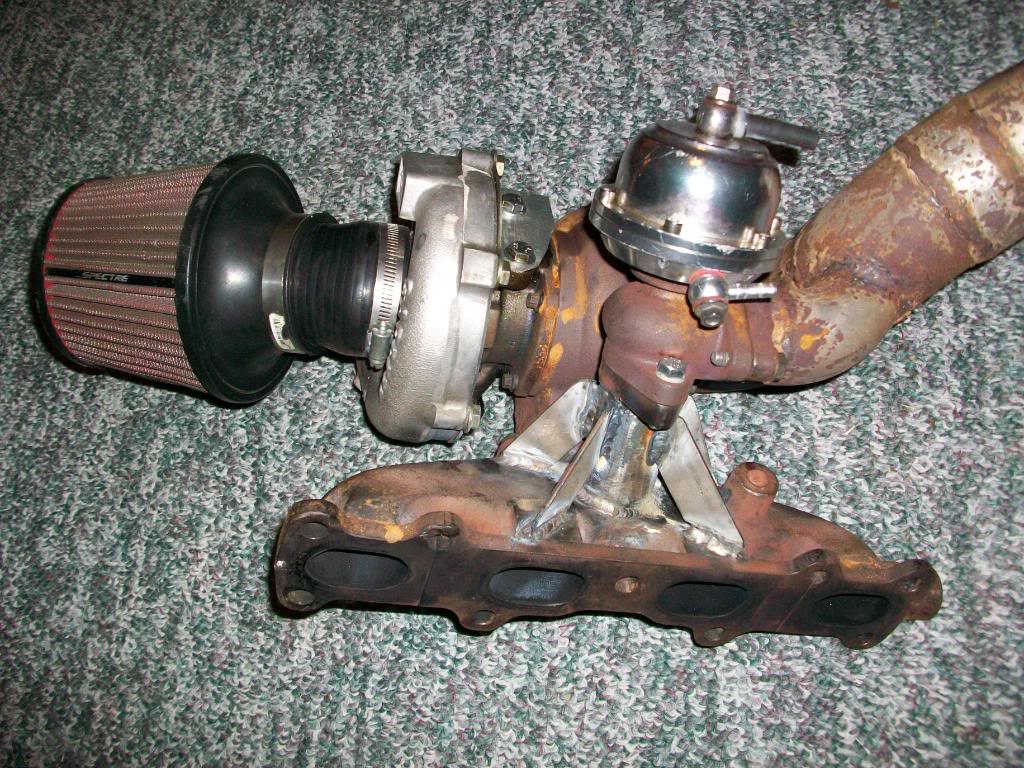

After having the external gate piece TIG'd,

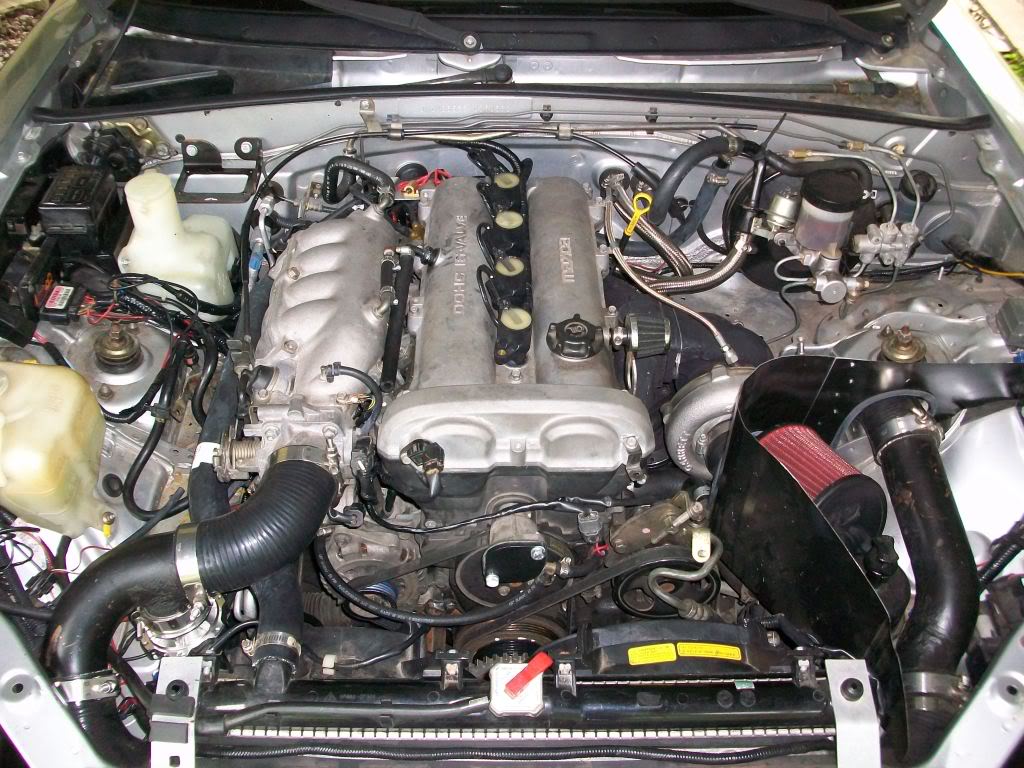

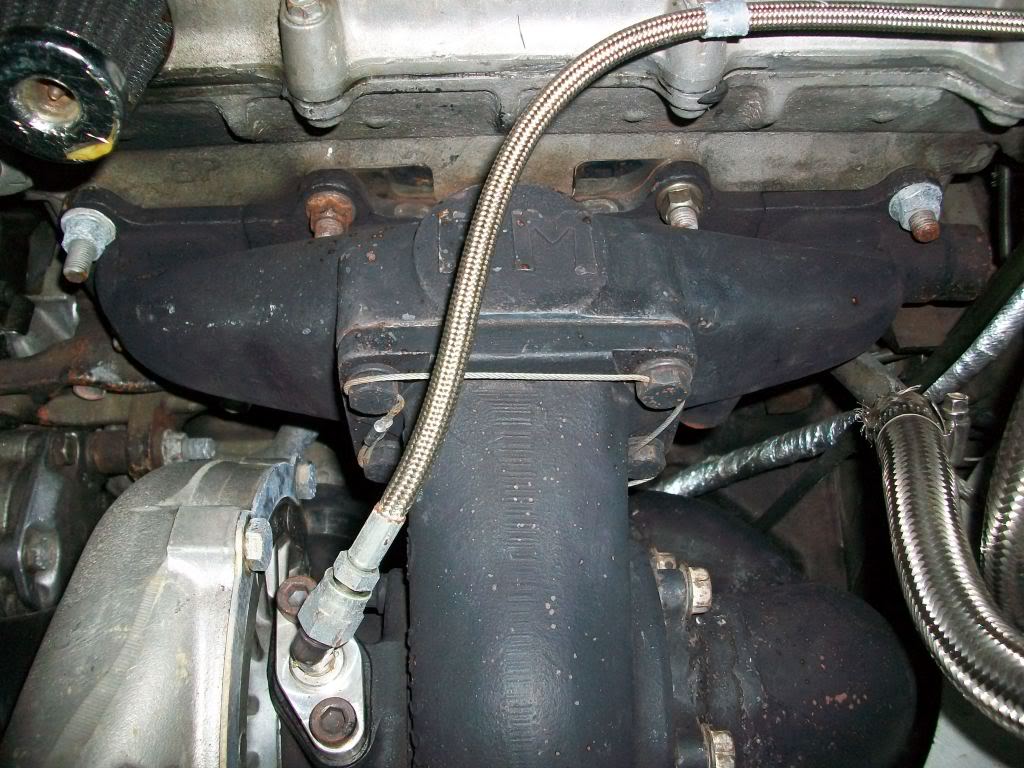

Painted, installed on car:




Note it's been repainted last year, so paint is ok, not perfect. Assume it needs to be repainted, I'm sure it's scuffed up from installing/removing.

Thread size for turbo is 3/8" I think, they're big, never failed/stripped. I can include the Grade 5 bolts I've always used if I can find them, they are drilled to be wired together. Again never failed/backed out (I wire them together, torque to about 15 ft*lbs)

Manifold guaranteed to be in good condition, no damaged threads, no cracks on arrival, flat and smooth leak free surfaces for head and turbo flange. Not happy return it for a refund within 14 days, you pay shipping back.

Not really sure what this is worth, looks like 400 buys you a new one from FM, but it's T2 and no external gate.

320 shipped in lower 48, will ship international for 300 + actual shipping cost. If you think that's too little, offer more. If you think that's too much, offer less.

Patrick
Attached Thumbnails
FS: Flyin' Miata Turbo Manifold T3 W/External Wastegate-100_0532.jpg   FS: Flyin' Miata Turbo Manifold T3 W/External Wastegate-100_0528.jpg   FS: Flyin' Miata Turbo Manifold T3 W/External Wastegate-100_0925.jpg   FS: Flyin' Miata Turbo Manifold T3 W/External Wastegate-100_0991.jpg
patsmx5 is offline
Old 12-27-2014, 05:55 PM   #2
Newb
iTrader: (1)

Join Date: Mar 2014
Posts: 25
Total Cats: -29
Default

PM sent
jmyr is offline
Old 12-27-2014, 06:40 PM   #3
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

side note bump:

I didnt know you lived in houston.
Pitlab77 is offline
Old 12-30-2014, 12:34 AM   #4
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Yeap, moved here in 2011! I like it so far. I see you are not far from Houston.

jmyr is waiting on me to figure out which box I put the mani in to take a more-recent pic of it. Maybe I'll find it tomorrow....
patsmx5 is offline
Old 01-01-2015, 12:29 AM   #5
Newb
iTrader: (1)

Join Date: Mar 2014
Posts: 25
Total Cats: -29
Default

Quote:
Originally Posted by patsmx5 View Post
Yeap, moved here in 2011! I like it so far. I see you are not far from Houston.

jmyr is waiting on me to figure out which box I put the mani in to take a more-recent pic of it. Maybe I'll find it tomorrow....
Waiting patiently might I add ;-) lol
Really though no rush.
jmyr is offline
Old 01-01-2015, 12:32 AM   #6
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Haha I was PM'ing you when you posted that. I sent you another PM that says: I'm busy, but will find mani tomorrow, hopefully you buy tomorrow and I can ship friday before I go back to work!
patsmx5 is offline
Old 01-01-2015, 01:08 AM   #7
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

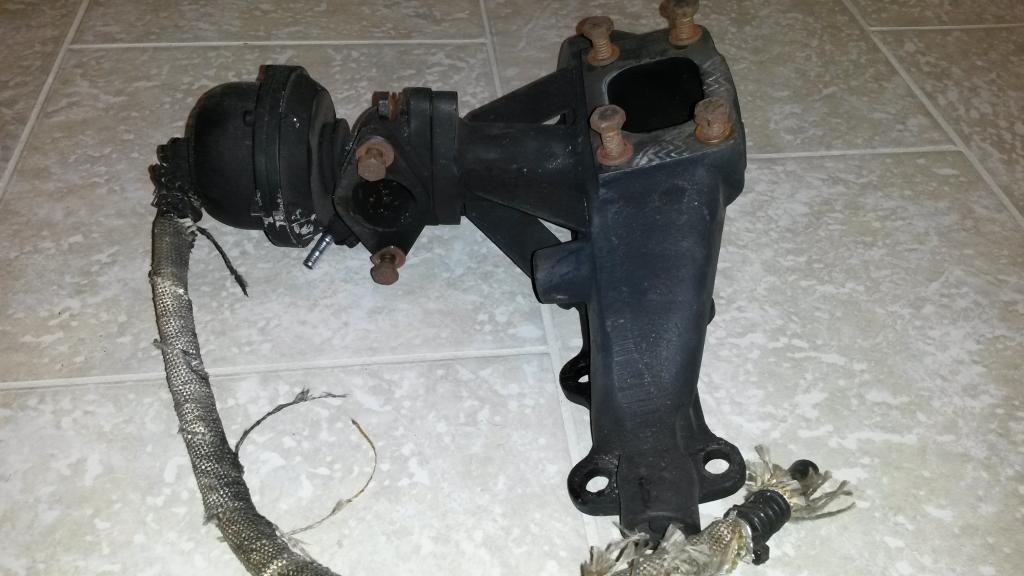

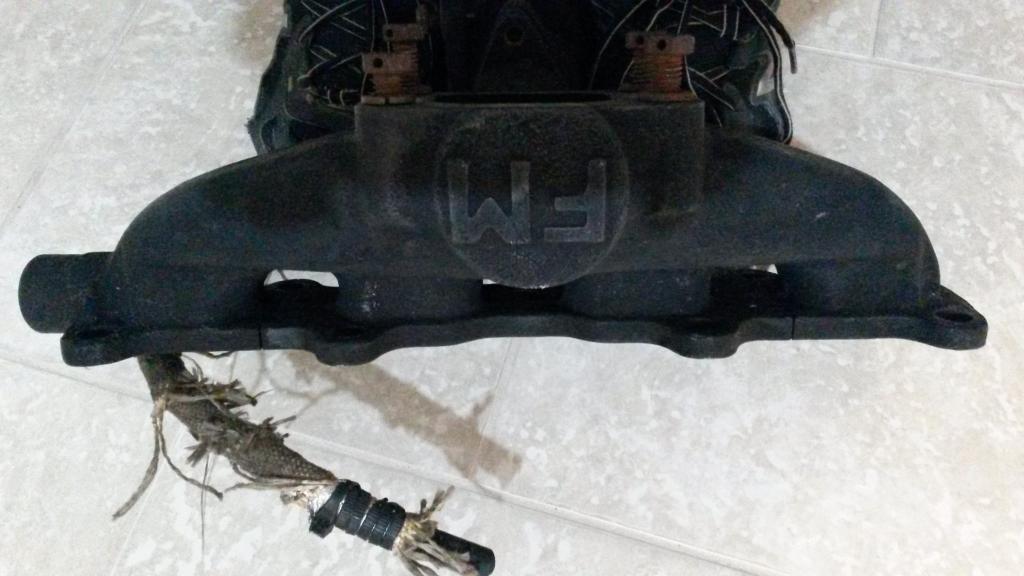

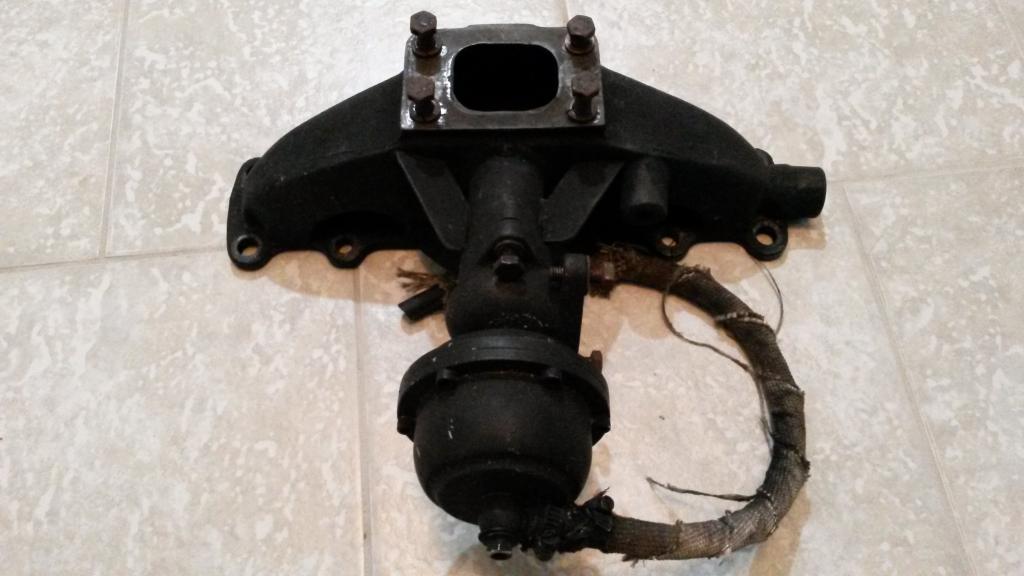

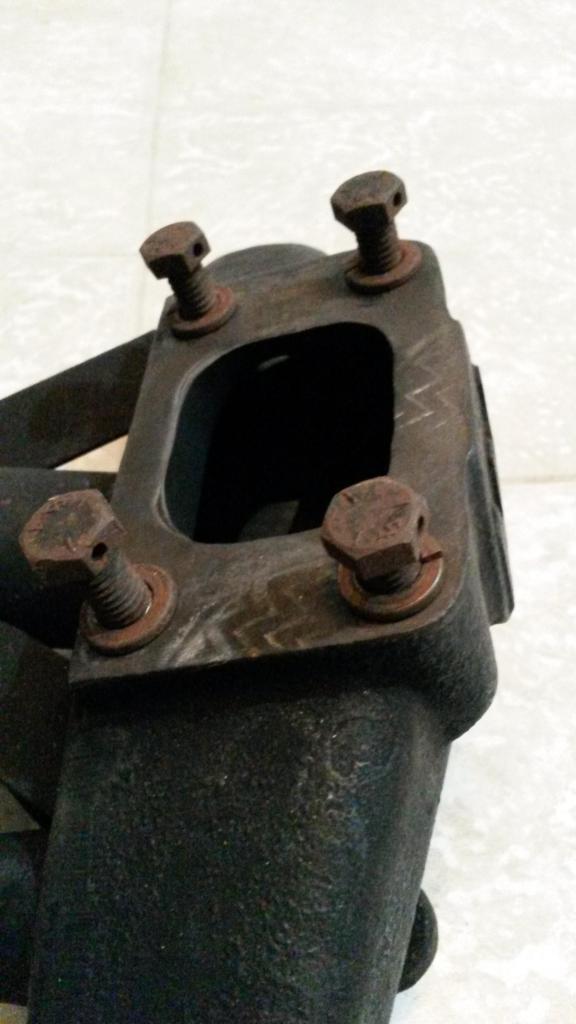

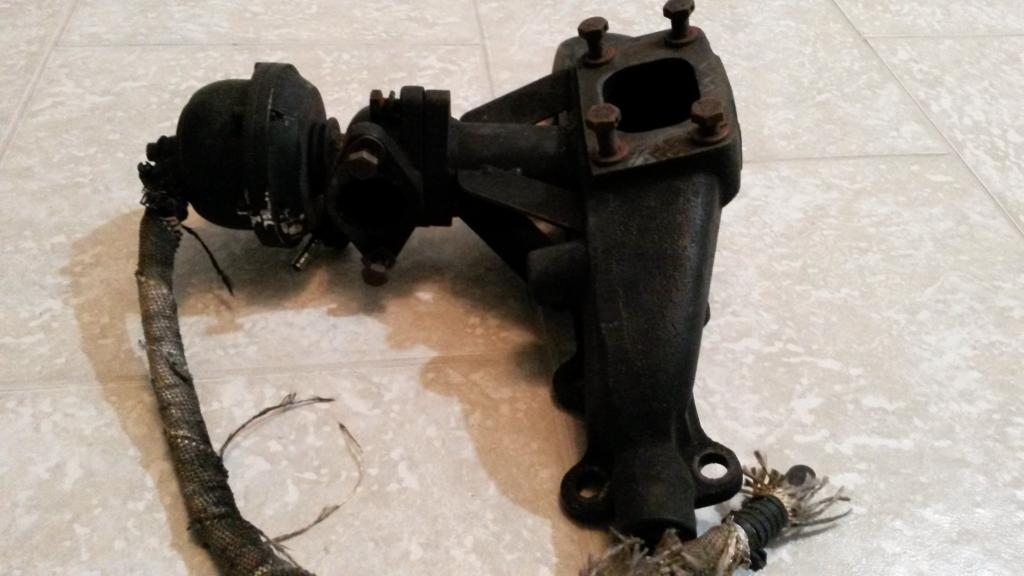

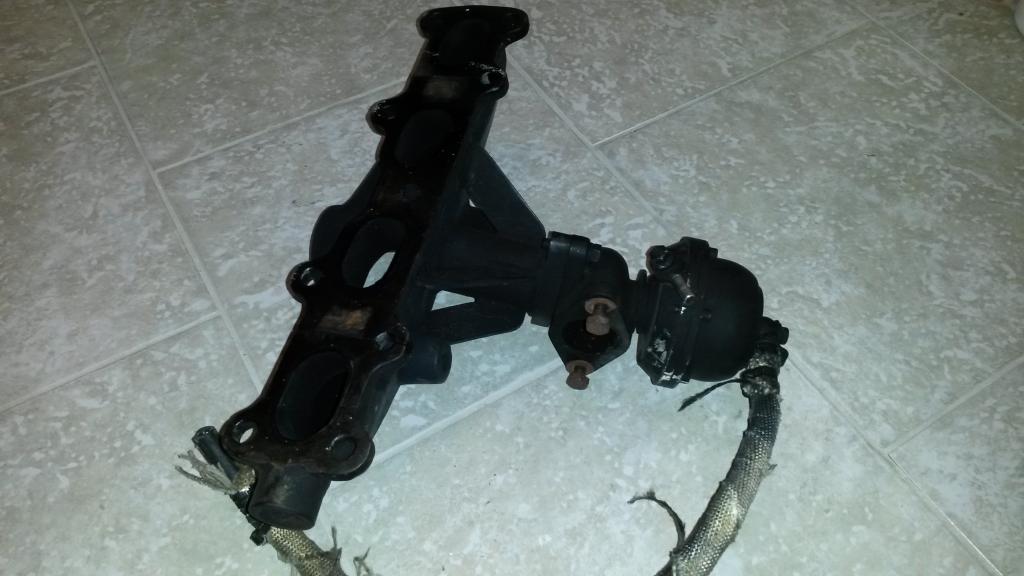

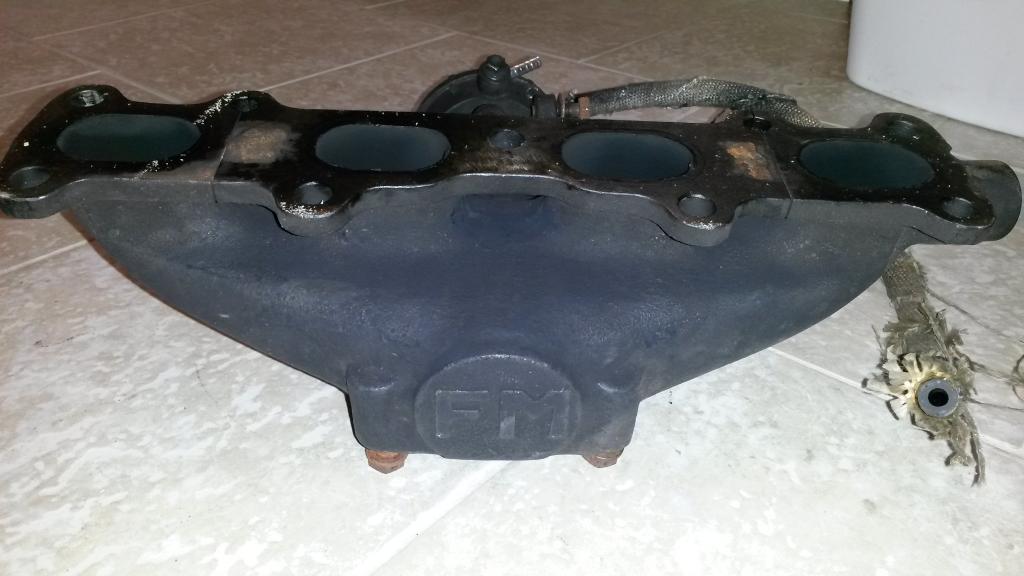

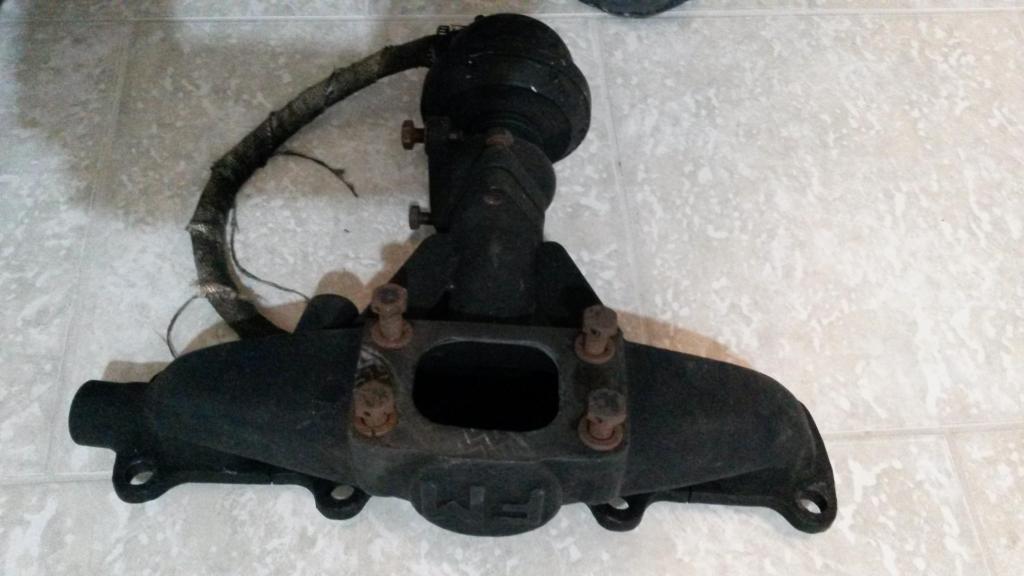

Moar Pics! Sorry they are cell phone pics, real camera also in a box somewhere!















Attached Thumbnails
FS: Flyin' Miata Turbo Manifold T3 W/External Wastegate-20141231_225918_zps27605b29.jpg   FS: Flyin' Miata Turbo Manifold T3 W/External Wastegate-20141231_225908_zps992daf0b.jpg   FS: Flyin' Miata Turbo Manifold T3 W/External Wastegate-20141231_225853_zpsfc1c9a97.jpg   FS: Flyin' Miata Turbo Manifold T3 W/External Wastegate-20141231_225844_zps5c5ee394.jpg   FS: Flyin' Miata Turbo Manifold T3 W/External Wastegate-20141231_225836_zpsa4a9b6d3.jpg

FS: Flyin' Miata Turbo Manifold T3 W/External Wastegate-20141231_225807_zps3cbc2161.jpg   FS: Flyin' Miata Turbo Manifold T3 W/External Wastegate-20141231_225754_zpsb3612999.jpg   FS: Flyin' Miata Turbo Manifold T3 W/External Wastegate-20141231_225736_zps5b876a0a.jpg
patsmx5 is offline
Old 01-01-2015, 08:24 PM   #8
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Sold!
