Old 12-27-2011, 08:04 PM   #1
Former Vendor
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default New T28

We have a new turbo sitting here in the shop.

$350 Shipped

Its a T2 Footprint "3371"

Journal Bearing

Compressor-
Exducer = 71.0
Inducer = 49.2
Trim = 48
A/R- = .60

Turbine Wheel
Exducer 47.0
Inducer 53.8
Trim 76
Trim .64

Water and Oil cooled

Turbine housing
.64 AR
Compressor cover .6ar
Compressor wheel 52 trim

Enlarged wastegate port.

Internally Gated with 8-14psi Spring.

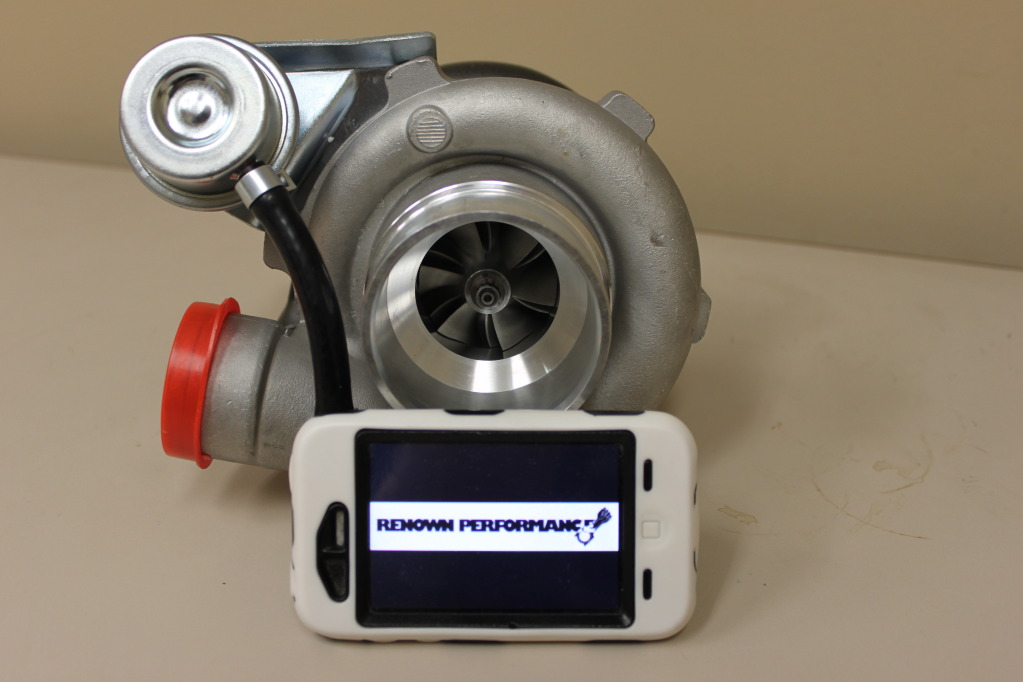

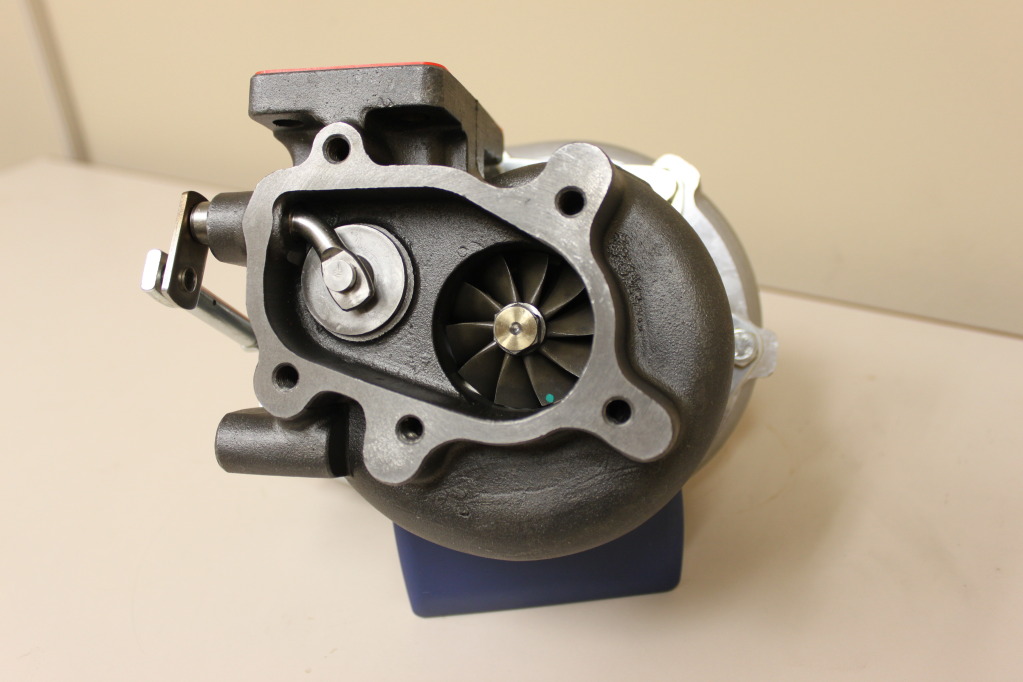

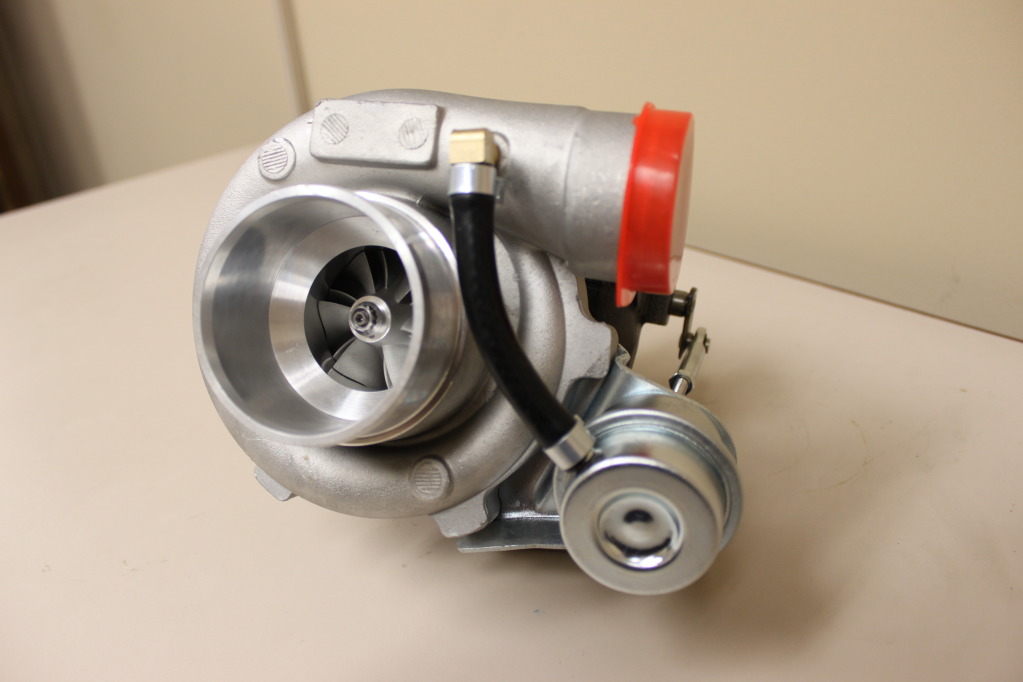

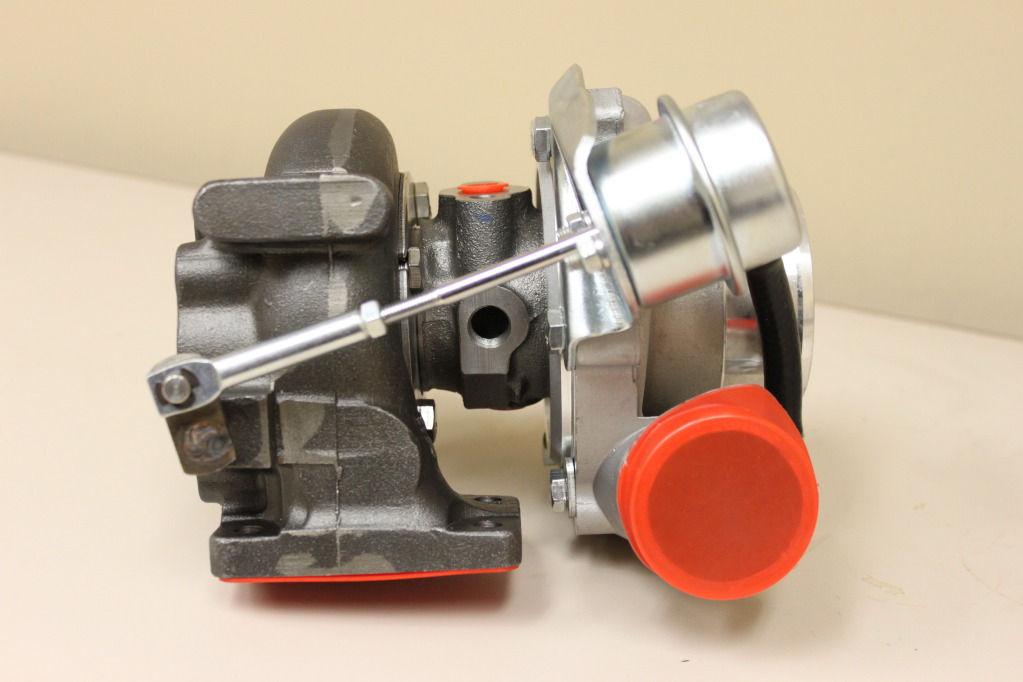

Pictures:






Attached Thumbnails
New T28-img_6487.jpg   New T28-img_6486.jpg   New T28-img_6485.jpg   New T28-img_6484.jpg

Last edited by Renown Performance; 01-01-2012 at 02:59 AM.
Renown Performance is offline   Reply With Quote
Old 12-27-2011, 08:30 PM   #2
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,633
Total Cats: 1,559
Default

Diameters of inducer and exducer on both wheels?
sixshooter is offline   Reply With Quote
Old 12-27-2011, 08:35 PM   #3
Senior Member
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

Very interested, obviously have to assume its not a real Garrett. Is it identical to a real 2871?
karter74 is offline   Reply With Quote
Old 12-27-2011, 10:06 PM   #4
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

What are the compressor flange measurements?
thirdgen is offline   Reply With Quote
Old 12-27-2011, 10:07 PM   #5
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

"wet float type" bearing? Or ball bearing?
thirdgen is offline   Reply With Quote
Old 12-27-2011, 10:11 PM   #6
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

does it not hit block??

interested as well in the compressor/turbine diameters
aaronc7 is offline   Reply With Quote
Old 12-27-2011, 10:16 PM   #7
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

Can you show a pic of the turbine side with the wg flapper open?
messiahx is offline   Reply With Quote
Old 12-28-2011, 02:18 AM   #8
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

also interested would it be direct replacement for my garett 2554?
90 Turbo is offline   Reply With Quote
Old 12-28-2011, 05:34 AM   #9
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

Quote:
Originally Posted by 90 Turbo View Post
also interested would it be direct replacement for my garett 2554?
Yes it would bolt in place.
messiahx is offline   Reply With Quote
Old 12-28-2011, 02:53 PM   #10
Former Vendor
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

It is not a true Garrett. I will pull measurements today on it!

-Sam
Renown Performance is offline   Reply With Quote
Old 12-28-2011, 03:07 PM   #11
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

How hard is it to reclock one of these the outlet is pointing the wrong way for my begi setup?
90 Turbo is offline   Reply With Quote
Old 12-28-2011, 05:31 PM   #12
Former Vendor
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

Updated first post!

-Sam
Renown Performance is offline   Reply With Quote
Old 12-28-2011, 05:35 PM   #13
Former Vendor
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

It is pretty easily clocked, we haven't mocked this up on a Miata yet, so no idea if it will impede with fitment.

-Sam
Renown Performance is offline   Reply With Quote
Old 12-28-2011, 07:15 PM   #14
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

specs look good! quick glance it looks pretty much like a journal bearing 2871 (48trim)
aaronc7 is offline   Reply With Quote
Old 12-28-2011, 09:16 PM   #15
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

Lol "enlarged wastegate port". I was curious because I've had to dremel out a couple churbo's already. Takes for damn ever.
messiahx is offline   Reply With Quote
Old 12-30-2011, 06:57 PM   #16
Former Vendor
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

BUMP!

-Sam
Renown Performance is offline   Reply With Quote
Old 12-31-2011, 01:03 AM   #17
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

any word on will it fit on miata clocked to exit down.
90 Turbo is offline   Reply With Quote
Old 12-31-2011, 01:10 AM   #18
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Tell me the measurements of the compressor inlet and outlet, and tell me if it's journal bearing or ball bearing. After that, I might offer you money for it.
thirdgen is offline   Reply With Quote
Old 01-01-2012, 02:58 AM   #19
Former Vendor
Thread Starter
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

Should have no problem fitting a dowards clock, as a matter of fact it should anyware almost anyware a T25/T28 would.

Yes its Very much like a 2871 just with a little more top end.

Compressor inlet: 2.75" and outlet is 2" I will have the shop double check on monday.

It is oil and water cooled journal bearing.
Renown Performance is offline   Reply With Quote
Old 01-02-2012, 12:16 AM   #20
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

I will call you then monday morning to discuss

Last edited by 90 Turbo; 01-02-2012 at 01:00 AM.
90 Turbo is offline   Reply With Quote
