Default Partial Turbo Kit - ETD Long Tube Manifold

I recently revamped my entire turbo system, so that I could re-install the A/C in my car. As such, I ended up replacing almost the complete turbo system, except for the turbo itself and some random parts like silicone couplers, air filter etc. This is for a 1.8L, my car is a '94.

So what I have left is about 60% of a complete turbo kit. Here are the details:

I built this system myself back in 2004, and it has about 15k miles of use. No road racing, just two dozen or so autocrosses, two trips to the drag strip, and lots o street driving. The turbo I was using was a GT2860RS, and it made 268 rwhp/250 rwtq at 15psi with a 3" exhaust.

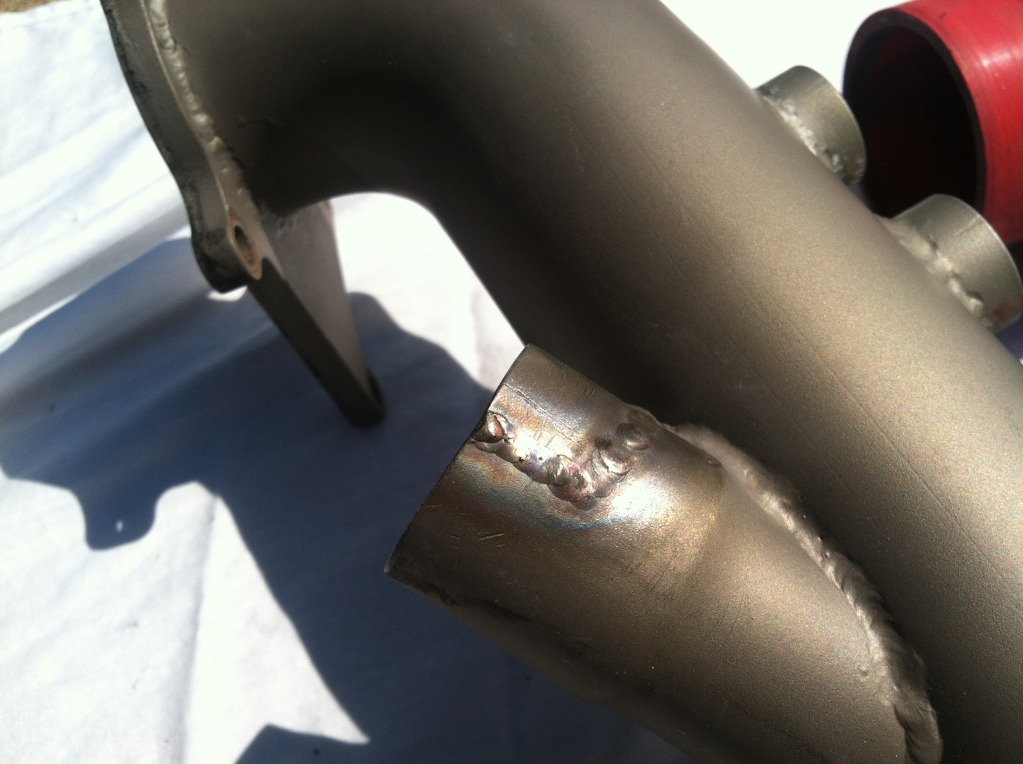

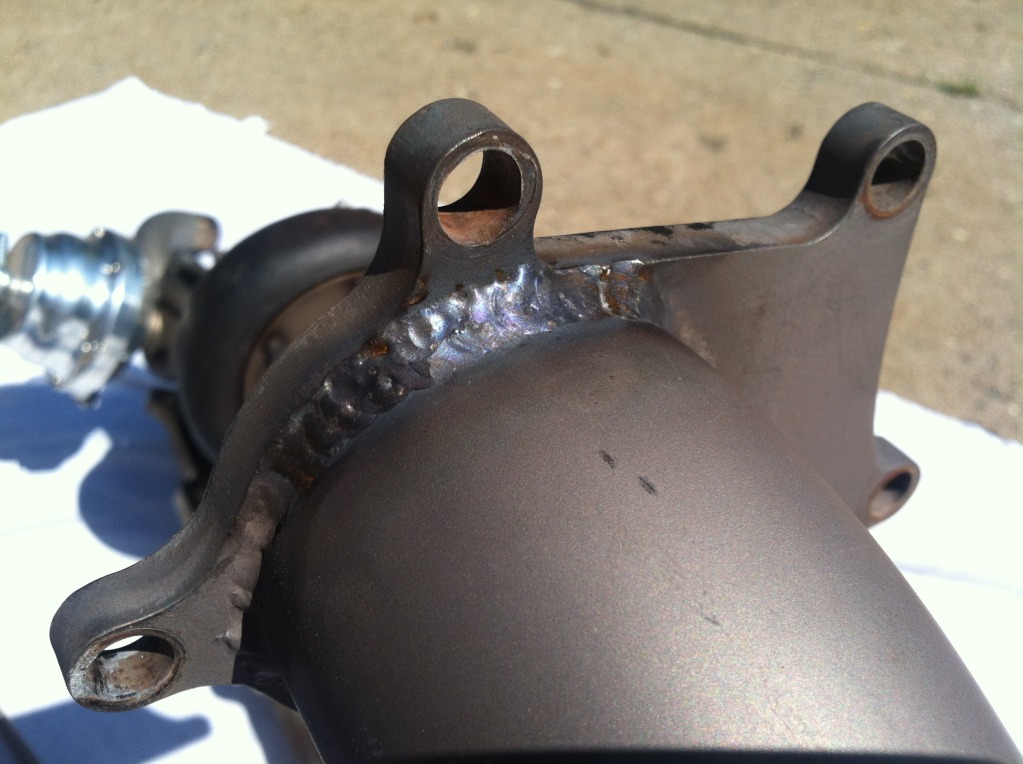

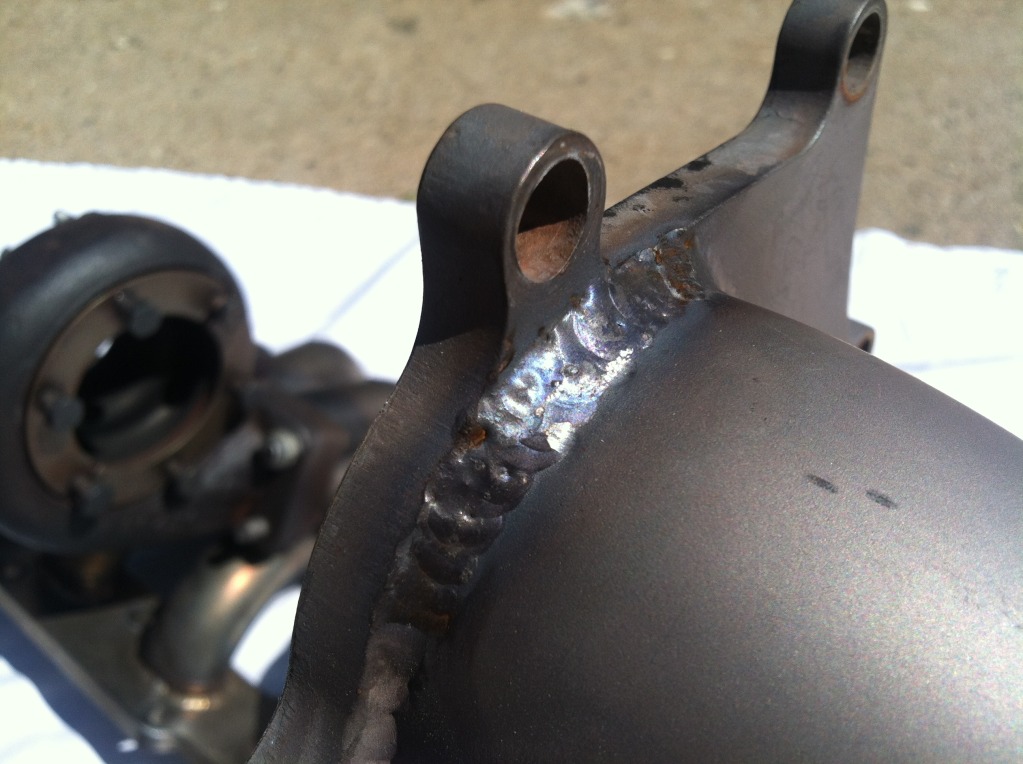

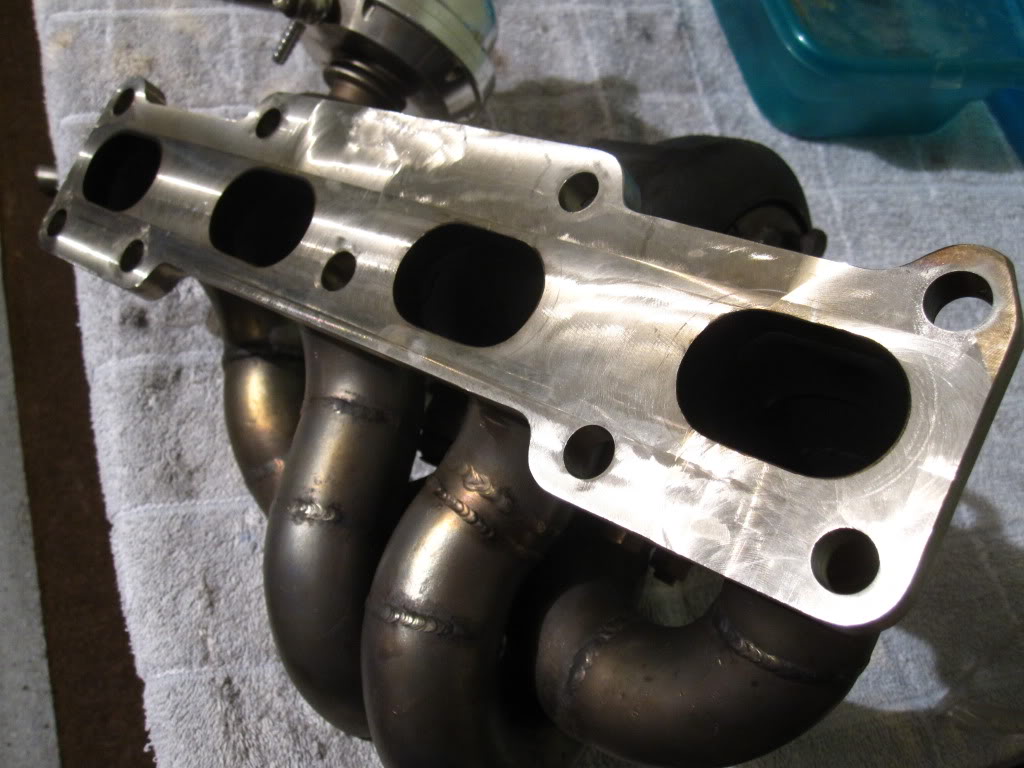

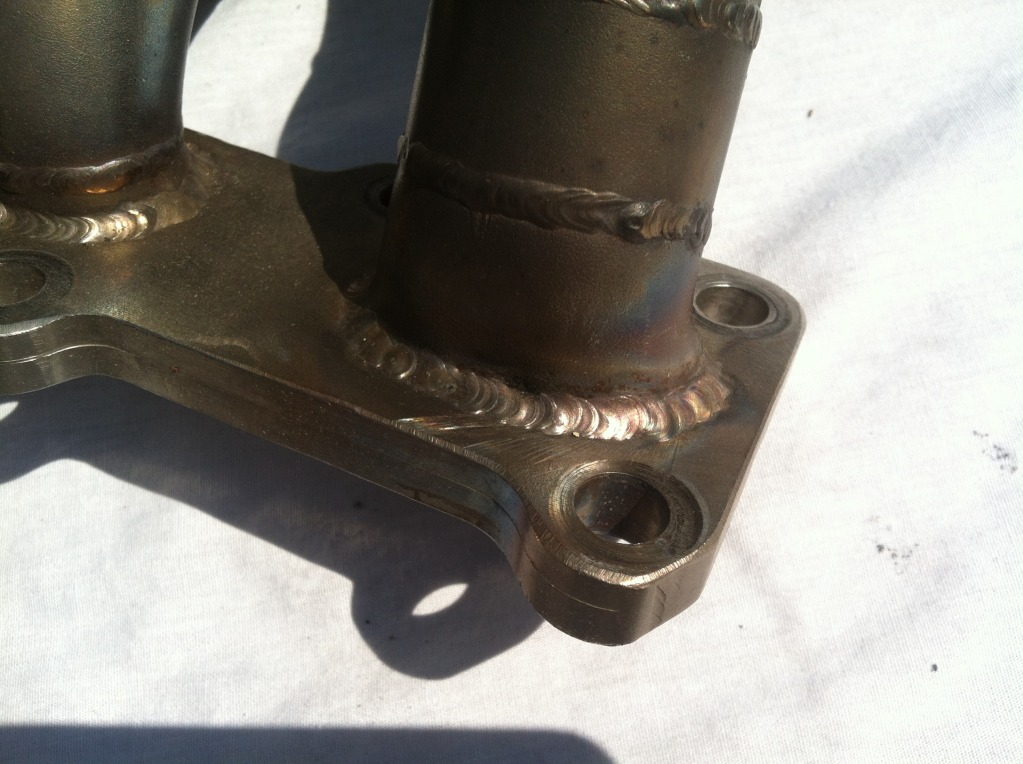

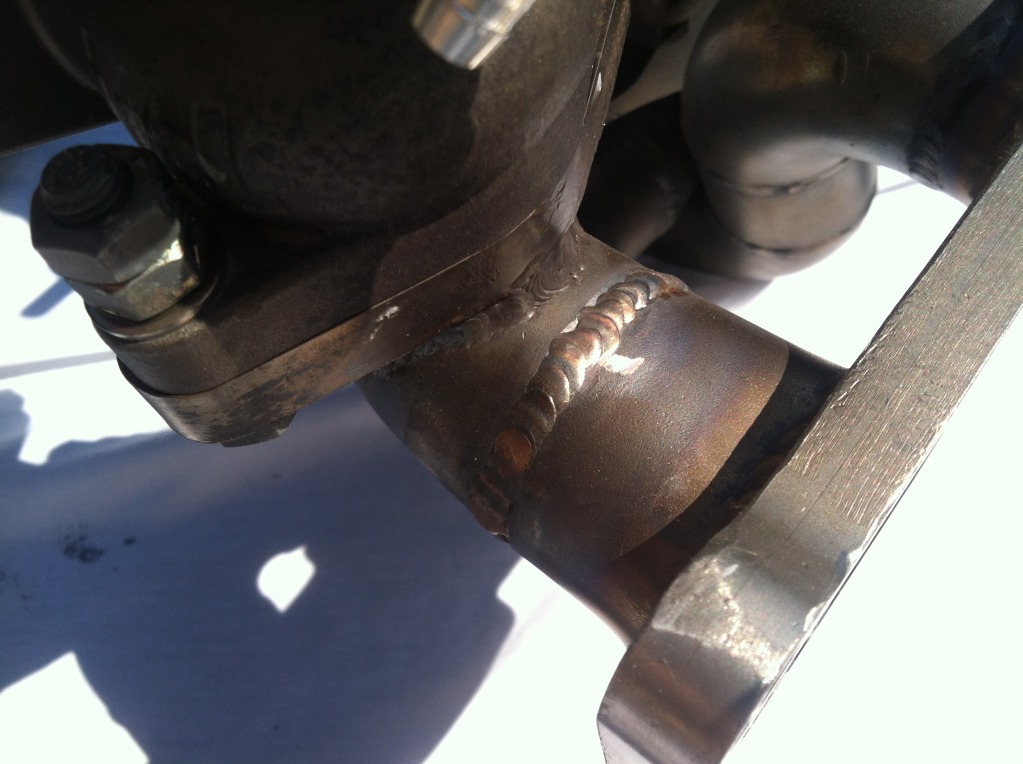

Last spring I noticed a crack in the manifold runner #4. After taking everything off the car, I also found a very small crack in the #1 runner where it met the flange, and a crack in the downpipe at the flange, and finally another crack where the wastegate dump tube slip joint where it merges back into the downpipe. I vee'd out and re-welded all of the cracks myself, using a TIG welder and back-purging the welds. After welding the manifold, the flange was no longer flat so I had to put it in the mill and machine it flat. After the repairs I put it back together and ran it for the rest of the summer without any problems.

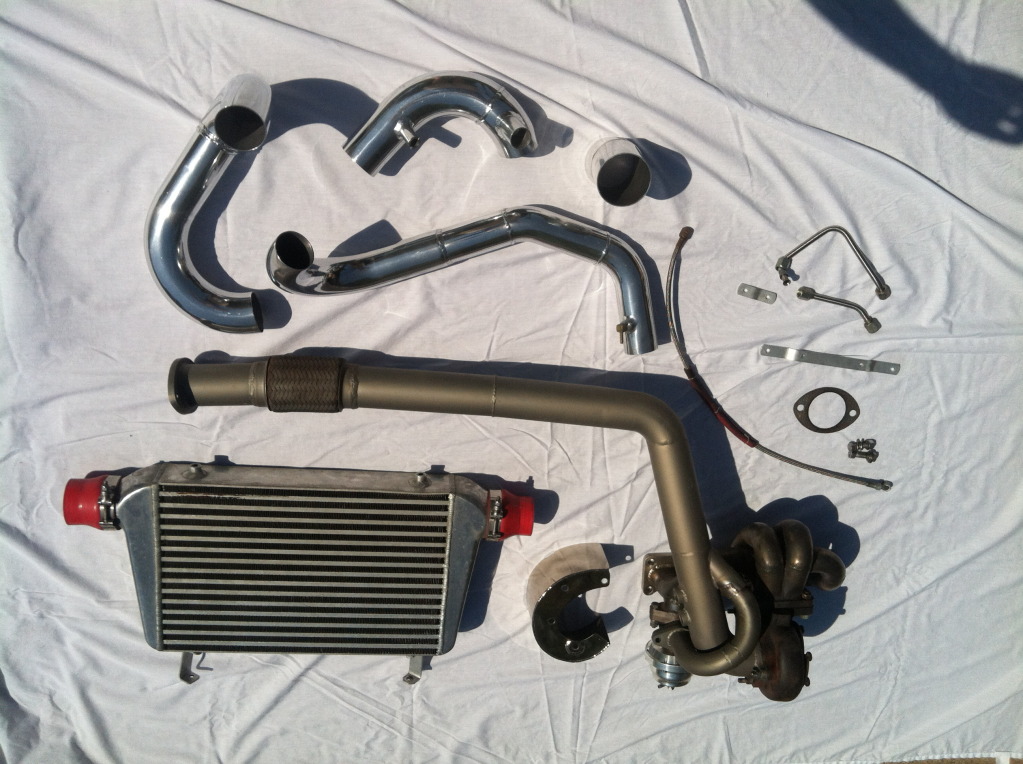

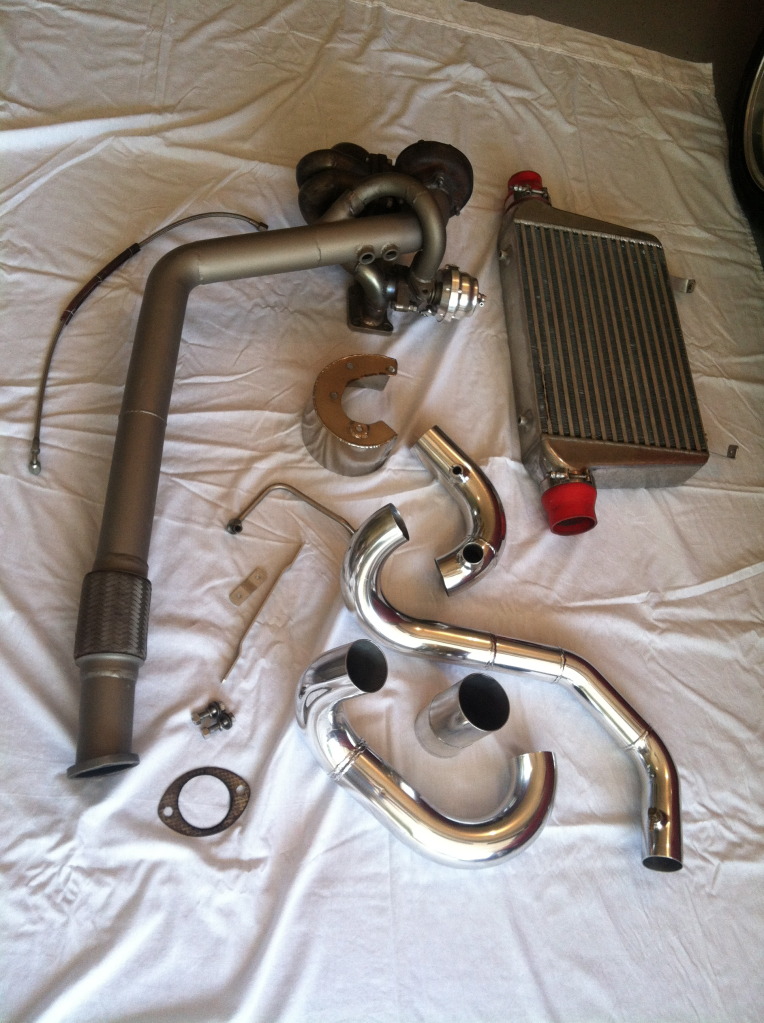

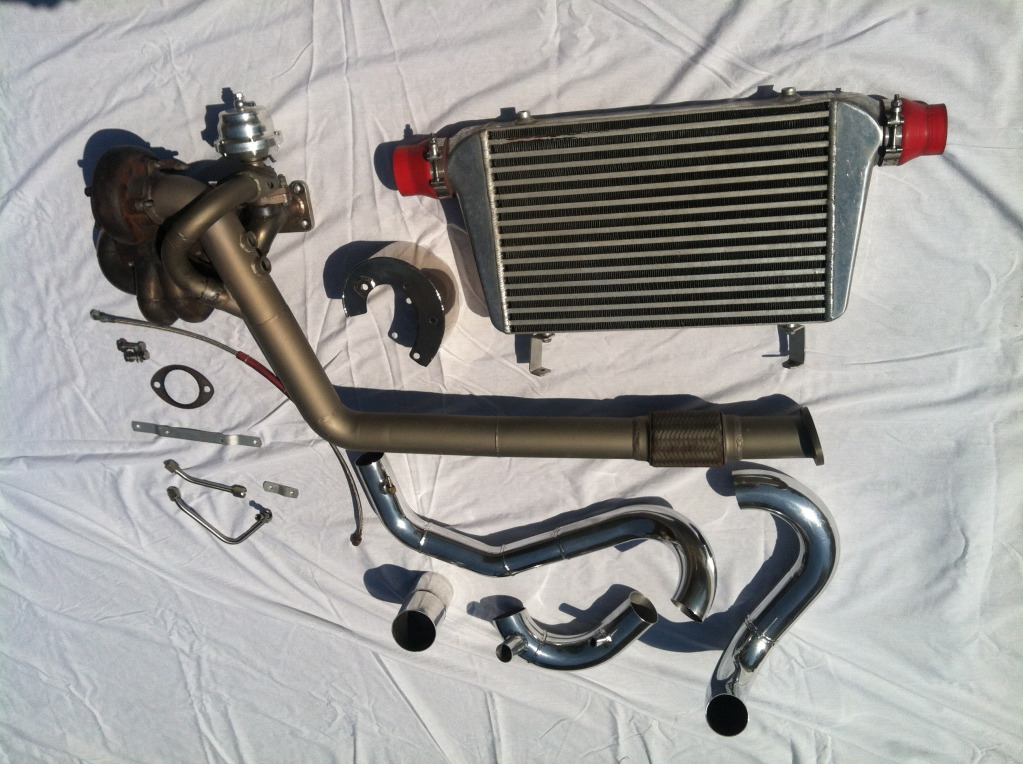

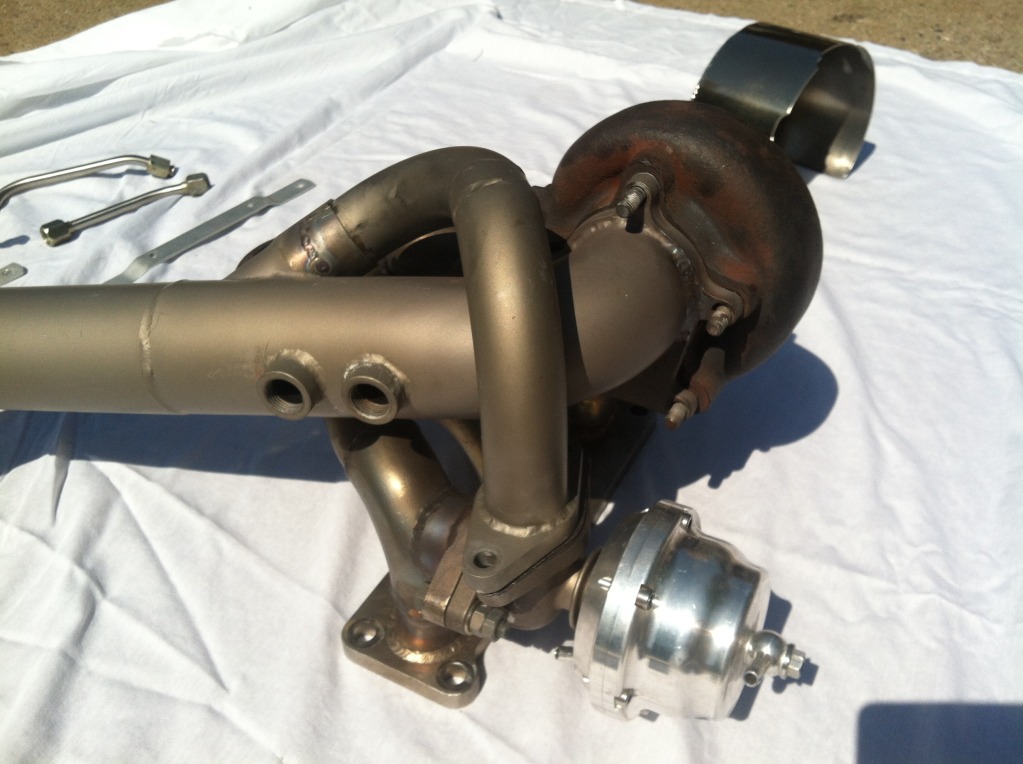

Here is what is included:

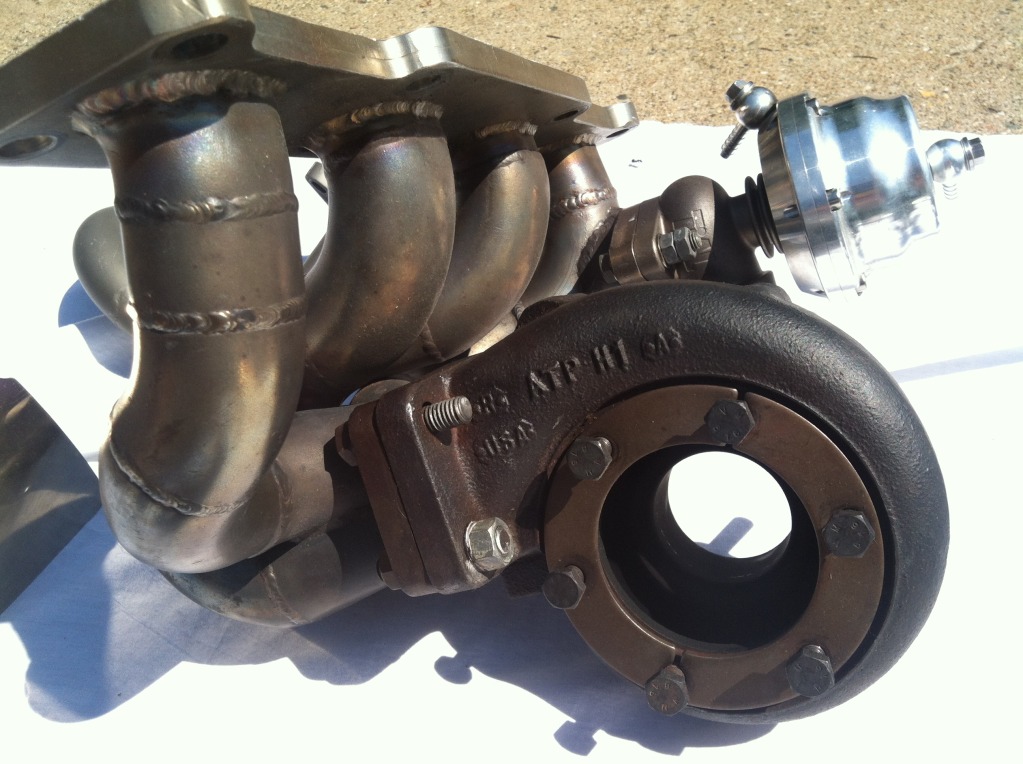

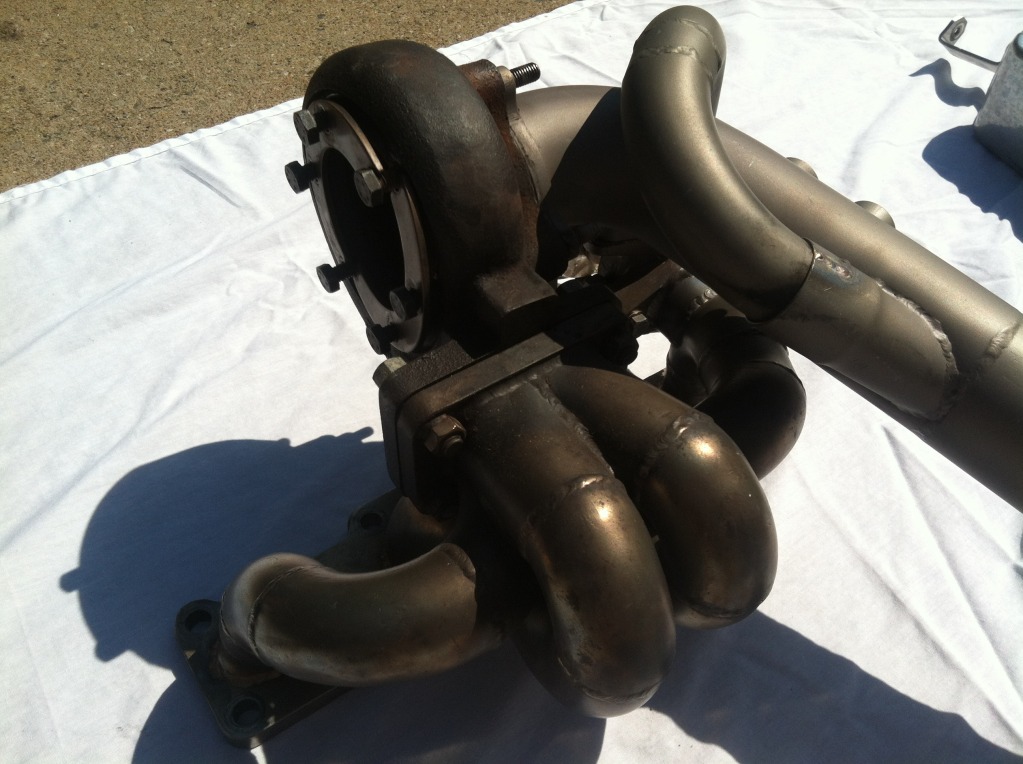

  • ETD Racing 304SS long-tube manifold
  • Tial 38mm external wastegate

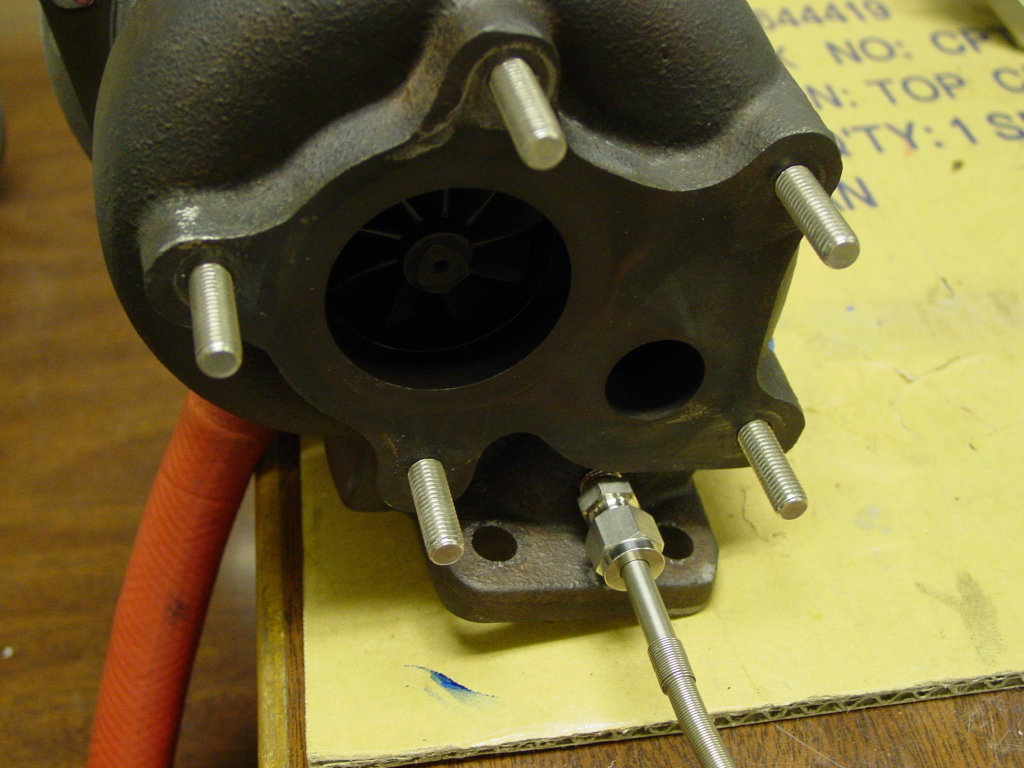

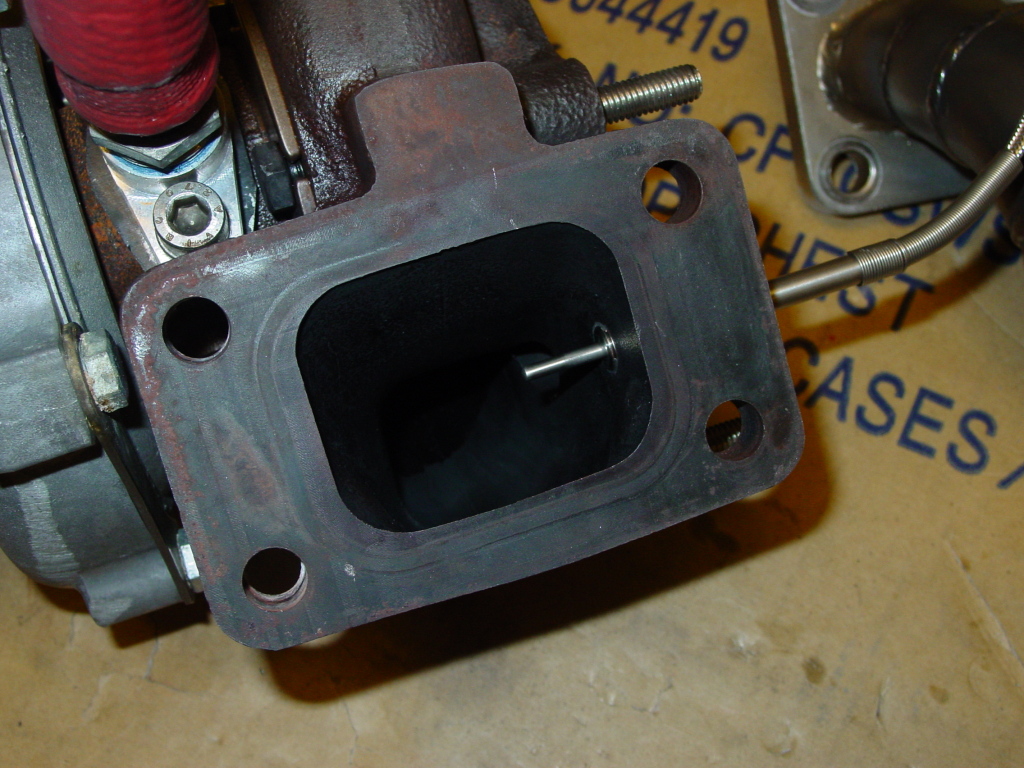

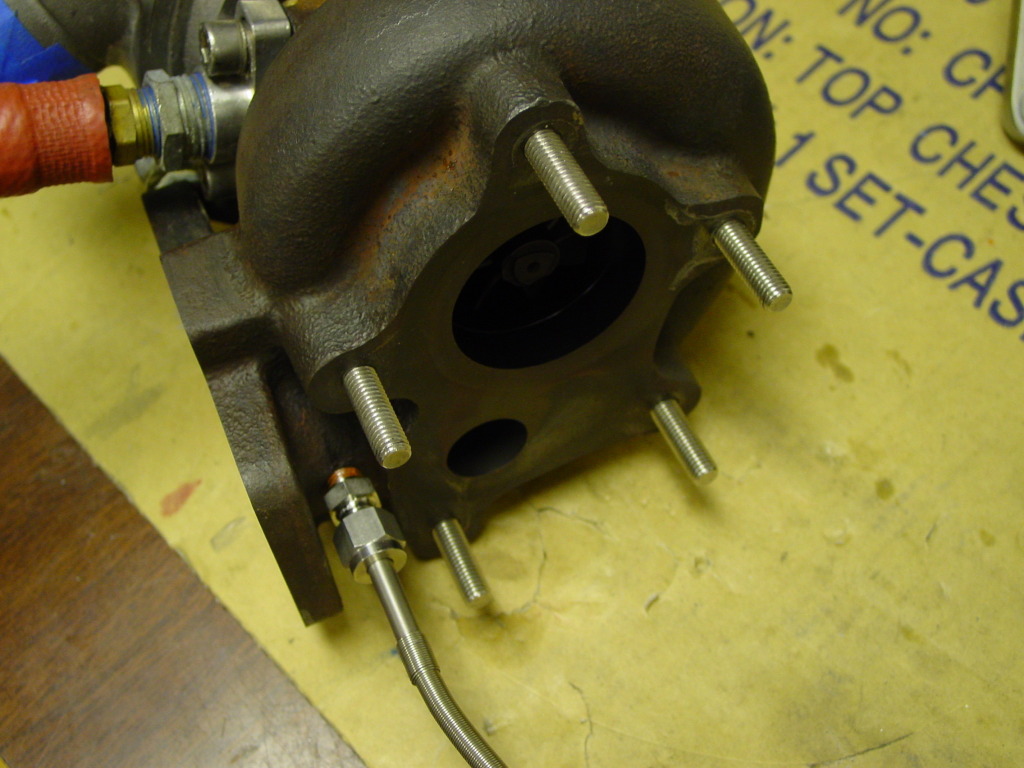

  • ATP Turbo GT28 Turbine housing with T3 flange - this has a 1/8 NPT tapped port at the inlet for an EGT probe. Or you can plug it.

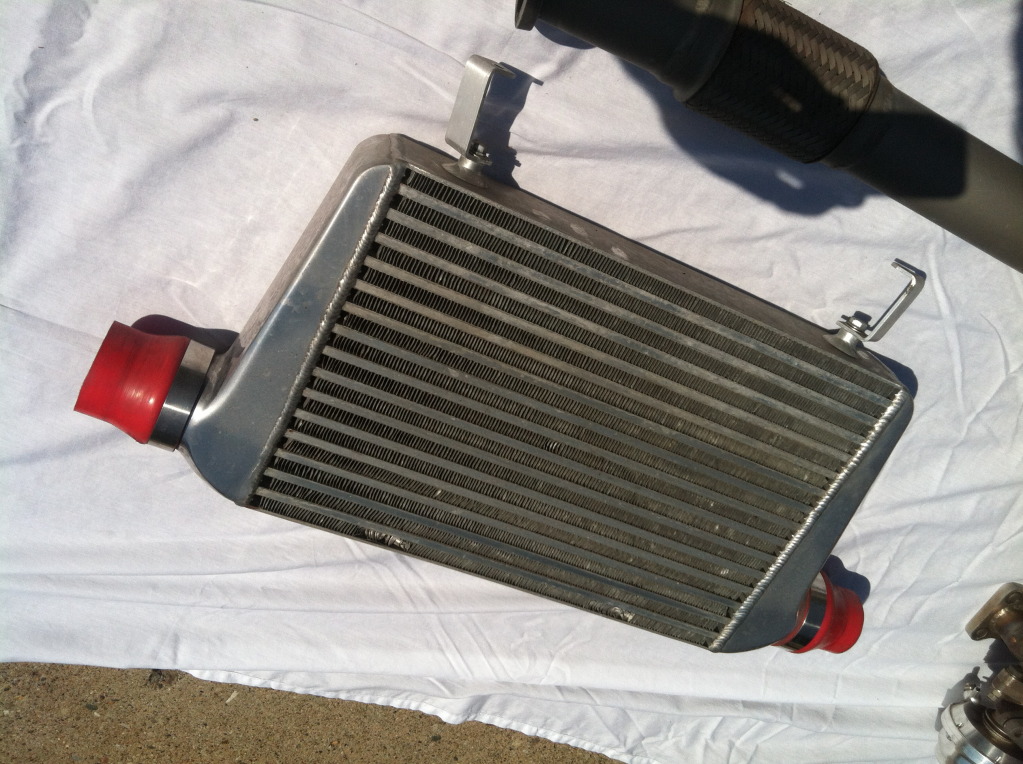

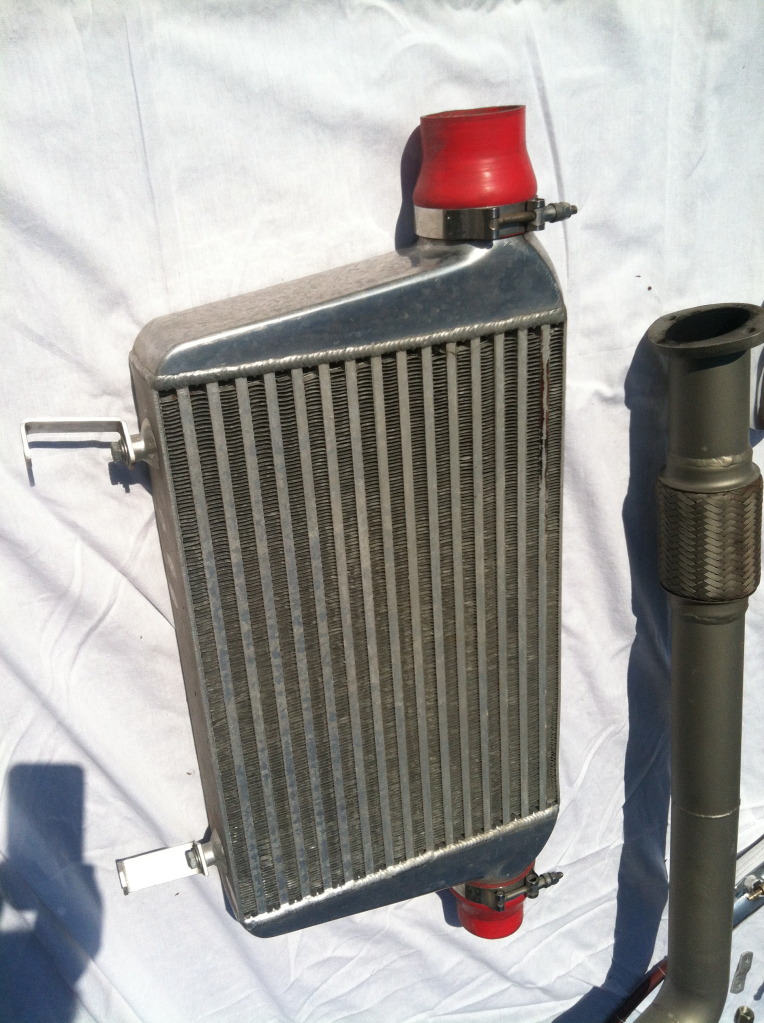

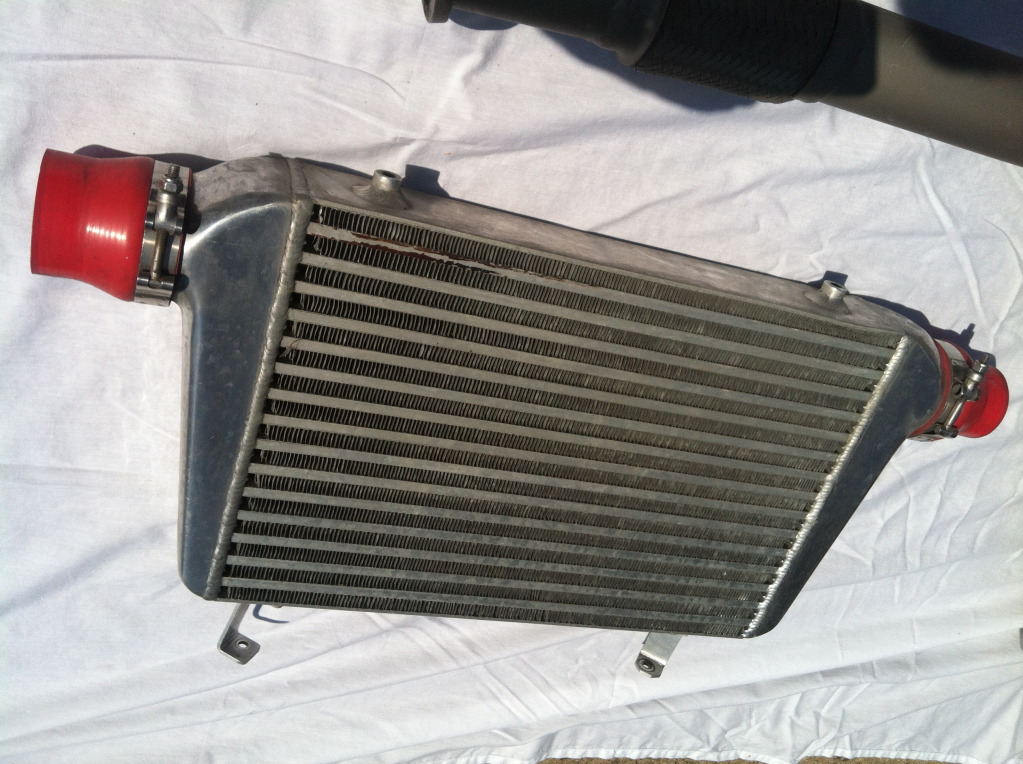

  • 10"x17.5"x3" bar and plate intercooler with 3" inlet and outlet (not sure of brand)
  • Silicone transition hoses and t-bolt clamps for intercooler inlet and outlet

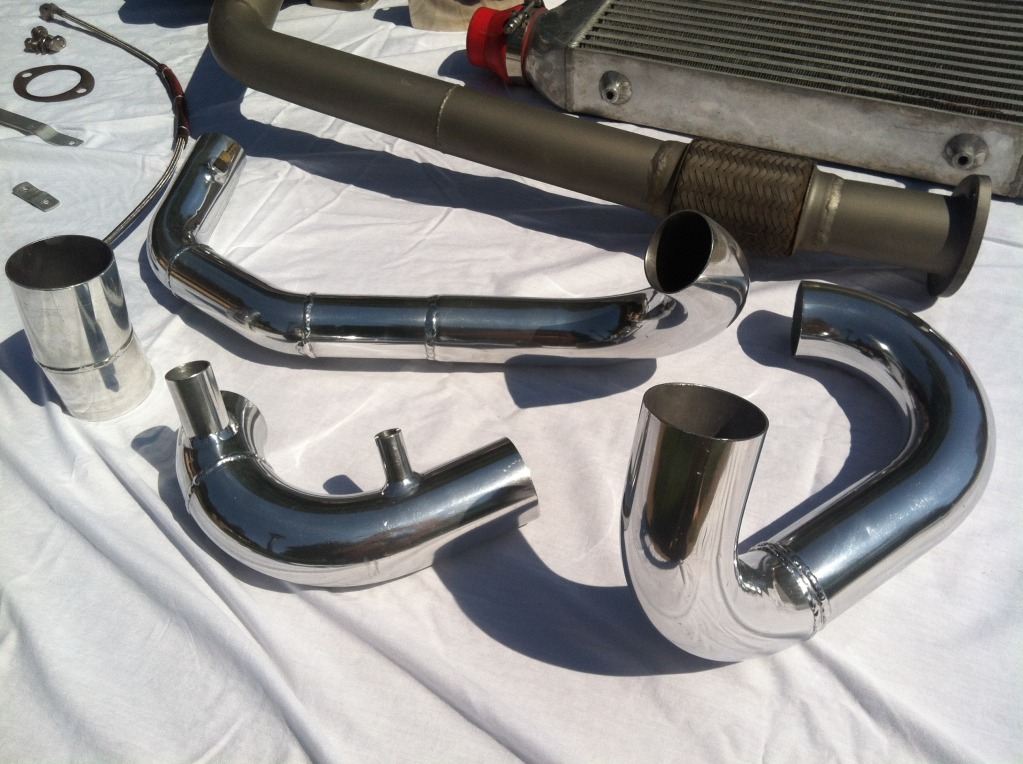

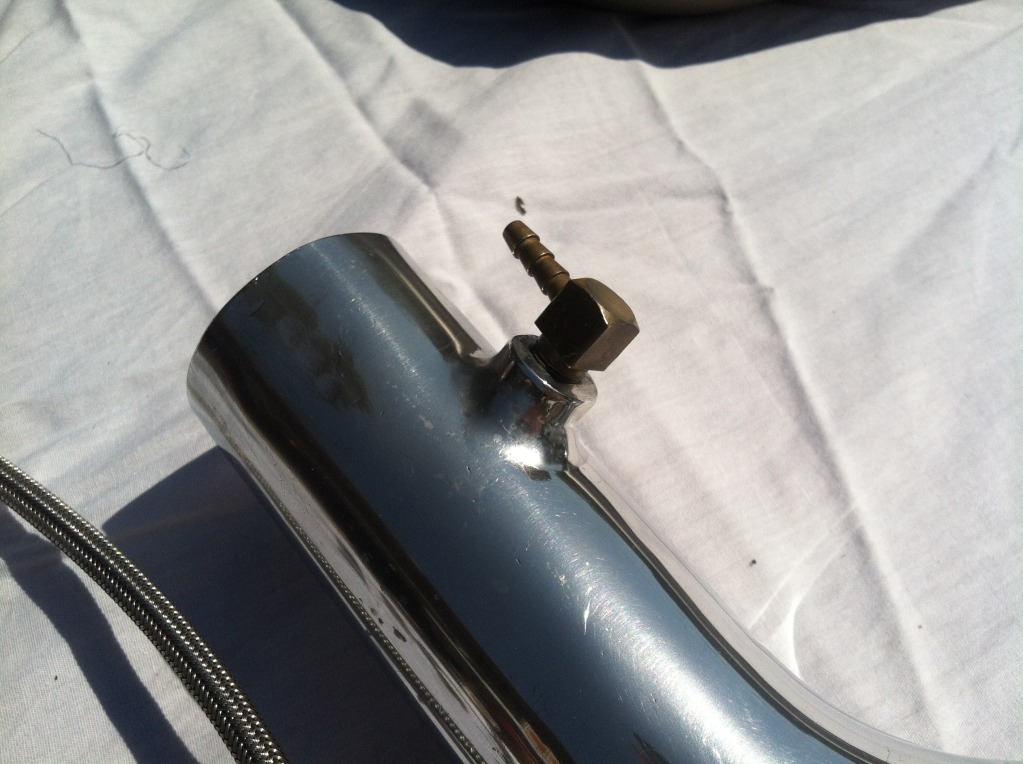

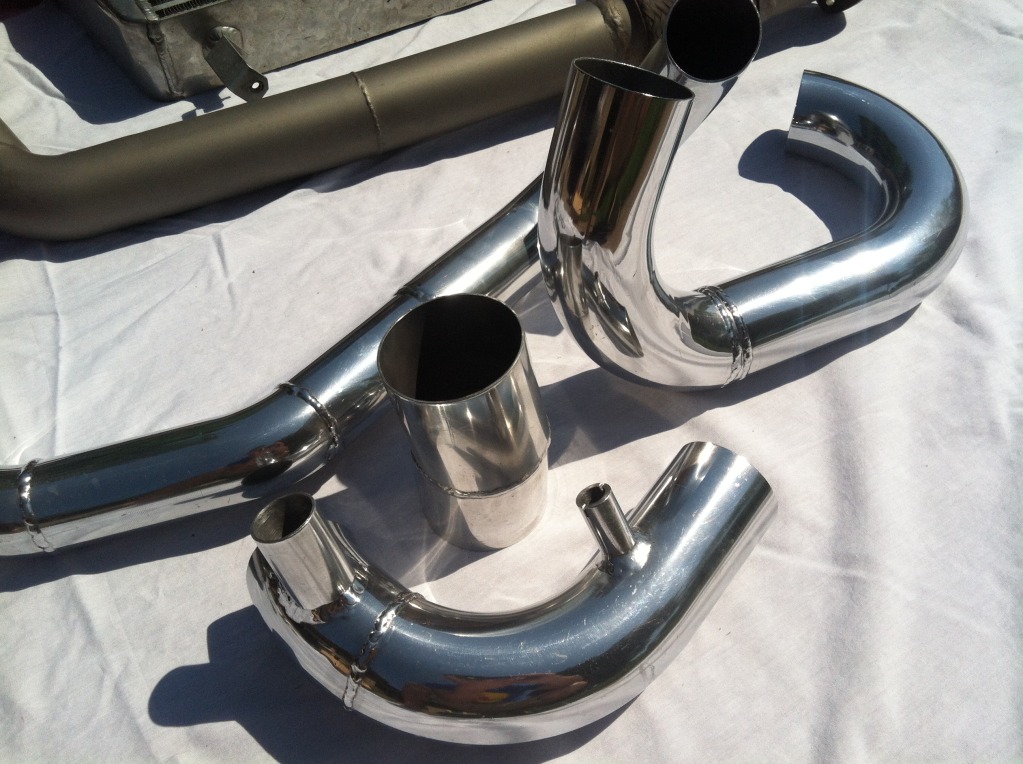

  • Polished aluminum intercooler piping. Starts at 2-1/8" and transitions to 2-1/4" before intercooler, then 2-1/2" between IC and throttle body.

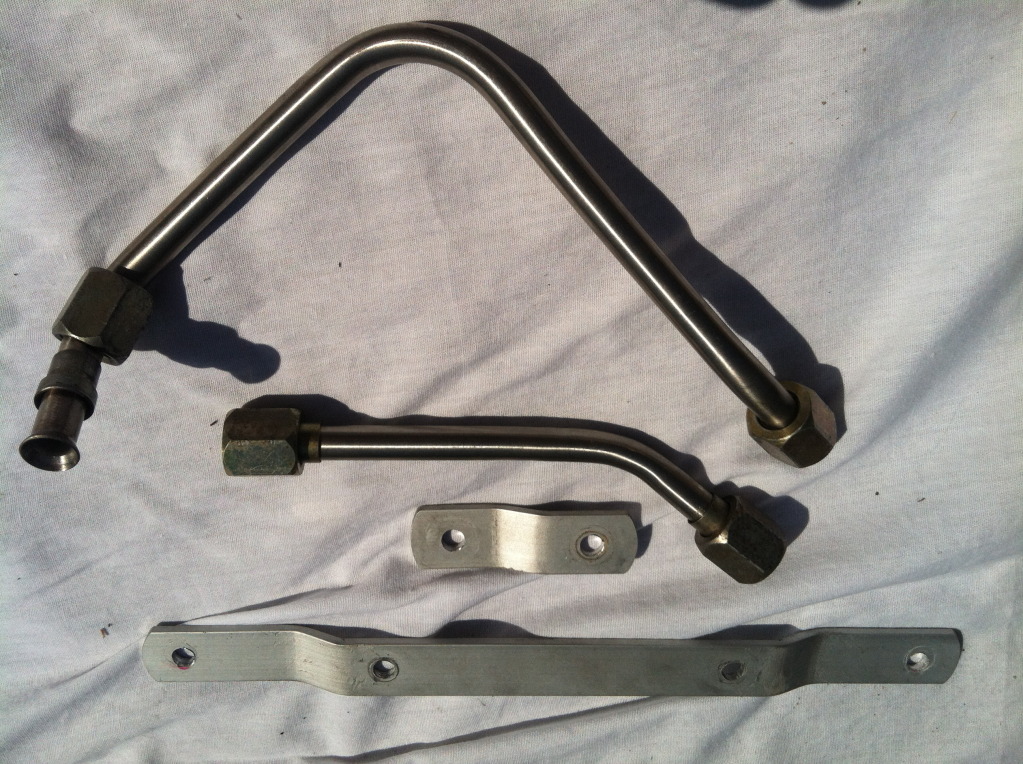

  • Stainless steel coolant hardlines for the turbo. You will need the Banjo fitting kit from ATP turbo to make these work.
  • Brackets to relocate one of the radiator fans to the center of the radiator

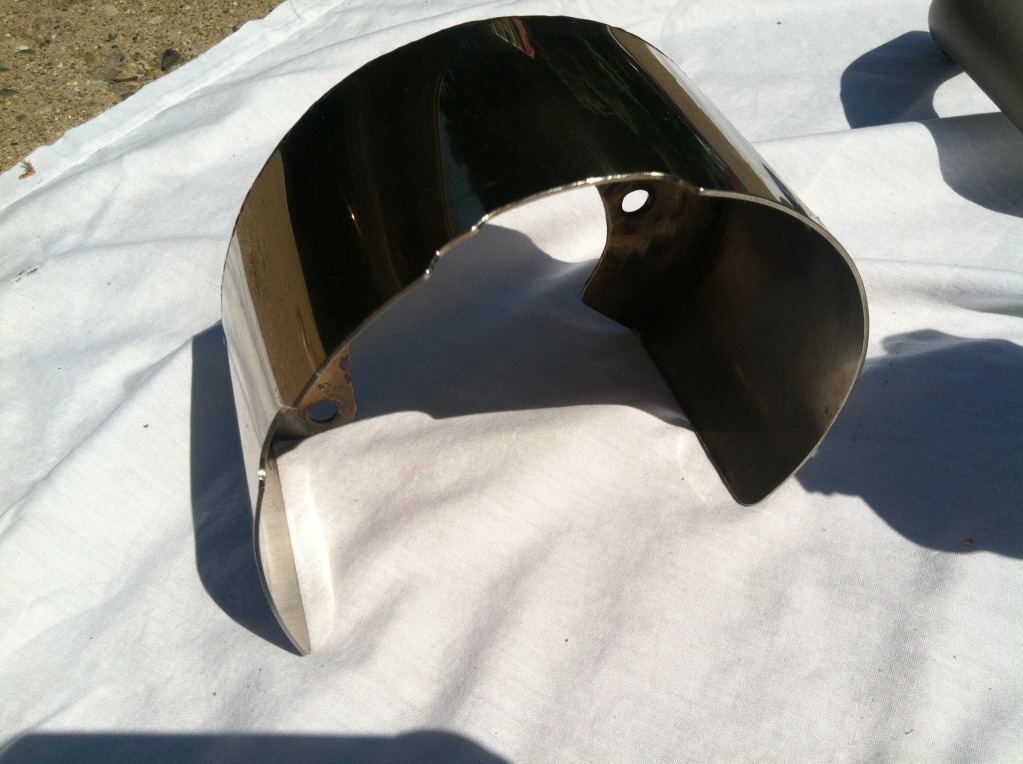

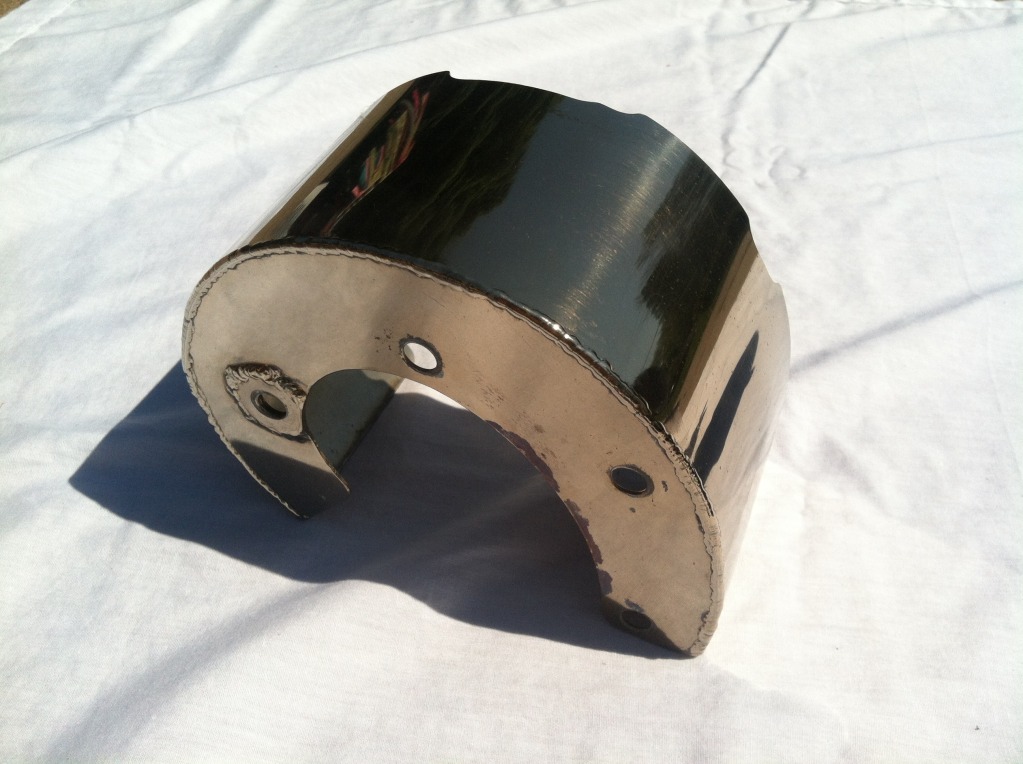

  • Custom stainless turbine heat shield
  • Braided SS oil feed line
  • 2-1/2" downpipe, will mate up to stock cat if you wish. Ceramic coated.

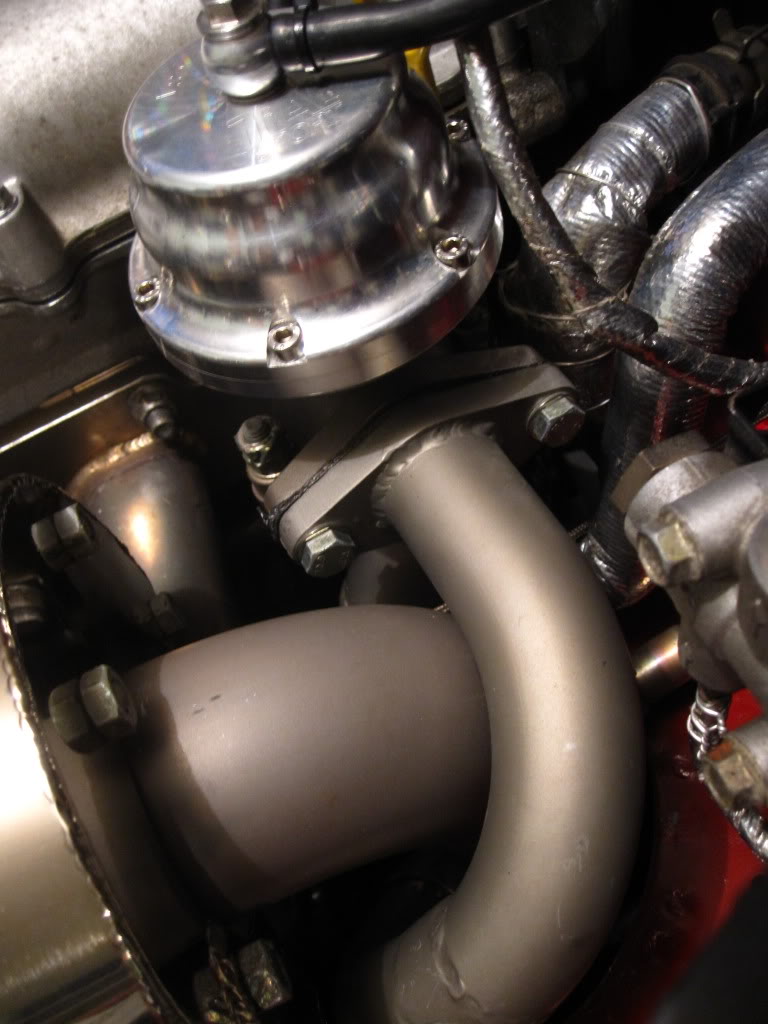

  • Wastegate dump tube that merges back into the downpipe, also ceramic coated

This will work with PS, but not A/C. You might have to modify the low pressure line going to the PS pump to make it clear the compressor inlet, depending on what you use for an air intake. I can show pictures of how I modified mine. You will also have to do a little tweaking of the lower coolant hose (quite simple actually, just need to move the hardpipe forward ~1/2" or so, I can show pictures of what I did), or get the BEGi reroute.

I would also recommend a downpipe brace of some type, like the one from Flyin' Miata, to help reduce the risk of future cracks.

$1,000 OBO, shipped to the lower 48.























Attached Thumbnails

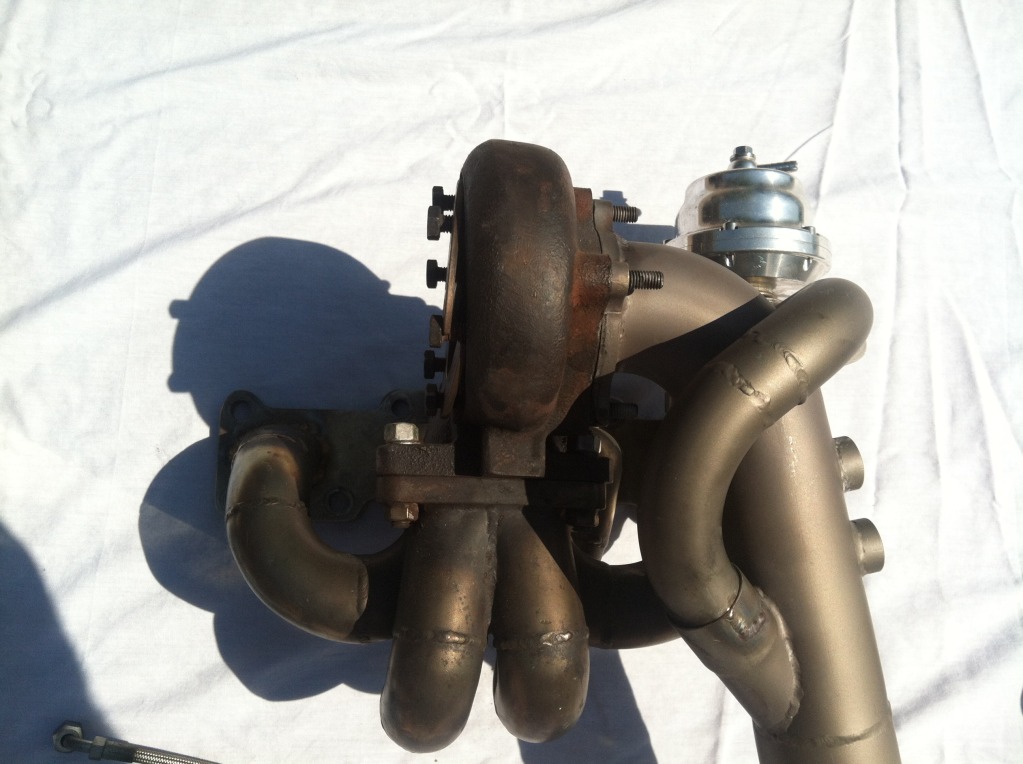

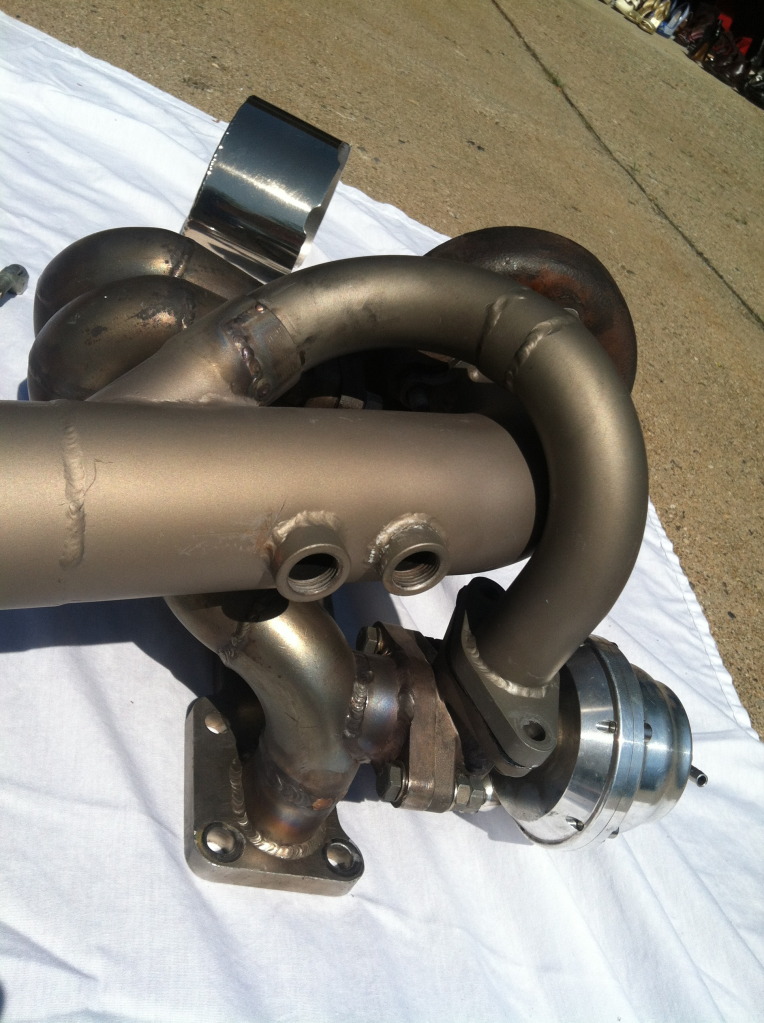

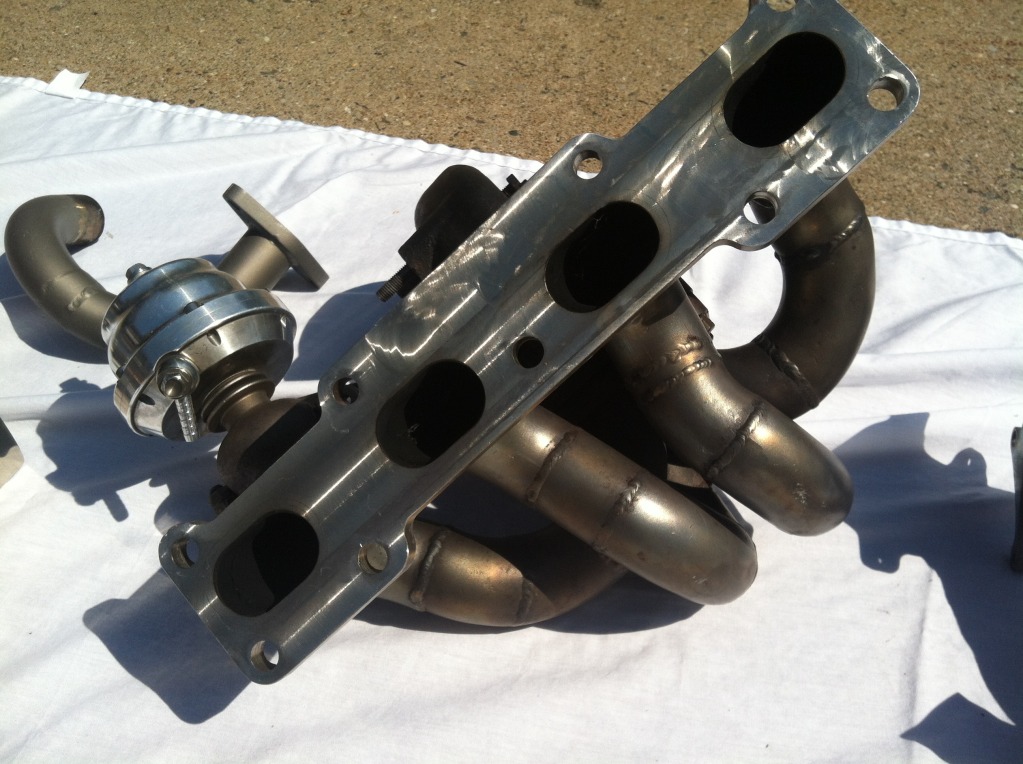

Partial Turbo Kit - ETD Long Tube Manifold-img_0917.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0918.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0919.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0920.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0921.jpg

Partial Turbo Kit - ETD Long Tube Manifold-img_0922.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0923.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0924.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0925.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0926.jpg

Partial Turbo Kit - ETD Long Tube Manifold-img_0927.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0928.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0929.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0930.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0931.jpg

Partial Turbo Kit - ETD Long Tube Manifold-img_0932.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0933.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0934.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0935.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0936.jpg

Partial Turbo Kit - ETD Long Tube Manifold-img_0937.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0938.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_0939.jpg

Last edited by mx592; 05-21-2012 at 06:51 PM.
mx592 is offline
Old 05-21-2012, 06:38 PM   #2
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2011
Location: Grand Rapids, MI
Posts: 201
Total Cats: 37
Default

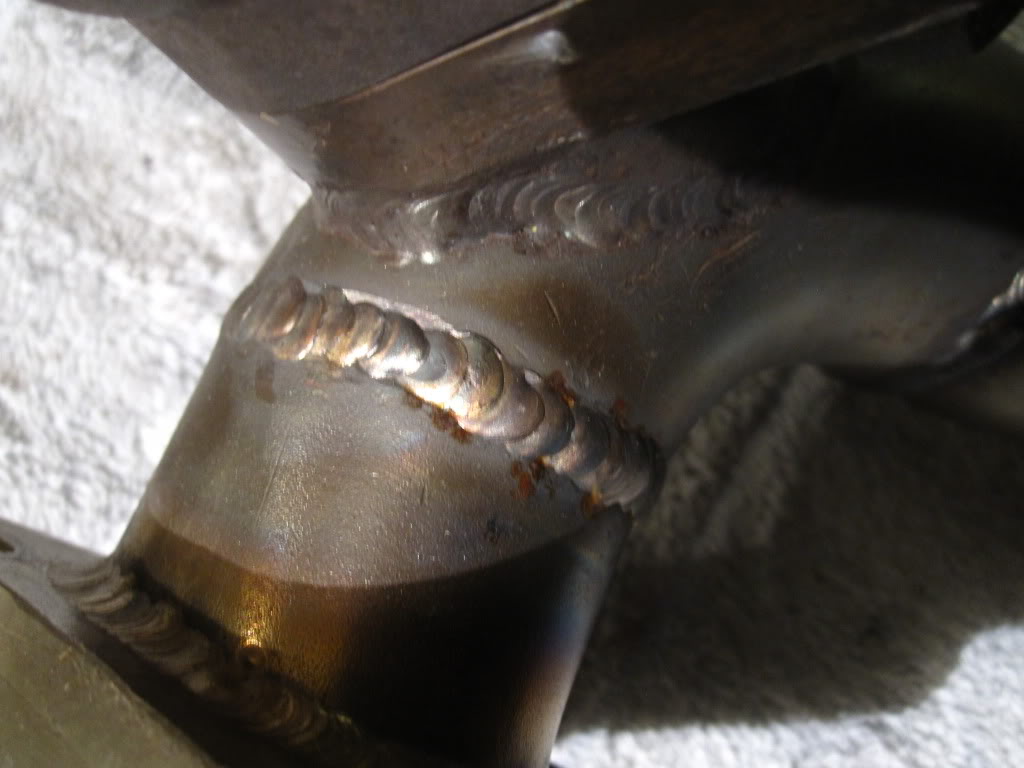

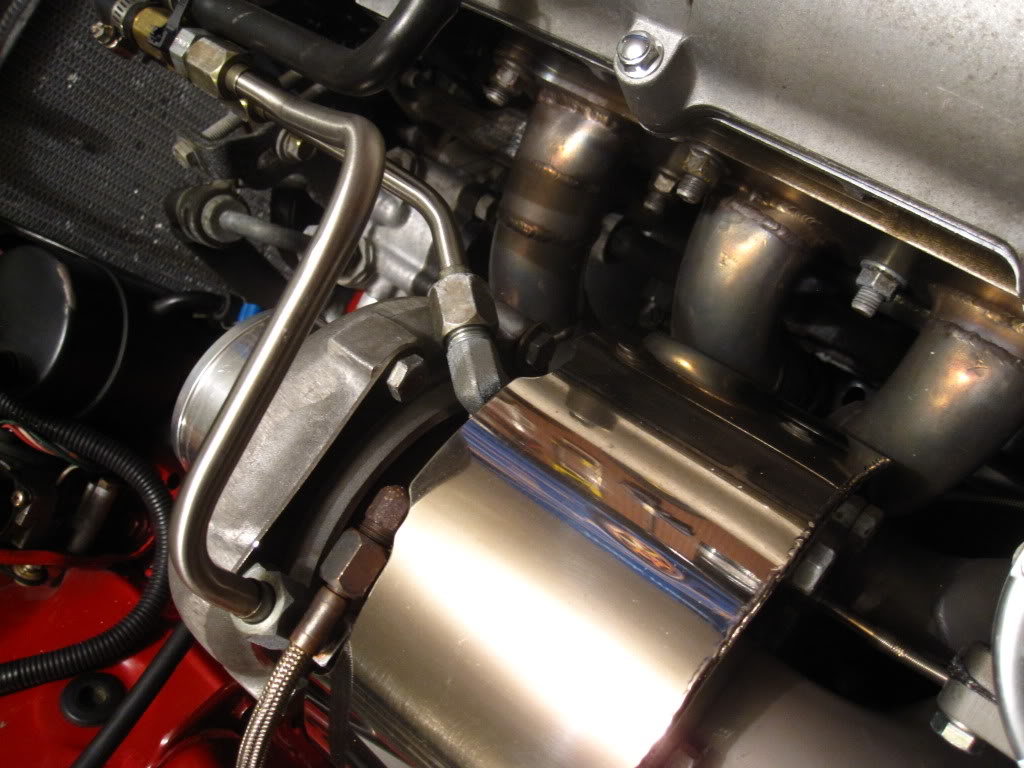

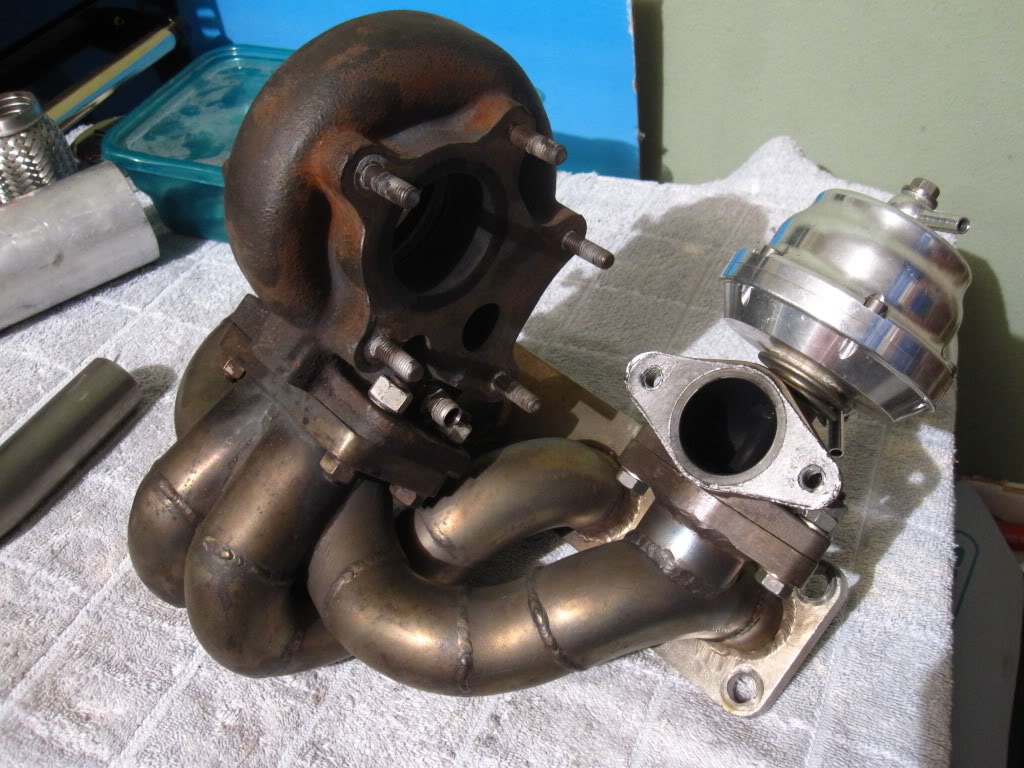

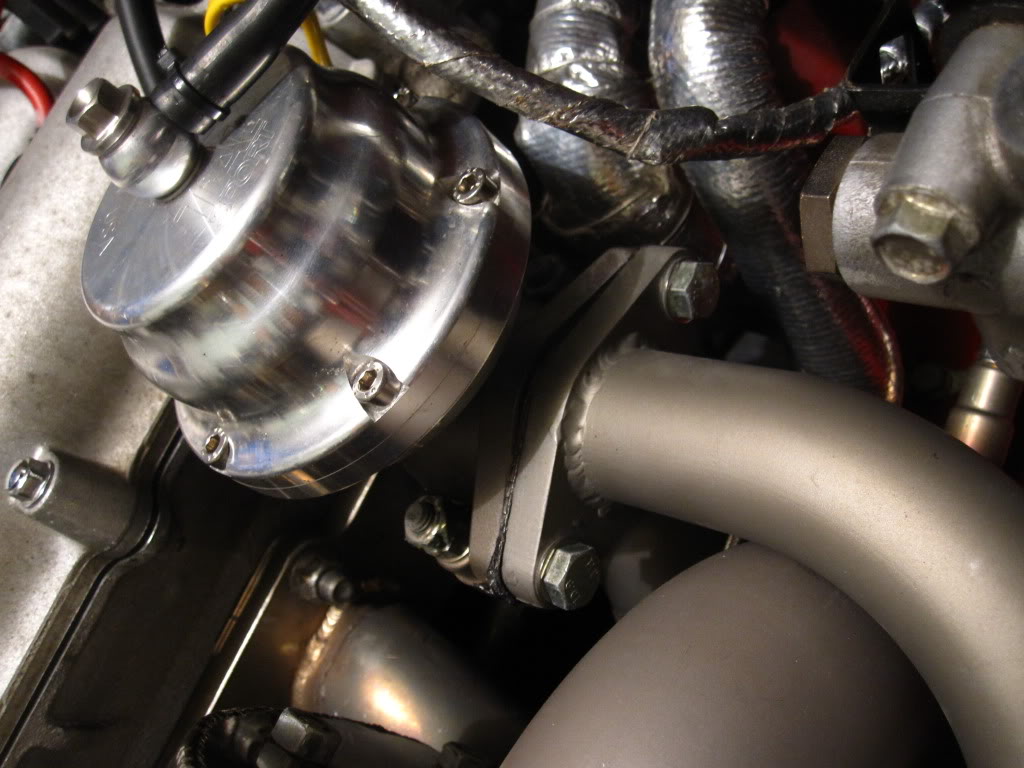

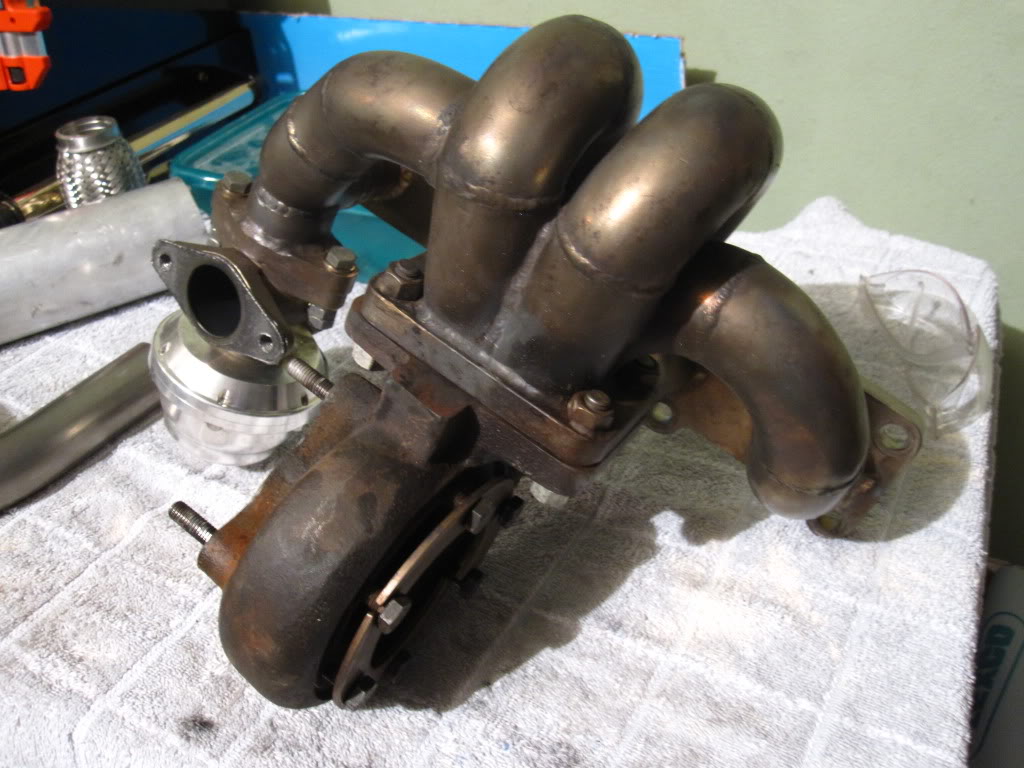

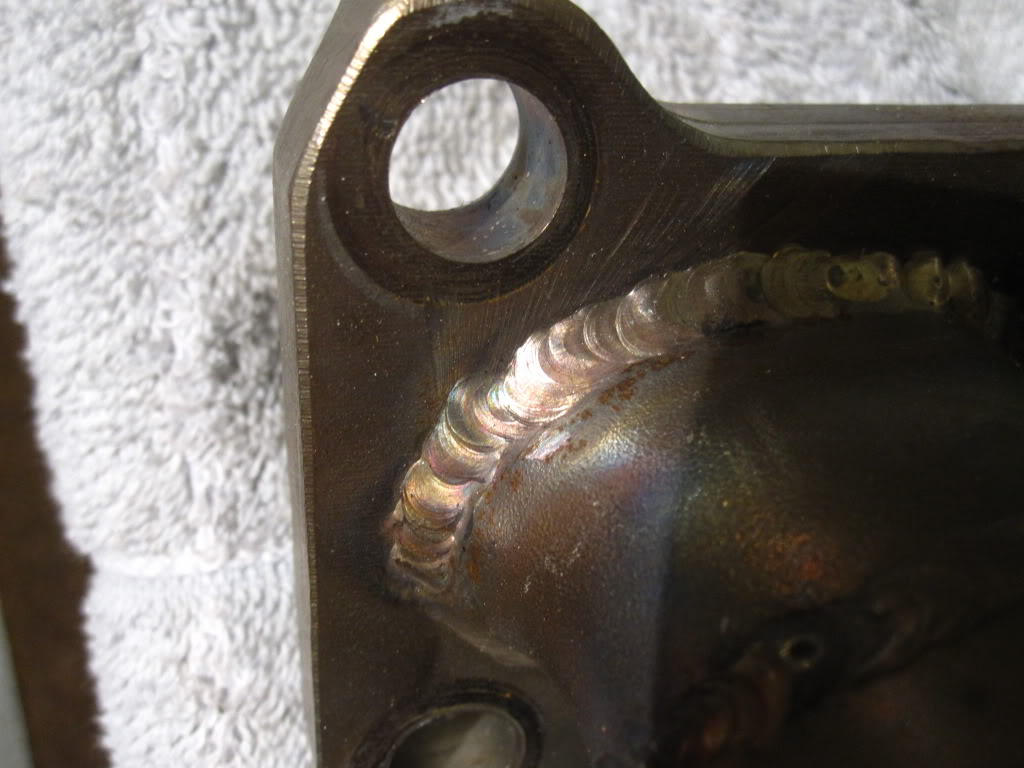

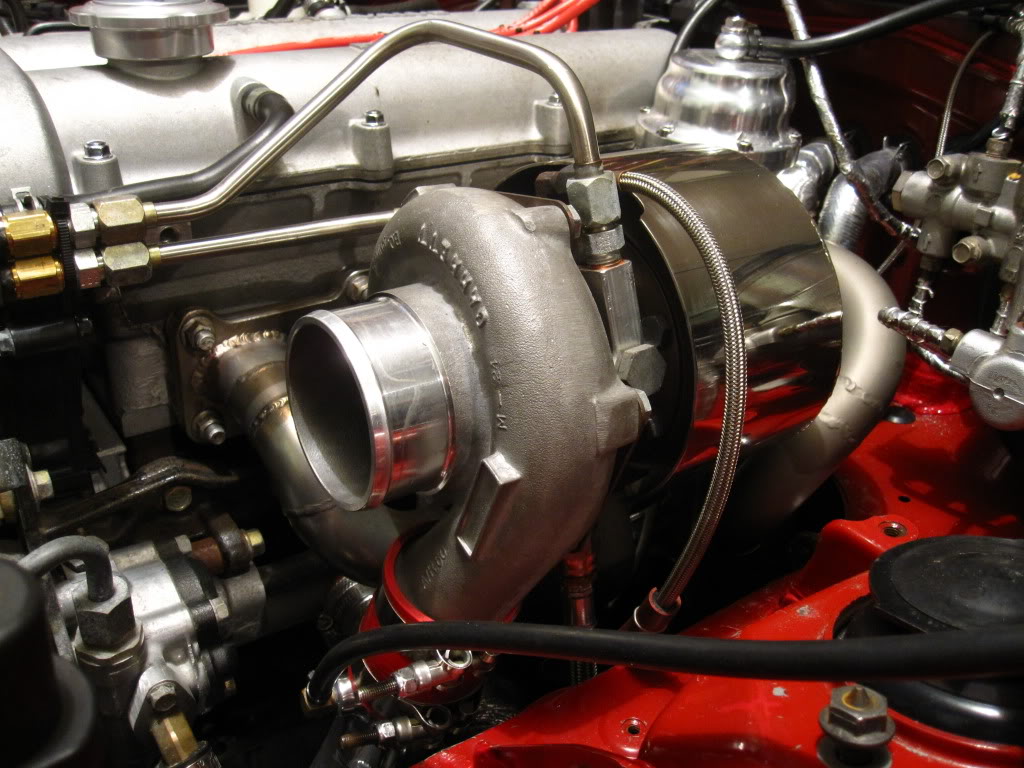

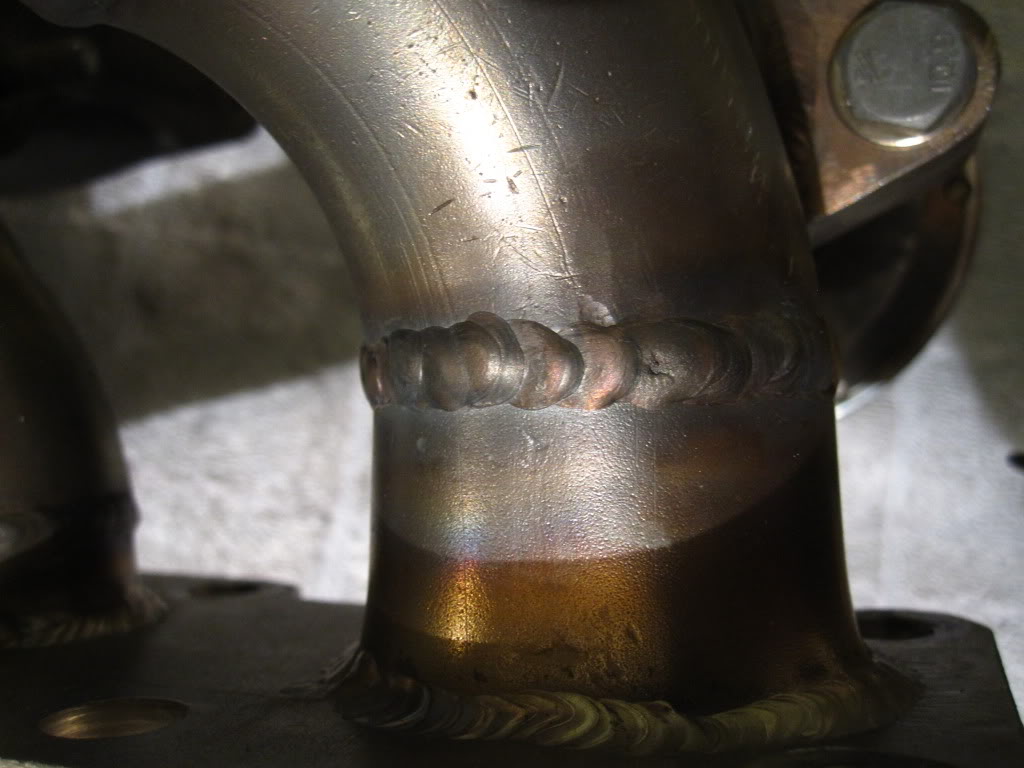

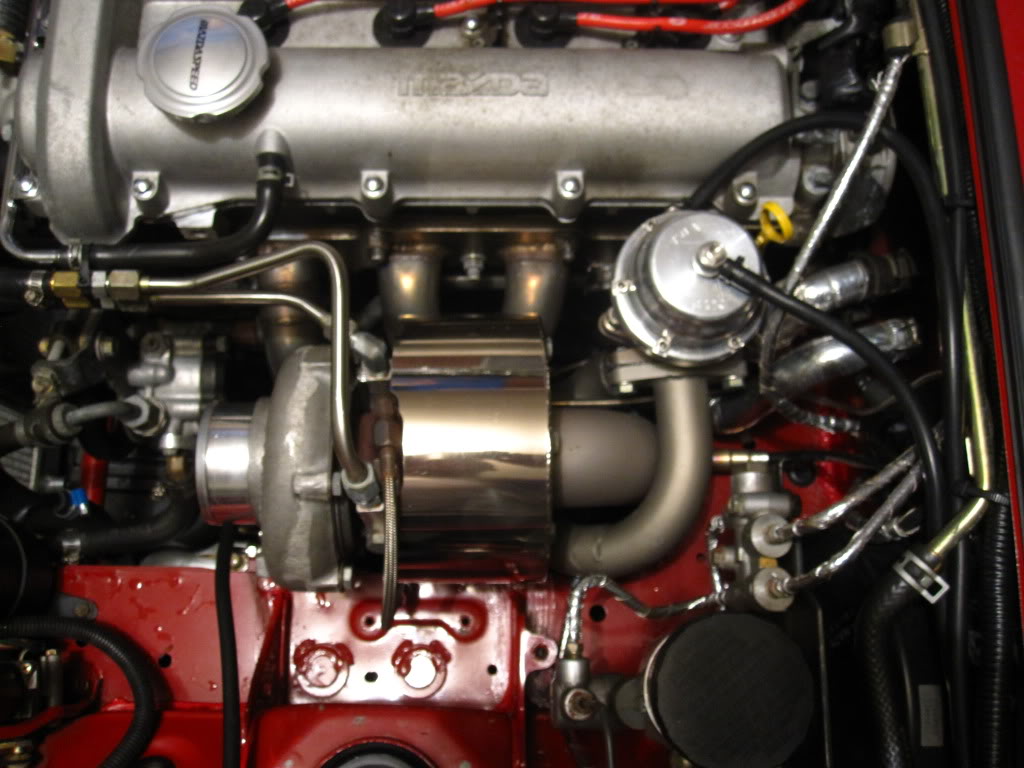

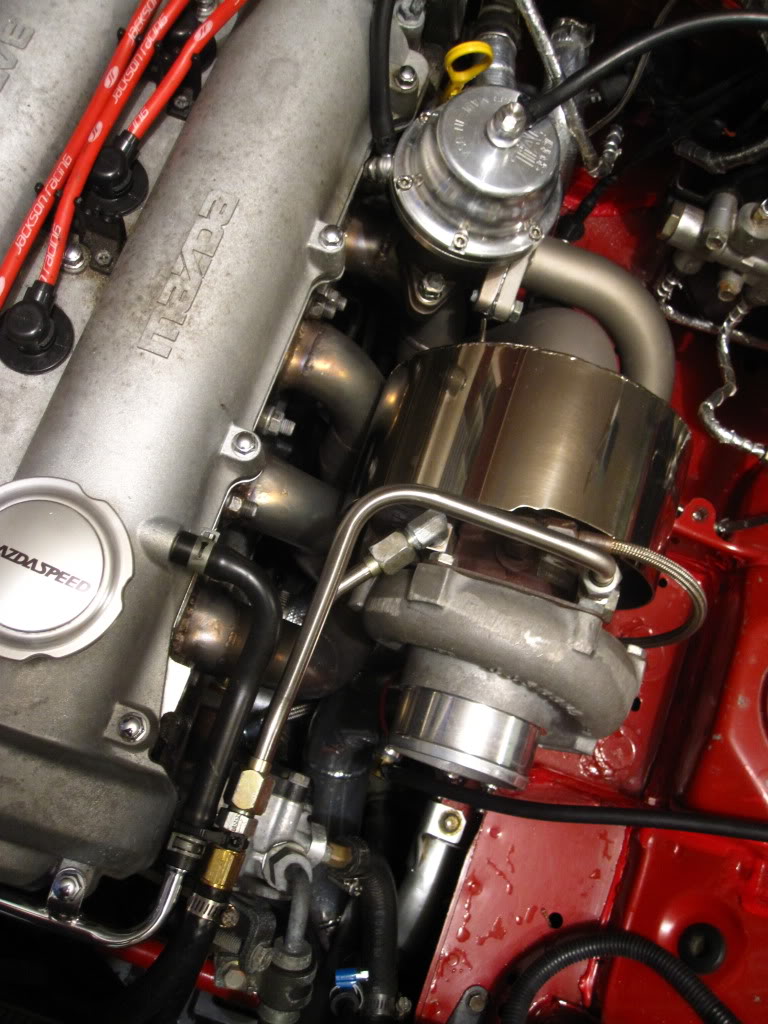

Some more pictures of the repaired cracks and of the kit installed on the car. Some of these pictures don't show the coolant hard lines.














Attached Thumbnails
Partial Turbo Kit - ETD Long Tube Manifold-img_3125.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_3124.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_3123.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_3122.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_3121.jpg

Partial Turbo Kit - ETD Long Tube Manifold-img_3120.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_3091.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_3090.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_3089.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_3088.jpg

Partial Turbo Kit - ETD Long Tube Manifold-img_3087.jpg   Partial Turbo Kit - ETD Long Tube Manifold-img_3086.jpg   Partial Turbo Kit - ETD Long Tube Manifold-dsc02435.jpg   Partial Turbo Kit - ETD Long Tube Manifold-dsc02437.jpg
mx592 is offline
Old 05-23-2012, 11:04 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2011
Location: Grand Rapids, MI
Posts: 201
Total Cats: 37
Default

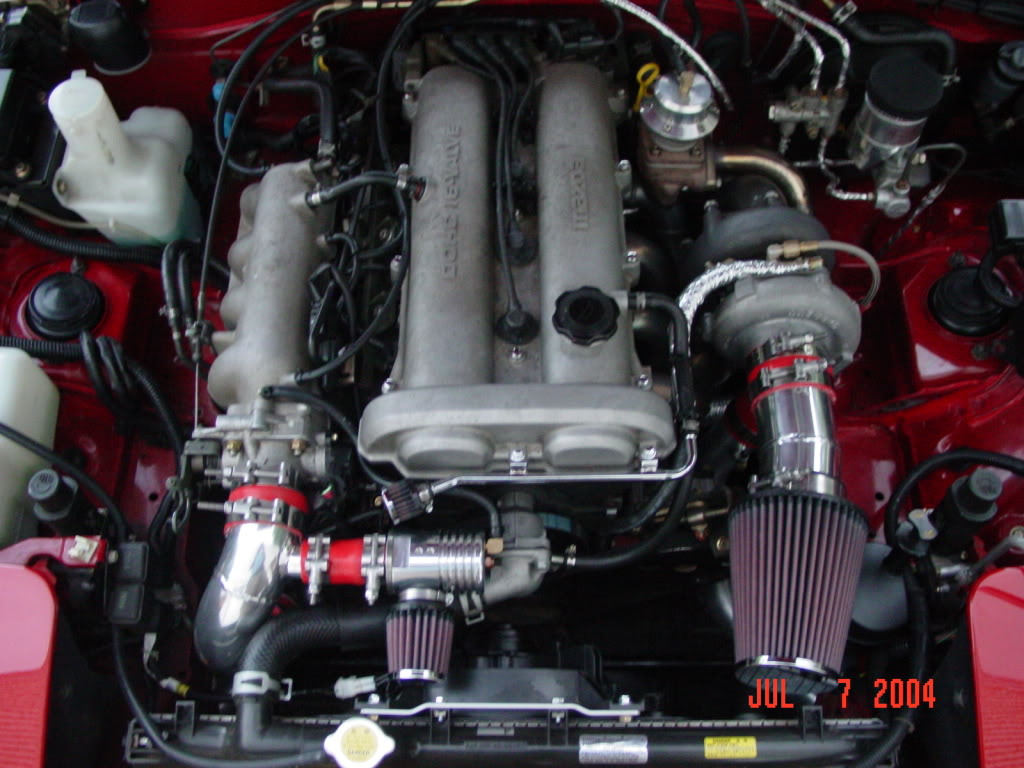

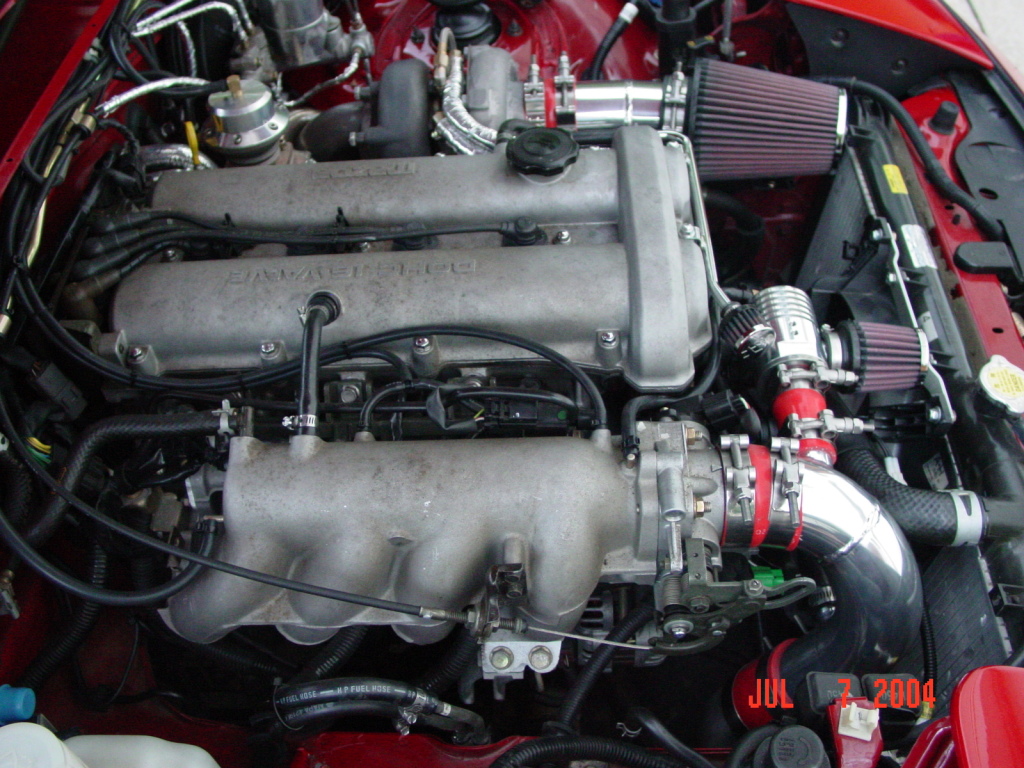

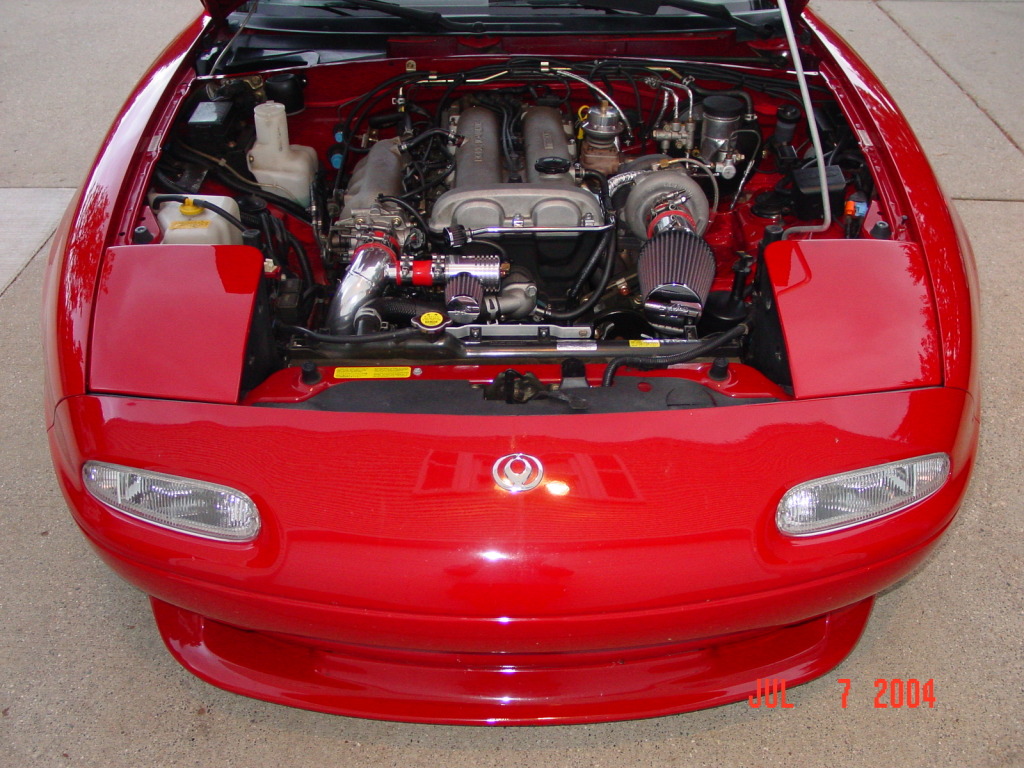

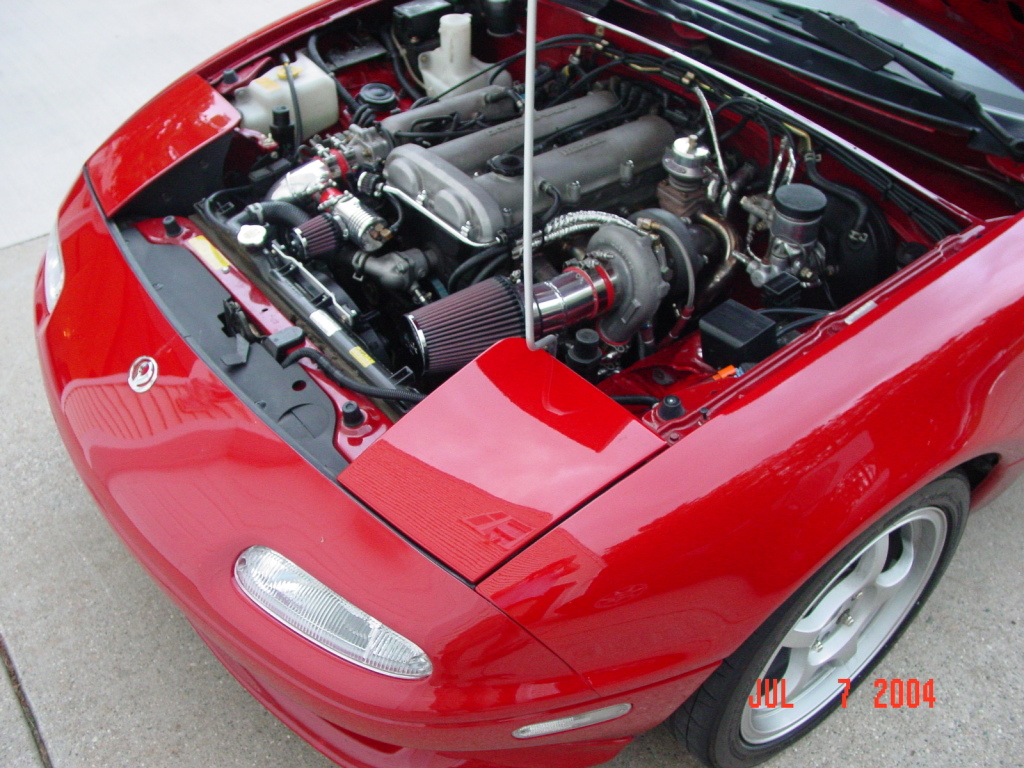

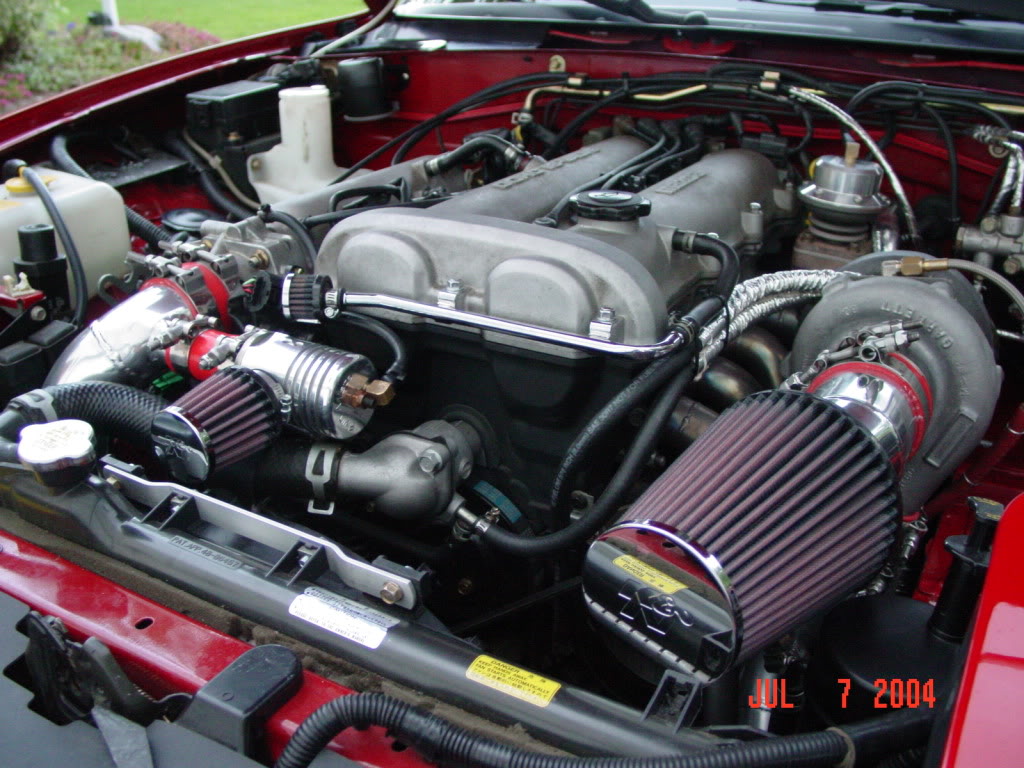

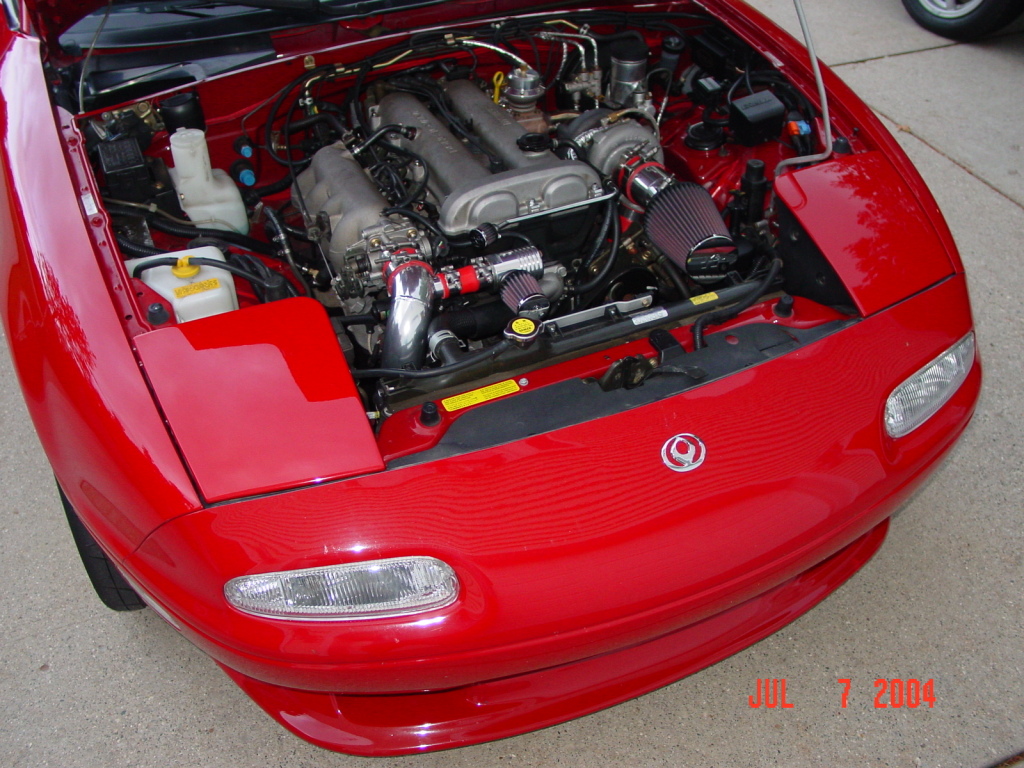

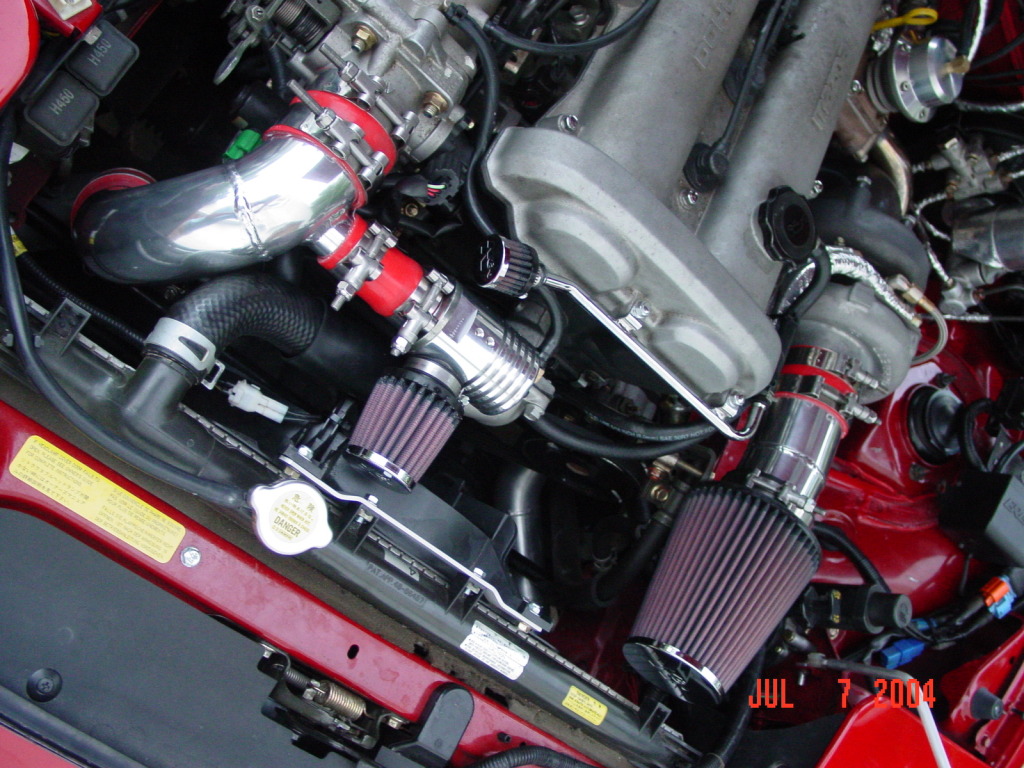

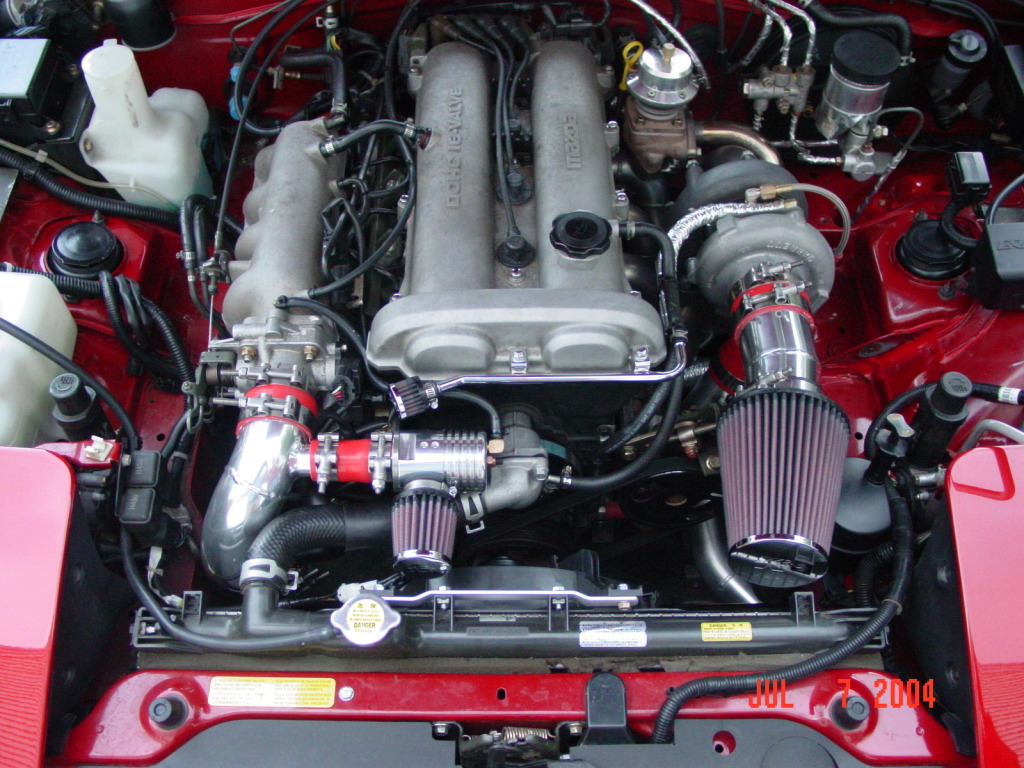

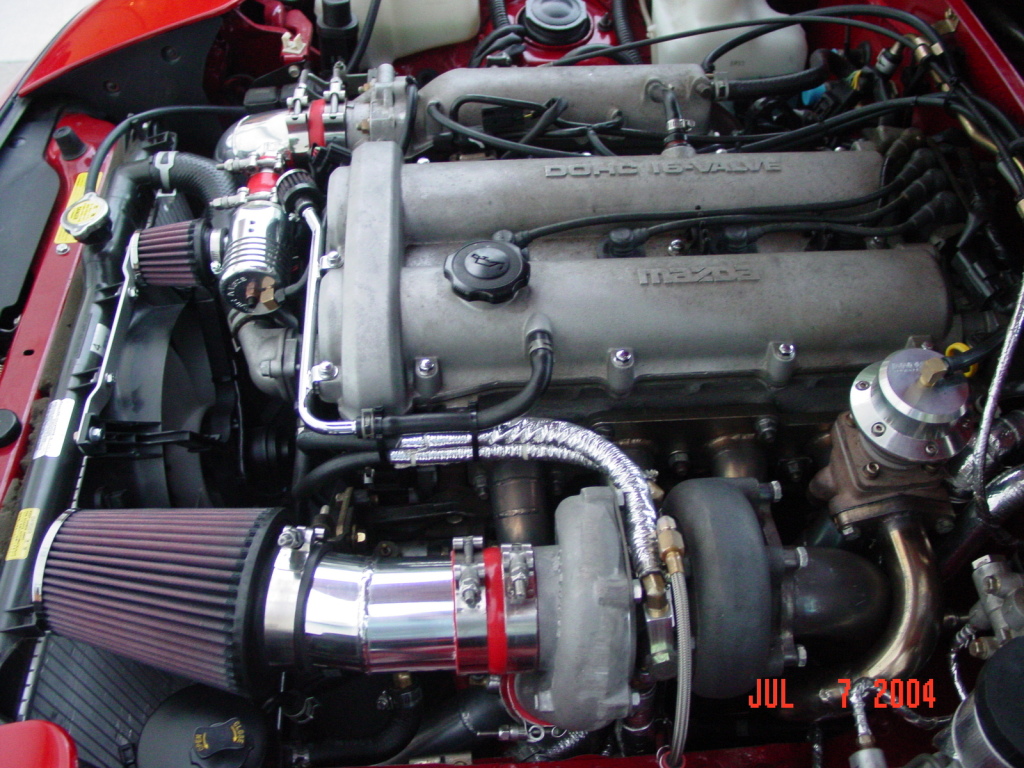

Some more pictures from when it was first installed....













Attached Thumbnails
Partial Turbo Kit - ETD Long Tube Manifold-dsc02427.jpg   Partial Turbo Kit - ETD Long Tube Manifold-dsc02428.jpg   Partial Turbo Kit - ETD Long Tube Manifold-dsc02429.jpg   Partial Turbo Kit - ETD Long Tube Manifold-dsc02430.jpg   Partial Turbo Kit - ETD Long Tube Manifold-dsc02432.jpg

Partial Turbo Kit - ETD Long Tube Manifold-dsc02434.jpg   Partial Turbo Kit - ETD Long Tube Manifold-dsc02435.jpg   Partial Turbo Kit - ETD Long Tube Manifold-dsc02437.jpg   Partial Turbo Kit - ETD Long Tube Manifold-dsc02438.jpg   Partial Turbo Kit - ETD Long Tube Manifold-dsc02440.jpg

Partial Turbo Kit - ETD Long Tube Manifold-dsc02840.jpg   Partial Turbo Kit - ETD Long Tube Manifold-dsc02841.jpg   Partial Turbo Kit - ETD Long Tube Manifold-dsc02843.jpg
mx592 is offline
Old 05-26-2012, 01:47 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

sold
18psi is offline
Old 05-26-2012, 04:32 PM   #5
Junior Member

Join Date: Dec 2011
Location: Crestview FL
Posts: 76
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
sold
Did you buy the kit?
