Default SR20 sidemount 1.6 artech turbo setup

I'm selling this while I build my forged 1.8.

Included will be an Artech log manifold, with a new 1/2" flange welded on, drilled and tapped for TSE inconel studs, with a curly rebuilt SR20 turbo, and a separated gas 3" downpipe, with 3" test pipe as well. I'll also include the home made turbo crane, I'm not sure how much it helps, but any little bit counts. It also shields the dip stick from the turbo heat. It'll come with the SS oil feed line, adapter to thread it into the block, and SS 10-AN drain. I'm not sure yet if I'll include the heat shield, but it probably won't fit with my new turbo set, so if you want it, it's yours. Also included are 2 push-loc fittings for the water lines, and both flanges for the inlet and outlet of the compressor housing.

I'm fairly certain this setup is P/S and AC compatible, but most likely not with the clocking orientation that I used, and I make no guarantee otherwise.

Wastegate is a 8psi can, with a little creep to 10psi by red line, no porting has been done to the turbine housing.

This setup made 185hp on a tired 1.6 at 12psi, I'm currently running at 14 psi with EBC because racecar.

issues with the setup:

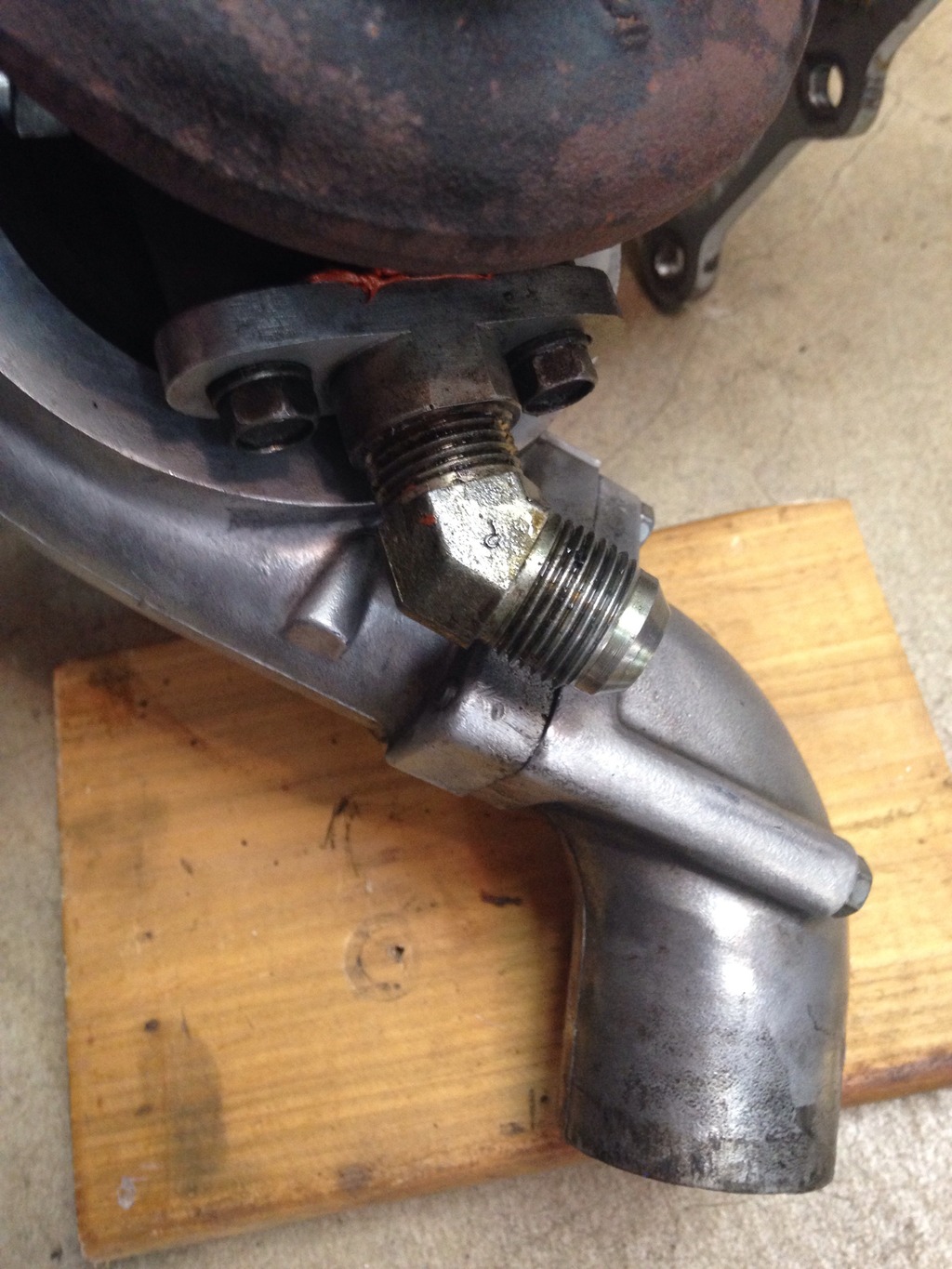

In order for the 45* elbow in the drain to be clocked properly, it's not tight enough, so it seeps some. Either eliminate this NPT-AN elbow by buying a 45* AN fitting, or find your own solution. Here you can see the 45* elbow, and the stock SR20 compressor outlet.

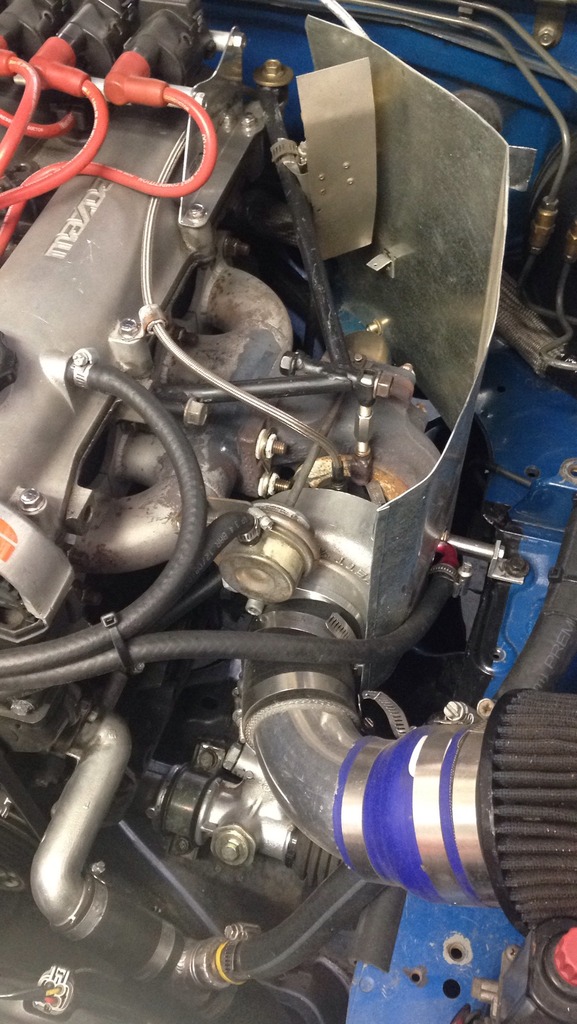

More pictures later, but here's the setup today, right before I pulled it:

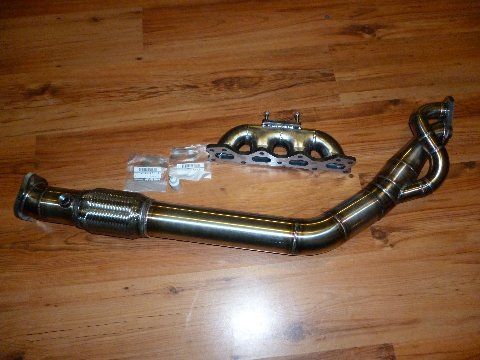

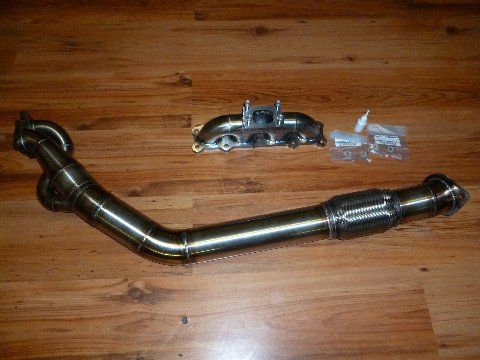

And when it was new:

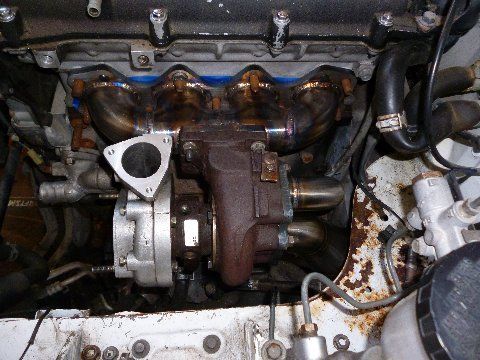

More pics, in various stages, can be found here, starting at post #109.

https://www.miataturbo.net/build-thr...d-63204/page6/

I'd like $1000+shipping for this setup.
Attached Thumbnails
SR20 sidemount 1.6 artech turbo setup-a4a162eb-b6ae-4f84-9c9b-ef04859b34d1_zpsjhxrwrfp.jpg   SR20 sidemount 1.6 artech turbo setup-fd129478-c51b-425e-832a-d45cf3f9b8f6_zpskpcdhaj6.jpg   SR20 sidemount 1.6 artech turbo setup-80-37589_side_mount_sr20_artech_build_p1020282_2e0c0d376f1e6eddbeb9a47ee5fddcc778db4fc8.jpg   SR20 sidemount 1.6 artech turbo setup-80-37590_side_mount_sr20_artech_build_p1020286_965292ce270f324091f0592ce28b055646bce71a.jpg   SR20 sidemount 1.6 artech turbo setup-80-37591_side_mount_sr20_artech_build_p1020271_627d8821ac10bdac70ddd1e1e34b98b732be089b.jpg

curly is offline
Old 06-16-2015, 11:40 AM   #2
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

This is a good, reliable setup. I have basically the same system with a water to air intercooler and made 240hp at a dynojet.
Good stuff here!
btabor is offline
Old 06-18-2015, 01:32 AM   #3
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Bump!
curly is offline
Old 06-18-2015, 09:20 PM   #4
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

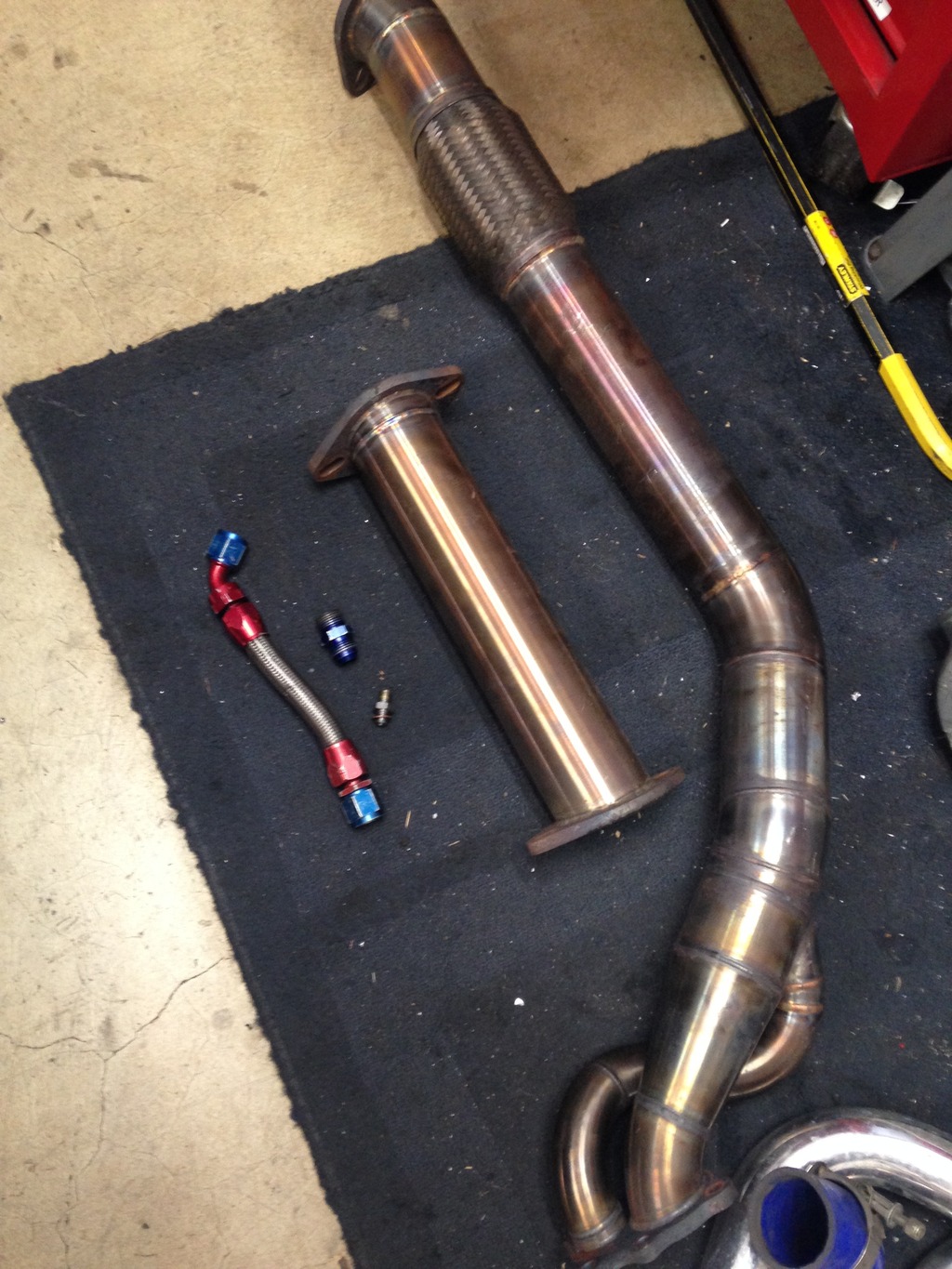

One picture of some of the stuff you get. Look at all this stuff! Taking offers people!

Attached Thumbnails
SR20 sidemount 1.6 artech turbo setup-0e1deb18-f0ae-4521-a5ef-cefc0190c81f_zpsefv8xhmv.jpg
curly is offline
Old 06-18-2015, 09:21 PM   #5
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

One picture of some of the stuff you get. Look at all this stuff! Taking offers people!

Attached Thumbnails
SR20 sidemount 1.6 artech turbo setup-0e1deb18-f0ae-4521-a5ef-cefc0190c81f_zpsefv8xhmv.jpg
curly is offline
Old 06-19-2015, 02:27 AM   #6
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

<p>Holy **** Abe's welds are so sexy.</p>
