Default MS Labs Enhanced MS2 ECU for the 01-05 and 04-05 MSM out now!

The MS Labs Enhanced MS2 is a powerful ECU based on the popular Megasquirt MS2, with years of evolution behind it. Nothing has been spared to make this a top performing ECU.



This ECU has been specifically developed for the Mazda Miata/MX-5. Tailored to use everything from OEM sensors (no need for other trigger wheels) to the OEM harness, this ECU simply plugs in the stock harness, with no need to cut, splice or solder any wires.



V5.4 of ths Enhanced MS2 expands on the already ever-growing list of features, by adding even more unique characteristics.

Features:

- Direct fit for the 01-05 and the 04-05 MSM, basemap for your application preloaded.
- OBD-II output
- Digital wideband input

- Sequential injection (4 injector drivers)
- Sequential ignition (4 ignition output channels)
- Electronic boost control with:
- 2 open or 1 closed loop boost control (8x8 RPM/TPS map)
- Open loop boost by gear
- Exceptional knock control with DSP processor:
* Knock windowing
* Software-adjustable bandpass filter to reject non-knocking noise
* Software-adjustable sensitivity (gain)
* Software-adjustable knock threshold against RPM (10 points)
- A/C support:
* Sequential compressor-main fan-a/c fan activation (less likely to cause a dip)
* Software adjustable idle-up;
* TPS/RPM cutoff; adjustable delays (afterstart, TPS cutoff with adjustable delay, low/high RPM cutoff).
- P/S support: Software adjustable power steering idle-up
- Immobilizer support: Full communication with immobilizer module (TRW 36AS), programmable. The ECU can be programmed to either unlock the module by default, or only with the proper key.
- Digital alternator control: Software adjustable charging voltage
- Smart battery light: Warns you of overcharging or undercharging issues by flashing slowly or fast.
- Increased hardware accuracy for the idle valve (0.4% instead of 2-4%% for any other MS2-based ECU): Your Miata will idle more accurately, and with less oscillations.
- Realtime barometric correction: thanks to an onboard sensor!
- Sequential cooling fan support: Up to 2 different cooling fans, fully adjustable on/off points through software.
- Full support for the factory VTCS system.
- TEN terminal input to check the base timing and set the idle RPM.
- Brake input
- Valet mode: Fuel cut above adjustable RPM, TPS, speed thresholds, enable/disable with a hidden on/off switch!
- Dedicated inputs for oil pressure and oil temperature sensors.
- Dedicated clutch and neutral switch inputs for launch control, flatshifting, overrun fuel cut inhibit, closed loop idle inhibit, and more.
- VSS (vehicle speed sensor) input to log speed and also to calculate the current gear you are in - perfect for trackside logging and for EBC.
- EGT sensor input - no circuits or controllers to add, just solder the sensor's wires inside the PCB.
- CEL warnings: Save your engine with the CEL warning from high coolant temp, knocking, low/high oil pressure, high oil temperature, high EGTs. Every warning threshold is fully adjustable through the software.
- Dedicated launch control on/off input: Press once to activate (master on/off), then press the clutch to arm. No need to have a laptop with you to activate/deactivate. Launch is deactivated after a preset time since the clutch has been released has passed (software adjustable)
- Dedicated fuel/ignition switching input: Have two different sets of fuel/ignition tables loaded with the flick of a switch!
- 2 free programmable medium-current outputs (up to 5 amps)
- 2 free digital inputs
- 1 free analog input
- Support for the internal 36psi sensor or an external MAP sensor
- Fused 12V power supply for your wideband: A shortcircuit on the wideband won't fry the ECU or leave you stranded.
- Tachometer (RPM) output to connect to any other devices
- CAN Bus inputs/outputs
- Main Relay control (MSM only)
- 100% SMD construction for increased reliability, smaller size and lighter weight.
- Switching power supply for lower current consumption and less heat.



The Basics:

- 16x16 fuel tables, interpolated
- 12x12 ignition tables, interpolated
- 12x12 AFR table, interpolated
- Closed loop idle - 8 target RPM sites over coolant temperature
- Fueling algorithms: Speed Density (MAP based), Alpha-N (TPS based), ITB (blending of speed density and TPS)
- Fully adjustable rev limiter: Fuel cut, spark cut, spark retard and fuel cut, spark retard and spark cut, fuel and spark cut. Coolant-dependant rev limiter.
- Closed loop fueling: By adding a wideband sensor, the ECU autocorrects the fueling at idle and at low/medium loads
- Fully adjustable cold start settings and warmup enrichments
- Acceleration enrichments: TPS based, MAP based, or blended mode
- Realtime barometric correction
- Cold advance
- Air temperature based timing retard - save your engine on a hot summer's day!
- Overrun fuel cut for economy - the ECU cuts fuel 100% when you take your foot of the throttle, just like the stock ECU.
- Fuel trim per cylinder - 4 16x16 maps to trim the fueling on each cylinder to 0.1%
- CAN bus expansion

The good news:
- $860 shipped for US customers; contact us for pricing on other destinations.

The "bad" news:
- No VVT control yet, a plugin module will be available soon. If you have a supercharger or a small turbo (ie a Garrett GT2554) you won't notice any difference. On a stock engine, you will feel loss of torque between 1700 and 4000rpm.
- This is a Built-To-Order product. Expect a lead time between 15-20 days depending on the time of order.

PM us for more: https://www.miataturbo.net/private.php?do=newpm&u=1134
Attached Thumbnails

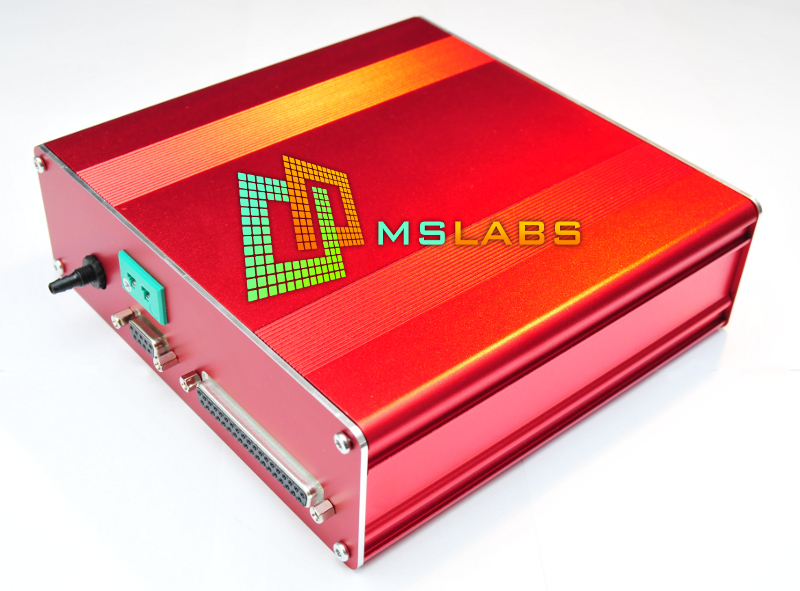

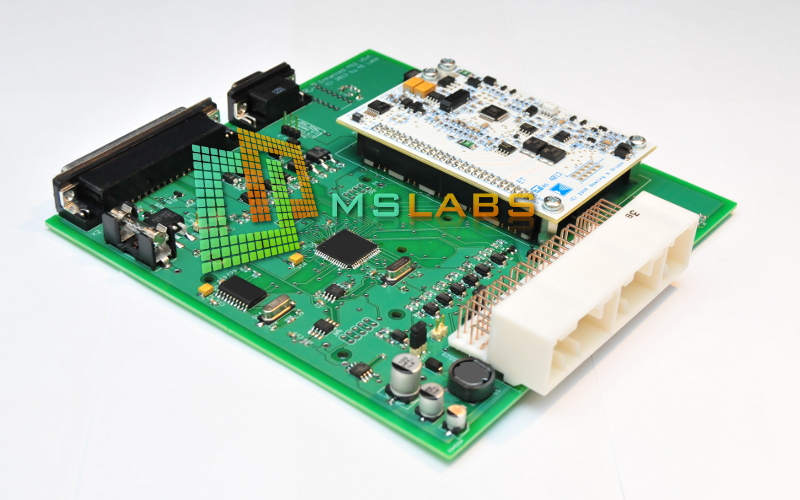

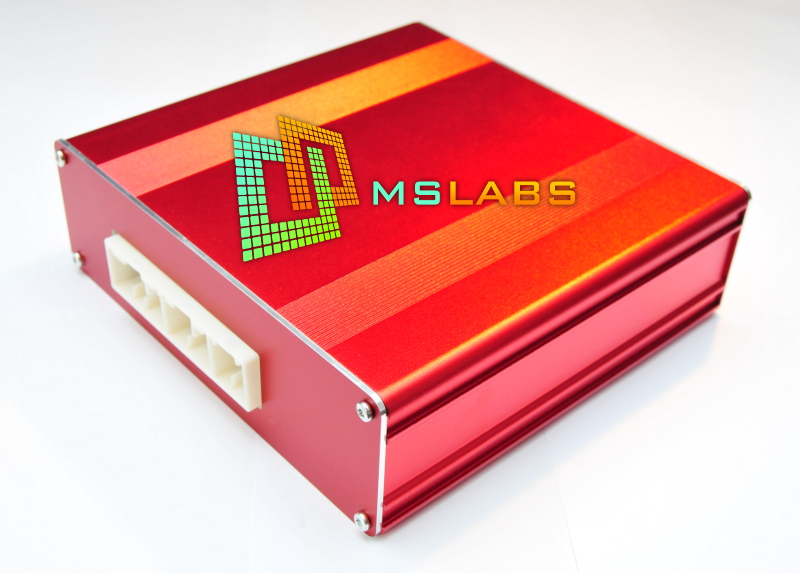

MS Labs Enhanced MS2 ECU for the 01-05 and 04-05 MSM out now!-enhanced-ms2-v54-ext-front.jpg   MS Labs Enhanced MS2 ECU for the 01-05 and 04-05 MSM out now!-enhanced-ms2-v54-ext-rear.jpg   MS Labs Enhanced MS2 ECU for the 01-05 and 04-05 MSM out now!-enhanced-ms2-v54-pcb.jpg

Last edited by Reverant; 02-02-2016 at 04:55 PM.
Reverant is offline   Reply With Quote
Old 04-17-2013, 10:07 AM   #2
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Niiiiiiice!
richyvrlimited is offline   Reply With Quote
Old 04-17-2013, 10:41 AM   #3
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

I want a fancy red case :(

lol
Mazduh is offline   Reply With Quote
Old 04-17-2013, 11:09 AM   #4
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Why not buy a second ECU then? Hell, if one is good, two can only be better?
Reverant is offline   Reply With Quote
Old 04-17-2013, 10:32 PM   #5
Junior Member

Join Date: Jan 2011
Location: Winnipeg, Canada
Posts: 84
Total Cats: 1
Default

looks awesome, i am excited to own one.
ACiFiC is offline   Reply With Quote
Old 04-18-2013, 06:01 AM   #6
Newb

Join Date: Feb 2012
Posts: 3
Total Cats: 0
Default

Quote:
Originally Posted by Reverant View Post
- CAN Bus inputs/outputs
Can those inputs be used for O2 Wideband or would that need an extra module?
TimoL is offline   Reply With Quote
Old 04-18-2013, 07:05 AM   #7
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

A module to translate the serial output of the wideband to CAN bus is needed, yes.
Reverant is offline   Reply With Quote
Old 04-18-2013, 09:07 AM   #8
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Something like this I suspect

jbperf.com • View topic - TinyIOx
richyvrlimited is offline   Reply With Quote
Old 04-18-2013, 05:10 PM   #9
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Yes, that would work, although I may have something in the works...
Reverant is offline   Reply With Quote
Old 04-18-2013, 09:41 PM   #10
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

So exciting!! Will mine be ready to ship soon?
FrankB is offline   Reply With Quote
Old 06-03-2013, 06:39 AM   #11
Newb

Join Date: Feb 2012
Posts: 3
Total Cats: 0
Default

I received mine last week, the red case looks goood!

Question however, what is the good or intended way to attach the casing to my car? There are no fastening holes. Could those grooves on the side of the extruded case be used with right type of fastening bits? Where to get those? Or should I just use the end plates' fastening holes?
TimoL is offline   Reply With Quote
Old 06-03-2013, 06:48 AM   #12
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Where is the ECU on your car? Is it by the steering column like all 99+ US cars?
Reverant is offline   Reply With Quote
Old 06-03-2013, 07:16 AM   #13
Newb

Join Date: Feb 2012
Posts: 3
Total Cats: 0
Default

Yes, by the steering column.
TimoL is offline   Reply With Quote
Old 06-04-2013, 02:08 PM   #14
Newb

Join Date: Mar 2013
Location: The Fine state of Kentucky.
Posts: 44
Total Cats: 0
Default

I just bought a 100% stock 2004 MSM. How would this product help this car?
Red5 is offline   Reply With Quote
Old 06-04-2013, 03:15 PM   #15
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

Quote:
Originally Posted by Red5 View Post
I just bought a 100% stock 2004 MSM. How would this product help this car?
In every way possible. best possible upgrade for the MSM.
supercooper is offline   Reply With Quote
Old 06-04-2013, 04:32 PM   #16
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by supercooper View Post
In every way possible. best possible upgrade for the MSM.
What he said. You can run more boost with no bogs or hiccups, increase the rev limiter, no more nasty cels and more.
Reverant is offline   Reply With Quote
Old 08-12-2013, 09:26 PM   #17
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

What's needed to fit the above to a 95 Miata with 99 head?
k24madness is offline   Reply With Quote
Old 09-15-2013, 05:58 PM   #18
Junior Member
iTrader: (6)

Join Date: Sep 2013
Location: Denver, CO
Posts: 182
Total Cats: 2
Default

So have there been any updates to this product since its release in April, like the Canbus/wideband add on you said you were working on, or the VVT integration? If not, do you have time frames for both?

Thanks!!!
mrmonk7663 is offline   Reply With Quote
Old 09-16-2013, 01:30 PM   #19
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

There's an external canbus module available that reads the data off an LC-1/MTX-L/Zeitronix and feeds it to the MS through CAN Bus.

There's an experimental VVT module, but its not available yet.
Reverant is offline   Reply With Quote
Old 09-16-2013, 02:14 PM   #20
Junior Member
iTrader: (6)

Join Date: Sep 2013
Location: Denver, CO
Posts: 182
Total Cats: 2
Default

Alright, guess I'll hold out for a VVT solution. I'd like to get an all in one package, instead of the separate VVT tuner box. Hopefully your experimental one proves good!!!
mrmonk7663 is offline   Reply With Quote
