Default MSPNP2 3.3.0 fw upgrade (99-00) correct firmware?

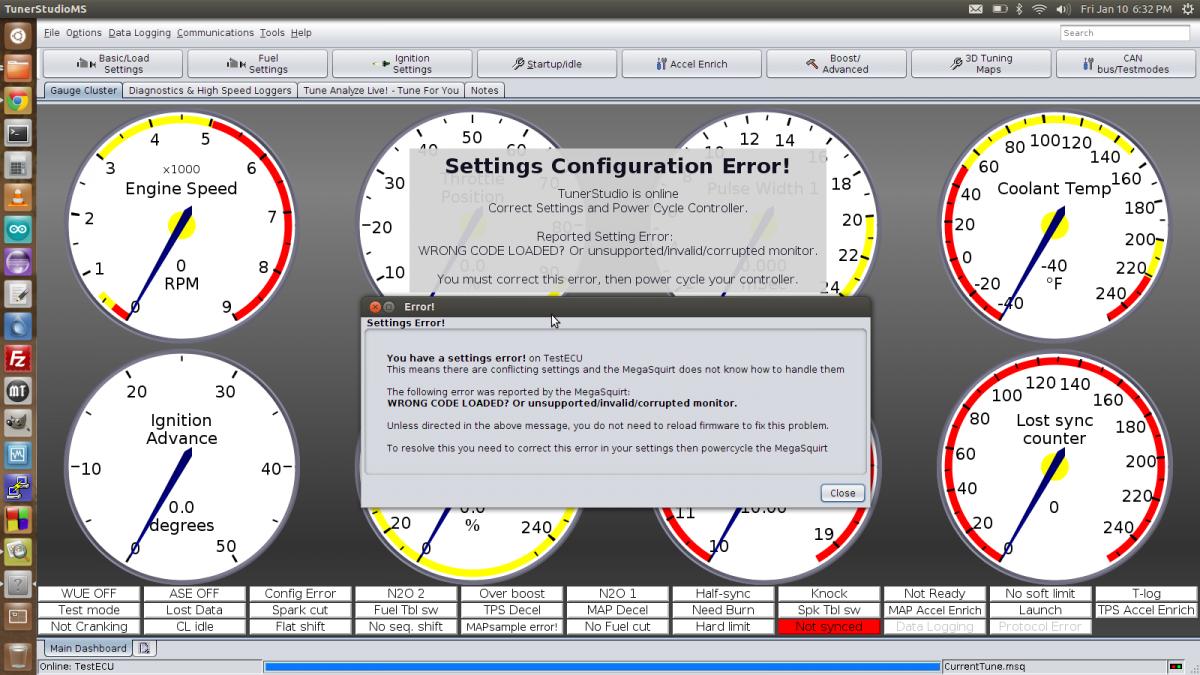

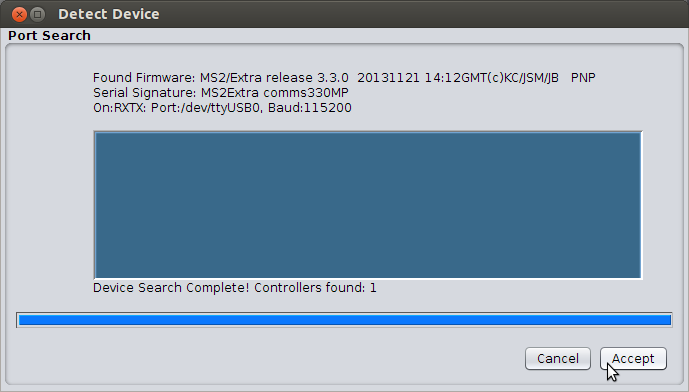

I have upgraded the fw on my MSPNP2 (99-00). I used the MSPNP2.s19 file, but now I get the following when to connect:


Did I not use the correct firmware?

Attached Thumbnails
MSPNP2 3.3.0 fw upgrade (99-00) correct firmware?-settings_config_err.jpg   MSPNP2 3.3.0 fw upgrade (99-00) correct firmware?-after_fw_upgrade.png
whizbang18T is offline   Reply With Quote
Old 01-11-2014, 12:40 PM   #2
Newb
Thread Starter

Join Date: Jun 2009
Location: Dallas, TX
Posts: 17
Total Cats: 0
Default

It's a little confusing since the MSEXTRA site shows MicroSquirt Module (so I would think microsquirt-module.s19)
whizbang18T is offline   Reply With Quote
Old 01-11-2014, 10:39 PM   #3
Newb
Thread Starter

Join Date: Jun 2009
Location: Dallas, TX
Posts: 17
Total Cats: 0
Default

Nevermind ... got it sorted out. microsquirt-module.s19 did the trick, and got it running today (updated afr, ve, and ign) - still have to work out the idle control and accel enrich... wooohooo!
whizbang18T is offline   Reply With Quote
Old 01-14-2014, 08:04 PM   #4
Junior Member

Join Date: Aug 2013
Location: Madison, In
Posts: 74
Total Cats: 1
Default

im going to give you props because you are using linux!
zero415 is offline   Reply With Quote
Old 01-15-2014, 10:20 AM   #5
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

A couple of them shipped with the wrong monitor - they're supposed to auto-load the MSPNP code variant. You can either use the MicroSquirt Module version (the pin names won't be quite as clear) or set up a warranty return with us to have the right monitor put on.
Matt Cramer is offline   Reply With Quote
Old 01-16-2014, 11:19 AM   #6
Newb
Thread Starter

Join Date: Jun 2009
Location: Dallas, TX
Posts: 17
Total Cats: 0
Default

I won't lose any of the existing MSPNP2 functionally, correct? I don't mind if the pin descriptions are different
whizbang18T is offline   Reply With Quote
Old 01-17-2014, 10:48 AM   #7
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

No, it's really more of a clearer pin name / less confusion loading MSQs thing.
Matt Cramer is offline   Reply With Quote
