Angry What to change in TS; going from N/A to supercharged

Installing a JR m45 Supercharger in about 3-4 weeks

The car is running just fine on this tune, with the current mods.
- Megasquirt pnp, using TS beta, and AEM wideband
- header, catback exh, no a/c, no p/s
- rx-8 425cc injectors, walbro fuel pump
- block rebuilt with forged pistons/rods
- 99 head/intake swap
- coil on plug ignition conversion
- no MAF, pod filter, header heat sheild
- will be running a 99 Throttle and IAC when i instal the blower

supercharger at 4-6psi, I will not be running an intercooler for a short period and only using the stock pulleys.
I may look into the dual throttle body setup because i will have and extra throttle body

here is my current AFR targets and my spark table, and VE:

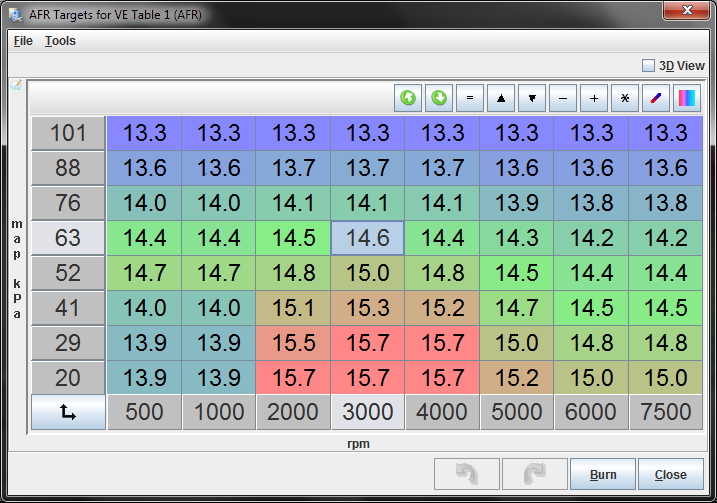

What to change in TS; going from N/A to supercharged-zackbaseafr.png

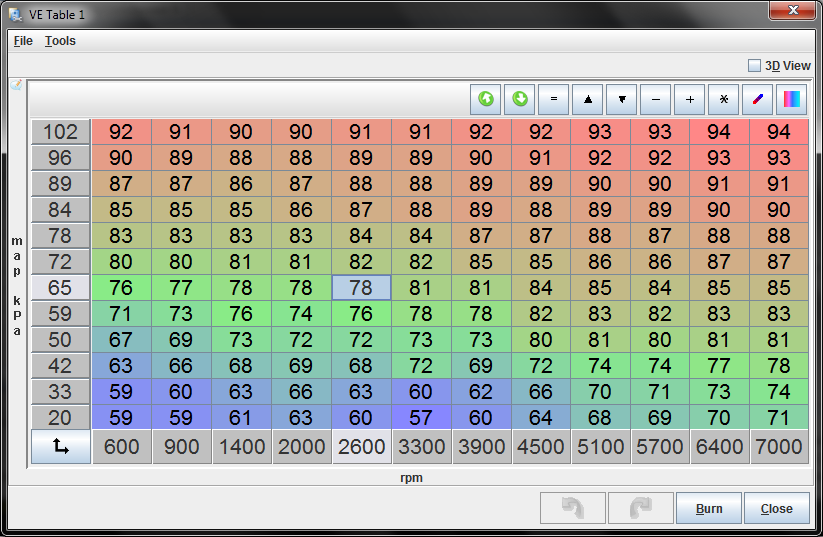

What to change in TS; going from N/A to supercharged-zack06fuel.png

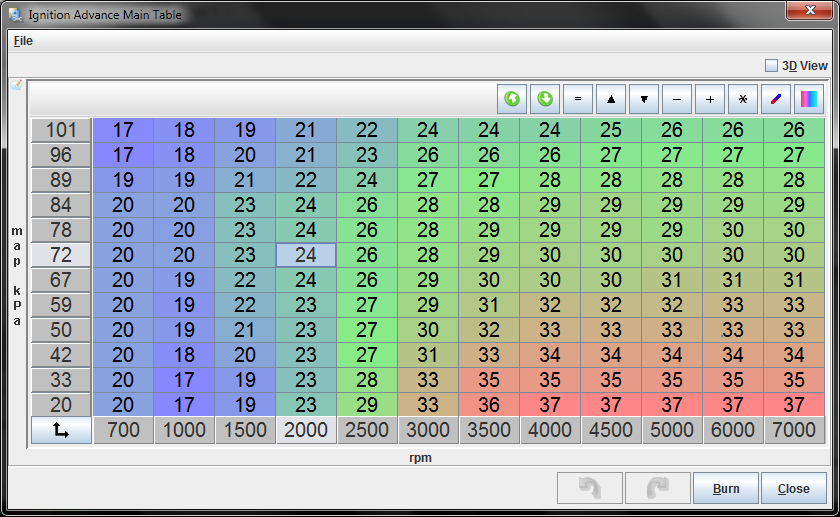

What to change in TS; going from N/A to supercharged-zack06spark.png

Now, what i need to change;
Scale fuel map, AFR and spark table to 6-7 map kpa according to some research thats all the tables need to reach.
-so i edit them and scale them to the new x and y values
here is what i came up with.

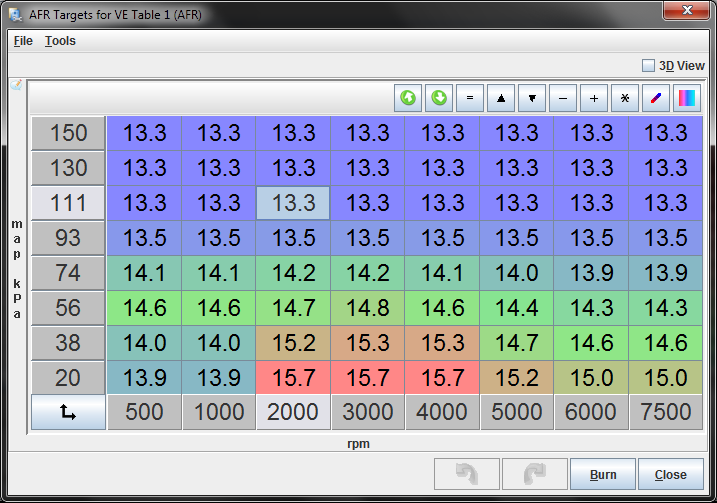

What to change in TS; going from N/A to supercharged-zackscafrs.png

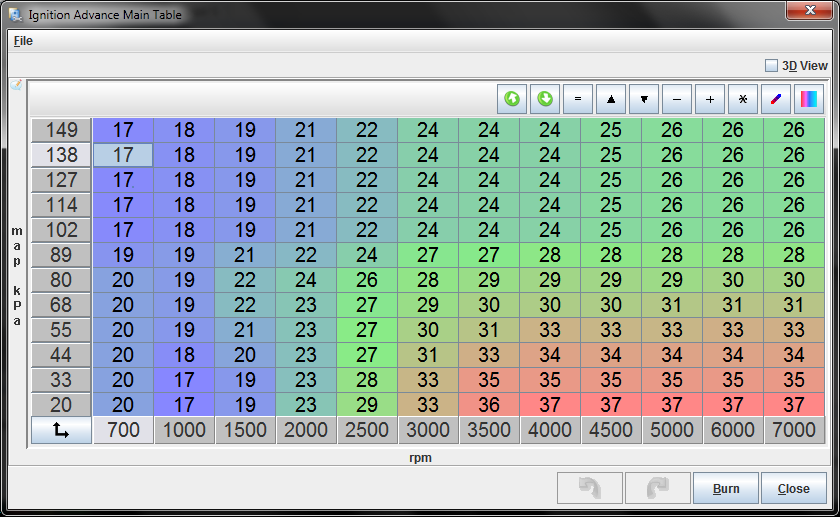

What to change in TS; going from N/A to supercharged-zackscspark.png

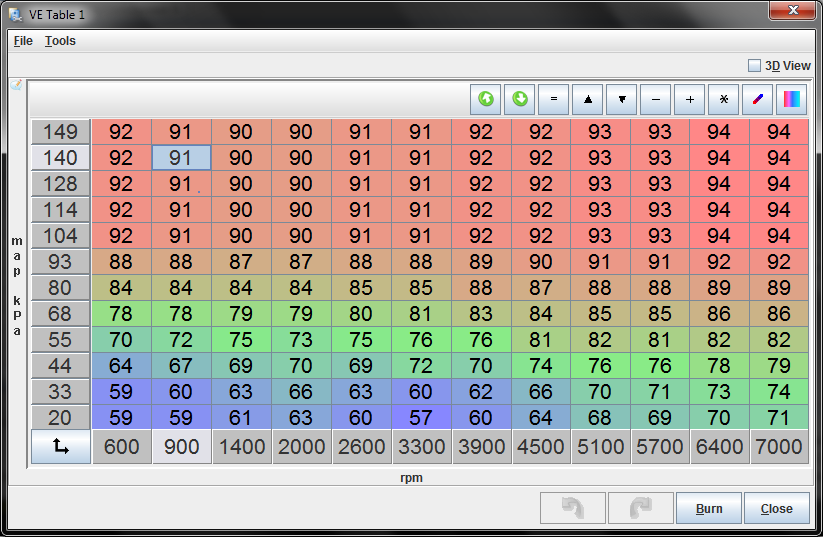

What to change in TS; going from N/A to supercharged-zackscfuel.png

Last edited by zacktrotter_uncc; 06-05-2014 at 01:22 AM.
zacktrotter_uncc is offline   Reply With Quote
Old 06-05-2014, 03:12 PM   #2
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

your AFR targets are pretty high in the boosted cells.

Try a bit lower AFR to make more power. ~12.2-12.5:1 in the 100+kpa cells.

I cant comment on spark timing because every engine will be different and im not experienced with flow of that supercharger.


VE should be tuned to get the AFR's close to target (once those are set) so that you don't need constant wideband correction.
shlammed is offline   Reply With Quote
Old 06-05-2014, 05:11 PM   #3
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Nov 2013
Location: GA
Posts: 171
Total Cats: -154
Default

Quote:
Originally Posted by shlammed View Post
your AFR targets are pretty high in the boosted cells.

Try a bit lower AFR to make more power. ~12.2-12.5:1 in the 100+kpa cells.

I cant comment on spark timing because every engine will be different and im not experienced with flow of that supercharger.


VE should be tuned to get the AFR's close to target (once those are set) so that you don't need constant wideband correction.
ok thanks for the comment. i will change that.
