Old 09-18-2013, 07:03 PM   #21
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default



+

decent solicon couplers

+

T-Bolt clamps tightened like a man

OR

Muffler clamps + flat stock and a drill to make weld free lock bars.
Attached Thumbnails
Affordable (read: cheap) bead rollers?-tumblr_m7lm8hvsth1rbk41wo1_400.jpg
Leafy is offline   Reply With Quote
Old 09-18-2013, 07:07 PM   #22
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

The thing is... my **** has held over 20psi thus far, but i'm thinking a lot of that is because it's been together for so long with t-bolts tightened like a man that it's all become one piece.

Unfortunately, it's all gotta come back apart for the first time in well over a year and it's one of those "while i'm in there" kind of deals.

I'm thinking i got lucky holding 20-24psi without beads. Not sure if i want to push my luck at higher boost.
concealer404 is offline   Reply With Quote
Old 09-18-2013, 07:09 PM   #23
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

I was blowing off couplers at 10psi until i tried the "hairspray" trick.

That worked long enough to get a solid tune on the car, and a better coupler in the mail.
Erat is offline   Reply With Quote
Old 09-18-2013, 07:10 PM   #24
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

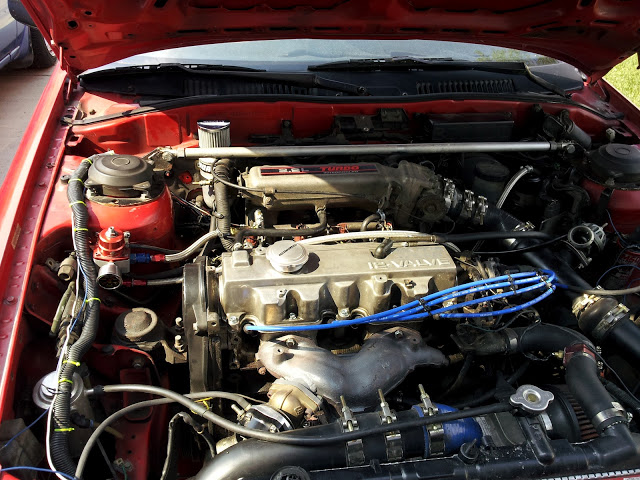

Really, i need to get off my *** and get a TIG welder and learn to do it.

Because...


Dem failure points. I have them.

Attached Thumbnails
Affordable (read: cheap) bead rollers?-20120520_163437.jpg
concealer404 is offline   Reply With Quote
Old 09-18-2013, 07:11 PM   #25
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

flare the ends with a hammer and a big metal cone if you're that cheap
18psi is offline   Reply With Quote
Old 09-18-2013, 07:18 PM   #26
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Hrmmm... i can work with this. Slide couplers over pipe first, then flare.
concealer404 is offline   Reply With Quote
Old 09-18-2013, 07:49 PM   #27
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

The google diy solution works but its ugly as hell and takes ages, it will be cheapest to just get a few dots welded on for the clamps to bite into.

Hairspray also works.

Dann
nitrodann is offline   Reply With Quote
Old 09-19-2013, 02:10 AM   #28
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

On my volvo I just used vice grips to bend the edges of the pipes out. Never had a pipe pop off at 25 psi and to top it off I just used cheap worm clamps.
cjsafski is offline   Reply With Quote
Old 09-19-2013, 04:18 AM   #29
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

The Eastwood and Harbor Freight units are from the same Chinese prison. To function, they need to be reinforced so the two sides don't 'scissor' when you put tension on them. They work somewhat for larger tubes but I don't remember a die smaller than about 1.5". I made one of the vise grip/clamp units and it worked ok but all the squeezing kicked my Popeye-forearm ***.

The Jegs unit looks like the way to go. The design is better and it is able to do 5/8" and up which will handle the smallest tube. This is the one you want for intake fabrication.
mr_hyde is offline   Reply With Quote
Old 09-19-2013, 12:13 PM   #30
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Cool thank you. My birthday is soon, i will see if i can convince my wife to buy it for me.
concealer404 is offline   Reply With Quote
Old 09-19-2013, 02:02 PM   #31
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by hornetball View Post
I've had my eye out for a decent tubing bead roller for awhile. Good ones are frustratingly expensive. I've been making do with the vice grip types.

Jegs recently added one to their tool section. Looks similar to the $500 units, but lists for $130. I'm going to try it out.

Link: JEGS Performance Products 80083 JEGS Tubing Beader
oo that Jegs one does look good. looks like a vey nicely done copy of the Beadform #3 for 1/4 the price. I have gon to a friends shop in the past that had one of the nice Bead form ones Kramer Metal Fab, Inc. - Bead Form but for $130 it would pay to have my own.
bbundy is offline   Reply With Quote
Old 09-19-2013, 02:22 PM   #32
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Vibrant performance also sells one like this but it is about $275 street price.
shlammed is offline   Reply With Quote
Old 09-20-2013, 04:53 AM   #33
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

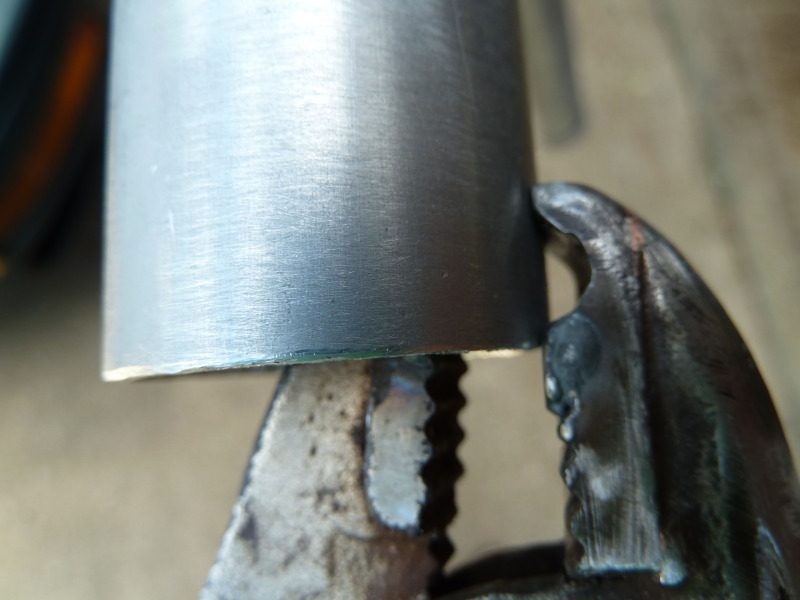

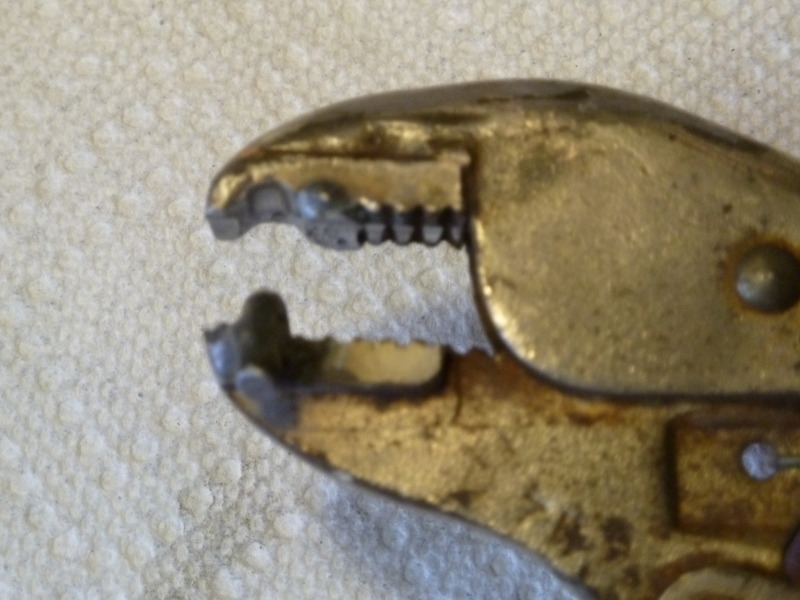

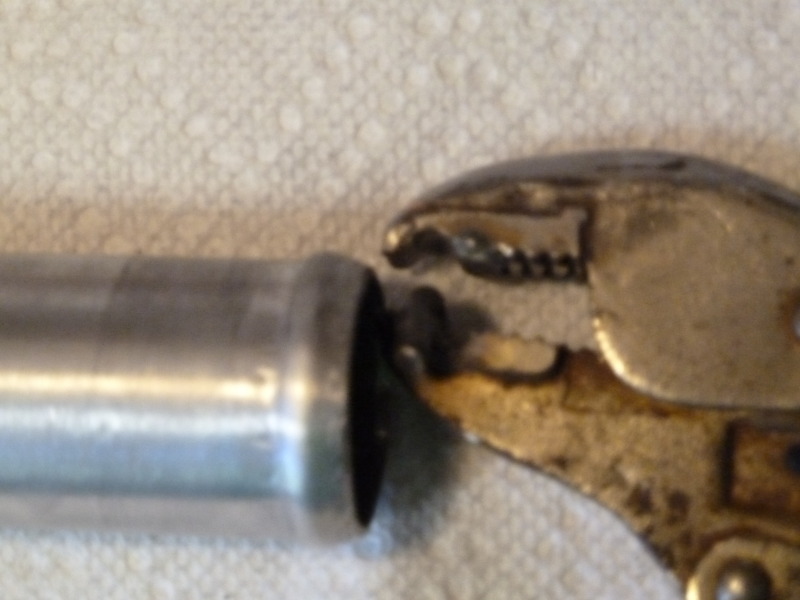

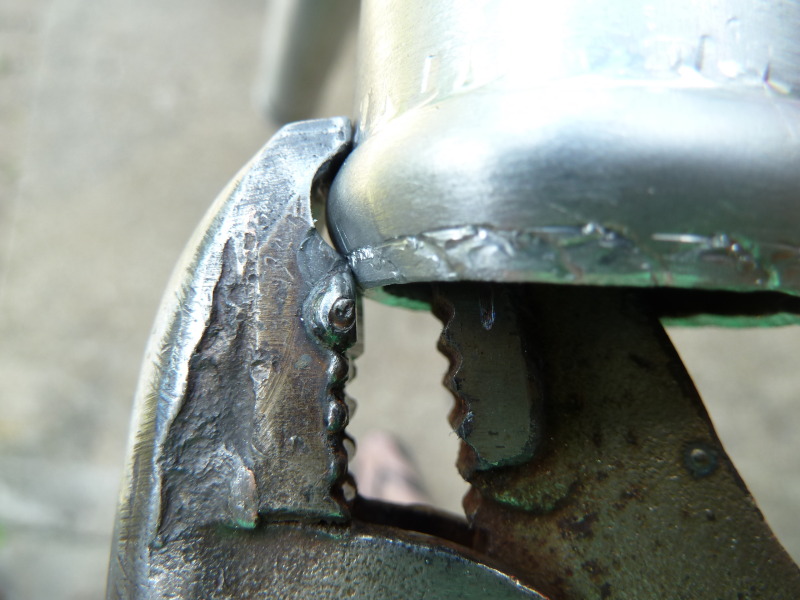

Here's the one I made. How long would you need it for? The pics arn't the best, but you get the idea.






Attached Thumbnails
Affordable (read: cheap) bead rollers?-p1000849.jpg   Affordable (read: cheap) bead rollers?-p1000859.jpg   Affordable (read: cheap) bead rollers?-p1000860.jpg   Affordable (read: cheap) bead rollers?-p1000853.jpg
2manyhobyz is offline   Reply With Quote
Old 09-20-2013, 10:19 AM   #34
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

How long would i need it for?

I need to do two cars by the middle of November, both pushing decent amounts of boost. The lower number/more conservative car is going to be in the 20-25psi range. The other in the 30psi maybe more range if i can keep the head on the block. (Car in signature)

Then i'll need to do at least one more for myself when i get into building the 93 Miata for ALLOFIT boost amounts. (Because 30psi isn't ALLOFIT)

I'm buttering up the wife pretty good (kinky!) in hopes i can squeeze the Jegs setup out of her.
concealer404 is offline   Reply With Quote
Old 09-25-2013, 05:11 PM   #35
Junior Member

Join Date: Dec 2011
Posts: 105
Total Cats: 1
Default

Quote:
Originally Posted by hornetball View Post
I've had my eye out for a decent tubing bead roller for awhile. Good ones are frustratingly expensive. I've been making do with the vice grip types.

Jegs recently added one to their tool section. Looks similar to the $500 units, but lists for $130. I'm going to try it out.

Link: JEGS Performance Products 80083 JEGS Tubing Beader
Did you happen to order this? Id like to hear what you think about it. I'm in the market for one as well.
stuiephoto is offline   Reply With Quote
