Old 10-04-2014, 10:28 PM   #21
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I'm slowly perusing most of Option 2 on my other project (sans racepack) and I believe you are about right on that one.
EO2K is offline   Reply With Quote
Old 10-04-2014, 10:30 PM   #22
Junior Member
iTrader: (4)

Join Date: Sep 2010
Location: Australia
Posts: 168
Total Cats: 10
Default

PCMs are baller but cost big $$$... If you do it right, you can use a standard blade fuse box with resettable blade circuit breakers, or even those breaker panels they use for RVs. Mount your fuse box or breaker panel in the dash so it is accessible and your circuits can be reset from the drivers seat.


Quote:
Originally Posted by Jeffbucc View Post
This is one of those things I go back and forth on.

1) Buy an unmolested wiring harness and yank everything not necessary

2) Over the span of a couple months, research and acquire the necessary motorsport centric connectors, wiring, heatshrink, snazzy loom, pins, firewall one port quick disconnect. Try to justify the baller RacePak Smartwire power control module. Run wiring to the trunk for superficial reasons and weight transfer. Cry as I wrap my brain around getting the lengths and routing 100% correct. Develop alcohol addiction. Pour gasoline on the car and dance around the flames in a fit of anger when everything doesn't work.

The OCD leans towards option 2. The sensible tells me not to **** with it till I have issues and revel and seeing positive numbers in my bank account.
zossy1 is offline   Reply With Quote
Old 10-05-2014, 06:19 PM   #23
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Well wehre I used to work, MoTeC, we would charge around 5-6 grand for an engine harness.

Figure 3 grand in parts to do it yourself (Deutsch Autosport connectors, Mil-spec wire, DR-25 heatshrink, etc) plus a month of planning/work to get it all done.

So just use the stock harness is what I am saying unless you love wiring like I do haha.
cardriverx is offline   Reply With Quote
Old 10-05-2014, 06:37 PM   #24
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

$3k in parts for an engine harness wtf?
concealer404 is offline   Reply With Quote
Old 10-05-2014, 06:47 PM   #25
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by cardriverx View Post
Well wehre I used to work, MoTeC, we would charge around 5-6 grand for an engine harness.

Figure 3 grand in parts to do it yourself (Deutsch Autosport connectors, Mil-spec wire, DR-25 heatshrink, etc) plus a month of planning/work to get it all done.

So just use the stock harness is what I am saying unless you love wiring like I do haha.
We don't work for MoTeC, so we can charge about half that price. In the world of used Miatas, this is big money. Hell, it's a spare car! In the world of professional racing, this is a weekend tire budget, or Ricky Bobby's bbq bill. If you're setting up one of Emilio's Race Pack systems it will cost even more. And that would make it even better. And will give you more options and accessories.

That said, most guys can get away with taping up their extra plugs...
cordycord is offline   Reply With Quote
Old 10-05-2014, 09:47 PM   #26
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2013
Posts: 96
Total Cats: 1
Default

Pm sent cordycord... Thx man
Raucky is offline   Reply With Quote
Old 10-06-2014, 09:59 AM   #27
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by concealer404 View Post
$3k in parts for an engine harness wtf?
A lot of that is the cost of the motec power management system. But some of those detsch connectors are over $100 a piece. Honestly if I was going to rewire a real racecar these days it would have some sort of PMS, not sure it would be motec but it would have one unless it was a ridiculously simple car that required 8 fuses and 2 relays or less.
Leafy is offline   Reply With Quote
Old 10-06-2014, 10:35 AM   #28
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Leafy View Post
A lot of that is the cost of the motec power management system. But some of those detsch connectors are over $100 a piece. Honestly if I was going to rewire a real racecar these days it would have some sort of PMS, not sure it would be motec but it would have one unless it was a ridiculously simple car that required 8 fuses and 2 relays or less.

Ok that makes more sense. I was thinking just engine harness.
concealer404 is offline   Reply With Quote
Old 10-06-2014, 12:45 PM   #29
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by Leafy View Post
A lot of that is the cost of the motec power management system. But some of those detsch connectors are over $100 a piece. Honestly if I was going to rewire a real racecar these days it would have some sort of PMS, not sure it would be motec but it would have one unless it was a ridiculously simple car that required 8 fuses and 2 relays or less.
It looks like we'll be doing one with a RacePak SmartWire system soon. It makes this wire layout even simpler.
cordycord is offline   Reply With Quote
Old 10-06-2014, 11:25 PM   #30
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2013
Posts: 96
Total Cats: 1
Default

Yeah...simpler is the idea for sure.
Raucky is offline   Reply With Quote
Old 10-09-2014, 02:07 AM   #31
Junior Member
iTrader: (2)

Join Date: Nov 2013
Posts: 90
Total Cats: 5
Default

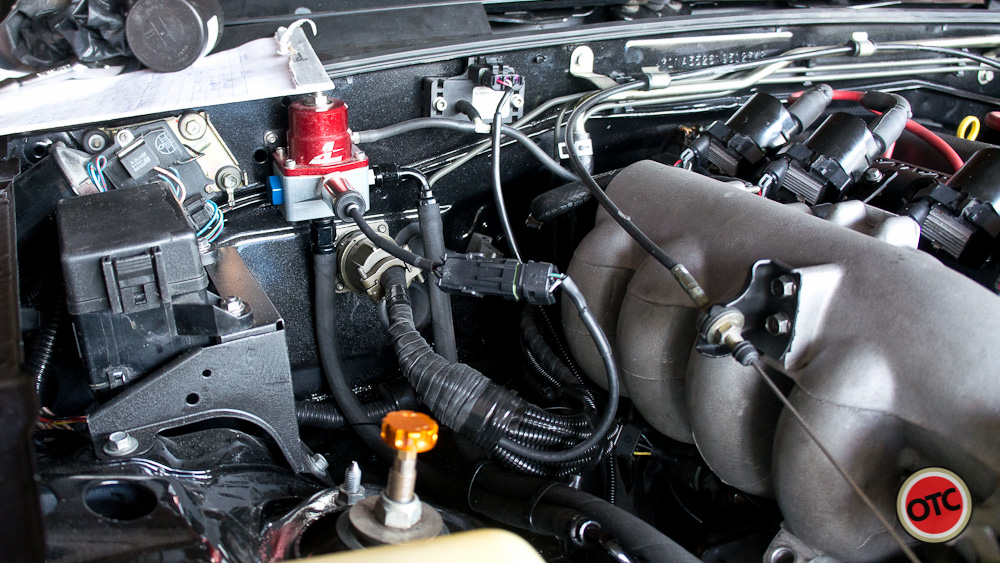

I did a firewall connector on my car awhile back, excuse the wad of spaghetti that it turns into as I hadn't finished everything on the build at this point the picture was taken but I just wanted to protect the wires from chaffing as I moved things around.



My best advice I can give is plan out everything you want to run in your car, and buy the right connectors the first time. Nothing hurts more than having to buy a $90+ connector twice...
Attached Thumbnails
Aftermarket Engine Harness-april-10.jpg
Raisin is offline   Reply With Quote
Old 10-09-2014, 10:48 AM   #32
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by Raisin View Post
I did a firewall connector on my car awhile back, excuse the wad of spaghetti that it turns into as I hadn't finished everything on the build at this point the picture was taken but I just wanted to protect the wires from chaffing as I moved things around.



My best advice I can give is plan out everything you want to run in your car, and buy the right connectors the first time. Nothing hurts more than having to buy a $90+ connector twice...
Yep. Also think about future expansions that you even MIGHT want. Mostly things like data which can consume lots of ports. Or even move that off to a separate harness, and where to route that.
Even for a simple harness from scratch it's easy to break a grand in parts alone just when talking OE level stuff not even mil-spec that's standard on professional race cars. . I'm redoing some of the wiring in my car to make it more weather proof. $250 to delcity later I've got some of what I need, but not a single sensor connector yet.
tpwalsh is offline   Reply With Quote
Old 12-12-2014, 01:19 PM   #33
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Richmond, VA
Posts: 325
Total Cats: 20
Default

Quote:
Originally Posted by Jeffbucc View Post
This is one of those things I go back and forth on.

1) Buy an unmolested wiring harness and yank everything not necessary

2) Over the span of a couple months, research and acquire the necessary motorsport centric connectors, wiring, heatshrink, snazzy loom, pins, firewall one port quick disconnect. Try to justify the baller RacePak Smartwire power control module. Run wiring to the trunk for superficial reasons and weight transfer. Cry as I wrap my brain around getting the lengths and routing 100% correct. Develop alcohol addiction. Pour gasoline on the car and dance around the flames in a fit of anger when everything doesn't work.

The OCD leans towards option 2. The sensible tells me not to **** with it till I have issues and revel and seeing positive numbers in my bank account.
1. This is a solid option but will take a lot of time, research and care. As the insulation ages, it tends to embrittle with time and the copper can corrode, sometimes invisibly (beneath insulation). Some connectors may require replacement, especially going back far enough. The older the car is, the less functional this option is.

2. This will cost you a TON of time, effort, planning & cursing. Figure over 100 hours for a typical inexperienced person to do everything. You will need to spend more time than you thought mastering crimping and more money than you thought in tools, connectors, sleeving, heatshrink, etc.

In trade parlance, the Smartwire system is a PDM (Power distribution module). They are fantastic where the Motec one is a benchmark able to control # of retries, amperage limiting, failure notifications. It has limp-home functionality to bring a car back to the pit/paddock during the race instead of outright failure. As a general rule, they exceed the scope of a low cost vehicle or street car.

Ballenger Motorsports could build a harness but this is a difficult issue. We could do a proper, made in USA harness and sell it for something like $1,200. We could do a little more volume and get an off-shored one made with some knock-off components for about half that. If we got 20-50 people together who were willing to make this choice and sign up for an identical harness, we could release a product. The Miata community is small, doesn't like spending money (except for a few select racers), and often wants a lot of custom variation. So I'm not sure on this point. Maybe a poll thread and checking with people. I suppose the Spec Miata people would want the product too.

At present we track Miata's and love them, so we offer product to make it easier for people. It isn't a profitable endeavor but Miata's are a lot of fun and some of the parts are also used on higher volume applications.

Quote:
Originally Posted by cardriverx View Post
Well wehre I used to work, MoTeC, we would charge around 5-6 grand for an engine harness.

Figure 3 grand in parts to do it yourself (Deutsch Autosport connectors, Mil-spec wire, DR-25 heatshrink, etc) plus a month of planning/work to get it all done.

So just use the stock harness is what I am saying unless you love wiring like I do haha.
Yeah. In the pro world, often a tiny short harness for something like an ignition/injection subharness can run $5k using specialty products and methods.
vtjballeng is offline   Reply With Quote
Old 12-12-2014, 01:31 PM   #34
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

The problem with getting a harness from you thats made for everyone is that we all have different setups and need different wires of different lengths and other varying requirements. Its not like jim bob's carb'ed camaro where there's thousands of cars out there with essentially the exact same wiring requirements.
Leafy is offline   Reply With Quote
Old 12-12-2014, 01:37 PM   #35
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by Leafy View Post
The problem with getting a harness from you thats made for everyone is that we all have different setups and need different wires of different lengths and other varying requirements. Its not like jim bob's carb'ed camaro where there's thousands of cars out there with essentially the exact same wiring requirements.
+1

Even wiring from the same model year will be different based on the options list. 100 hours for a complete job seems a bit low, actually.
cordycord is offline   Reply With Quote
Old 12-12-2014, 01:52 PM   #36
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Richmond, VA
Posts: 325
Total Cats: 20
Default

Quote:
Originally Posted by Leafy View Post
The problem with getting a harness from you thats made for everyone is that we all have different setups and need different wires of different lengths and other varying requirements. Its not like jim bob's carb'ed camaro where there's thousands of cars out there with essentially the exact same wiring requirements.
I know. Hence my word choice "and often wants a lot of custom variation."

It may be possible to subharness the sections that tend to have variation as a workaround. This and the year to year variation is the big problem to get around.

Quote:
Originally Posted by cordycord View Post
+1

Even wiring from the same model year will be different based on the options list. 100 hours for a complete job seems a bit low, actually.
Yep. Also why I said "Figure over 100 hours" rather than figure 100 hours. It is a hugely larger task than the average enthusiast realizes in time, cost, labor, research, etc. I've seen skilled go,go,go type mechanics thwarted by this sort of project due to the planning & paperwork necessary. It requires several new skills and validation to get acceptable results.

There is sort of an open question of is there someone who has a product and then the issue of whether an individual should make their own harness from scratch. I think we at least covered the issues for the purpose of answering the thread.
vtjballeng is offline   Reply With Quote
Old 12-12-2014, 02:01 PM   #37
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Sounds like the Miata crowd should get in touch with one of the companies that does custom Honda harnesses. What you're all asking for is readily available for most popular Hondas, with tons of customization available.

Call up Rywire. they already make custom harnesses for the 13B:
Mil-spec Tucked 13B Harness (FD3S/Rx7)
KMiata is offline   Reply With Quote
Old 12-12-2014, 02:07 PM   #38
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Basically what I'd be happy with right now is an engine harness that went to a bulk head fitting on the firewall and a harness from there to go to my ecu of choice. Single point of disconnect from all the low current connections on the motor. An Anderson style connector for the alternator/starter/battery line as well. There's 3 options of wiring harnesses for just the engine side.
Leafy is offline   Reply With Quote
Old 12-12-2014, 03:28 PM   #39
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Richmond, VA
Posts: 325
Total Cats: 20
Default

It's worth a look. Anyone have a complete engine harness they can mail to us for evaluation to make a product?
vtjballeng is offline   Reply With Quote
Old 12-12-2014, 03:36 PM   #40
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by vtjballeng View Post
It's worth a look. Anyone have a complete engine harness they can mail to us for evaluation to make a product?
errr well, stock there isnt an engine harness its kind of bastardized into the rest of the harness. If you were on a couple months ago I could have hacked one off of an early 95 model right at the fire wall, just cut straight through. Without cutting wires someone would end up sending you like more than half the car's harness.
Leafy is offline   Reply With Quote
