Originally Posted by Gotpsi?
Also if you run a vacuum pump set up it helps seal your cylinders up and pulls fuel out of the oil by raising the boiling point, increasing your oil life.
I think a proper breather set-up may help me with the fuel dilution problem.
Old Oct 6, 2010 | 06:59 PM
  #22
modernbeat's Avatar
Junior Member
iTrader: (1)

Joined: Aug 2006
Posts: 220
Total Cats: 1
From: Dallas, TX
Default

Originally Posted by hustler
Have you ever done an oil analysis to see if its worth changing oil hourly? I've shown that 6-hours on synthetic HDEO GIII is doable if your fuel contamination is in check (11.5:1 in my car) and my oil temps hover at 280*f on the track.
The "multiple times per event" car is a rally car.

I don't -really- have a "race" car. Just rally and autocross.

The Subaru rally car gets Rotella T6. I'll use the same stuff in my MX-5 powered Mazda Rally truck when it's completed next year.

The autocross car gets Torco. I've been using SR-5 and V-Series-SS. I went in with a friend and bought the remaining stocks from a distributor and still have a few dozen cases.

In the late '80s I used to autocross an F-Prepared Datsun 240Z. It was an extremely loose engine with very high compression. That engine got Mobil-1, which was about as good as it got back then. And it got changed out fairly often too. But I was inside the engine about every fourth event.
Old Oct 7, 2010 | 12:33 AM
  #23
Aricjm15's Avatar
Junior Member

Joined: Jun 2007
Posts: 407
Total Cats: 2
From: Grayslake IL
Default

Anyone know if NB bearings can be repacked?
Old Oct 13, 2010 | 12:31 PM
  #24
thesnowboarder's Avatar
Elite Member
iTrader: (15)

Joined: Sep 2007
Posts: 2,034
Total Cats: 5
From: Incline Village, NV
Default



Is this too much?


Writeup on how to repack hubs. Ill probably make a little video when i do mine this weekend.

http://waltermotorsports.com/v/Racing/hub/
Old Oct 17, 2010 | 05:20 AM
  #25
thesnowboarder's Avatar
Elite Member
iTrader: (15)

Joined: Sep 2007
Posts: 2,034
Total Cats: 5
From: Incline Village, NV
Default

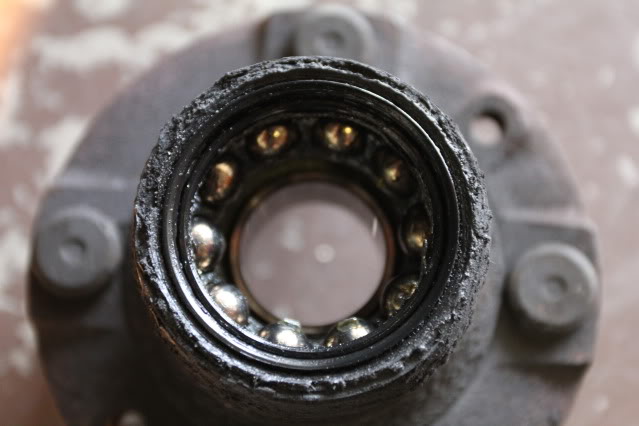

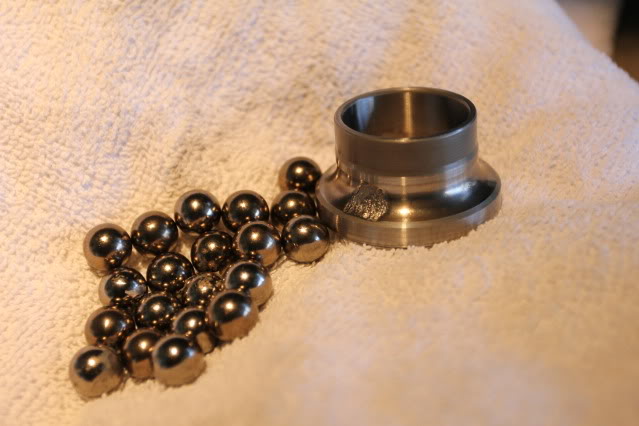

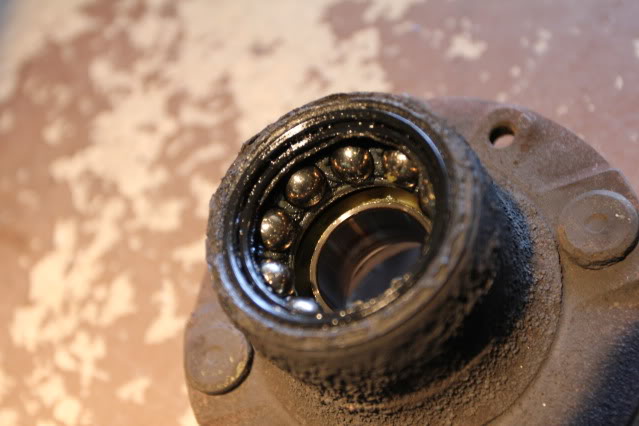

This is what I took off:

Name:  IMG_9741.jpg
Views: 384
Size:  64.5 KB

Name:  IMG_9740.jpg
Views: 359
Size:  59.0 KB

Name:  IMG_9753.jpg
Views: 365
Size:  64.7 KB

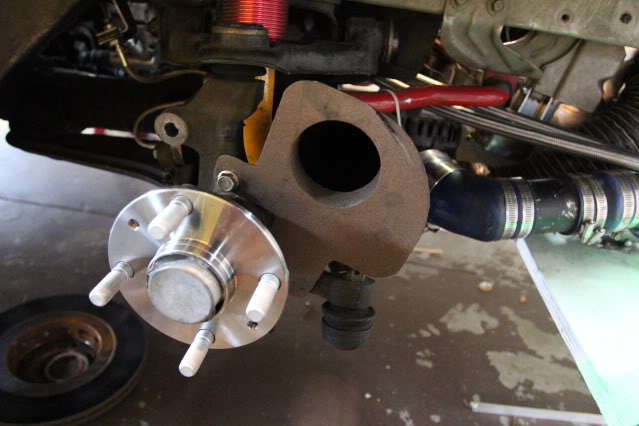

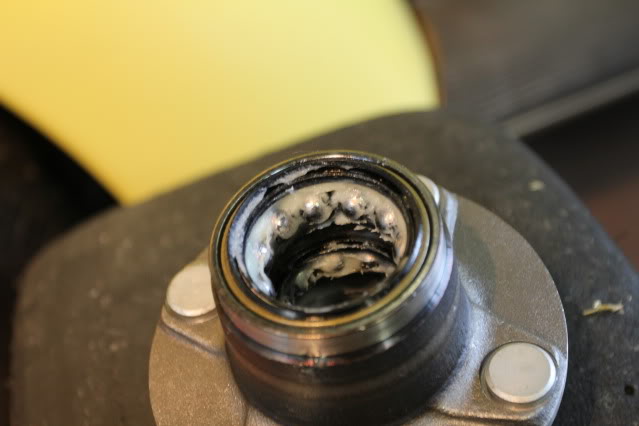

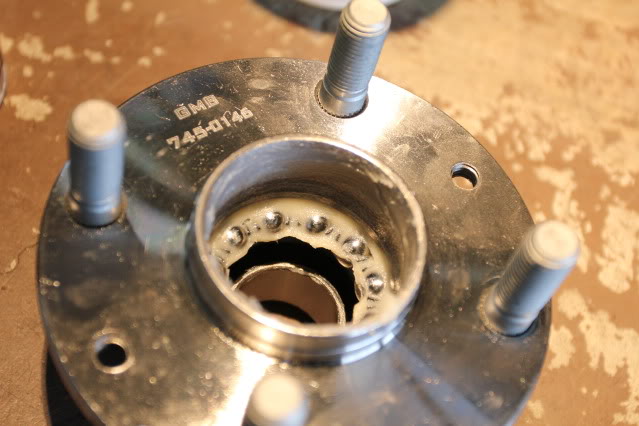

This is what went back on:

Name:  IMG_9754.jpg
Views: 362
Size:  70.7 KB

Name:  IMG_9758.jpg
Views: 350
Size:  51.2 KB

Name:  IMG_9759.jpg
Views: 360
Size:  67.3 KB
Old Oct 17, 2010 | 12:11 PM
  #26
SKMetalworks's Avatar
Elite Member
iTrader: (7)

Joined: Jan 2007
Posts: 1,731
Total Cats: 4
From: Renton Washington
Default

Wow i probably need to redo those, I just slapped some all purpose grease inside without taking the race out.
Old Oct 21, 2010 | 05:32 PM
  #27
hustler's Avatar
Thread Starter
Tour de Franzia
iTrader: (6)

Joined: Jun 2006
Posts: 29,085
Total Cats: 375
From: Republic of Dallas
Default

Originally Posted by modernbeat
The "multiple times per event" car is a rally car.

I don't -really- have a "race" car. Just rally and autocross.

The Subaru rally car gets Rotella T6. I'll use the same stuff in my MX-5 powered Mazda Rally truck when it's completed next year.

The autocross car gets Torco. I've been using SR-5 and V-Series-SS. I went in with a friend and bought the remaining stocks from a distributor and still have a few dozen cases.

In the late '80s I used to autocross an F-Prepared Datsun 240Z. It was an extremely loose engine with very high compression. That engine got Mobil-1, which was about as good as it got back then. And it got changed out fairly often too. But I was inside the engine about every fourth event.
Run a UOA, you're changing the oil too frequently and blowing money out your ***. I've done 5-hours at 275-290* sustained oil temps, driven 4 hours each way to and from the track, and the oil dropped viscosity but was still within an acceptable range. Food for thought I guess.
Originally Posted by Aricjm15
Anyone know if NB bearings can be repacked?
They're the same in my experience aside from the rear hubs on a MSM.
Originally Posted by thesnowboarder


Is this too much?
Not too much for the outboard side, its too much on the inboard side because if the grease pushes out it will attract lots of brake dust and chew up the innards.
Originally Posted by thesnowboarder
This is what I took off:







This is what went back on:





I'd repack them annually if they don't die during the season. I always have 2-spares with me because sooner or later you'll need them.
Old Oct 21, 2010 | 06:36 PM
  #28
Aricjm15's Avatar
Junior Member

Joined: Jun 2007
Posts: 407
Total Cats: 2
From: Grayslake IL
Default

What was different about the rears on the msm? I replaced my rear bearings with standard issue Napa bearings.
I would give mad props to anyone that can get the rears out without breaking the bearing. The outer race stayed on the hub when i pressed mine apart and everything fell to **** in the bearing.
Old Oct 21, 2010 | 08:28 PM
  #29
hustler's Avatar
Thread Starter
Tour de Franzia
iTrader: (6)

Joined: Jun 2006
Posts: 29,085
Total Cats: 375
From: Republic of Dallas
Default

Originally Posted by Aricjm15
What was different about the rears on the msm? I replaced my rear bearings with standard issue Napa bearings.
I would give mad props to anyone that can get the rears out without breaking the bearing. The outer race stayed on the hub when i pressed mine apart and everything fell to **** in the bearing.
The splines are fatter.

The center race coming out with the hub does not mean its damaged. The outboard race usually does not want to come off the hub so I simply clean it off, then bolt it back together. Its good insurance to repack the rear because changing them out SUCKS.
