Default Cages that do not cut the door

What cages (if any OTS ones are avail) are there that don't involve cutting the door and making the window inoperable?

I kind of like this design...

Name:  sm2.jpg
Views: 7
Size:  88.9 KB



Now that I'm getting a lot more involved with motorsports I don't feel that my HD roll bar is adiquite anymore. And for next season I want to go to a full cage. But since my car will be a street driven car (to/from track and for fun once in a while) I can't loose the operation of the side windows.

As it stands now, there is more than enough space for door bars next to my seat. What should be the min space from the door bar to the seat in a fully caged car?
falcon is offline   Reply With Quote
Old 08-29-2010, 04:12 PM   #2
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

will you be wearing a helmet whenever driving the car?
Oscar is offline   Reply With Quote
Old 08-29-2010, 04:22 PM   #3
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by Oscar View Post
will you be wearing a helmet whenever driving the car?
This is a good point. You do not want to get into an accident in a car with a cage without a helmet. Smacking the cage with an unprotected head could cause death in an accident that otherwise would not result in death.

At minimum you would need to wrap the bars in high density impact foam. It's hard to the touch, but gives when hit hard. I've got it on my hard dog bar just in case....
miatauser884 is offline   Reply With Quote
Old 08-29-2010, 04:41 PM   #4
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

No, but I will be in a bucket seat wearing a harness and there is no way my head will come close to any bars.
falcon is offline   Reply With Quote
Old 08-29-2010, 05:21 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I do everything I can to resist caging my turbo car.
hustler is offline   Reply With Quote
Old 08-29-2010, 05:32 PM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by falcon View Post
No, but I will be in a bucket seat wearing a harness and there is no way my head will come close to any bars.
You should rivet HANS anchors to your skull. I'm willing to do this for you.
hustler is offline   Reply With Quote
Old 08-29-2010, 05:34 PM   #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by djp0623 View Post
This is a good point. You do not want to get into an accident in a car with a cage without a helmet. Smacking the cage with an unprotected head could cause death in an accident that otherwise would not result in death.

At minimum you would need to wrap the bars in high density impact foam. It's hard to the touch, but gives when hit hard. I've got it on my hard dog bar just in case....
The convertible top skeleton has metal bars above my head and on top of the side windows, plus protruding metal parts on the folding mechanism (again above the side windows) that are infinitely more capable of hurting my head in case of an accident.

No one ever complained for those?

Btw, I have OMP HTE seats that have protective side tabs, no matter how hard I try to bash my head against them, it doesn't even hurt. So I think a cage wouldn't be a problem without a helmet in in these seats.
Reverant is offline   Reply With Quote
Old 08-29-2010, 05:42 PM   #8
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Quote:
Originally Posted by Reverant View Post
Btw, I have OMP HTE seats that have protective side tabs, no matter how hard I try to bash my head against them, it doesn't even hurt. So I think a cage wouldn't be a problem without a helmet in in these seats.
The "my head will never touch" argument is bad enough, but seriously? Do you really think you can "bash you head against them" with the same force that an 80-90 MPH collision will cause?
KPLAFIN is offline   Reply With Quote
Old 08-29-2010, 06:06 PM   #9
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

This thread wasn't made to discuss the consequences of driving in a caged car without a helmet. All I want is a ******* cage that doesn't cut the doors.

I'll drive my car the way I feel like it.

My head, when strapped into the seat is 5+ inches away from anything other than the headrest. If I rolled in a stock 3 pt. I would understand the argument but with my 6pt. I'm no going to worry about it. Chances are, if I'm in an accident at 90MPH in a Miata I'll be dead either way.
falcon is offline   Reply With Quote
Old 08-29-2010, 06:32 PM   #10
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

My head is literally less than 2 inches away from the tabs. 2 inches. If my head can accelerate within 2 inches quick enough to hit the soft tabs and cause anything more than light bruising, then I think that my spinal cord would have already snapped before my head even hit the tabs.
Reverant is offline   Reply With Quote
Old 08-29-2010, 06:44 PM   #11
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by falcon View Post
This thread wasn't made to discuss the consequences of driving in a caged car without a helmet. All I want is a ******* cage that doesn't cut the doors.

I'll drive my car the way I feel like it.

My head, when strapped into the seat is 5+ inches away from anything other than the headrest. If I rolled in a stock 3 pt. I would understand the argument but with my 6pt. I'm no going to worry about it. Chances are, if I'm in an accident at 90MPH in a Miata I'll be dead either way.
Very true.

I am unaware of any prebuilt cages that allow for the doors to remain stock. I think this is because it offers less protection than getting the door bars a little farther away from the driver/passenger.

That being said, I don't think there is anything stopping someone from having the "door bar" portion of the cage custom built to fit your needs. Check the racing regulations to see if they regulate how a cage is built.

While it is probably not optimal for crash protection as a cage built into a gutted door. It has to be better than a door alone.
miatauser884 is offline   Reply With Quote
Old 08-29-2010, 08:49 PM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

You can always go to a cage builder and tell him you want "baby" door bars that go into the door but don't restrict the window.
hustler is offline   Reply With Quote
Old 08-30-2010, 12:13 AM   #13
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,875
Total Cats: 344
Default

Quote:
Originally Posted by Reverant View Post
My head is literally less than 2 inches away from the tabs. 2 inches. If my head can accelerate within 2 inches quick enough to hit the soft tabs and cause anything more than light bruising, then I think that my spinal cord would have already snapped before my head even hit the tabs.
Harness (and seat belt) straps are designed to stretch in an accident to spread out the change in velocity over more time, to reduce the peak gees. Ever seen crash test footage? They stretch a lot.

--Ian
codrus is offline   Reply With Quote
Old 08-30-2010, 12:19 AM   #14
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Not with a 6pt.
falcon is offline   Reply With Quote
Old 08-30-2010, 01:56 AM   #15
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

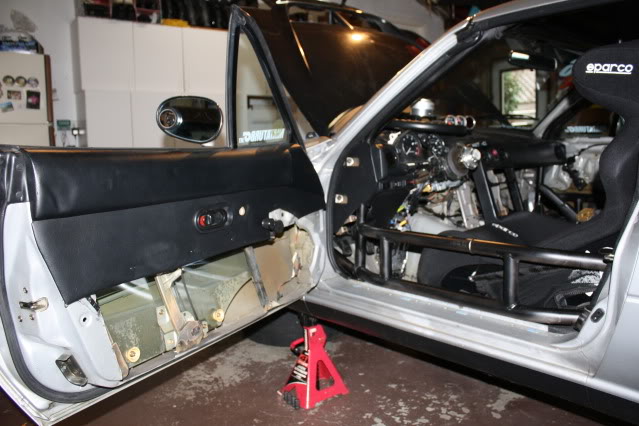

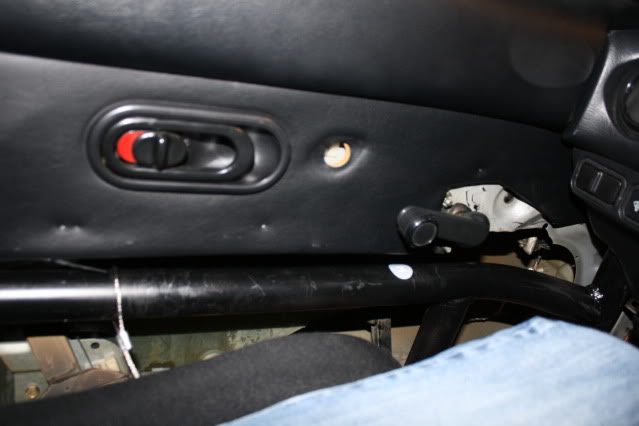

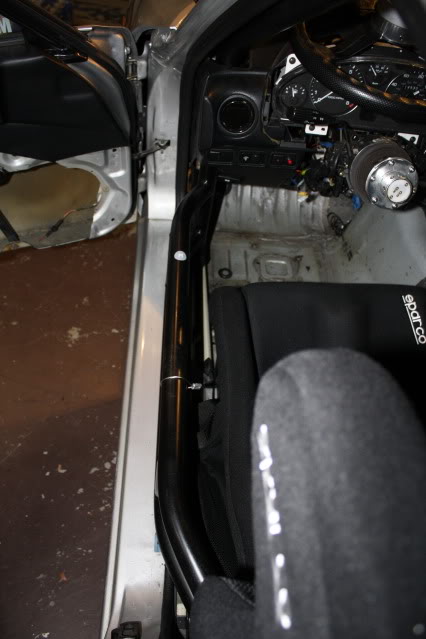

Fully operational stock windows with door bars. Custom build by TC design locally.

Name:  IMG_1268.jpg
Views: 20
Size:  77.6 KB

Name:  IMG_1276.jpg
Views: 6
Size:  44.3 KB

Name:  IMG_1271.jpg
Views: 5
Size:  49.8 KB

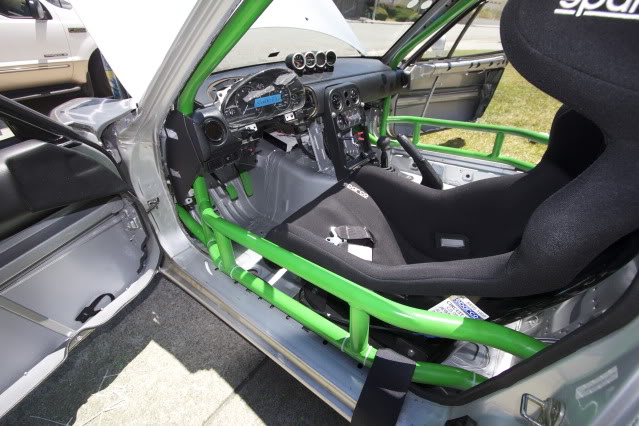

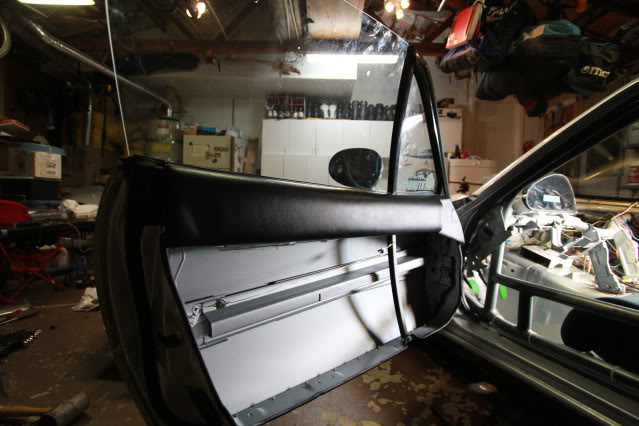

Then i decided not to be retarded and drive a caged car on the street:

Name:  IMG_5302.jpg
Views: 6
Size:  78.6 KB

Name:  IMG_6200.jpg
Views: 7
Size:  69.7 KB
thesnowboarder is offline   Reply With Quote
Old 08-30-2010, 02:28 AM   #16
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by falcon View Post
=Chances are, if I'm in an accident at 90MPH in a Miata I'll be dead either way.
Disagree. I'm sure there have been many 90mph miata accidents on the track with full cages where the driver walked away. And they were probably wearing a helmet.

Why even ******* bother putting in a cage to pretend that you give a **** about safety?
Faeflora is offline   Reply With Quote
Old 08-30-2010, 02:43 AM   #17
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by faeflora View Post
Why even ******* bother putting in a cage to pretend that you give a **** about safety?
Because a cage will give the illusion that he is safe. I think it's a really and truly stupid idea, but that isn't what was asked, so I will save myself to time and stop here.

^ That green cage is always amazing. The gutted doors are sexy too. No idea a door shell could be so good looking.
NA6C-Guy is offline   Reply With Quote
Old 08-30-2010, 03:43 AM   #18
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,401
Total Cats: 258
Default

Quote:
Originally Posted by NA6C-Guy View Post
^ That green cage is always amazing. The gutted doors are sexy too. No idea a door shell could be so good looking.
+1 The contrast is **** with the painted interior.
99mx5 is offline   Reply With Quote
Old 08-30-2010, 10:13 AM   #19
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by NA6C-Guy View Post
Because a cage will give the illusion that he is safe.
**** then someone please buy my style bar because it impressed all the `dumbassess much more than my real roll bar ever has.
Faeflora is offline   Reply With Quote
Old 08-30-2010, 10:44 AM   #20
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Right now black jesus is speaking to me and commanding me to drop my car off in Cali with TC Designs. grrrrrrrrrrrrrrrrrr!!!
hustler is offline   Reply With Quote
