Old 03-15-2011, 06:48 PM   #1
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default coolant reroute without heater

sorry if this has been asked and answered before but i cant find a straight answer without heaters. i am doing a coolant reroute on a racecar i am building but as it is a racecar it will have no heater installed. its a 1.6 turbo and has or will have a large ally rad fitted.

so the plan is to swap the front and rear covers switching the thermostat from the front to the rear and block off the heater pipes. to compensate for the lack of flow during warm up i will drill some holes in the thermostat. i will also have to cut off and switch the sensor bungs front to back as the threads are different. make up a hose from around the back to the rad and that's that. will this work ok?
mr2daj is offline   Reply With Quote
Old 03-15-2011, 06:51 PM   #2
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

no need to drill any holes. I blocked my heater off a long time ago and my car warms up just fine.
leatherface24 is offline   Reply With Quote
Old 03-15-2011, 06:57 PM   #3
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default

wont there then be no flow at all during warm up?
mr2daj is offline   Reply With Quote
Old 03-15-2011, 07:00 PM   #4
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

I searched "heater core delete" and found these

https://www.miataturbo.net/showthrea...er+core+delete

https://www.miataturbo.net/showthrea...er+core+delete

https://www.miataturbo.net/showthrea...er+core+delete

So it seems your conundrum has been solved at least 3 times.

To delete the heater core, remove the hoses that go into the heater core and connect them together. The coolant flow path absolutely must remain -or- you absolutely must run without a thermostat..

Any other questions?
fooger03 is offline   Reply With Quote
Old 03-15-2011, 07:22 PM   #5
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default

if i connect the core hoses together it will mix the hot water into the cool before the water pump. surley it would work better with some holes in the stat to stop the pressure and allow some flow. that way all hot coolant goes through the radiator and can not bypass it. what do you think?
mr2daj is offline   Reply With Quote
Old 03-15-2011, 07:25 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

LOL sounds like you just really really want to drill holes into your t-stat despite what people say.
Drill away
18psi is offline   Reply With Quote
Old 03-15-2011, 07:28 PM   #7
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default

no i just want to pump water back into the block uncooled. if this way is incorrect then i wont do it. i just cant see why its wrong. care to explain?
mr2daj is offline   Reply With Quote
Old 03-15-2011, 07:36 PM   #8
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

A 3/16 hole in the thermostat flange, removing the heater hoses and hard line under the exhaust manifold and putting a 1/8 water neck at the pump intake to the radiator bottom all together works nicely.
olderguy is offline   Reply With Quote
Old 03-15-2011, 07:42 PM   #9
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Quote:
Originally Posted by leatherface24 View Post
no need to drill any holes. I blocked my heater off a long time ago and my car warms up just fine.
same here no problems
Gotpsi? is offline   Reply With Quote
Old 03-15-2011, 07:48 PM   #10
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Since this is a dedicated racecar, and you presumably have plenty of free space under the hood, why not just do this the correct way by blocking the front outlet entirely, bolting the main water neck to the back of the head, and feeding it into a bypass-style thermostat? The "cold" outlet goes to the mixing manifold (or to a tee in the lower radiator hose), and the "hot" outlet goes to the upper radiator inlet.

That gives you full recirculation when cold (no coolant to radiator), and zero recirculation when warm (all coolant to radiator).

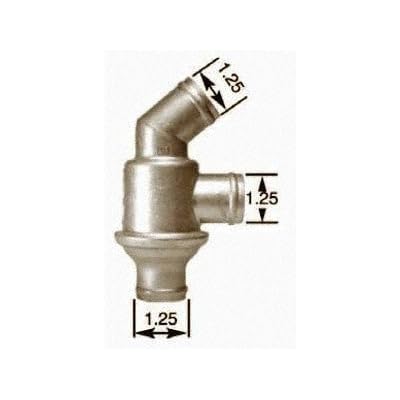

Stant model 13578:

Joe Perez is offline   Reply With Quote
Old 03-15-2011, 08:03 PM   #11
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default

thanks for the positive replies. that's a great idea! why didnt i just think of that. time is a bit tight so that may have to be an upgrade later in the season. for now i think i will be blanking off the the heater hoses and drilling the stat just to get it going and get some testing in.

anyone know a good way to block off where the metal pipe goes into the mixer manifold?
mr2daj is offline   Reply With Quote
Old 03-15-2011, 08:16 PM   #12
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I welded the port up.
Gotpsi? is offline   Reply With Quote
Old 03-15-2011, 08:23 PM   #13
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by mr2daj View Post
thanks for the positive replies. that's a great idea! why didnt i just think of that. time is a bit tight so that may have to be an upgrade later in the season. for now i think i will be blanking off the the heater hoses and drilling the stat just to get it going and get some testing in.

anyone know a good way to block off where the metal pipe goes into the mixer manifold?
Replace it with your front water neck. See post #8
olderguy is offline   Reply With Quote
Old 03-15-2011, 08:32 PM   #14
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default

all sorted then. thanks very much for the help. its easy when you know how.
mr2daj is offline   Reply With Quote
Old 03-15-2011, 08:48 PM   #15
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

I blew a headgasket in traffic from overheating after deleting the heatercore and taking the line strait back to the lower radiator hose. At low RPMs there is very little coolant flow. With no restriction in the route to the lower water hose (IE heatercore) there is very little flow through the radiator even when the thermostat is open.

As long as the car was at cruise it sat right at the 180 termostat temp. Once it was sitting at idle temps went up and the fans did nothing to cool it down. I was stupid and didn't pull over soon enough.
pdexta is offline   Reply With Quote
Old 03-15-2011, 08:53 PM   #16
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default

not good! that's why i will be totally blocking it off and drilling the stat. then there is always flow through the rad.
mr2daj is offline   Reply With Quote
Old 03-15-2011, 09:48 PM   #17
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

If.
You.
Completely.
Block.
It.
Off.
You.
Must.
Effectively.
Delete.
The.
Thermostat.

There.
Is.
No.
Reason.
To.
Drill.
Your.
Thermostat.
Just.
Throw.
It.
Away.

Your water pump will flow water through your cooling system regardless of the existance of a heater core route. If you delete the heater core route, your water pump is going to flow water through your closed thermostat. If your closed thermostat is impeding the flow of water, your water pump will still flow water, but instead of going through your closed thermostat, that water will force open pipe connections and gaskets and your coolant will end up (best case scenario) on the ground, or (worst case scenario) in your combustion chamber.

The only way to allow these engines to properly heat up is to bypass the radiator. The water pump isn't designed to just sit in "spin cycle" while it waits for your block to come up to operating temperature.
fooger03 is offline   Reply With Quote
Old 03-15-2011, 09:54 PM   #18
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default

wont the car never warm up without it?

too.
cold.
is.
as.
bad.
as.
too.
hot.

;-)

thats the reason for the holes. to stop that pressure build up and allow the stat to work as it should. or am i wrong?
mr2daj is offline   Reply With Quote
Old 03-15-2011, 10:06 PM   #19
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

If you want the car to warm up, you'll bypass the heater core instead of block it.

Your water pump is designed to flow X gallons of water per minute. If the only path for the water to flow is through a thermostat with holes in it (*blocked* heater core route) then it is going to flow X gallons of water per minute through those little bitty holes, and your car will warm up just as slowly as if there were no thermostat to speak of.

In all likelihood, your car will never warm up enough to open the thermostat in a 'holes drilled' scenario.

In the summer, I fought overheating issues with my car. I ended up drilling two 3/16" holes in my thermostat and hoping that it would help. It didn't end up helping the situation at all.

Move forward several months, and winter rolled around. With two 3/16 holes in my t-stat AND the stock heater core route still completely intact, my car only heated up to operating temperature if it was parked. On the freeway, I was able to get the needle to climb up to about 1/4 of the full way (halfway to "normal" temp) ONLY if I was following a large vehicle closely AND had the heater switched off. At any other speed, I could barely get the needle off of the "dead cold" mark. These water pumps were designed to flow enough volume to completely cool the car while also flowing water through the heater core. Instead of the current option of drilling holes in the thermostat, I would recommend leaving the thermostat intact and installing the heater core bypass with a restrictor (such as inserting a short length of smaller hose into the heater core hose). If you feel the need to do this, you will also want to make sure you do a full coolant reroute because you will otherwise be significantly degrade the ability of the cooling system to cool the rear cylinders.

If you want to increase cooling, get a better radiator.

Last edited by fooger03; 03-15-2011 at 10:25 PM.
fooger03 is offline   Reply With Quote
Old 03-15-2011, 10:14 PM   #20
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default

good point but without the heater core there is no restriction so there will be too much flow through the bypass during normal running. also the car will only idle during warm up so the pump will not be going very fast. i plan do drill a good few holes in the stat which will be equal to at leas half the diameter of the heater hose. cant see it being a problem. if there was no thermostat it would take ages to warm up then rapidly cool down as soon as i get on the track.
mr2daj is offline   Reply With Quote
