Default Discuss the pros and cons of 13" wheels

I am thinking about making a change to 13" wheels on my fp miata. Remember this car is a low horse power car and the greatest speeds it will ever see are just north of 130.

All things being equal wouldn't 13" wheels provide better handling? Im thinking that going from 15's to 13's will lower the cars cg and allow better cornering. Not to mention the benefit of less unsprung weight and reciprocating mass for my measly 112# of torque to turn.

Am also on the fence as to which tires to run, I will be on Hoosiers, just don't know if I will be running cantilevers or radials. I have been told that radials have less rolling resistance, but how much less, and does it make up for the loss of corning offered by the cantilevers? I have this posted on the prod site I belong to, but was looking for input from you guys as well.
hingstonwm is offline   Reply With Quote
Old 10-19-2012, 01:59 PM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

We can blindly speculate, but at the end of the day, you need to buy both setups and test if you actually want to know which one is faster.

Having said that, you're going to need to push the 13s way out on backspacing to clear the control arms, and that's going to induce aero drag and scrub radius issues. If you can get a wide enough tire in 15", I wouldn't bother.
Savington is offline   Reply With Quote
Old 10-19-2012, 02:15 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

hustler is offline   Reply With Quote
Old 10-19-2012, 02:20 PM   #4
Junior Member
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

TheDriver is offline   Reply With Quote
Old 10-19-2012, 02:27 PM   #5
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

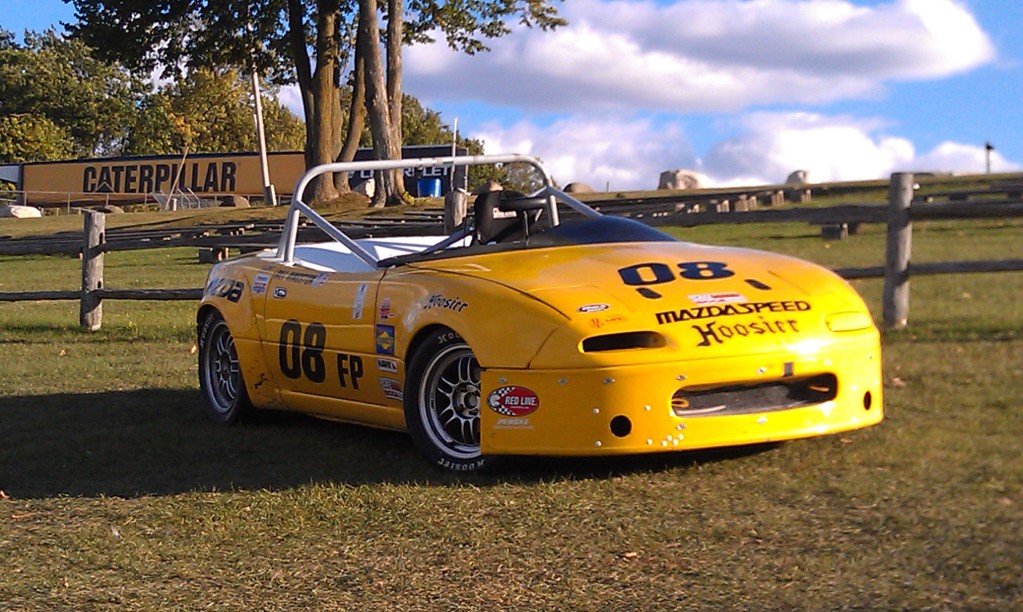

Nice looking car Hustler. Rules only allow me 13x7 or 15x7.

Sav the problem testing is my current gears are 4.77's and I will need to run 3.63's with the 13's, makes back to back testing virtually impossible.
hingstonwm is offline   Reply With Quote
Old 10-19-2012, 02:54 PM   #6
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

I think you're looking at a ton of work for minimal gain. I've got a set of 13x7's for my D-Prepared project, and have been contemplating the opposite. Here's my thoughts:

Pros:
Less unsprung mass (in my case around 5#/corner)
Possible lower static ride height without screwing up your geometry (~2" lower)
Cheaper tires(highly dependent on brand/ rules)

Cons:
Less steering input available with stock arms. (ruleset allows nonstandard arms)
Less mass, and possible tire overheating issues.
Less possible brake mass/diameters.

In Between:
Gearing.


What kind of revs are you running with your motor? North of 8K? The hoosier 20x9.5x13 (which is what I think you'll want to run) with your 4.77 gearset, and assuming the stock 5speed box will net you in the 130 range @ 8500rpm. This doesn't even start to take account of individual gearing for specific tracks, which can be another nightmare.

I don't think aero will be an issue, it's been awhile, but I'm pretty sure the 13x7's tuck nicely into the stock fenders.
tpwalsh is offline   Reply With Quote
Old 10-19-2012, 03:04 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by TheDriver View Post
hustler is offline   Reply With Quote
Old 10-19-2012, 04:04 PM   #8
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Needs moar solid forklift tires on that jeep.
thenuge26 is offline   Reply With Quote
Old 10-19-2012, 04:05 PM   #9
Junior Member

Join Date: May 2012
Posts: 68
Total Cats: -3
Default

I have three sets of 13" FS, Panasports 3P 2 sets 13x7.5 with 50% 710's and 1 set 13x8 50% fat Hoosiers.
600.00 ad 800.00 you pickumup!

Vince
Auburn CA
compaddict is offline   Reply With Quote
Old 10-19-2012, 06:09 PM   #10
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Quote:
Originally Posted by tpwalsh View Post
What kind of revs are you running with your motor? North of 8K? The hoosier 20x9.5x13 (which is what I think you'll want to run) with your 4.77 gear set, and assuming the stock 5speed box will net you in the 130 range @ 8500rpm. This doesn't even start to take account of individual gearing for specific tracks, which can be another nightmare.

I don't think aero will be an issue, it's been awhile, but I'm pretty sure the 13x7's tuck nicely into the stock fenders.
I run a alternate gear box; quaife dog box, I'm not sure about 5th but I believe it is overdrive. 130 mph at 8k with 215 580r the diameter is 22.9"
I will need to calculate gears for the diff if I go to 13's


Quote:
Originally Posted by compaddict View Post
I have three sets of 13" FS, Panasports 3P 2 sets 13x7.5 with 50% 710's and 1 set 13x8 50% fat Hoosiers.
600.00 ad 800.00 you pickumup!

Vince
Auburn CA
I am allowed max width of 7"
Attached Thumbnails
Discuss the pros and cons of 13" wheels-imag0833-1.jpg

Last edited by hingstonwm; 10-19-2012 at 07:59 PM.
hingstonwm is offline   Reply With Quote
Old 10-19-2012, 07:36 PM   #11
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,904
Total Cats: 109
Default

Quote:
Originally Posted by hingstonwm View Post
Nice looking car Hustler. Rules only allow me 13x7 or 15x7.

Sav the problem testing is my current gears are 4.77's and I will need to run 3.63's with the 13's, makes back to back testing virtually impossible.
I doubt that you would go with that much of a change. Try this.

Speed (MPH) = Tire Circum. X RPM / axle ratio X 1056

Why not run a tire that had the same diameter or slightly smaller as what would be on the 15 inch wheel anyway? I would think too small a diameter would sacrifice grip by reducing the contact patch.

13s were the norm when Miatas first started in motorsports.
miata2fast is offline   Reply With Quote
Old 10-19-2012, 08:02 PM   #12
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

^^^ I ran the numbers using the formula provided at 949 racing's web site and came up with 4.30's which is perfect for a back to back test. All I need to do is find a 99 differential from a 5 speed car.
hingstonwm is offline   Reply With Quote
Old 10-19-2012, 09:01 PM   #13
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by miata2fast View Post
ame diameter or slightly smaller as what would be on the 15 inch wheel anyway? I would think too small a diameter would sacrifice grip by reducing the contact patch.
This is a pretty common misnomer, contact patch size is influenced by weight of the car, and tire pressure, not wheels size. You can alter the shape of the contact patch by varying the wheel size, but not the size. width influencing width, and height influencing length. Generally the longer the patch, the better it will put down power, and the wider, the better the cornering grip.
tpwalsh is offline   Reply With Quote
Old 10-23-2012, 10:28 PM   #14
Junior Member

Join Date: Mar 2012
Posts: 111
Total Cats: 8
Default

Quote:
Originally Posted by tpwalsh View Post
This is a pretty common misnomer, contact patch size is influenced by weight of the car, and tire pressure, not wheels size. You can alter the shape of the contact patch by varying the wheel size, but not the size. width influencing width, and height influencing length. Generally the longer the patch, the better it will put down power, and the wider, the better the cornering grip.
In this case is "wheel" refering to tyre size changing rolling diamter or rim sizes with the same rolling diameter.
Vilko is offline   Reply With Quote
Old 10-24-2012, 02:06 PM   #15
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,904
Total Cats: 109
Default

Quote:
Originally Posted by tpwalsh View Post
This is a pretty common misnomer, contact patch size is influenced by weight of the car, and tire pressure, not wheels size. You can alter the shape of the contact patch by varying the wheel size, but not the size. width influencing width, and height influencing length. Generally the longer the patch, the better it will put down power, and the wider, the better the cornering grip.
Makes sense. I am assuming you are actually refering to the overall diameter of wheel and tire combo. Right?

I was suggesting to run a 13" wheel with a tire that was tall enough to equal the same height of the 15" wheel and tire combo. I kind of assumed the 13" combo would be a tad lighter than the 15" combo with the same height tire. Particularly if used with bias tires. Am I right on that assumption? Anyone care to comment?
miata2fast is offline   Reply With Quote
Old 10-24-2012, 02:09 PM   #16
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

Quote:
Originally Posted by miata2fast View Post
I kind of assumed the 13" combo would be a tad lighter than the 15" combo with the same height tire. Particularly if used with bias tires. Am I right on that assumption? Anyone care to comment?
Doubtful. Tires are heavier than wheels - a new 225/45 NT-01 is ~21-22lbs, and even a non-DOT Hoosier radial slick is 16 or 17lbs. A 13" combo that's as tall as a 15" combo will have a lighter wheel, but a heavier tire, and the tire weight matters more (rotational mass further away from the center of rotation).
Savington is offline   Reply With Quote
Old 10-24-2012, 02:16 PM   #17
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by Savington View Post
Doubtful. Tires are heavier than wheels - a new 225/45 NT-01 is ~21-22lbs, and even a non-DOT Hoosier radial slick is 16 or 17lbs. A 13" combo that's as tall as a 15" combo will have a lighter wheel, but a heavier tire, and the tire weight matters more (rotational mass further away from the center of rotation).
Don't forget that a 23.5" tall tire on a 13" rim is going to move around A LOT compared to a 20"/13" combination. Generally bias ply slicks have pretty soft sidewalls compared to DOT tires. Granted I look for this more in my world than on track, but it's something to think about.
tpwalsh is offline   Reply With Quote
Old 10-24-2012, 05:47 PM   #18
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

My first set of 13" wheels will be here tomorrow. Jongbloed 330's, they weigh in at 8 pounds, only down side is they are black in color, may be making a trip to get powder coated. I will be getting a second set in natural aluminum. Need to figure out if I am going to run bias or radials, I need to make a call to Hoosier and have a chat with them.
hingstonwm is offline   Reply With Quote
Old 10-25-2012, 10:37 PM   #19
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

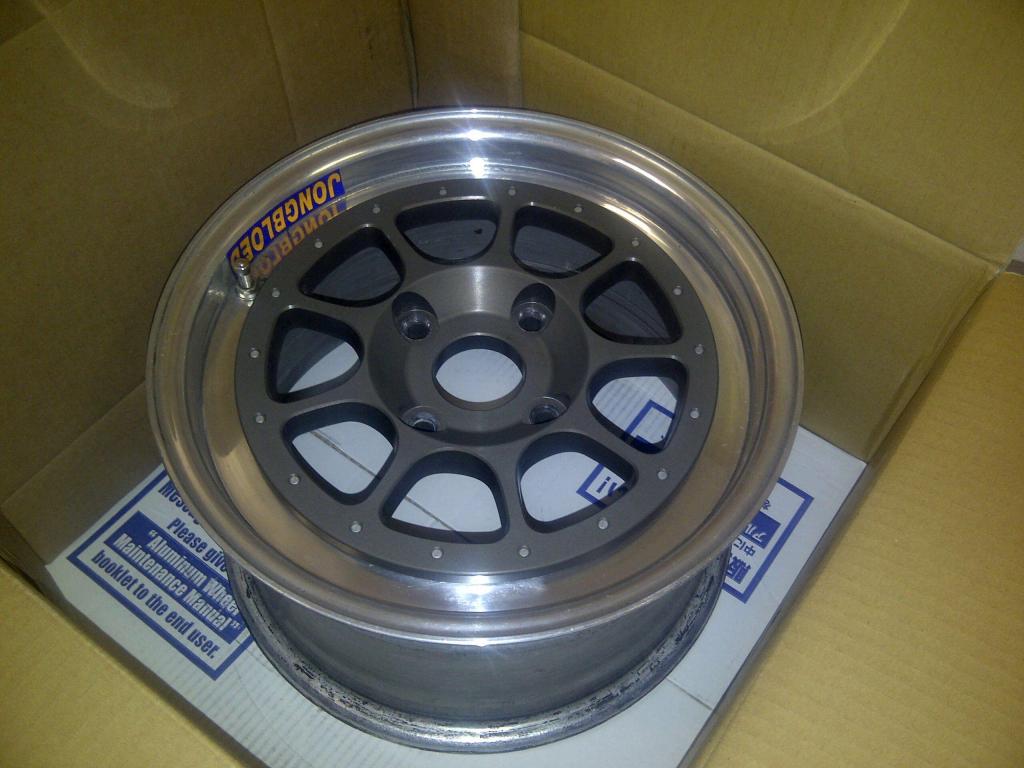

Got my wheels in today. Have a total of 8, it should make time management easier, having 8 like wheels. Wheels weigh in at approx 8#.
Attached Thumbnails
Discuss the pros and cons of 13" wheels-fountain-20121025-01212.jpg
hingstonwm is offline   Reply With Quote
Old 10-25-2012, 11:13 PM   #20
Junior Member

Join Date: May 2012
Posts: 68
Total Cats: -3
Default

purdy
compaddict is offline   Reply With Quote
