Old 07-09-2013, 08:41 AM   #41
Junior Member

Join Date: Mar 2012
Posts: 73
Total Cats: 1
Default

To regulate the time that the pump is on/off use a live well timer from the local Bass Pro shops or somewhere similar. You can set it to run in different cycle modes. Continuous, 1min on/1min off, 1min on/3min off, 1min on/7min off.


http://assets.academy.com/mgen/30/10...jpg?is=500,500

Like you said, it will freeze you to run it continuously. Also look at the smaller engel marine ice chests that have a sealing lid. they are great for this.

I have made numerous versions for Lemons, Chump, DE days, etc... The best place to mount it seems to be in the passenger floor board. Putting it in the trunk is too much weight back there.
fmcokc is offline   Reply With Quote
Old 07-09-2013, 11:01 PM   #42
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

I just bought this Breg "Polar Care Cube" unit and a 12v to 6v step down power supply. I am going to get a cool shirt and figure ut how to hook it to the cube.

Will keep y'all updated.

-Raj
redrider706 is offline   Reply With Quote
Old 07-10-2013, 11:35 AM   #43
Moderator
Thread Starter
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,672
Total Cats: 1,561
Default

Quote:
Originally Posted by redrider706 View Post
I just bought this Breg "Polar Care Cube" unit and a 12v to 6v step down power supply. I am going to get a cool shirt and figure ut how to hook it to the cube.

Will keep y'all updated.

-Raj
Hey Raj, are you ever going to put that thing on Road Atlanta? I'm doing the NASA event in September up there. It will be a good chance to use the coolshirt, haha.
sixshooter is online now   Reply With Quote
Old 07-10-2013, 12:08 PM   #44
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

I am going to a track day at Roebling road on Monday. Yeah!!
redrider706 is offline   Reply With Quote
Old 07-15-2013, 07:01 PM   #45
Junior Member

Join Date: Mar 2012
Posts: 73
Total Cats: 1
Default

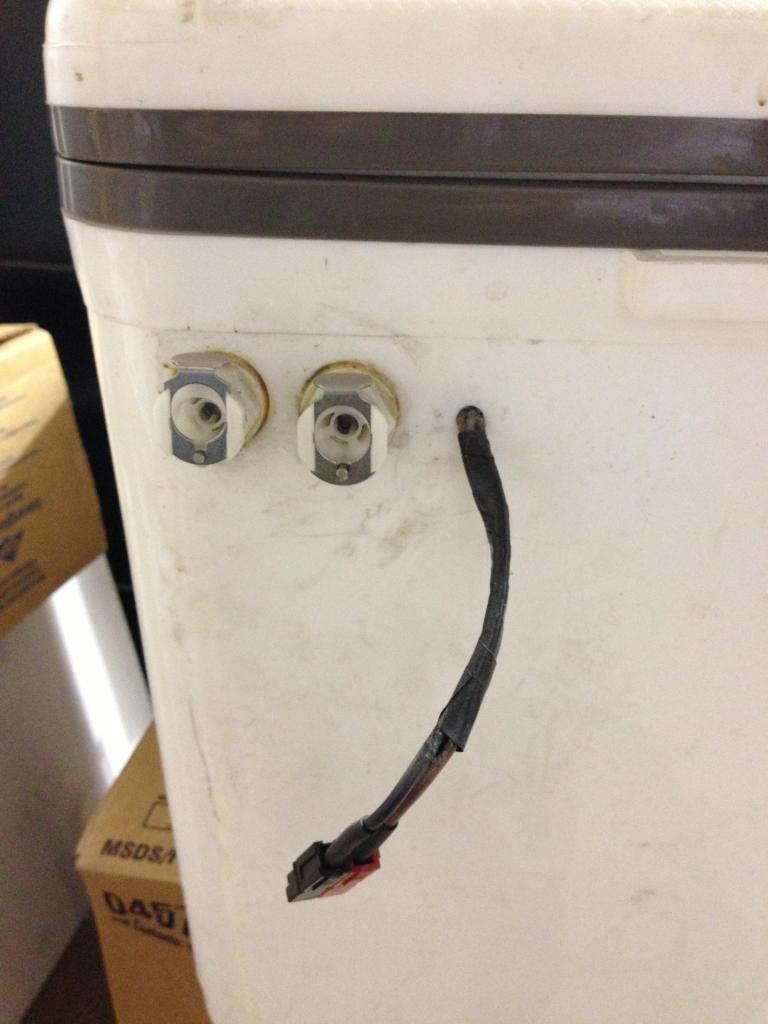

Here are pics of the one we built for Lemons. It is an Engel chest with a sealed and latching lid, a cheap Rule bilge pump, some small cpvc fittings, some vinyl tubing and quick disconnects. It works like a champ!!! We have raced in Texas in July for 7 hours straight when it was 105 outside and 130 in the car!








We got the insulation for the tubing out of one of those medical cooler kits like EB Ice or Polar coolers.

You can also just take some armorflex copper pipe insulation and put the vinyl tubes in it. just wrap one in real tight and put the other one in the flap that's left and seal it up.
Attached Thumbnails
DIY Cool Shirt System-cool2_zps115bb09c.jpg   DIY Cool Shirt System-cool1_zpsad6a5f74.jpg   DIY Cool Shirt System-cool3_zps0ea68e2f.jpg   DIY Cool Shirt System-cool4_zpsb3873920.jpg
fmcokc is offline   Reply With Quote
Old 05-14-2014, 10:15 PM   #46
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 699
Total Cats: 50
Default

RARE Military Liquid Cooling Shirt Personal Water Cooled Garment System Large | eBay

I ran across these on ebay and decided to give them a shot. Just got them in today and they're super nice shirts. The connectors look exactly like the Tusk ones on page 2 of this thread (which I already bought with plans to make my own shirt), but the ones on this shirt are a size smaller. I'm not yet sure where to buy the male ends.

Military stuff I've bought in the past has been oversized and required buying a size smaller than I usually wear (typically between L and XL), so I ordered 2 mediums and one large just in case. The mediums fit like a compression shirt like I was hoping, but they also fit me like a Corky Romano belly shirt, which I wasn't hoping for. If anyone wants them, PM me. I have 14 days to return them, so I'll just send them back if a racer doesn't want them.
jpreston is offline   Reply With Quote
Old 05-14-2014, 11:00 PM   #47
Junior Member
iTrader: (3)

Join Date: Mar 2014
Location: North Houston
Posts: 77
Total Cats: 0
Default

I think I'll make my own but thanks for bumping this. I've never seen this before but you can be sure I'll be installing one in my track car this summer!
TheProfessor is offline   Reply With Quote
Old 05-14-2014, 11:25 PM   #48
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Wow thats cool, never seen those before and for such a cheap price. How tall are you?
Leafy is offline   Reply With Quote
Old 05-15-2014, 01:06 AM   #49
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 699
Total Cats: 50
Default

I'm 6'1" with (according to Kirkey, plus the fact that I can't wear a H&NR in most race seats) a long torso. I'm a little worried that the tubing in the arms won't last long while driving, but we'll see. It's definitely worth $50.
jpreston is offline   Reply With Quote
Old 05-19-2014, 07:55 PM   #50
Junior Member

Join Date: Sep 2011
Posts: 64
Total Cats: 0
Default

we built a pad that has the piping running through it that attaches to our seat. it is easier with multiple drivers in a chump car race to have this system. use a little switch to turn it on when you get hot. easy as pie.
lightw8 is offline   Reply With Quote
Old 05-20-2014, 12:12 AM   #51
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Quote:
Originally Posted by jpreston View Post
I ran across these on ebay and decided to give them a shot. Just got them in today and they're super nice shirts. The connectors look exactly like the Tusk ones on page 2 of this thread (which I already bought with plans to make my own shirt), but the ones on this shirt are a size smaller. I'm not yet sure where to buy the male ends.
I ordered one of the above mentioned shirts as well. Looks like it will work good. As for the smaller connectors check out McMaster McMaster-Carr I measured the ID of the connectors and it is 5/16. The male end you need is McMaster-Carr , I think.

-Raj
redrider706 is offline   Reply With Quote
Old 05-20-2014, 11:01 AM   #52
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 699
Total Cats: 50
Default

Nice. I hadn't started looking yet. Did you order one of those? If so, I'll wait and see how it works for you.
jpreston is offline   Reply With Quote
Old 05-20-2014, 12:55 PM   #53
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Yeah, I ordered it yesterday. I will report after testing the connections.

-Raj
redrider706 is offline   Reply With Quote
Old 05-21-2014, 11:10 PM   #54
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Yep, the plug I linked above works. Make sure you get the one with the shut-off valve (McMaster-Carr).

-Raj
redrider706 is offline   Reply With Quote
Old 05-22-2014, 03:32 AM   #55
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 699
Total Cats: 50
Default

Thanks!
jpreston is offline   Reply With Quote
