Default DIY hitch for a street driven track car.

It came up on another thread but I felt it deserved its own thread.

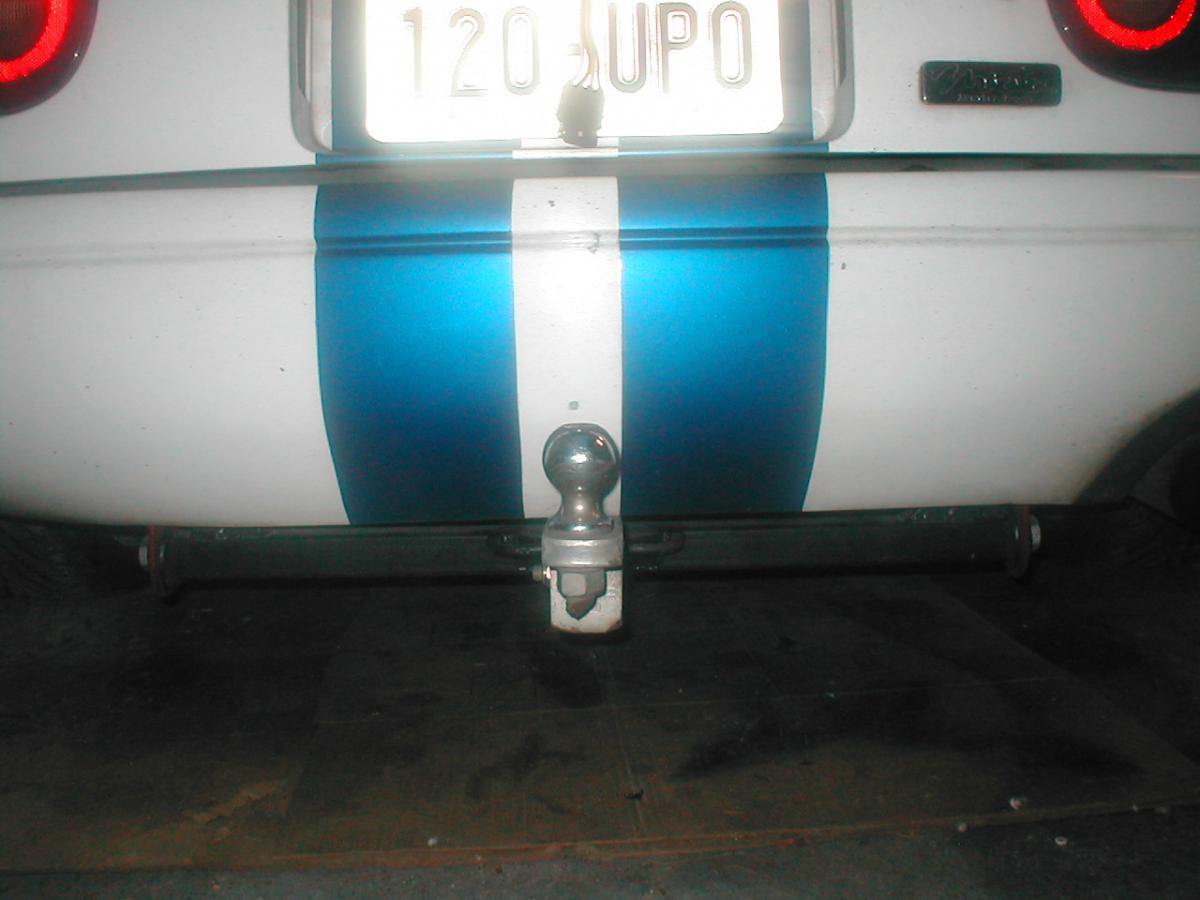

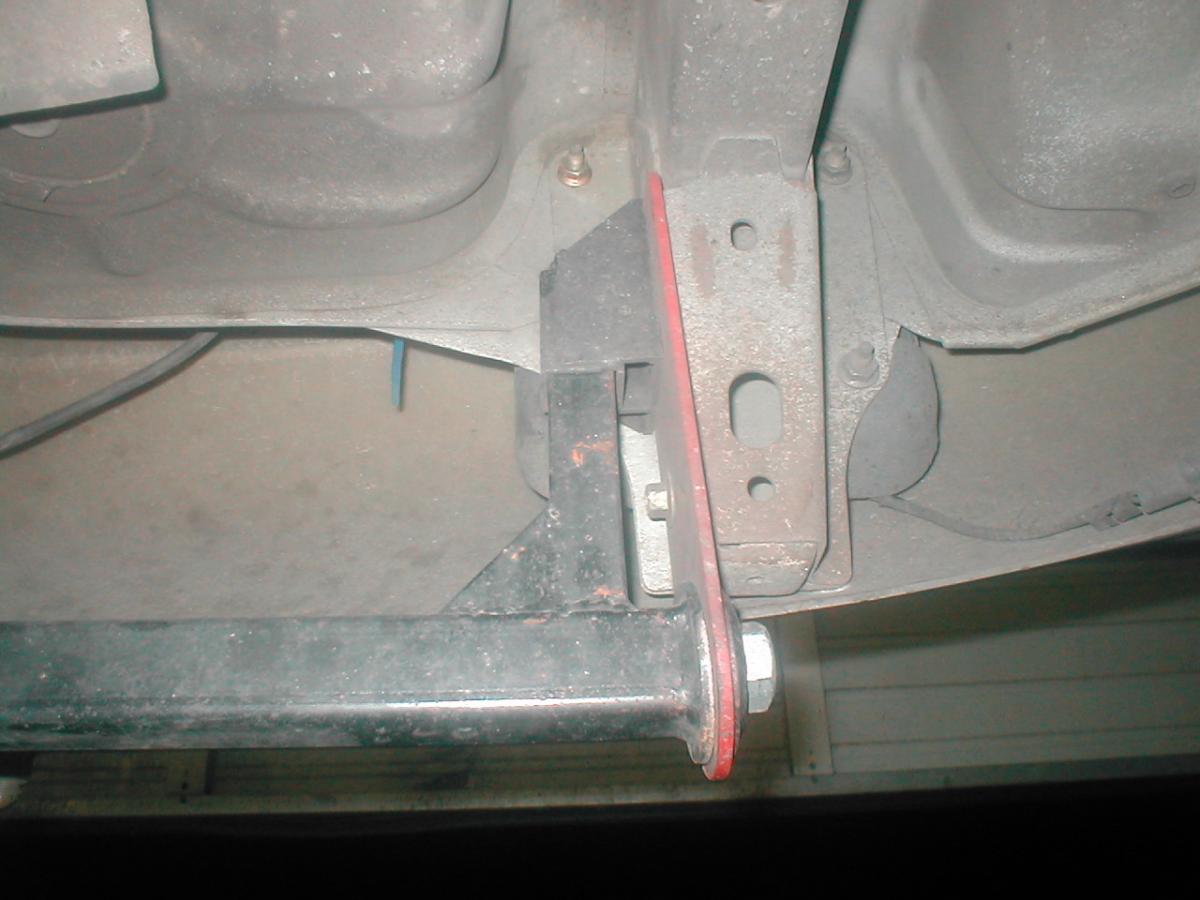

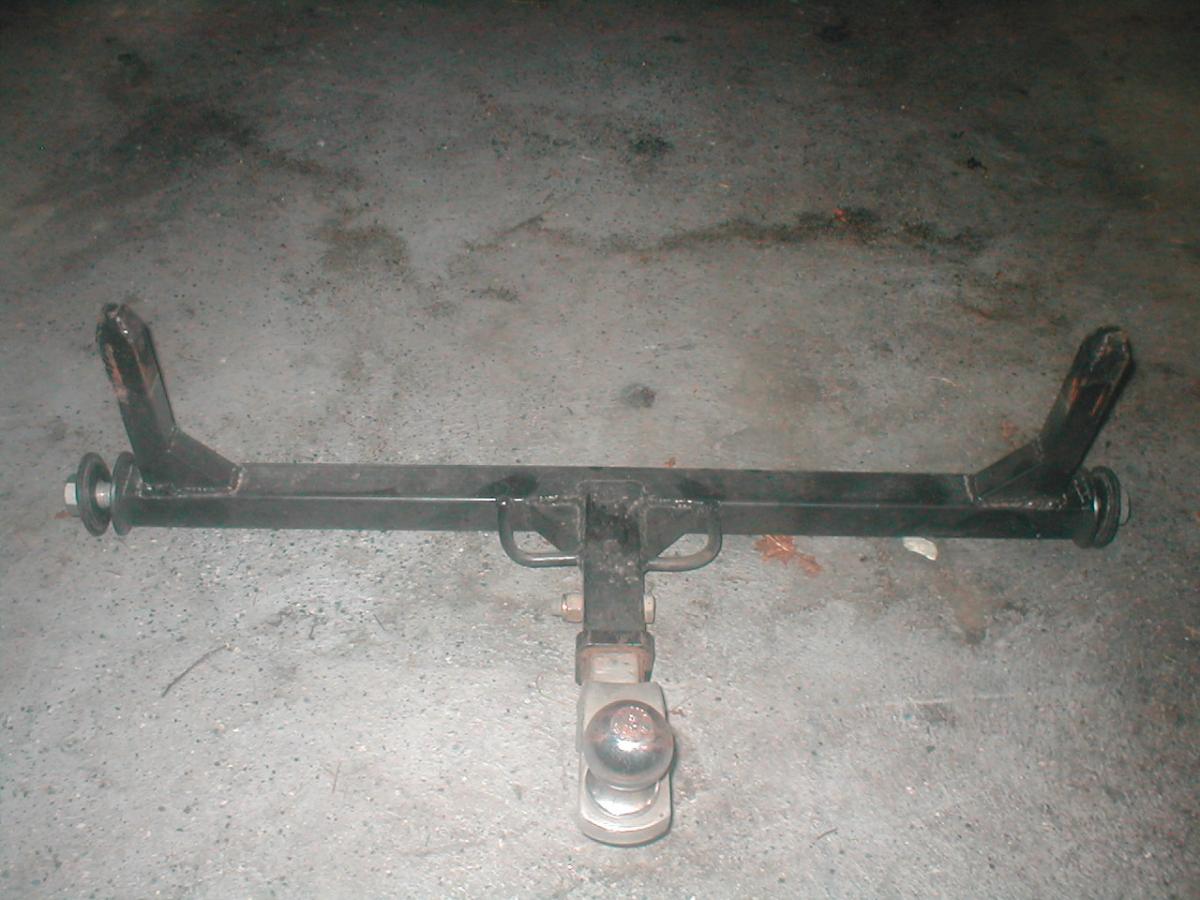

This is what I made see pictures. Attaches to spec Miata tow eyes.

1) The whole hitch and all the mass associated with it can be installed or removed by 2 bolts in seconds using a crescent wrench.

2) I think it will work with my planned DIY underbody treatment and rear diffuser as well.

Bob
Attached Thumbnails
DIY hitch for a street driven track car.-p1010046.jpg   DIY hitch for a street driven track car.-p1010048.jpg   DIY hitch for a street driven track car.-p1010051.jpg
bbundy is offline   Reply With Quote
Old 06-24-2010, 02:27 AM   #2
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

A note to others since I see you already have it- Run Grade 5 bolts on your setup. The hitch WILL flex, and grade 8 bolts shatter, while grade 5 will flex with it.

Your setup looks great!
chpmnsws6 is offline   Reply With Quote
Old 06-24-2010, 02:29 AM   #3
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Interested in making me one?
falcon is offline   Reply With Quote
Old 06-24-2010, 03:51 AM   #4
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by chpmnsws6 View Post
A note to others since I see you already have it- Run Grade 5 bolts on your setup. The hitch WILL flex, and grade 8 bolts shatter, while grade 5 will flex with it.

Your setup looks great!
I used 3/4" bolts they are huge. I welded two washers together for the outer washers. A smaller one fits in the ID of the tow eye and keeps it centered and the larger one clamps down on it.

I got the hitch receiver and tubing from a welding shop that makes things like trailers and hitches.

Bob
bbundy is offline   Reply With Quote
Old 01-06-2011, 02:24 PM   #5
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Question

Resurection per a recent tire trailer thread.

Bob - To be clear, in the attached picture, part "B" slides up in to part "A"? I assume you leave "A" bolted to the tow eye all the time and remove the rest by unbolting the large bolts that pass through the lower hole in the tow eye?
Attached Thumbnails
DIY hitch for a street driven track car.-p1010048_a.jpg

Last edited by Scrappy Jack; 01-06-2011 at 03:16 PM.
Scrappy Jack is offline   Reply With Quote
Old 01-06-2011, 02:29 PM   #6
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by Scrappy Jack View Post
Resurection per a recent tire trailer thread.

Bob - To be clear, in the attached picture, part "B" slides up in to part "A"? I assume you leave "A" bolted to the tow eye all the time and remove the rest by unbolting the large bolts that pass through the lower hole in the tow eye?
Correct. The little reciever parts that remains bolted to the car don't weigh very much though.

The hitch slides up into the two small recievers easily and dosnt slide down while your putting the bolts in.

Bob
bbundy is offline   Reply With Quote
Old 01-06-2011, 03:30 PM   #7
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Lightbulb

Quote:
Originally Posted by bbundy View Post
Correct. The little reciever parts that remains bolted to the car don't weigh very much though.

The hitch slides up into the two small recievers easily and dosnt slide down while your putting the bolts in.

Bob
The more I look at hitches, the more I realize that is pretty damn clever. Maybe Rennenmetal would be willing to build something comparable to be sold with the tow eyes.
Scrappy Jack is offline   Reply With Quote
Old 01-06-2011, 03:36 PM   #8
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by Scrappy Jack View Post
The more I look at hitches, the more I realize that is pretty damn clever. Maybe Rennenmetal would be willing to build something comparable to be sold with the tow eyes.
Sombody should make it for sale that is for sure.

Bob
bbundy is offline   Reply With Quote
Old 01-06-2011, 04:13 PM   #9
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,121
Total Cats: 44
Default

Yeah I need to find someone to build me one for sure.

Happen to have some measurements from when you built it bbundy?
flier129 is offline   Reply With Quote
Old 01-06-2011, 09:55 PM   #10
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by flier129 View Post
Yeah I need to find someone to build me one for sure.

Happen to have some measurements from when you built it bbundy?
I didn't measure anything I built it on the car. The concept is awesome though and a smart vendor should try and copy it. It is not like I'm going to apply for a patent or anything and I'm too lazy to get into producing the Idea myself for retail.

I also have a bike rack design worked out that uses the outboard attachment at the tow hooks. It holds two bikes with fork mounts so no bikes swinging around by the top tube beating against the body of the car nothing touching painted surfaces of the car and you can open the trunk without pulling the bikes off. It is light weight as well.

Bob
bbundy is offline   Reply With Quote
Old 01-07-2011, 11:52 AM   #11
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Post

Quote:
Originally Posted by bbundy View Post
Sombody should make it for sale that is for sure.

Bob
Sent you a PM.
Scrappy Jack is offline   Reply With Quote
Old 01-07-2011, 12:44 PM   #12
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

I'm going to make one of these for myself! Thanks Bob.

I wonder about liability if it went into production though. How strong it really is mounted to tow hooks. You know some yahoo would load up way to much weight, use aluminum tow hooks and have things go bad. Said yahoo will just happen to be an attorney.
cueball1 is offline   Reply With Quote
Old 01-07-2011, 01:04 PM   #13
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by cueball1 View Post
I'm going to make one of these for myself! Thanks Bob.

I wonder about liability if it went into production though. How strong it really is mounted to tow hooks. You know some yahoo would load up way to much weight, use aluminum tow hooks and have things go bad. Said yahoo will just happen to be an attorney.
Whoever decided to take on producing these would have to test it to the max to insure safety. You'll stand out enough towing with the miata, last thing you need is to have the ****** snap off and smash the guy behind you.

I have a neighboring welding shop that would make them if I gave the guy the measurements.
Vashthestampede is offline   Reply With Quote
Old 01-07-2011, 01:24 PM   #14
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by Vashthestampede View Post
Whoever decided to take on producing these would have to test it to the max to insure safety. You'll stand out enough towing with the miata, last thing you need is to have the ****** snap off and smash the guy behind you.

I have a neighboring welding shop that would make them if I gave the guy the measurements.
Have you taken a close look at some of the hitches that are being produced for different vehicles? based on some of the stuff I have seen I don't think the risk of liability is that high with a reasonably well thought out design. The tow hooks Im using are every bit as strong as the brackets used to attach most other trailer hitches. the chassis is the weak link.

Bob
bbundy is offline   Reply With Quote
Old 01-03-2012, 10:02 PM   #15
k2-
Newb

Join Date: Sep 2009
Location: Long Beach
Posts: 22
Total Cats: 0
Default

bbundy, what you have done there is beyond clever. Very well done. Yes someone should produce this. Flyin Miata decided there is enough of a market that they paid someone to do FEA on a lightweight hitch they now offer. Hard Dog has been selling them successfully. If yours removed 90% or more of the weight and is good for the lightweight track tire hauls we all need, I think it's a no brainer.

Well done.
k2- is offline   Reply With Quote
Old 01-03-2012, 11:52 PM   #16
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

Details on the trailer you will use?
jbrown7815 is offline   Reply With Quote
Old 01-04-2012, 01:29 AM   #17
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

My problem with producing this is you're shooting for a market somewhere between the DIY option of roughly $50, and FM's cost of $225. Not much room there.
curly is offline   Reply With Quote
Old 01-04-2012, 04:36 AM   #18
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by jbrown7815 View Post
Details on the trailer you will use?
This is appropriate for the little Harbor Freight trailers that are popular with the track day crowd. I've seen this in person and owned/installed the Hard Dog bit for the NB. Bob's design is just as strong but 95% of the mass unbolts when you get to the track. The Hard Dog I carried around for 2+ seasons put ~15 pounds of mass on the car permanently... until I bought a proper tow rig/trailer and took it off.
mr_hyde is offline   Reply With Quote
Old 01-04-2012, 12:04 PM   #19
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by curly View Post
My problem with producing this is you're shooting for a market somewhere between the DIY option of roughly $50, and FM's cost of $225. Not much room there.
Several companies have gone through the trouble of developing a hitch. FM, Hard Dog, DLan etc.

It's just they have all followed the same design concept in doing so in permanently attaching a big chunk of mass to the car.

With this concept the design doesn't have to be light and wimpy to reduce weight because all the mass comes off in seconds, itís not permanently attached to the car.

It works slick. I have been using it for a number of years now.

Bob
bbundy is offline   Reply With Quote
Old 01-04-2012, 02:08 PM   #20
Junior Member

Join Date: Nov 2010
Location: Winchester, VA
Posts: 302
Total Cats: 3
Default

Quote:
Originally Posted by curly View Post
the DIY option of roughly $50
Care to share any details/links for this method? I haven't found a way to reasonably put a hitch together for less than $100 or so.
