Default front end weight savings

Well on an already gutted car, the goal was to remove an additional 40lbs off the front end which would also allow removal of some ballast weight in the rear.

Re-fabricate SC manifold and mount from aluminum rather than steel. (check)
Tubular subframe from V8 roadsters. (check)
Fabricated adjustable tubular upper control arms. (check)
Fabricated tubular lower control arms. (check)
Willwood aluminum calipers. (check)
Keisler Automation aluminum drop spindles. (check)
Single high volume radiator fan. (check)
Lightweight rotors and aluminum hats ( not yet done )

Current weight savings..........52lbs!!!
guttedmiata is offline   Reply With Quote
Old 06-26-2013, 01:43 AM   #2
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

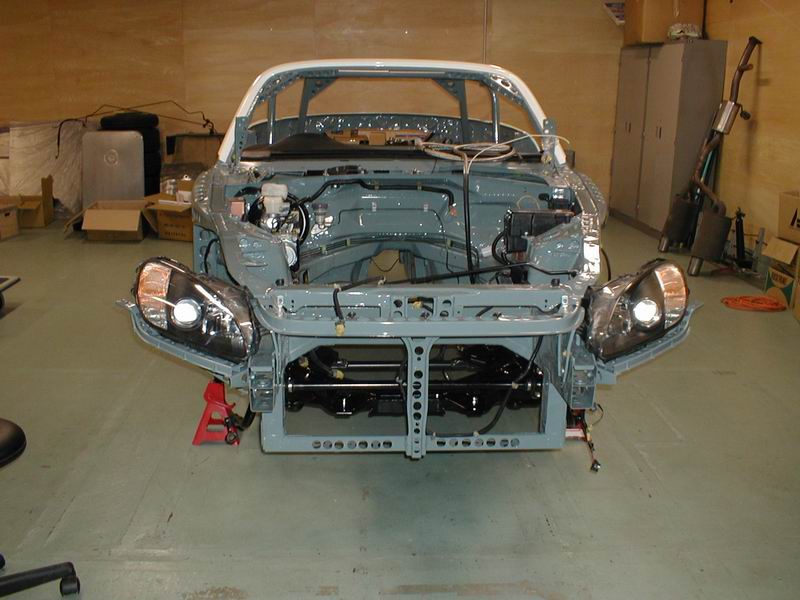

Dimple Die all the frame rails and sheet metal. The Opera S2000 is done that way and they shaved I think 700 lbs.







Attached Thumbnails
front end weight savings-0465_zpsbf71a224.jpg   front end weight savings-0611sscp_opera_performance_honda_s2000_33_z_fce_pakwheelscom_zpse6c802d1.jpg   front end weight savings-0611sscp_opera_performance_honda_s2000_19_z_zps7c6c21de.jpg   front end weight savings-0611sscp_opera_performance_honda_s2000_34_z_zpsb0f0ec12.jpg

Last edited by 1993ka24det; 06-26-2013 at 10:00 PM.
1993ka24det is offline   Reply With Quote
Old 06-26-2013, 01:56 AM   #3
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Please post photos of the arms and build process, please

Dann
nitrodann is offline   Reply With Quote
Old 06-26-2013, 06:48 AM   #4
Junior Member

Join Date: Mar 2012
Posts: 111
Total Cats: 8
Default

I assume you've done a lot more than you've listed, so you're going to have to start picking some pretty high up fruit. A lot has been covered before. Just brain storming the usual racecar stuff.
Fibreglass front fenders
Any interior left at all? Stock dash stripped or in the bin, heater box, etc
Half size radiator if you can get enough cooling out of it
Light weight fasteners<rivets<nothing at all
Seam sealer
Strip loom
Stock reo and rad supports and generic bits of metal. Strip what you can live without, make light weight alternatives of the necessities
Sodomize everything in sight with a drill? Pedals, door and bonnet hinges always seemed overly robust to me. And thats just the beginning. Cut holes in bonnet for cooling and save weight.
Old school racing porches used bulsa wood for gear *****, gives you an idea of how ---- it becomes. All those little grams start to add to kilos. Every gram counts.

It would probably help if you told people what your car is aimed at. Is it street driven at all? If its autocross/track/etc. When you get to extreme stuff a caged wheel to wheel track car is different to a stripped streeter/autocrosser.
Whats your budget?
What comromises are you willing to make?
WHERE IS HE!?
Vilko is offline   Reply With Quote
Old 06-26-2013, 07:18 AM   #5
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Pictures please!
Laur3ns is offline   Reply With Quote
Old 06-26-2013, 09:01 AM   #6
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by Vilko View Post

It would probably help if you told people what your car is aimed at. Is it street driven at all? If its autocross/track/etc. When you get to extreme stuff a caged wheel to wheel track car is different to a stripped streeter/autocrosser.
Whats your budget?
What comromises are you willing to make?
WHERE IS HE!?
The pictures above show how far the car is at this point. Autocrosser, already stripped, purpose built car.

40lbs more is going to be tough.

CF or Kevlar fenders will help. It looks like you already have a lightweight hood of some sort? If it's not under 8-10lbs, then there's a couple there.
Lightweight flywheel?
What about engine internals? Yep, that's high $$$ weight, but it's there.
What is your header like?
Radiator stock with a single fan? (maybe lighten up the fan with another model?)
What about your brake disks? Al hats and skinny rotors would help there too.
Al bodied shocks?
Have any pictures of your engine bay and a front corner? That might help.
tpwalsh is offline   Reply With Quote
Old 06-26-2013, 09:16 AM   #7
Junior Member

Join Date: Jan 2009
Posts: 121
Total Cats: 3
Default

What are you all going on about? His goal was to loose 40lbs, he removed 52lbs.

A polite golf clap and request for pics would be appropriate
damir130 is offline   Reply With Quote
Old 06-26-2013, 09:40 AM   #8
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

The new kevlar fenders from AK that havent come out yet are supposed to be 3 pounds each while the carbon and FG versions are supposed to be 8 pounds. For baller dollars I'd be looking at a 1 piece kevlar front end.

I'm sure you've removed all the random bolts that just plug holes under the hood, I found almost 1/2 a pound of bolts that I pulled out of the under hood that I either had left over after putting stuff back in (and it hasnt fallen apart yet) or took out because they obviously didnt do anything. There's also a good couple pounds in metal brackets for the wiring harness, some that I removed like the ones for the A/C setup, and some that I kept because I was iffy on the rules.

Take the grinding wheel to the engine block if you're allowed, there are a few features on it that I are just for casting, and if you're not making big turbo power there's probably a good bit of thinning you can do without compromising the block.
Leafy is offline   Reply With Quote
Old 06-26-2013, 09:51 AM   #9
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,903
Total Cats: 109
Default

I think everyone in this thread does not know the OP's mad weight reduction skills.
miata2fast is offline   Reply With Quote
Old 06-26-2013, 09:56 AM   #10
Junior Member
Thread Starter

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

You guys crack me up. Let's go back and read my original post shall we? Look at pic of the car in my signature and profile picture.

Already completely gutted of interior, windshield, door guts, stock gas tank, etc. By far not a street driven car!

40lbs will be tough? The result was 52lbs and I haven't completed the last item. I appreciate all the suggestions. This car has a twin screw SC on it that's heavier than any turbo and a 5gal capacity water to air intercooler setup and weighs in right now at 1747lbs.
My original post wasn't asking for help, but rather providing it. Just wanted to share what can be accomplished even when you've already stripped a car of all the unnecessaries.

I'll post some pics tonight.
guttedmiata is offline   Reply With Quote
Old 06-26-2013, 11:54 AM   #11
Junior Member
Thread Starter

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

...by the way that weight is also with some huge meats for a Miata. 23.5x11.5 on 16x12s.
guttedmiata is offline   Reply With Quote
Old 06-26-2013, 12:33 PM   #12
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,903
Total Cats: 109
Default

I have been paying attention to the mods on your car. I have a goal of getting the weight of my car into the 1900's, but maintain as many Miata characteristics as I can.

Could you elaborate on your fuel cell?
miata2fast is offline   Reply With Quote
Old 06-26-2013, 12:55 PM   #13
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,297
Total Cats: 22
Default

I would love to see some pictures of those control arms.
Der_Idiot is offline   Reply With Quote
Old 06-26-2013, 01:57 PM   #14
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: South Bay, CA
Posts: 354
Total Cats: -2
Default

Check out the Keisler Automation facebook page. Cool stuff there.
comradefks is offline   Reply With Quote
Old 06-26-2013, 02:08 PM   #15
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by guttedmiata View Post
You guys crack me up. Let's go back and read my original post shall we? Look at pic of the car in my signature and profile picture.

Already completely gutted of interior, windshield, door guts, stock gas tank, etc. By far not a street driven car!

40lbs will be tough? The result was 52lbs and I haven't completed the last item. I appreciate all the suggestions. This car has a twin screw SC on it that's heavier than any turbo and a 5gal capacity water to air intercooler setup and weighs in right now at 1747lbs.
My original post wasn't asking for help, but rather providing it. Just wanted to share what can be accomplished even when you've already stripped a car of all the unnecessaries.

I'll post some pics tonight.
Sorry, I thought you wanted ANOTHER 40lbs off your current setup.

How light is the car at this point? or is that a card you're playing close to your chest?
tpwalsh is offline   Reply With Quote
Old 06-26-2013, 07:47 PM   #16
Junior Member
Thread Starter

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Quote:
Originally Posted by tpwalsh View Post
Sorry, I thought you wanted ANOTHER 40lbs off your current setup.

How light is the car at this point? or is that a card you're playing close to your chest?
Yes, as close to my chest as possible except for where I publicly stated it in my post above THAT YOU QUOTED ! Seriously?!
guttedmiata is offline   Reply With Quote
Old 06-26-2013, 07:55 PM   #17
Junior Member
Thread Starter

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Quote:
Originally Posted by comradefks View Post
Check out the Keisler Automation facebook page. Cool stuff there.
You won't find the control arms on there. Andrew does the drop spindles. I started a thread a few weeks back that I can't link from my phone. Look for "my adjustable upper control arms".
guttedmiata is offline   Reply With Quote
Old 06-26-2013, 08:47 PM   #18
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by guttedmiata View Post
Yes, as close to my chest as possible except for where I publicly stated it in my post above THAT YOU QUOTED ! Seriously?!
Damnit.. Yep, deserved that one.
tpwalsh is offline   Reply With Quote
Old 06-26-2013, 09:37 PM   #19
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

That sounds like a really expensive 52lbs, but nice work regardless.

I seem to have endless ideas for shedding weight in the back of the local NA N/A track rat, which is currently at something like 1950 lbs without driver, with a full windshield and hard top.

Taking weight out of the front is another issue, once AC and PS are out, I'm at a bit of a loss. Your list is roughly twice what the entire car has cost.
curly is offline   Reply With Quote
Old 06-26-2013, 10:42 PM   #20
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,903
Total Cats: 109
Default

Weight reduction is an evolutionary process. It does not happen in one day.

It is fun for me to see what I can modify to reduce weight, and the process can be quite addictive. If you get bit by the bug, it starts to get expensive once you move past the removal and modify existing parts stage.

The results are fun, fun, fun.
miata2fast is offline   Reply With Quote
