Default Hard Dog Door Bars Installed - Pictures

I quickly installed the Hard Dog door bars this morning. I thought the picks of the fitment on their site sucked *** so I thought I would post these as an aid for others who might be trying to decide if they wanted to add them. They tie in to the lower rollbar mount so adding them is quick. They are much less intrusive than I thought they would be.
















On the passenger side I had to move the harness protection tube and switch the mounting tab to the right hand side of it. I still used the same stud to hold it down.

















Attached Thumbnails

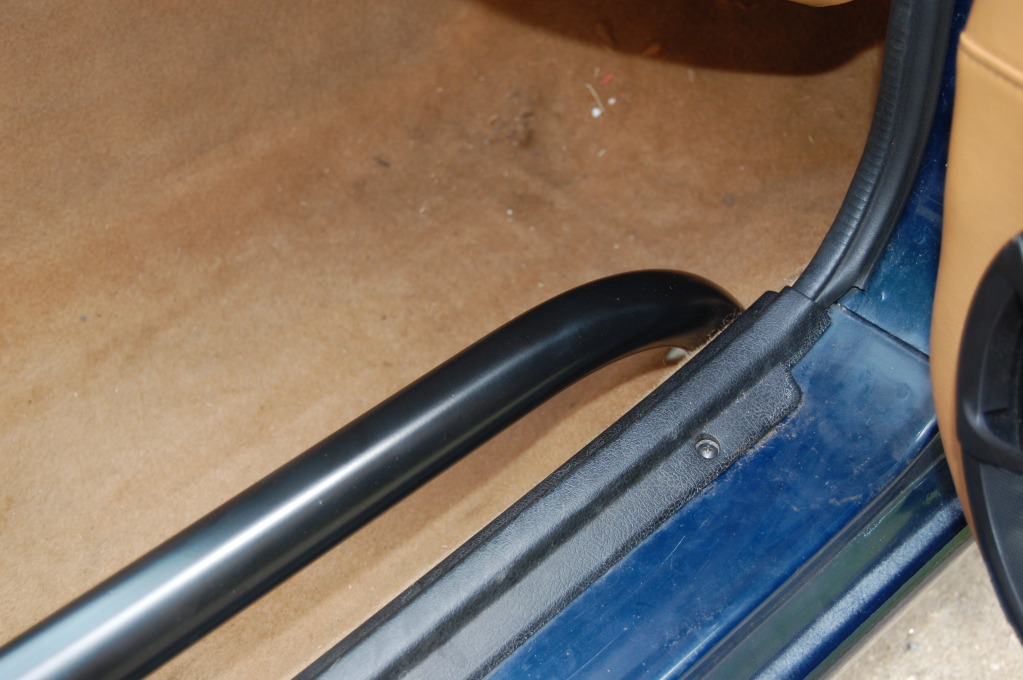

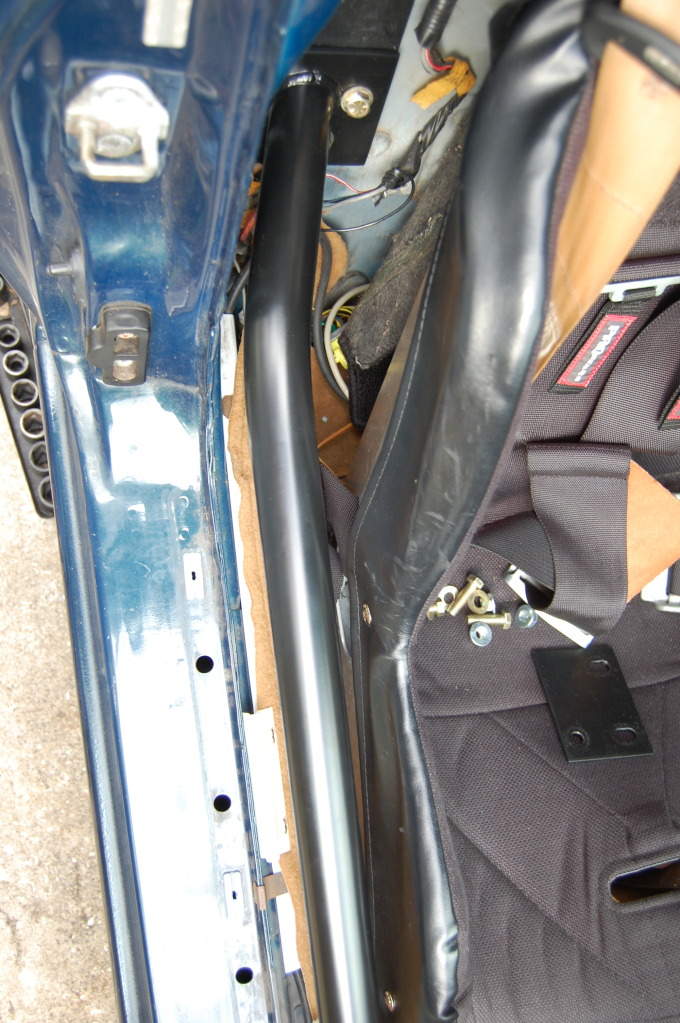

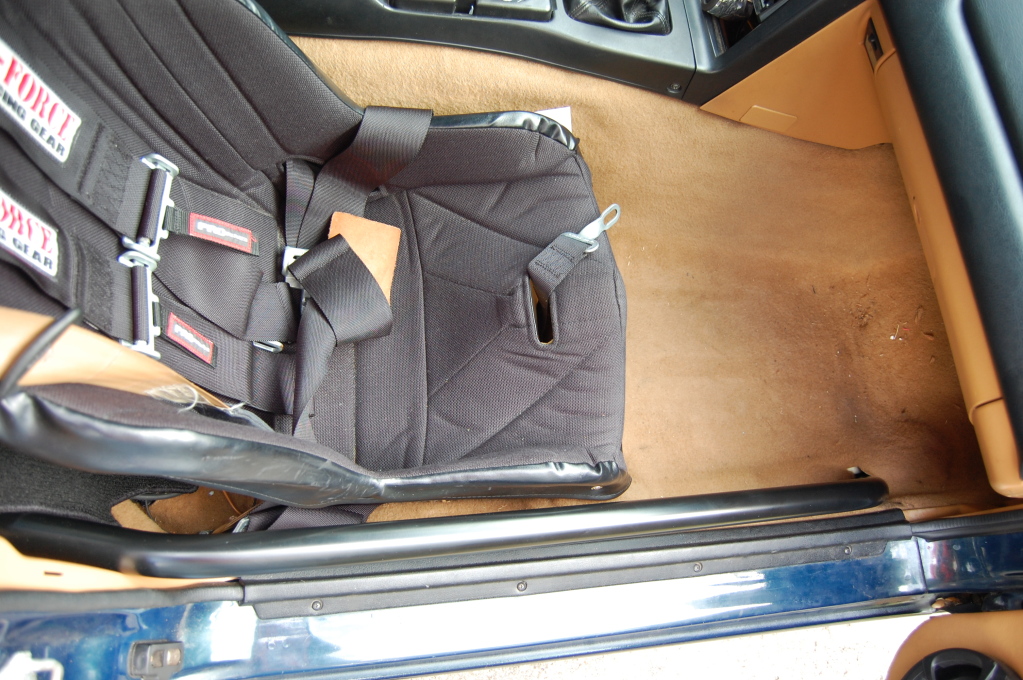

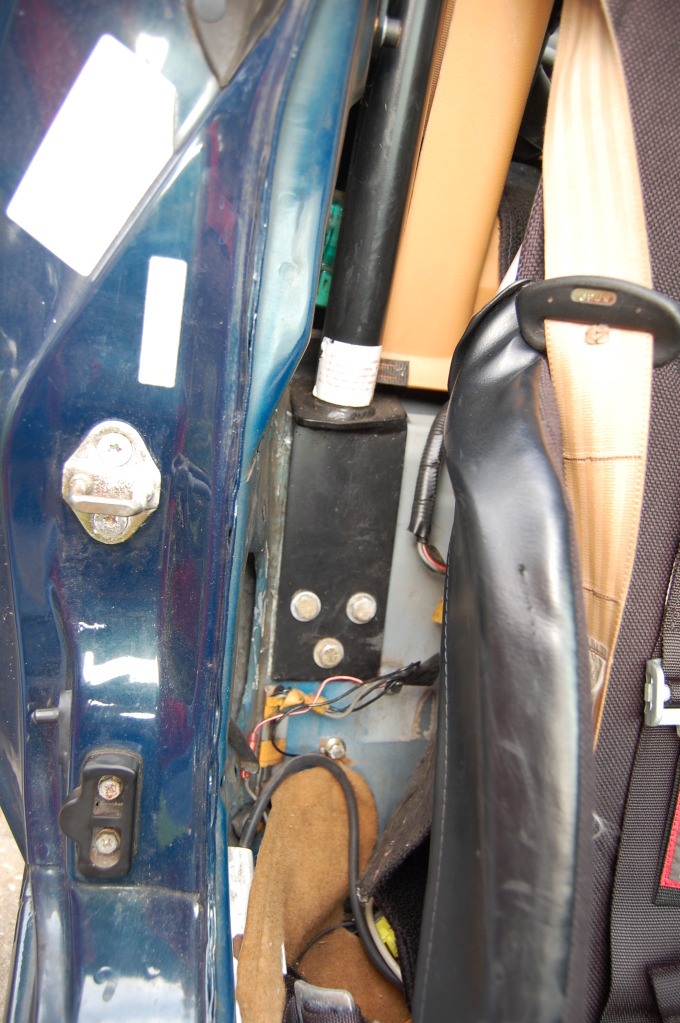

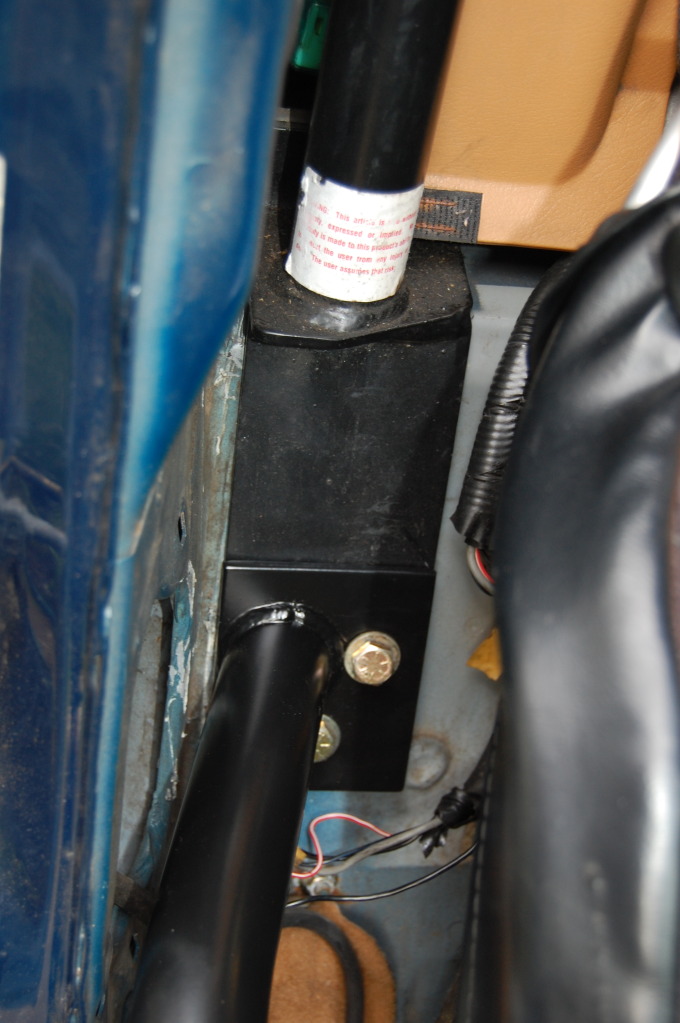

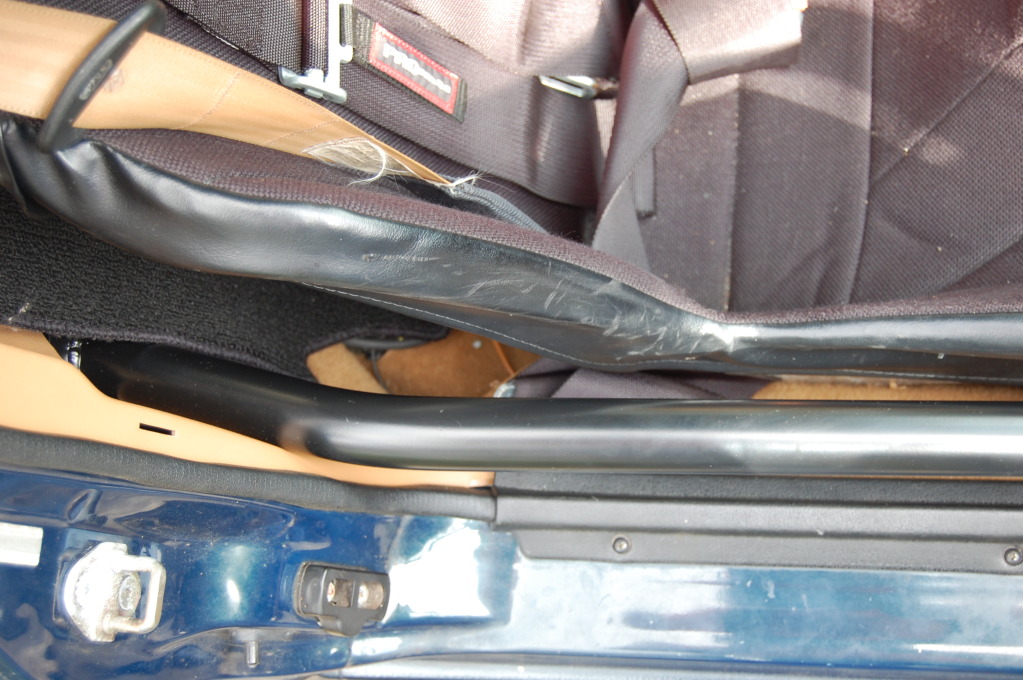

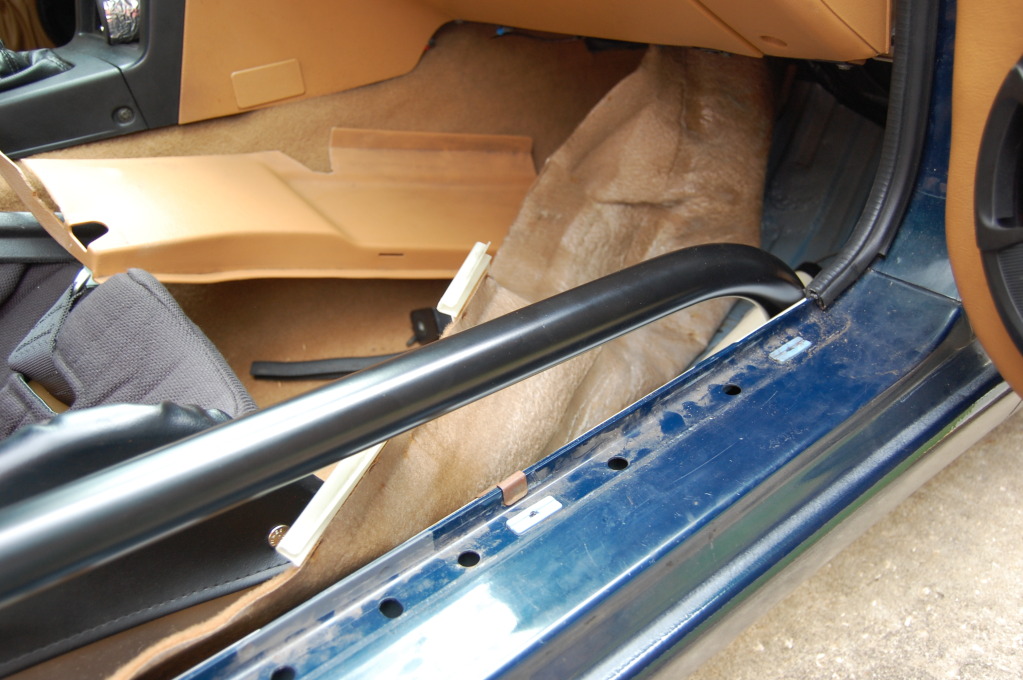

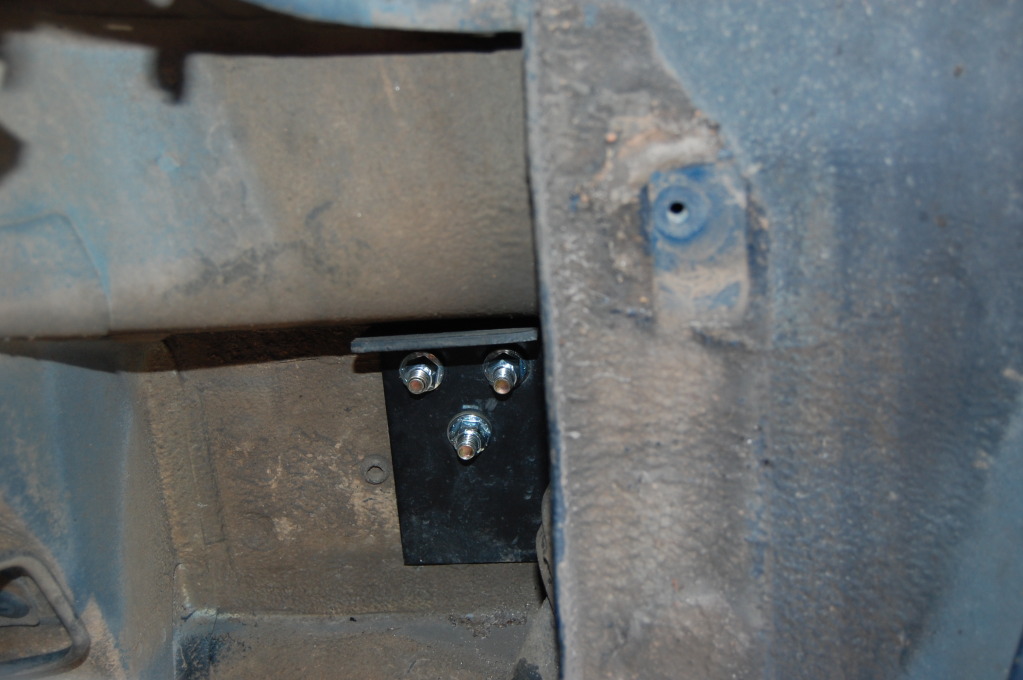

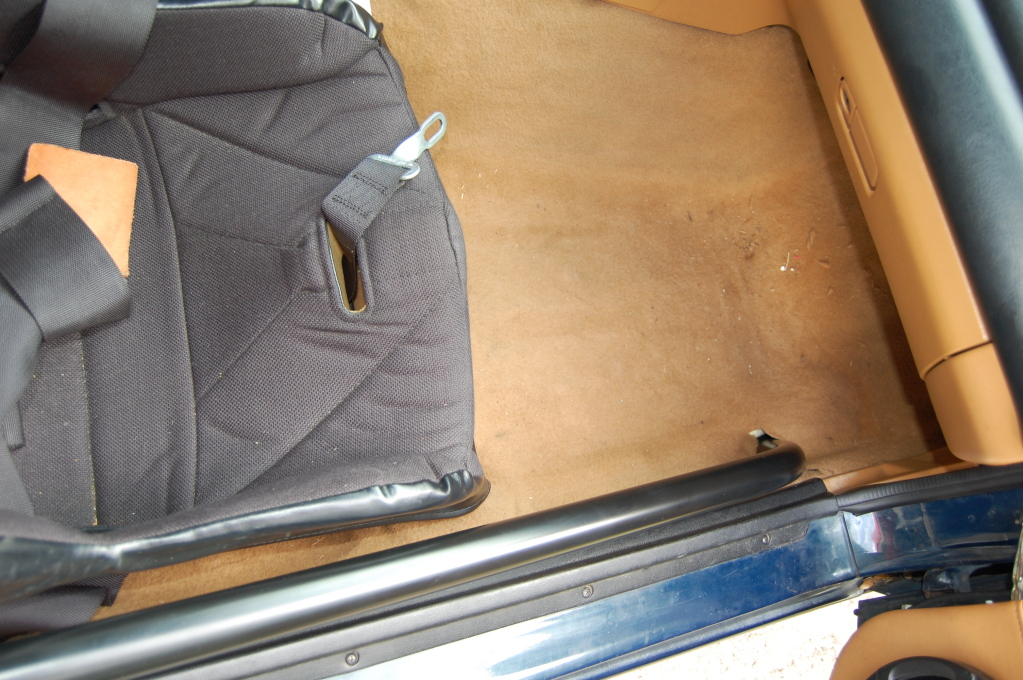

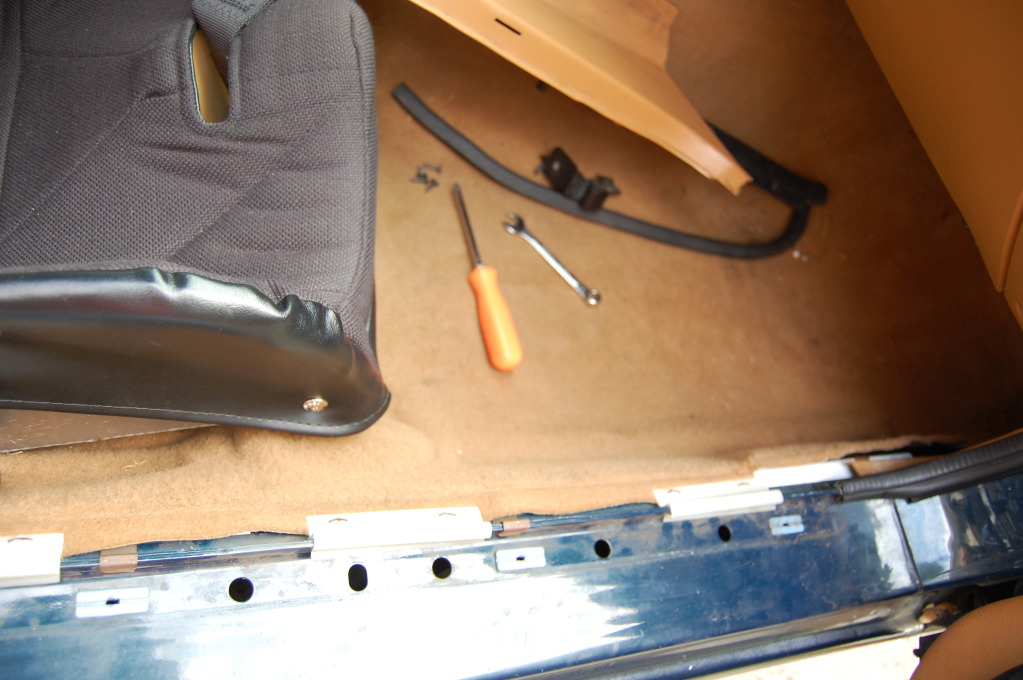

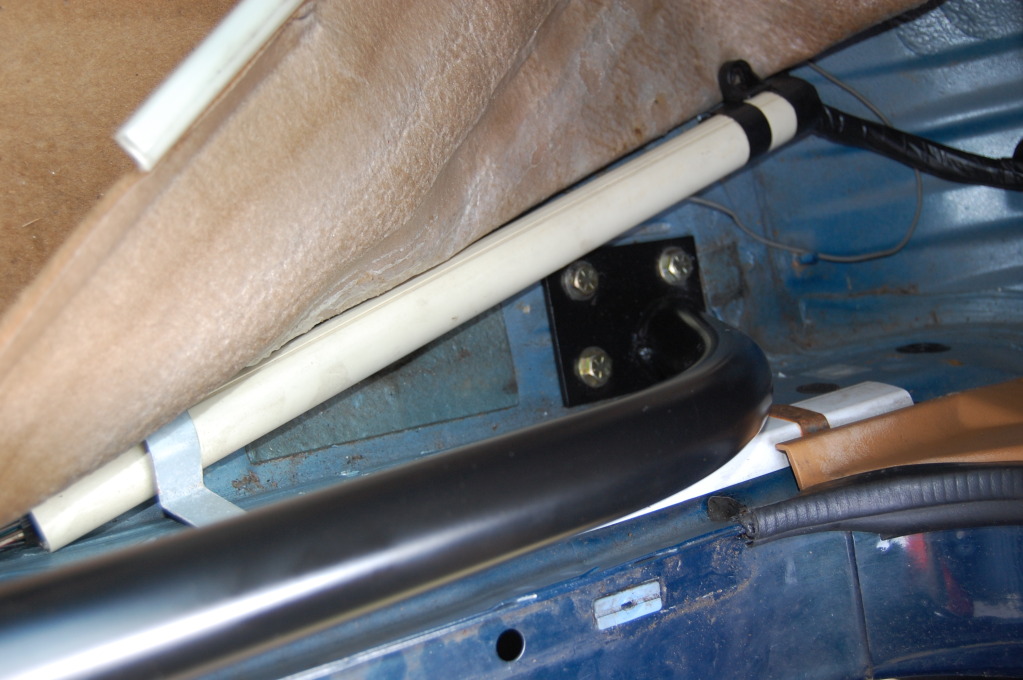

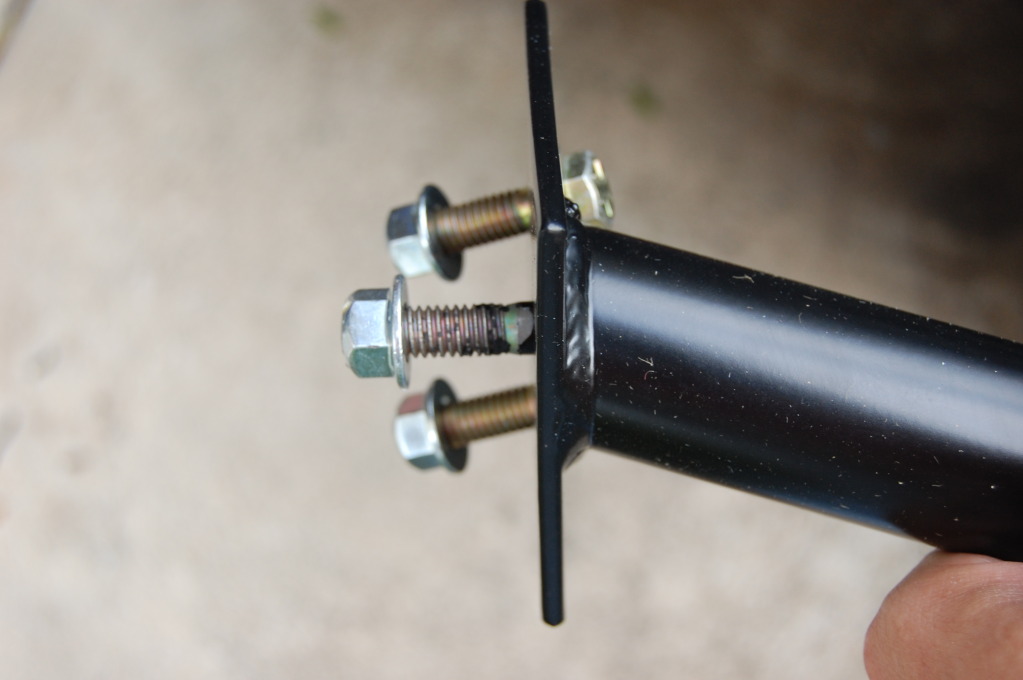

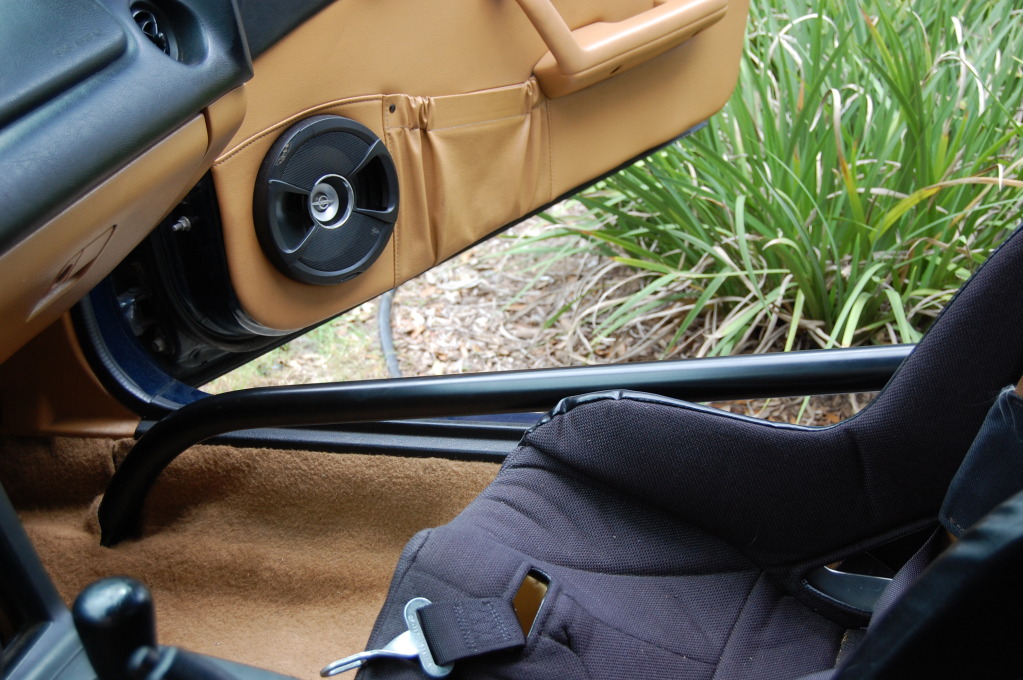

Hard Dog Door Bars Installed - Pictures-dsc_0124.jpg   Hard Dog Door Bars Installed - Pictures-dsc_0125.jpg   Hard Dog Door Bars Installed - Pictures-dsc_0128.jpg   Hard Dog Door Bars Installed - Pictures-dsc_0129.jpg   Hard Dog Door Bars Installed - Pictures-dsc_0130.jpg

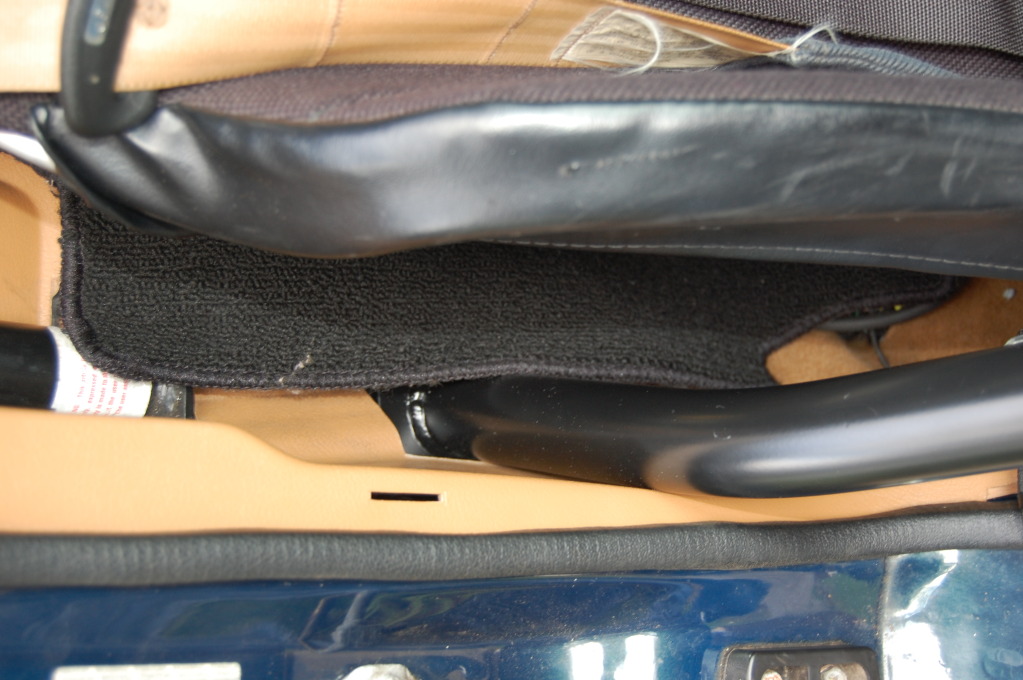

Hard Dog Door Bars Installed - Pictures-dsc_0132.jpg   Hard Dog Door Bars Installed - Pictures-dsc_0133.jpg   Hard Dog Door Bars Installed - Pictures-dsc_0135.jpg   Hard Dog Door Bars Installed - Pictures-dsc_0136.jpg   Hard Dog Door Bars Installed - Pictures-dsc_0137.jpg

Hard Dog Door Bars Installed - Pictures-dsc_0138.jpg   Hard Dog Door Bars Installed - Pictures-dsc_0139.jpg   Hard Dog Door Bars Installed - Pictures-dsc_0140.jpg   Hard Dog Door Bars Installed - Pictures-dsc_0141.jpg   Hard Dog Door Bars Installed - Pictures-dsc_0142.jpg

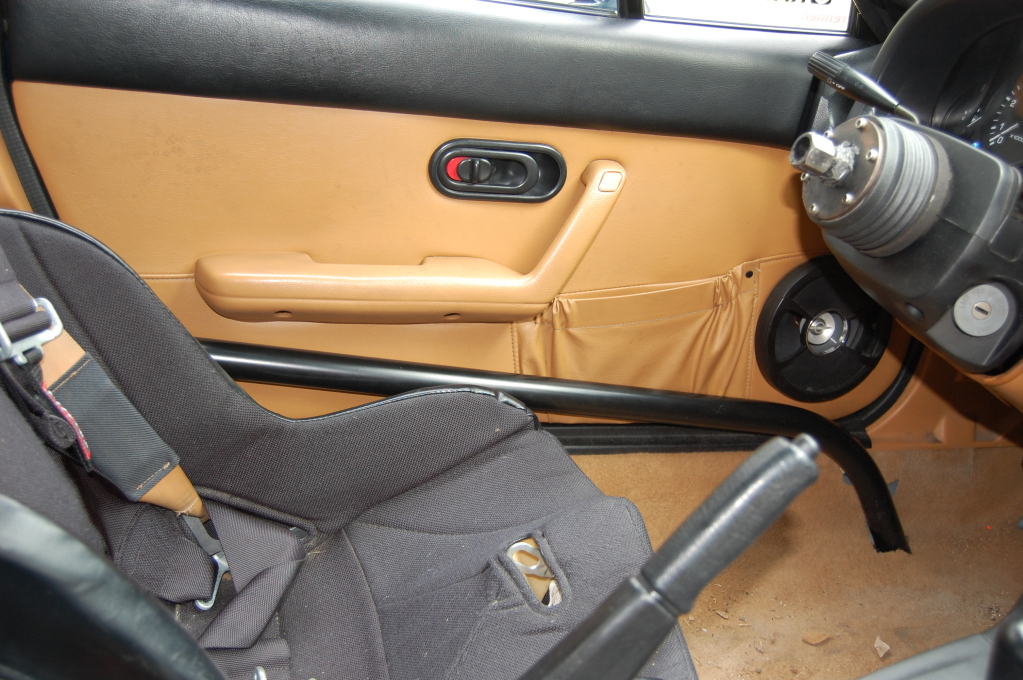

Hard Dog Door Bars Installed - Pictures-dsc_0143.jpg
sixshooter is offline   Reply With Quote
Old 10-28-2012, 11:11 PM   #2
Junior Member
iTrader: (1)

Join Date: Feb 2010
Location: Montreal, Canada
Posts: 55
Total Cats: 0
Default

They should put that last pic up on their site.

Thanks for sharing.
Adamsm is offline   Reply With Quote
Old 10-29-2012, 12:23 AM   #3
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

How's the car feel now? Is there a marked difference in stiffness? What about NVH?
matthewdesigns is offline   Reply With Quote
Old 10-29-2012, 02:23 AM   #4
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

I wanted these, and I bought them. I have yet to put them in, but I "test fitted" them in my car. Looks like a pain in the nuts to get in and out of, but that's a sacrifice I'm willing to make for added stiffness/ safety. Someday I will put them in. Nice photos! What year is your car/ what roll bar do you have?
Mine is a '99 with a Harddog Xtreme roll bar.
thirdgen is offline   Reply With Quote
Old 10-29-2012, 04:10 AM   #5
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Quote:
Originally Posted by thirdgen View Post
I wanted these, and I bought them. I have yet to put them in, but I "test fitted" them in my car. Looks like a pain in the nuts to get in and out of, but that's a sacrifice I'm willing to make for added stiffness/ safety.
Hah! Try getting in/out of a car with door bars designed for side-impact.

Sixshooter - how hard was it to drill through the floor for the bolts for the front mount?
ThePass is offline   Reply With Quote
Old 10-29-2012, 05:47 AM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Interesting, so they turn on of the bolts into a welded stud and weld the tube over it? Just don't damage the threads on that one bolt I guess.
curly is online now   Reply With Quote
Old 10-29-2012, 10:44 AM   #7
Moderator
Thread Starter
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Quote:
Originally Posted by matthewdesigns View Post
How's the car feel now? Is there a marked difference in stiffness? What about NVH?
I climbed in and out of the car on both sides but did not drive it yet. I don't predict any change in NVH but chassis stiffness should increase. I already have Stein's stainless frame rails which helped as well.

Quote:
Originally Posted by thirdgen View Post
I wanted these, and I bought them. I have yet to put them in, but I "test fitted" them in my car. Looks like a pain in the nuts to get in and out of, but that's a sacrifice I'm willing to make for added stiffness/ safety. Someday I will put them in. Nice photos! What year is your car/ what roll bar do you have?
Mine is a '99 with a Harddog Xtreme roll bar.
I have the Hard Dog M2 Sport DD with their padding/cover kit and my car is a '96. This bar provides no noticeable impediment to ingress and egress, which is one of the reasons why I wanted to post the pictures. I predicted it would be much more difficult when looking at the pictures on the Bethania Garage website.

I would have actually preferred them to be about two or three inches higher at the front to make me feel a bit more secure about side impacts but then people with manual windows would likely have interference with their hand cranks. The front bumper height of a stock F-250 is roughly even with the outside door handle so make sure you get hit by a PT Cruiser.

Quote:
Originally Posted by ThePass View Post
Hah! Try getting in/out of a car with door bars designed for side-impact.
This. A Spec Miata race cage is hard to get into. These are not even a nuisance. I am really pleased to say that they really are no difference to me.

Quote:
Originally Posted by ThePass View Post
Sixshooter - how hard was it to drill through the floor for the bolts for the front mount?
That's the only real problem I had. The flooring sheet metal is thin and too easy to drill through. There are multi-layer sections within a few inches of where this bolts in but not right where this bolts in. I am thinking of making a couple of pieces of thin plate to go under the foot and under the backing plate to spread the load a bit wider at the front and tie into the foremost bolt that holds my Stein's frame rail stiffener and a couple of other bolts to spread the load even better for good measure. Hard Dog probably doesn't do it to keep from being too intrusive but let's face it, the Miata is a sheet metal car and there isn't much structure to it to work with unless you are in the front or rear subframe areas anyway. Even the framerails are a joke. That is why it needs these bars in the first place.







Quote:
Originally Posted by curly View Post
Interesting, so they turn on of the bolts into a welded stud and weld the tube over it? Just don't damage the threads on that one bolt I guess.
I thought the same thing after I broke one of the grade eight bolts with my "Earthquake" impact gun set on #2 of 6 settings. I'm glad it wasn't a stud. I should be more careful.
Attached Thumbnails

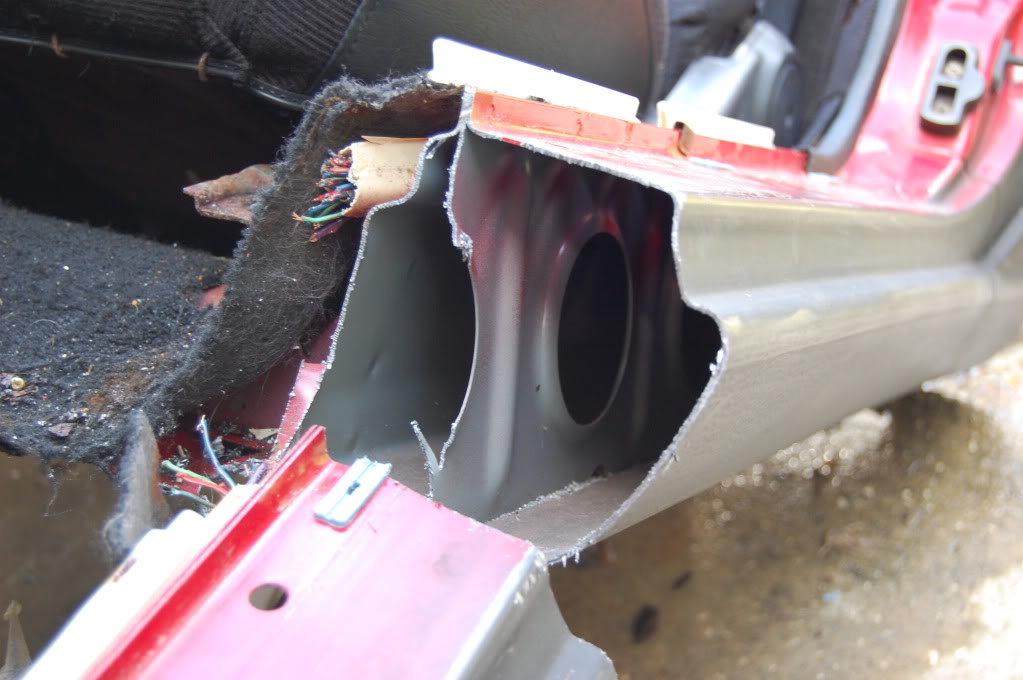

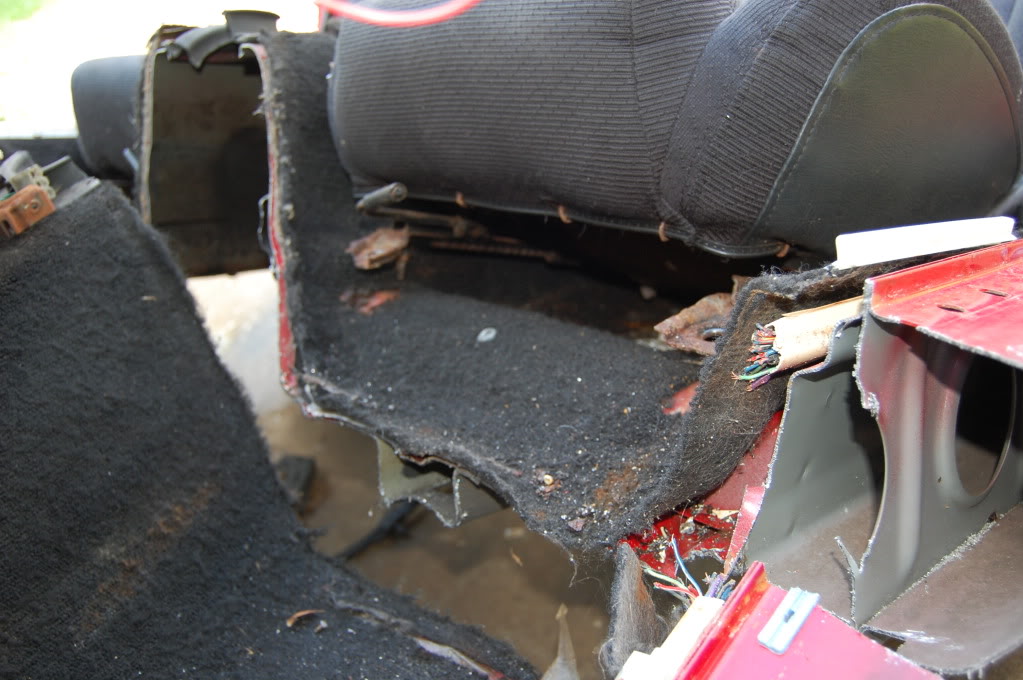

Hard Dog Door Bars Installed - Pictures-004975.jpg   Hard Dog Door Bars Installed - Pictures-004976.jpg   Hard Dog Door Bars Installed - Pictures-004977.jpg
sixshooter is offline   Reply With Quote
Old 10-29-2012, 04:36 PM   #8
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by matthewdesigns View Post
How's the car feel now? Is there a marked difference in stiffness?
I am 99.9% confident that Sixshooter will be reporting a big difference in chassis stiffness based on my own experience with the same door bars. It is a bigger improvement than frame rail braces, and a much bigger improvement than a hard top.

Also +1 on egress not degrading much. I had a set on my DD and they did not bother me, definitely not to the point of wanting to take them back out.
ZX-Tex is offline   Reply With Quote
Old 10-29-2012, 05:17 PM   #9
Moderator
Thread Starter
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Quote:
Originally Posted by ZX-Tex View Post
I am 99.9% confident that Sixshooter will be reporting a big difference in chassis stiffness based on my own experience with the same door bars. It is a bigger improvement than frame rail braces, and a much bigger improvement than a hard top.
You've got me wanting to go home and drive it. I can't wait for Road Atlanta, my next track day, to see what differences I can feel.
sixshooter is offline   Reply With Quote
Old 10-29-2012, 06:23 PM   #10
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

What seats are you using? When I test-fitted my door bars in my car (2001 w/leather seats), they were extremely tight. I made a 1/8" spacer for the front inside two bolts to rock the bar over closer to the door. The bar made slight contact with the door when closed, and significant contact with the seat (read: side bolster was significantly compressed and seat was a pita to re-isntall). Ingress/Egress didn't bother me, but my wife hated them, so I sold them.
Mobius is offline   Reply With Quote
Old 10-29-2012, 07:11 PM   #11
Newb

Join Date: Oct 2012
Posts: 8
Total Cats: -5
Default

I really enjoy my hard dog door bars too.
rwdxtacy is offline   Reply With Quote
Old 10-30-2012, 12:05 AM   #12
Moderator
Thread Starter
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

I have the Kirkeys that are pictured. There are several inches of free space on either side of them and plenty of room between them and the bars. It isn't an issue.
sixshooter is offline   Reply With Quote
Old 10-31-2012, 03:01 AM   #13
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

I had the Boss Frog version in the black car before I put the '90 together. They bothered me for DD but did stiffen things a lot. On that car I had a full butterfly, door bars and frog arms. I put the car up on jackstands once (pinch welds). I was off on tooth on one corner and the car tripoded about the length of the errant jackstand tooth. The car was STIFF for an open top.
mr_hyde is offline   Reply With Quote
Old 11-01-2012, 08:13 PM   #14
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

Thanks for the pics.

I never understood the front mounting. Turning down and bolting to the floor always seemed silly compared to going forward and tying in up higher. Then I tried to figure out how to do it and Hard Dog's solution made sense.

Still, a straight bar between the rear bulkhead and the front frame rail seems like the thing.
DaveC is offline   Reply With Quote
Old 11-01-2012, 11:39 PM   #15
Junior Member
iTrader: (2)

Join Date: Oct 2009
Location: San Jose, CA
Posts: 92
Total Cats: 7
Default

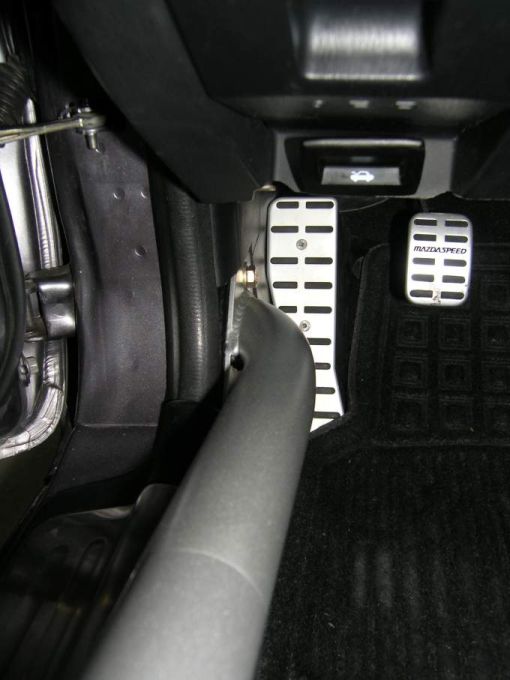

Bolting to the floor makes it easy to install for your average DIY'er. Blackbird Fabworx 6 point bar uses the rocker panels which are quite a bit stiffer but you'll need to weld a plate first to accept the bars.
Attached Thumbnails
Hard Dog Door Bars Installed - Pictures-bfw_doorbarmount_v2.jpg
newold_m is offline   Reply With Quote
