Old 09-08-2011, 09:40 PM   #21
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

love it! looks great. i used all the same materials except for the abs sheet. my buddy made it out of aluminum. How is it handling without a wing. did your car understeer alot before you added the splitter? If i even flatten the angle of my wing a little, the back end gets loose and slides all over the place.
spoolin2bars is offline   Reply With Quote
Old 09-08-2011, 09:42 PM   #22
Newb

Join Date: Feb 2010
Location: SoCal
Posts: 1
Total Cats: 0
Default

Looks Great.
bludblu is offline   Reply With Quote
Old 09-08-2011, 09:51 PM   #23
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,177
Total Cats: 2,579
Default

Quote:
Originally Posted by y8s View Post
bring out the gimp.
Zed is dead
18psi is offline   Reply With Quote
Old 09-09-2011, 04:48 AM   #24
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Looks real similar to the one I built for Spoolin's car last winter. This is going to be the new trend on the track cars. Waiting for someone to angle it forward like a wedge, following the angle off the top part of the bumper.


Because racecar
jacob300zx is offline   Reply With Quote
Old 09-09-2011, 07:59 AM   #25
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

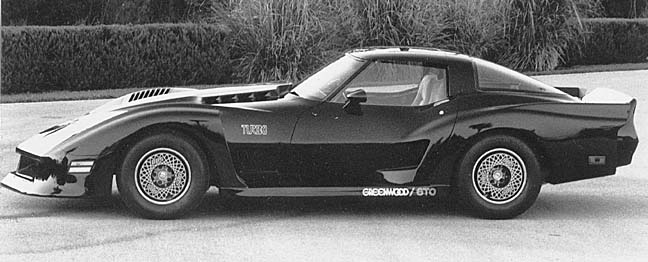

Make the front and rear longer and pointier, add a Fastback HT:




Making the front (including the splitter) longer (1 foot or so) will give a lot higher probability for curb interaction (and aerodynamic pitch pumping).
But why not try, it's just plywood, alu and plastic sheets.
Attached Thumbnails
Home made splitter/air dam/ducting-gtoleft.jpg
NiklasFalk is offline   Reply With Quote
Old 09-09-2011, 01:05 PM   #26
Junior Member
iTrader: (6)

Join Date: Aug 2007
Location: Houston, TX / Lafayette, LA
Posts: 269
Total Cats: 2
Default

Quote:
Originally Posted by Techsalvager View Post
how much did that ABS slab run you?
I was able to find 8x4 sheets of 1/4" ABS locally for $35 and 1/2" for $75. just to give you a ball park.
tann3r is offline   Reply With Quote
Old 09-12-2011, 11:44 AM   #27
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I really, really like this splitter/bumper. Very nice work. Cheap, looks good considering, and most of all functional. Awesome.

Quote:
I think I'm going to make a frame around the radiator with aluminum angle iron, rivet the flashing to the frame, and seal the frame against the radiator with weather stripping. That will have the added benefit of making the ducting and/or radiator removable without re-doing a tape job every time.
Excellent idea. This guy who is local to me did the same sort of thing on his track Miata (V8 conversion). Look down towards the bottom of the thread.
http://forum.miata.net/vb/showthread.php?t=424672

My splitter is very similar to yours except for the vertical air dam. I considered that approach once before and chickened out. But now that I have seen it, I REALLY want to do it now. It looks like it takes care of covering up the front tires when viewed from the front. Can you post a front-on picture? It also looks like adding cutouts for things like brake ducting and tow hooks would be easy.

I would not worry about the Home Depot hardware unless you just want to upgrade it for looks. I have been using the same stuff for the front braces on mine and it works great. Track tested, no problems.

+1 on getting ABS from a local sign shop. That is what I do.

Alumalite would be nice but I am sticking with birch for my splitter so that when it is inevitably damaged the replacement material will be cheap and readily available.

MORE PICTURES!

Last edited by ZX-Tex; 09-12-2011 at 11:57 AM.
ZX-Tex is offline   Reply With Quote
Old 09-12-2011, 11:53 AM   #28
Junior Member
Thread Starter

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

I installed a new radiator and re-did the ducting with AL angle iron and weather stripping which worked perfectly.

The air dam covers most of the tires, an inch or so still sticks out with 225 A6's on 15x9 6UL's. To get them completely covered I'd need flare out the fender where the top of the air damn mounts.

more pics coming soon
Handy Man is offline   Reply With Quote
Old 09-12-2011, 12:11 PM   #29
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

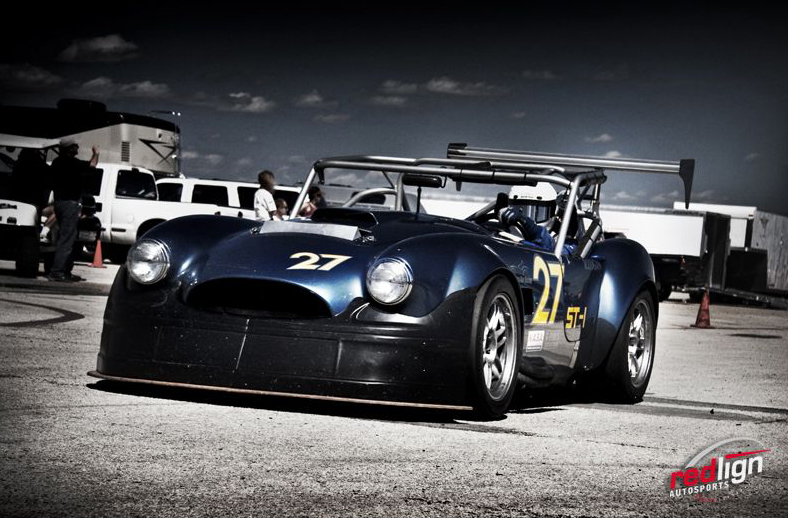

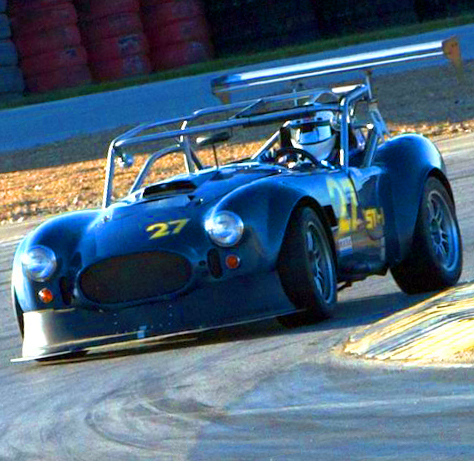

Another option for filling that gap between splitter and nose is trimming down a stock car nose....that's what I did here. They are cheap/durable...and a little more aerodynamic. Two different versions, first was more aesthetically pleasing but second was VERY effective.

The splitter on the first was sheet almuninum, the second was 1/2 birch with single layer of glass top/bottom. Very cheap and DIY. And most important easily reproduced because you will lose it! Well, at least if racing anyway.
Attached Thumbnails
Home made splitter/air dam/ducting-cobra3.jpg   Home made splitter/air dam/ducting-ryanlogan27.jpg
rlogan is offline   Reply With Quote
Old 09-12-2011, 12:38 PM   #30
Junior Member
Thread Starter

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

Both look good. I like how you used the curve of the nose to blend it to your car.

Speaking of losing the splitter, I'll be racing the 50th Annual Weatherly hill climb next weekend...which includes a jump! I'm sure it will destroy the splitter, and I can't wait!
Handy Man is offline   Reply With Quote
Old 09-17-2011, 08:59 PM   #31
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

You could add some temporary spacers to raise up the bump stops.
ZX-Tex is offline   Reply With Quote
Old 11-09-2011, 02:57 PM   #32
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

FWIW I am about to do this on my 1994 LS1 track Miata. I have everything I need in hand so I just need to do it.
ZX-Tex is offline   Reply With Quote
