Default Hood pins

Shopping for some hood pins. I am trimming the fat on the underside of my hood (the bracing) so I must run pins. This is to cut weight obviously, not for "looks"...

This is for a track/street car. Two options here...

1) Remove stock latch system and run something like these (any experience with these kind of pins). This would allow me to remove the stock latch and still lock the hood if I'm driving on the street.

NRG HOOD LOCK PINS/PIN KIT REAL BLACK CARBON FIBER NEW : eBay Motors (item 280299438916 end time Apr-29-10 00:46:57 PDT)

2) Go the more conventional way and run real "pins".. I would like to remove my latch system to take some weight off, but again.. it's a street car as well and I don't want anyone to be able to just go into my engine bay.

Aluminum Hood Pin Kit 1/2" Pin Black IMCA Circle Track : eBay Motors (item 350332763556 end time Apr-23-10 21:55:08 PDT)


What would you do?
falcon is offline   Reply With Quote
Old 04-02-2010, 06:41 PM   #2
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

i have pins on my car,on the street,and No one has ever touched them.
(G)
Reverend Greg is offline   Reply With Quote
Old 04-02-2010, 06:47 PM   #3
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I may go for the sparco ones. With the sliding pin...
falcon is offline   Reply With Quote
Old 04-02-2010, 06:52 PM   #4
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

I made my own,way cheep...like $3 in Materials-4hrs time.
(G)
Reverend Greg is offline   Reply With Quote
Old 04-02-2010, 06:55 PM   #5
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

meh... I'm all about easy. I'll pay an extra $10 to have them made already... lol
falcon is offline   Reply With Quote
Old 04-02-2010, 07:16 PM   #6
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

See if you can get miata2fast to tell you where he bought his. They are lightweight and much better looking than those oldschool ones.

My buddy just got some really nice looking ones for his CF hood on his 350z. I'll see if I can find them. Much better looking than the ones you linked.
sixshooter is offline   Reply With Quote
Old 04-02-2010, 07:24 PM   #7
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

You could always run the AeroCatch latches if you are worried about security... They have a locking mechanism in one of their models. They are a little pricey however if you are on the cheap. Are you only pinning the front or entire hood?
thagr81 us is offline   Reply With Quote
Old 04-02-2010, 07:25 PM   #8
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

thesnowboarder is offline   Reply With Quote
Old 04-02-2010, 07:29 PM   #9
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

The key here is functional and cheap guys...

lol.
falcon is offline   Reply With Quote
Old 04-02-2010, 07:51 PM   #10
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Quote:
Originally Posted by falcon View Post
The key here is functional and cheap guys...

lol.

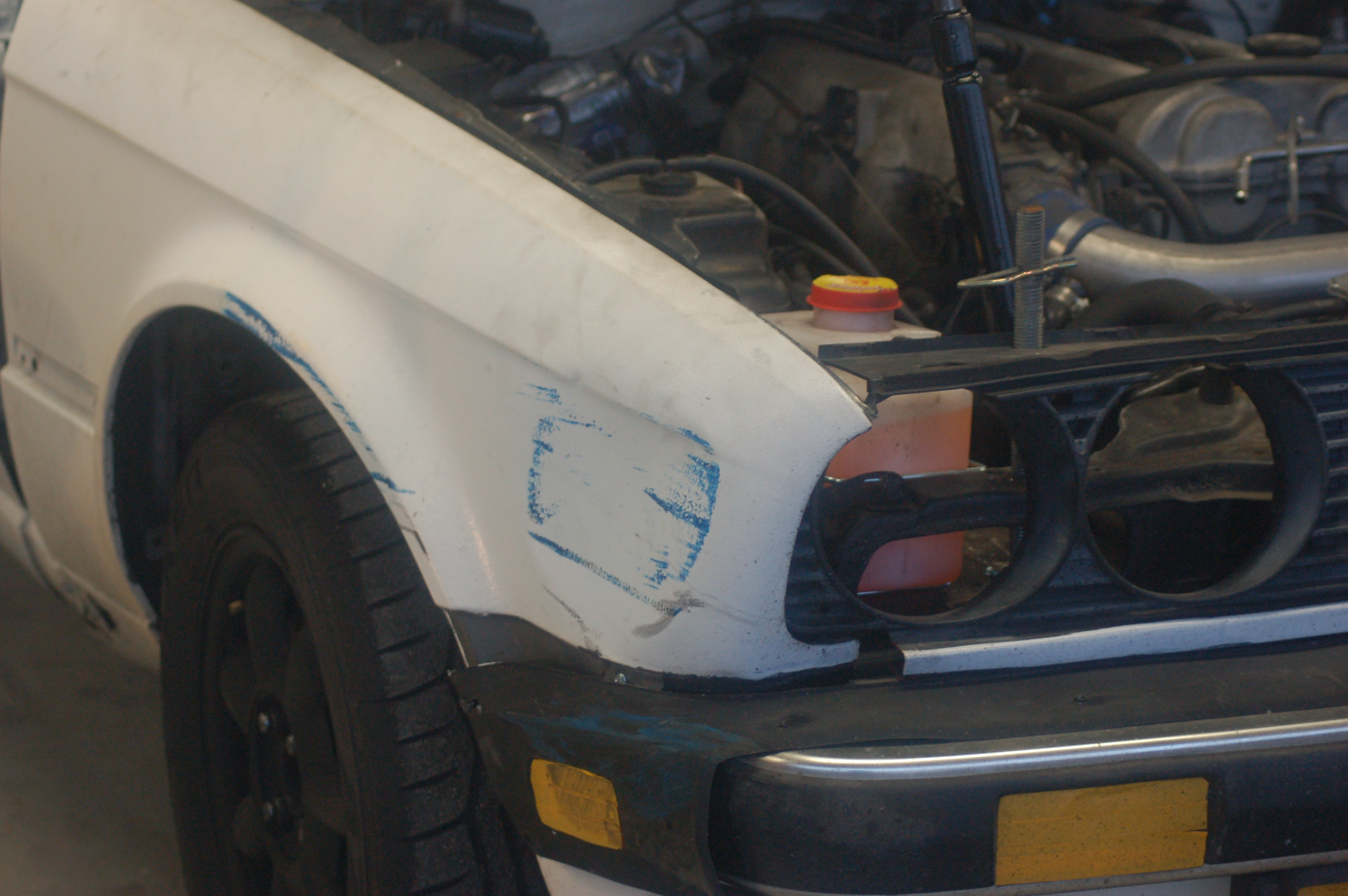

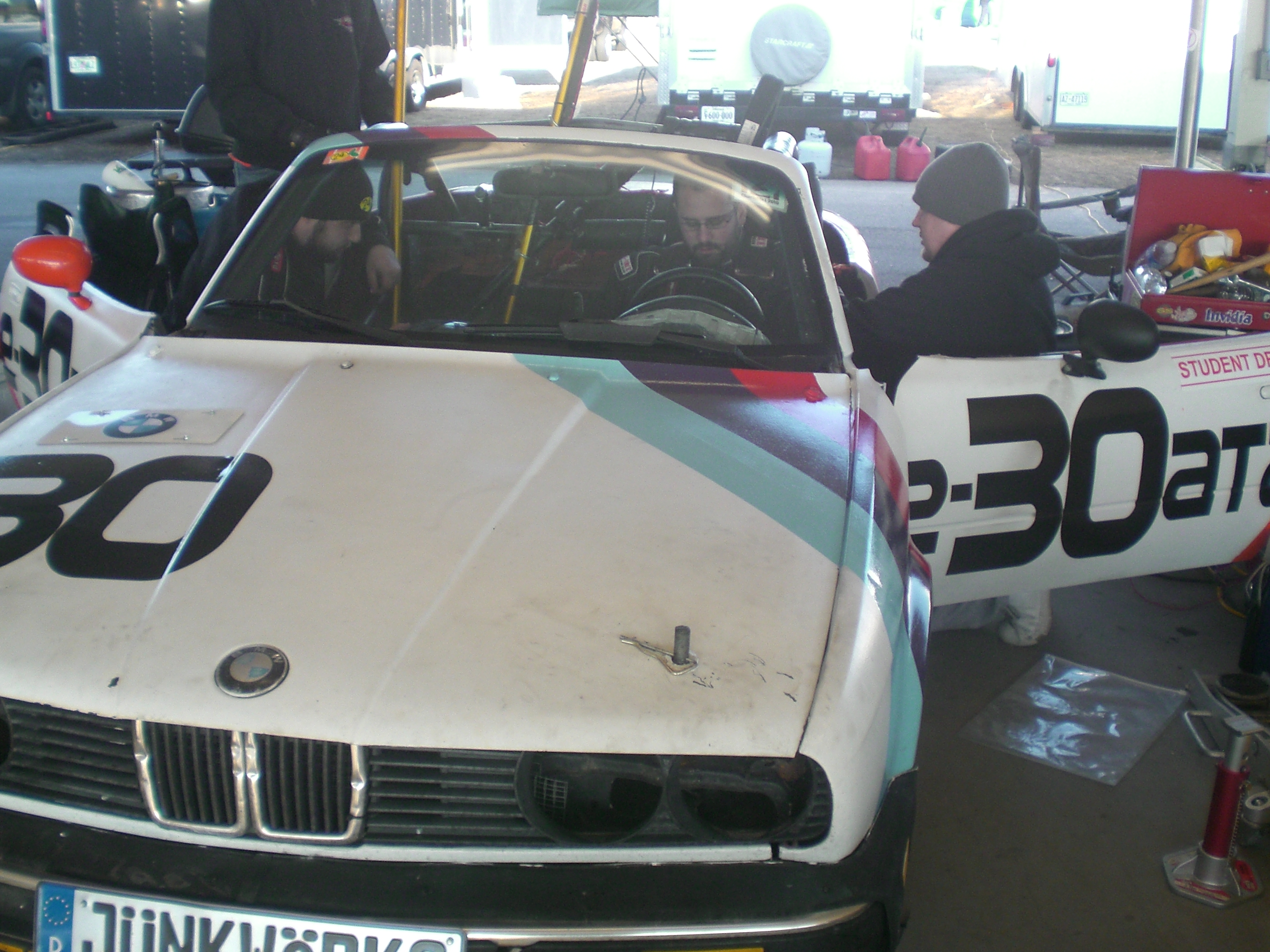

Functional and cheep, look at our lemons car! Find yourself some 3/4" all thread and drill some holes, weld all thread to radiator support than drill some holes and get a couple of clips off a trailer hitch...done!

Name:  hoodpin.jpg
Views: 16
Size:  2.77 MB

Name:  hoodpin2.jpg
Views: 19
Size:  2.44 MB

Name:  hoodpin1.jpg
Views: 17
Size:  3.10 MB
IcantDo55 is offline   Reply With Quote
Old 04-02-2010, 07:58 PM   #11
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Haha... well, not that cheap. They have to look somewhat nice.

I`m just not down for paying for aerocatch or anything silly like that. Those are overkill and for the most part street cars and show cars.
falcon is offline   Reply With Quote
Old 04-02-2010, 08:00 PM   #12
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Don't be a hater!
IcantDo55 is offline   Reply With Quote
Old 04-02-2010, 08:08 PM   #13
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

On the cheap I would do it lemons style. But really I want the security and the flush of the aerocatch.
turotufas is offline   Reply With Quote
Old 04-02-2010, 08:09 PM   #14
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Then just get a set of regular hood pins that suit your style... Done.
thagr81 us is offline   Reply With Quote
Old 04-02-2010, 09:33 PM   #15
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

I did the $12 summit racing ones, on the inside of the headlights. You'll have to take out the rubber stopers and drill the holes out a bit. The rivet in the back of the channel is a bitch to get to. Put a small metal bead (as in jewlery bead) on the rivet so it'll reach down there, or go from the bottom if you have the room. Get a set with as much aluminum as possible so it won't rust. Unfortunetly my pins are steel amd have rusted. Meh.
curly is offline   Reply With Quote
Old 04-02-2010, 09:35 PM   #16
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Oh, and don't forget the latch system weighs next to nothing. I got rid of it for my intercooler setup, not for weight savings.
curly is offline   Reply With Quote
Old 04-02-2010, 09:41 PM   #17
Junior Member
iTrader: (1)

Join Date: May 2009
Location: Niagara Falls, ON
Posts: 433
Total Cats: 0
Default

Sparcos ftw. Mine are going on when body works gettin done if theres a spot to mount the dam bolt :S
stranges12712 is offline   Reply With Quote
Old 04-02-2010, 09:48 PM   #18
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I just bought the Mr Gasket (or whatever brand they are) hood pins sold at the local parts store (Advanced Auto). They were cheap and made from SS. I mounted them where the rubber stops are located just behind the head lights (NA). Perfect Spot.

I drilled a hole in the center of the existing stops and slid them over the pins. Works great, tested to 130+ MPH (never mind where ) with no problems.

These...
http://www.mr-gasket.com/ProductDeta...ch=hood%20pins
ZX-Tex is offline   Reply With Quote
Old 04-02-2010, 09:53 PM   #19
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,904
Total Cats: 109
Default

I got mine from Autozone. Very cheap, light weight, and fuctional. You want to make sure that the stud is aluminum, some cheapies come with steel studs which will make you have aids.

I like the baller Aerocatch latches.

I do not recommend cutting the bracing on the factory aluminum hood. The net gain you get is not worth the sacrifice. I am all about radical weight savings, but having a floppy flimsy hood sucks. You can find all kinds of weight savings, and still have a car that looks good and is not a rattle can.
miata2fast is online now   Reply With Quote
Old 04-02-2010, 09:54 PM   #20
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,904
Total Cats: 109
Default

Quote:
Originally Posted by ZX-Tex View Post
I just bought the Mr Gasket (or whatever brand they are) hood pins sold at the local parts store (Advanced Auto). They were cheap and made from SS. I mounted them where the rubber stops are located just behind the head lights (NA). Perfect Spot.

I drilled a hole in the center of the existing stops and slid them over the pins. Works great, tested to 130+ MPH (never mind where ) with no problems.

These...
Mr. Gasket :: Product Details
+1

What I did, and works great.
miata2fast is online now   Reply With Quote
