I got a door from sixshooter, and armed with a cut-off tool I started gutting the door. It looks like it will be a full on race gut job with lexan windows.

I would like to see how others here have gutted their doors. Looking for ideas to make it as aesthetically pleasing as possible.

I would really like to keep my stock doors intact, and have the gutted doors for the racetrack. Is this a bad idea?
miata2fast is offline   Reply With Quote
Old 09-12-2011, 01:45 PM   #2
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

I just gutted mine recently and did a bit of a break down with photos on the process I went through in my project thread. I'll copy/paste that post here, hope it helps!
The thread: http://clubroadster.net/vb_forum/showthread.php?t=44470

Quote:
Originally Posted by ThePass View Post
So another few days spent working on the car in my spare time...

I've been meaning to lighten the doors for a while now. Lighter = faster, and in the words of Ricky Bobby, "I wanna go fast!!!"

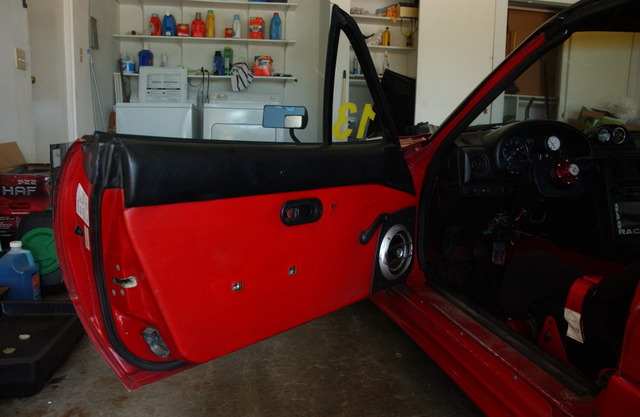

So here's how the doors looked Monday morning:



I began dissasembling things and recalled that back in the day I had added Fatmat to the driver's door to eliminate some rattling from the speakers (it never helped). This was not fun to scrape off:



The passenger side thankfully did not have that. Here it is with aleverything that can be simply unbolted removed:

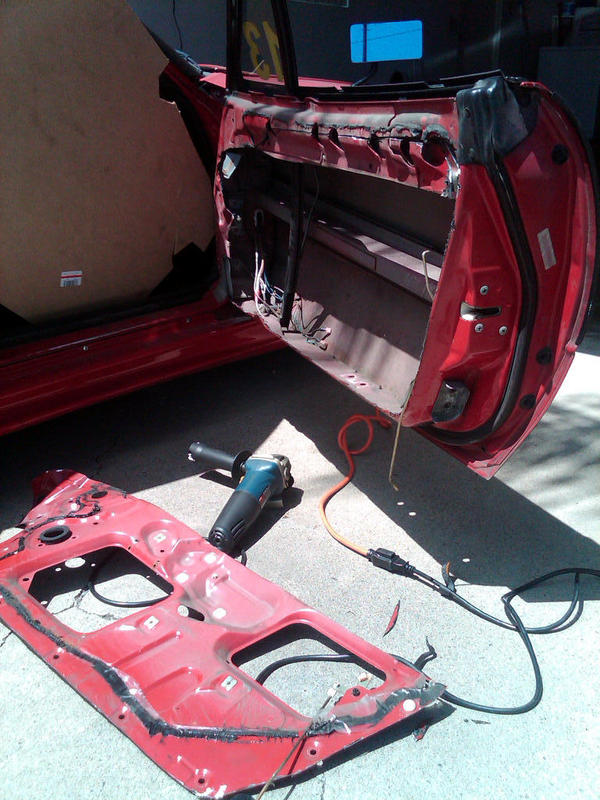

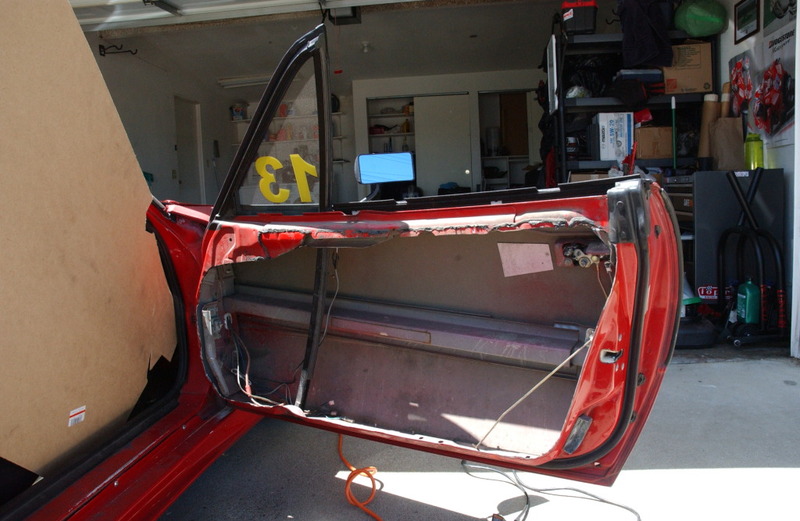

Then I got out the cutting tools and got to work:



Near the top of the door there are three layers of steel, so I cut up into that and removed as much as I felt I could while keeping the door rigid:



Test-fit the elbow pad and some rubber trim around the cut edge:



But, in the picture above, you can see that there is still a heavy cross-brace that runs through the door. This I cut out as well, but didn't take an in-progress picture of. In the finished pics you can see how it is missing.

Now we get on to the condundrum: how to keep the car streetable with gutted doors??

I wanted to be able to put the glass in place for street driving and so it could be secure when parked, but removeable for competetive use.

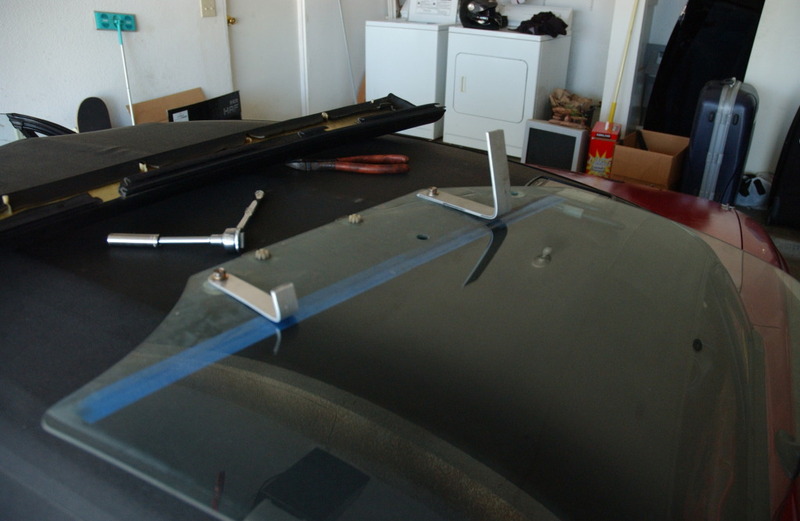

Here is the solution being made. The blue tape marked where the top edge of the door sat in relation to the window, so I could adjust these hooks so that the window sits exactly as it did when normally rolled up:

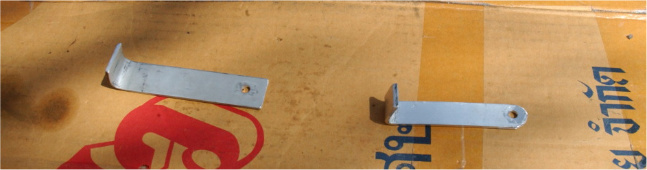

The hooks finished and awaiting paint:



Notches needed to be cut in the rubber on the door where the hooks would sit:

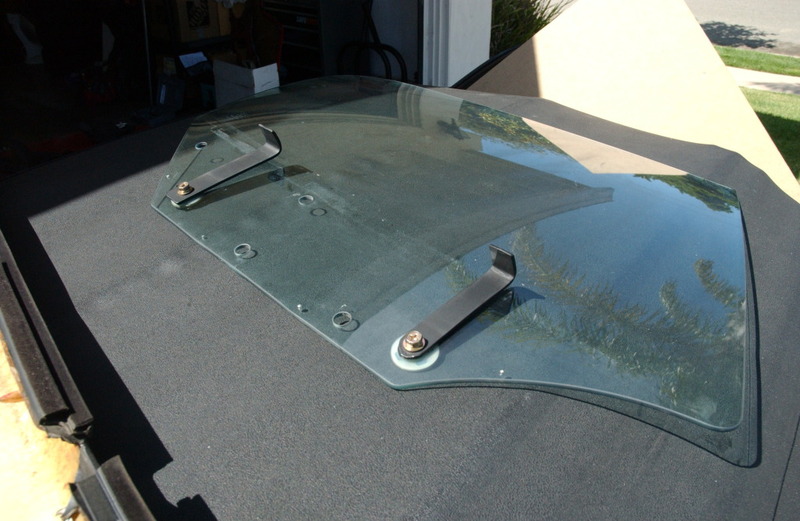

The finished hooks mounted on the window:

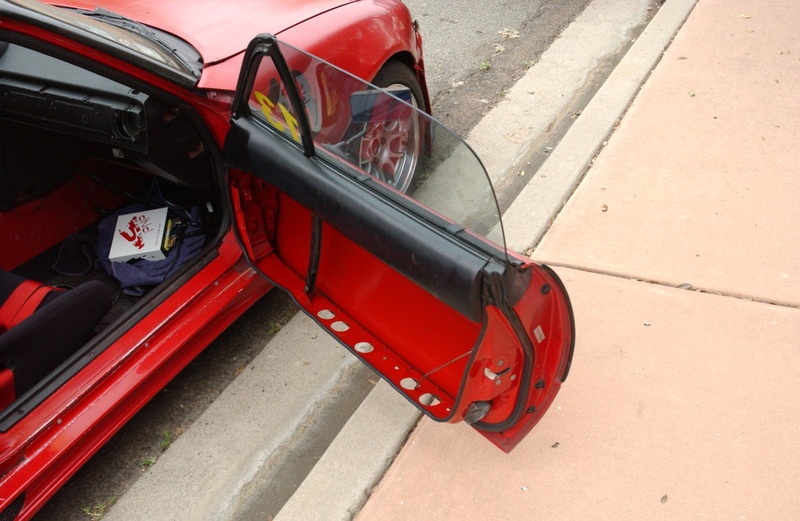

The window mounted in the door. It literally just sits in this position quite securely, but I can pull the windows out in 10 seconds. With the door shut, they can't be removed. Totally secure.

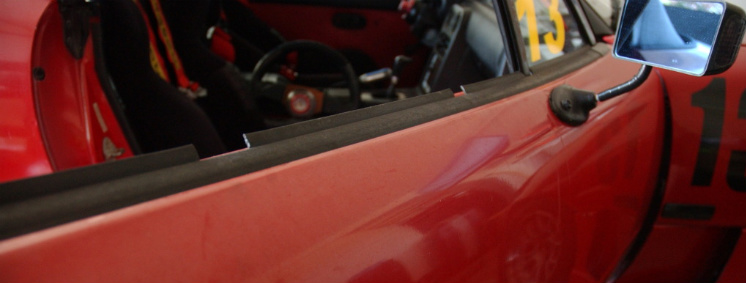

Then I painted the inside of the doors and finished them with the elbow pad and rubber trim. The finished product, window in place. I'll be adding a wire that will serve as the interior door latch pull later:



And the passenger door. You'll see that I removed a little more weight with the hole saw in the bottom of the doors:



The doors still have the exterior handle and lock, and the interior door handle will be a wire attached to the front of the door that runs back to the latch at the rear. Just pull on the wire and the door latch pops open.

But wait... how much weight was saved?

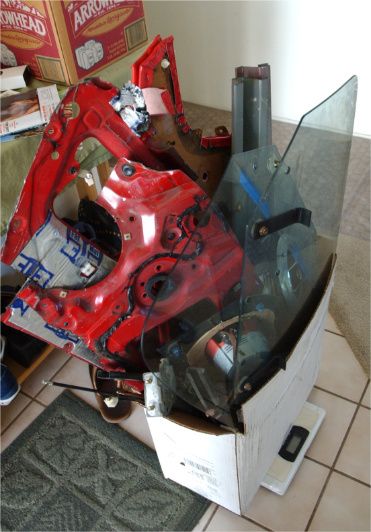

I threw everything I had removed in a cardboard box:





Then I remembered that the crossovers for the speakers were still in the footwells, so I removed those, which are easily another half pound together.

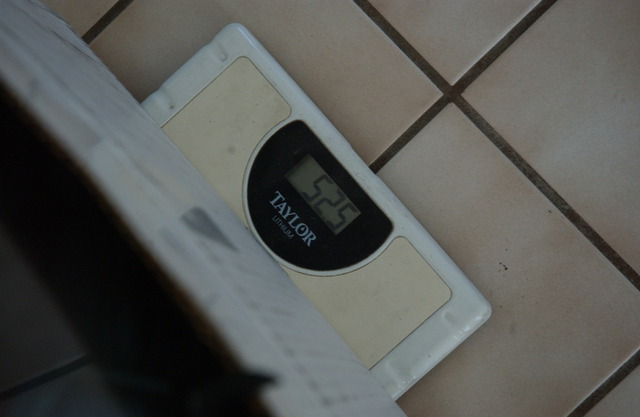

So, total weight pulled from both doors: 52.5 lbs

I then went through the car and pulled out all of the speaker wire and amplifier wiring, and weighed that with the amplifier that I removed: 12 lbs

So, total weight saved: 64.5 lbs
Attached Thumbnails

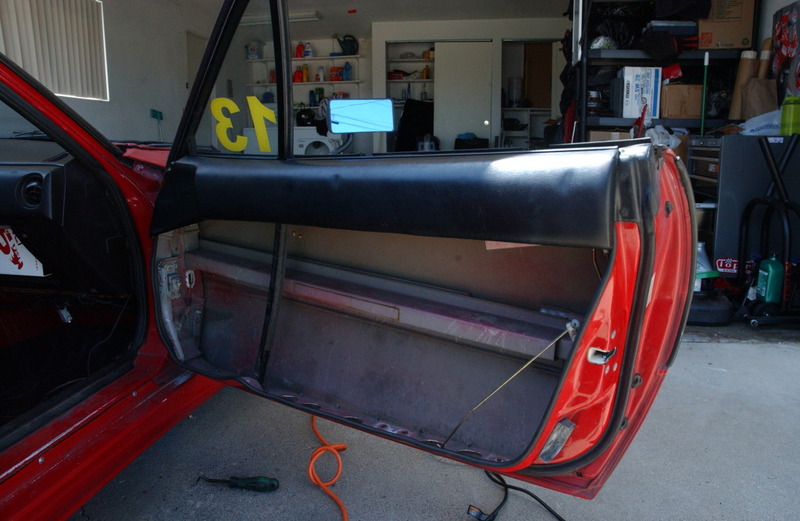

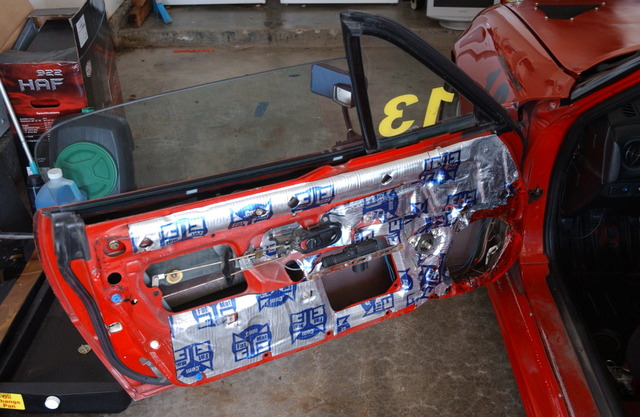

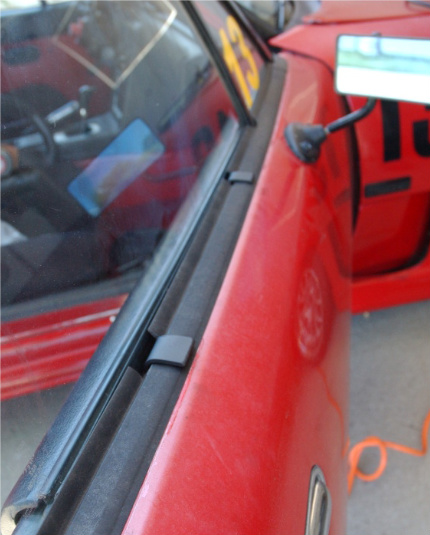

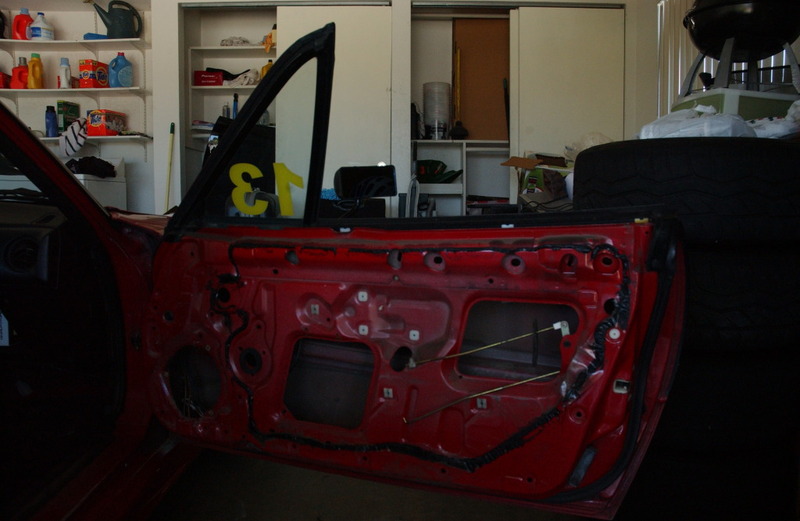

How did you gut your door-dsc_1566.jpg   How did you gut your door-dsc_1584.jpg   How did you gut your door-dsc_1568.jpg   How did you gut your door-img00333-20110816-1145.jpg   How did you gut your door-dsc_1574.jpg

How did you gut your door-dsc_1578.jpg   How did you gut your door-dsc_1570.jpg   How did you gut your door-dsc_1573.jpg   How did you gut your door-dsc_1571.jpg   How did you gut your door-dsc_1582.jpg

How did you gut your door-dsc_1580.jpg   How did you gut your door-dsc_1593.jpg   How did you gut your door-dsc_1597.jpg   How did you gut your door-dsc_1587.jpg   How did you gut your door-dsc_1588.jpg

ThePass is offline   Reply With Quote
Old 09-12-2011, 01:51 PM   #3
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

I really like what you did with the windows. I will for sure be doing that with my build. Thanks for the great idea!
FRT_Fun is offline   Reply With Quote
Old 09-12-2011, 02:32 PM   #4
Elite Member
Thread Starter
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,892
Total Cats: 109
Default

Thank you ThePass. I think I am going in a very similar direction.

Anyone have ideas on how to install lexan windows?
miata2fast is offline   Reply With Quote
Old 09-12-2011, 05:17 PM   #5
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

From what I have heard, you're not going to be able to make Lexan windows for the miata. The curvature has to be so spot on that there's nearly no chance of getting it right just by heating and bending the lexan. I read a big thread on the spec miata forums about the subject a while back.. I'm looking for it now but I can't seem to find it.. and the general consensus after much attempting was to just do what I did and be able to remove the glass for competitive use.

I believe I have seen actual Lexan windows for sale somewhere that were cut and formed to actually properly match our factory windows, but I also can't seem to find those anywhere now... and I remember them being expensive, hence why I just went with the removeable window option
ThePass is offline   Reply With Quote
Old 09-12-2011, 05:42 PM   #6
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 581
Total Cats: 4
Default

Really nice job, I hope you have some Nascar bar style to protect yourself tho.
joyrider is offline   Reply With Quote
Old 09-12-2011, 05:47 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Jeffman used a box-cutter like a Jihadi, and I'm not kidding.

Nice computer mount:
hustler is offline   Reply With Quote
Old 09-12-2011, 05:54 PM   #8
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

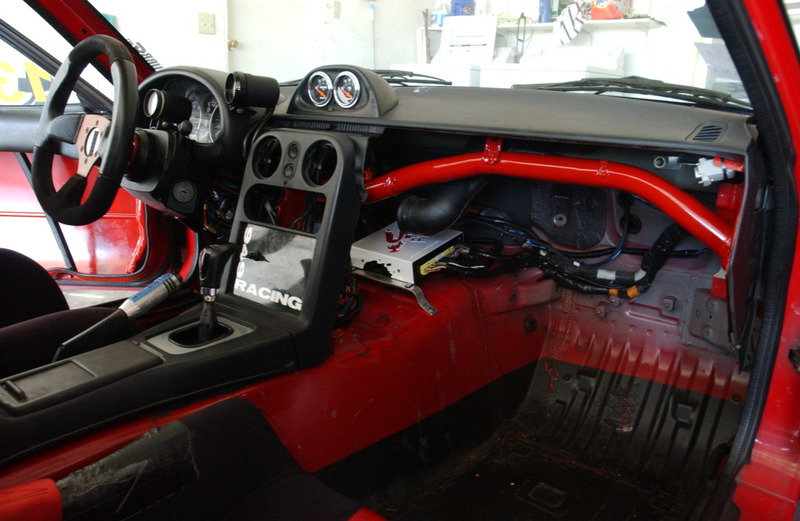

Haha thanks Hustler... the doors were part 1 of a two-part interior lightening project, so the rest of the interior was partially disassembled at that point as well. Now that part 2 has been completed as well, the ECU is happy and cozy in its new home:

Attached Thumbnails

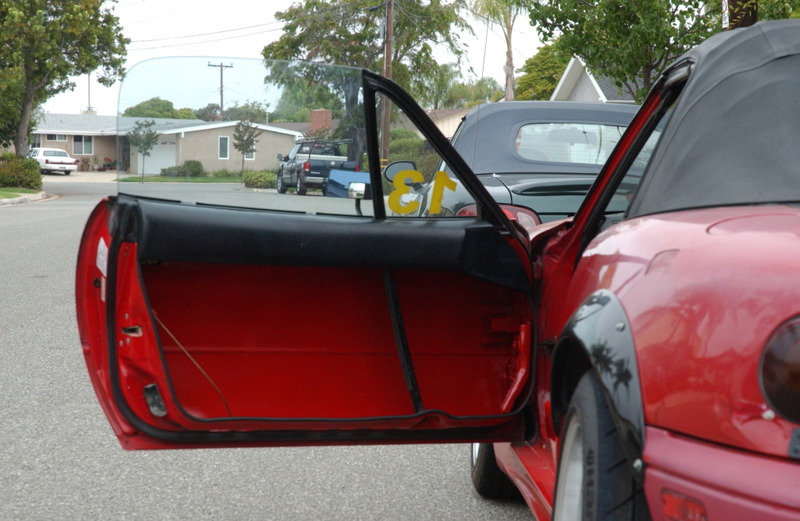

How did you gut your door-dsc_1774.jpg
ThePass is offline   Reply With Quote
Old 09-12-2011, 06:17 PM   #9
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

Nice, mine look identical. Except the holes @ the bottom which I will copy. And the window tabs. A company already makes them. I think I paid $10 shipped. Alot of sm racers use them. Ill see if I can find where I got them from. Only difference is they sit inside the door, using factory bolts. I used a rubber bungee cord for a door release. So easy, 1 factory bolt is all that's needed. I'll take some pics.
spoolin2bars is offline   Reply With Quote
Old 09-12-2011, 06:28 PM   #10
Elite Member
Thread Starter
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,892
Total Cats: 109
Default

Is there a reason I can not cut the metal partition between the triangle window and the main window.

If I recall, it bolts to the top of the window sill like the window gliders. It seems like the added length is not necessary since the window is no longer moving up and down. I would cut it just below where it bolts to the sill.
miata2fast is offline   Reply With Quote
Old 09-12-2011, 06:46 PM   #11
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

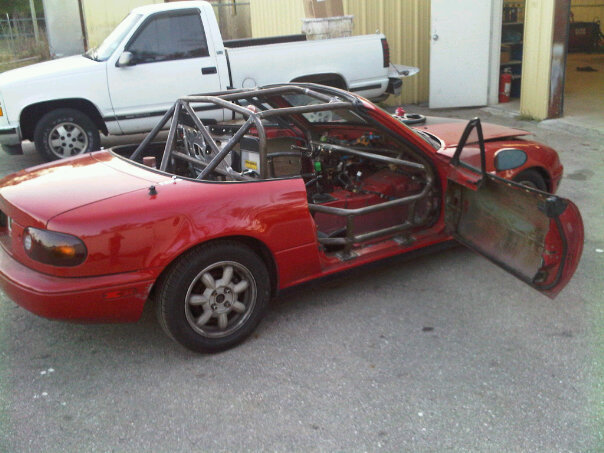

mine:

Attached Thumbnails
How did you gut your door-26018_1364630792083_1121013993_1093665_3481460_n.jpg
pusha is offline   Reply With Quote
Old 09-12-2011, 07:30 PM   #12
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Quote:
Originally Posted by miata2fast View Post
Is there a reason I can not cut the metal partition between the triangle window and the main window.

If I recall, it bolts to the top of the window sill like the window gliders. It seems like the added length is not necessary since the window is no longer moving up and down. I would cut it just below where it bolts to the sill.
You can certainly cut the bottom portion off, but it's quite light so it's not much of a difference in weight to leave it so I use that as my door pull handle.
ThePass is offline   Reply With Quote
Old 09-12-2011, 08:17 PM   #13
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

I was about to say the same ^^^ excellent handle to shut the door with.
spoolin2bars is offline   Reply With Quote
Old 09-13-2011, 12:35 AM   #14
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by ThePass View Post

**** you. Where's my angle grinder?

I think if I had door bars I would go this route, 50# is quite a bit, you make it look so easy and pretty...
curly is offline   Reply With Quote
Old 09-13-2011, 12:51 AM   #15
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Just wanted to say you pulled off the stripped interior look really well, sorta makes me want to do it to my car.



Quote:
Originally Posted by ThePass View Post
Haha thanks Hustler... the doors were part 1 of a two-part interior lightening project, so the rest of the interior was partially disassembled at that point as well. Now that part 2 has been completed as well, the ECU is happy and cozy in its new home:

cardriverx is offline   Reply With Quote
Old 09-13-2011, 01:08 AM   #16
Senior Member
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Quote:
Originally Posted by ThePass View Post
Haha thanks Hustler... the doors were part 1 of a two-part interior lightening project, so the rest of the interior was partially disassembled at that point as well. Now that part 2 has been completed as well, the ECU is happy and cozy in its new home:


I love the look of the interior of this car! I hope mine will look this good one day.
Gryff is offline   Reply With Quote
Old 09-13-2011, 02:50 AM   #17
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

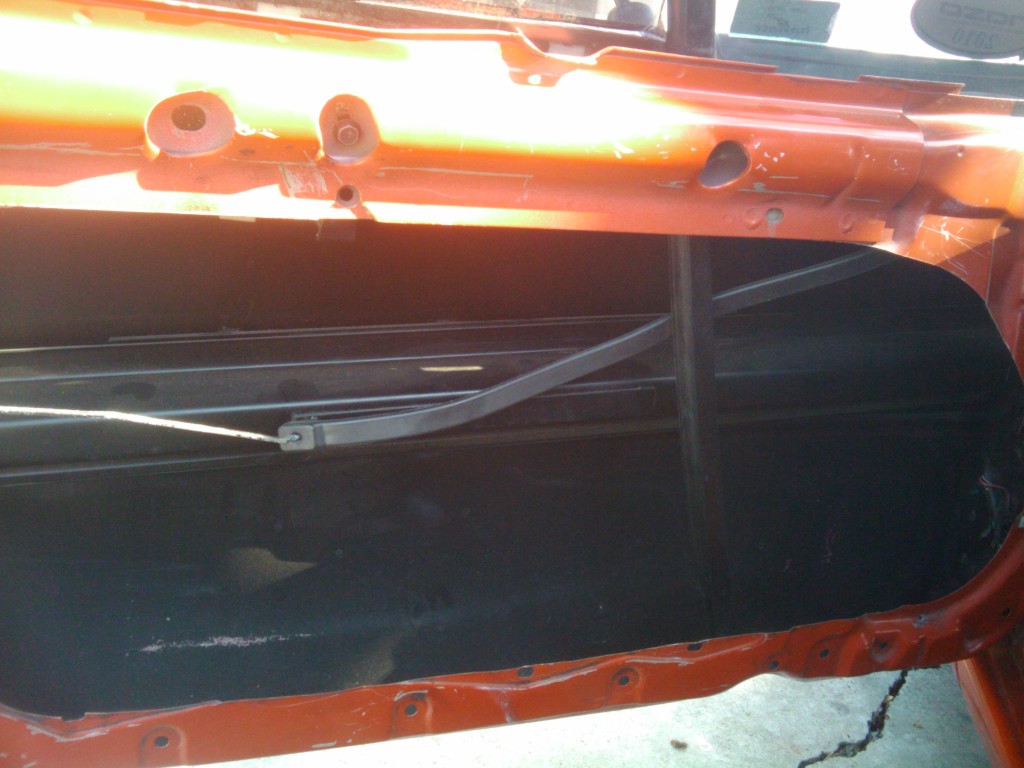

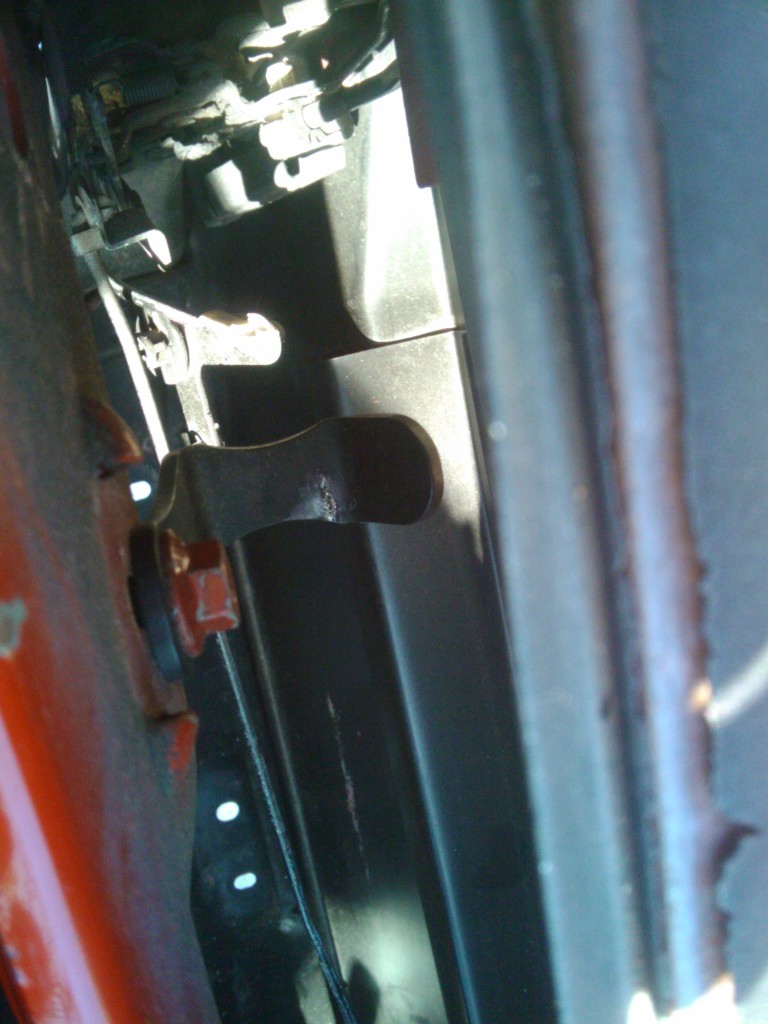

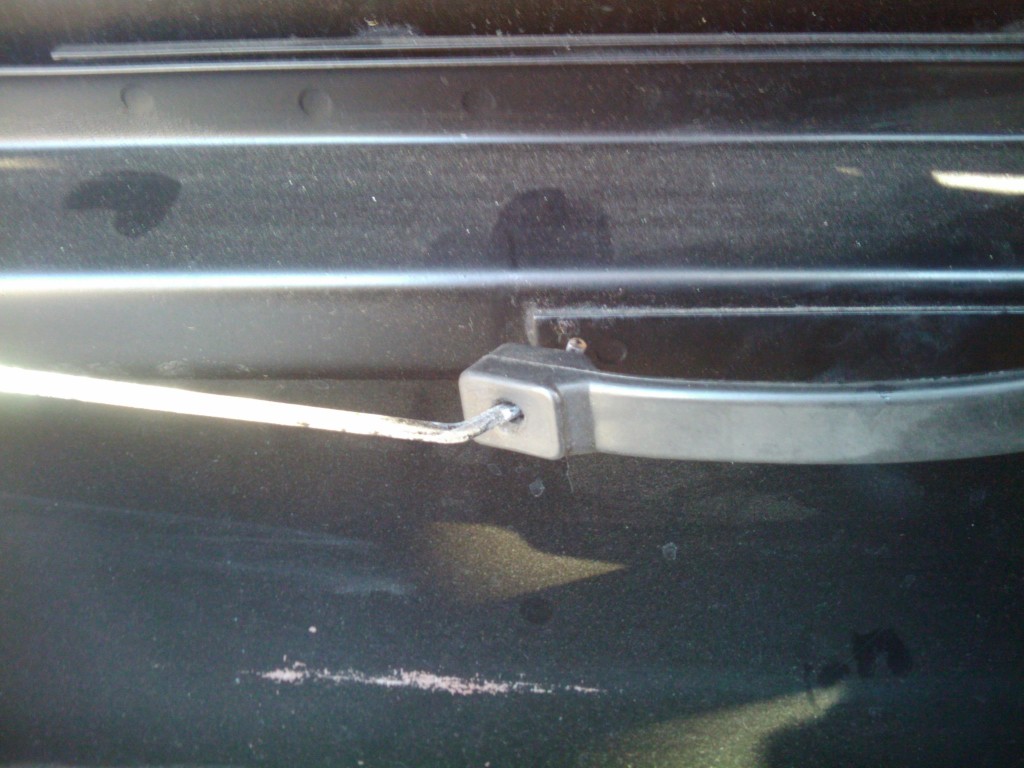

window clips and door release:





Attached Thumbnails
How did you gut your door-img_20110912_164442.jpg   How did you gut your door-img_20110912_164211.jpg   How did you gut your door-img_20110912_164153.jpg
spoolin2bars is offline   Reply With Quote
Old 09-13-2011, 09:36 AM   #18
Elite Member
Thread Starter
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,892
Total Cats: 109
Default

Quote:
Originally Posted by ThePass View Post
You can certainly cut the bottom portion off, but it's quite light so it's not much of a difference in weight to leave it so I use that as my door pull handle.
I think you may have convinced me to keep it.

By the way, I like how you tastefully gutted the dash. I gutted my dash, but wanted the stock appearing look, and it appears stock
miata2fast is offline   Reply With Quote
Old 09-13-2011, 02:05 PM   #19
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

thanks. yeah... me no likey stock...
ThePass is offline   Reply With Quote
Old 09-13-2011, 05:39 PM   #20
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

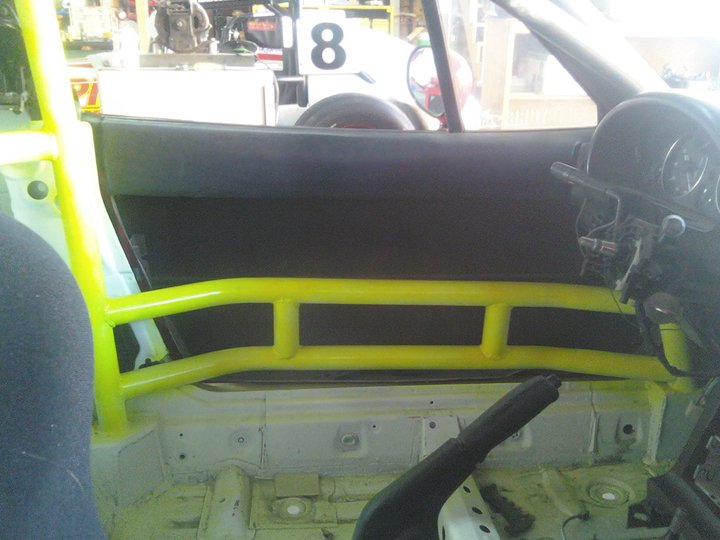

Mine looks similar, but I took the gutting a little further. I removed all of the factory door bar, the little things that hold the door open and the things on the back of the door that line it up for the latch. Those will probably go back on. I made my own window clips and cut the front window rail out. The door is pretty flimsy.



And a shot with the door closed with my door bars.

Attached Thumbnails

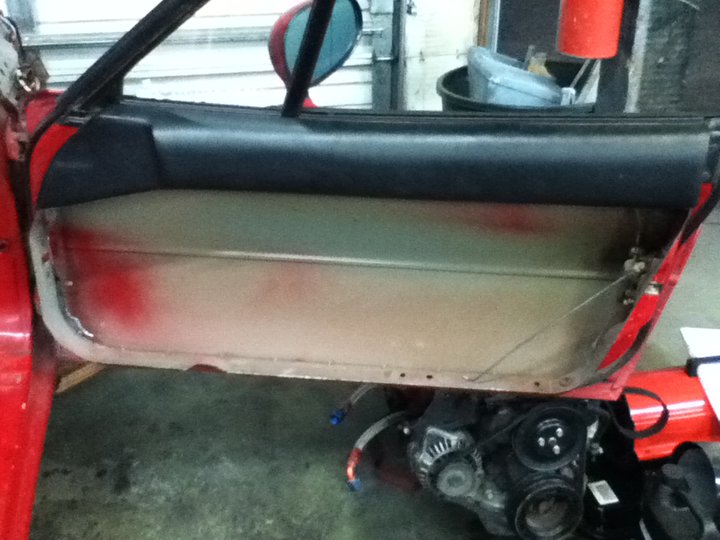

How did you gut your door-180050_1869261056679_1395678023_2152309_322508_n.jpg   How did you gut your door-262158_2159589674713_1395678023_2564582_2783503_n.jpg
RyanRaduechel is offline   Reply With Quote
