Old 04-27-2010, 04:35 PM   #21
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Well I got my Ebay wing in and the finish of it is pretty good. It is very wide though at 61". I am 6'0" and it comes up to my chin.

Anyone know if you can buy just wing legs without a wing somewhere? I may just make my own out of this 3/8" aluminum, but if there is an inexpensive readily available set of legs, I may go with those.
rharris19 is offline   Reply With Quote
Old 04-28-2010, 12:08 AM   #22
jrw
Junior Member
iTrader: (4)

Join Date: Feb 2009
Location: middle TN
Posts: 143
Total Cats: 0
Default

found this one that looks pretty good and not a bad price for carbon.

http://cgi.ebay.com/ebaymotors/JDM-C...#ht_2694wt_829


59" x 9" with a 42.5" base. should put the legs right at the edge of the quarters.
jrw is offline   Reply With Quote
Old 05-25-2010, 02:16 PM   #23
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Well we installed the wing on a spare trunk for an event on Friday just as it came out of the box. with the wing at a flat 0* AOA it made a substantial difference. We pre dented the trunk in the rear where it would have pushed in a little anyway and got it mounted very solid. It held on well and we were at speeds close to 140mph.

I will post some pictures in a little.
rharris19 is offline   Reply With Quote
Old 05-25-2010, 02:42 PM   #24
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Quote:
Originally Posted by rharris19 View Post
I will post some pictures in a little.
Awesome. I've been waiting for updates and pics.
turotufas is offline   Reply With Quote
Old 05-27-2010, 05:00 PM   #25
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

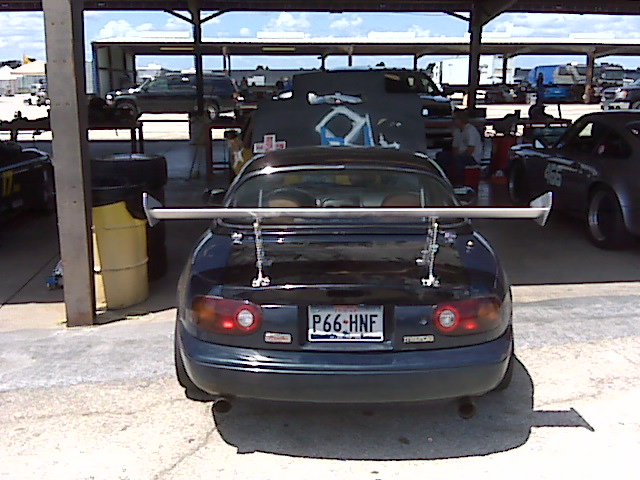

I will get some better ones, but this will have to do for now. Only one I could find and it's from the track.
Attached Thumbnails
Inexpensive wings/DIY setups-img00709.jpg
rharris19 is offline   Reply With Quote
Old 05-27-2010, 05:50 PM   #26
Junior Member

Join Date: Feb 2009
Location: The Woodlands, TX
Posts: 328
Total Cats: 12
Default

Quote:
Originally Posted by rharris19 View Post
I will get some better ones, but this will have to do for now. Only one I could find and it's from the track.
Is that David O's turbocharged NA?

Well done on the two-for-one parking spot.
Double O 86 is offline   Reply With Quote
Old 05-27-2010, 06:10 PM   #27
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Dats a HUGE bitch!
Splitime is offline   Reply With Quote
Old 05-27-2010, 09:21 PM   #28
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Quote:
Originally Posted by Double O 86 View Post
Is that David O's turbocharged NA?

Well done on the two-for-one parking spot.
Yup that's his. It has the lemons car hood right now for the vent since he didn't want to put hood pins in his.
rharris19 is offline   Reply With Quote
Old 05-27-2010, 09:22 PM   #29
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Quote:
Originally Posted by Splitime View Post
Dats a HUGE bitch!
All 61" of it. Makes ALOT of downforce even at 0*. I may get the 56" version for my n/a
rharris19 is offline   Reply With Quote
Old 06-03-2010, 05:13 AM   #30
Newb

Join Date: Jun 2010
Location: Lancaster, CA
Posts: 18
Total Cats: 0
Default

Great info in this thread. I'm currently in the design process for the aero for my Rx7.
Hyper4mance2k is offline   Reply With Quote
Old 06-05-2010, 02:04 PM   #31
Newb

Join Date: Jan 2008
Location: San Mateo, CA
Posts: 7
Total Cats: 0
Default

agreed. anymore pics of the car?
mtm68 is offline   Reply With Quote
