Default Last Minute DIY Brake Ducting

With 4 days until the first time trial of the season, I've come to realize that my brakes are woefully inadequate and are going to try and kill me (thanks Savington). In an attempt to avoid feeling floorboard under my brake pedal the only real options I have, with such limited time, are to add some makeshift ducting, do a rain dance, and go slow.

Since I'm not 100% confident in my native american performing arts technique, and going slow isn't any fun, I'm going to try some ducting and hope it helps.

My plan is to buy some "fire proof" flexible metal ducting and "funnels" from Home Depot Racing. Cut holes in the air dam, rivet the funnels to it, hose clamp the ducting to the funnels, zip tie it along the lower a-arms, and point it at the backs of the rotors (after cutting off the dust covers)

Am I an idiot? Will I fail worse than Faelflora? How can I make this work?
Handy Man is offline   Reply With Quote
Old 04-16-2012, 06:40 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

It's monday. Order the parts and get them by Friday.
hustler is offline   Reply With Quote
Old 04-16-2012, 07:00 PM   #3
Junior Member
Thread Starter

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

and install them... while I'm driving to the event? Even if I dropped $250 on overnight shipping, they would get here wed or thurs which would give me roughly 5 hours to get them installed and working, maybe a bit more if I wanted to sacrifice sleep. I have enough experience with Murphy's law to know that's a bad idea. I'd rather alternate slow & fast laps to let the brakes cool than take the risk that something goes wrong installing a completely new brake setup the night before the event.
Handy Man is offline   Reply With Quote
Old 04-16-2012, 07:24 PM   #4
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,875
Total Cats: 344
Default

I'd say it's a whole lot easier to install TSE brake ducts in 5 hours than it is to fab up custom DIY brake ducts. They don't really sell the right kind of hose at Home Depot Racing Supply, it's either too big, too low temp, or too fragile.

TSE ducts install pretty easily, the hardest parts are removing the factory shields and attaching the hose somewhere it can get air, and those are going to have to happen either way.

You *do* have high-temp fluid and some decent pads installed already, right?

--Ian
codrus is offline   Reply With Quote
Old 04-16-2012, 08:43 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

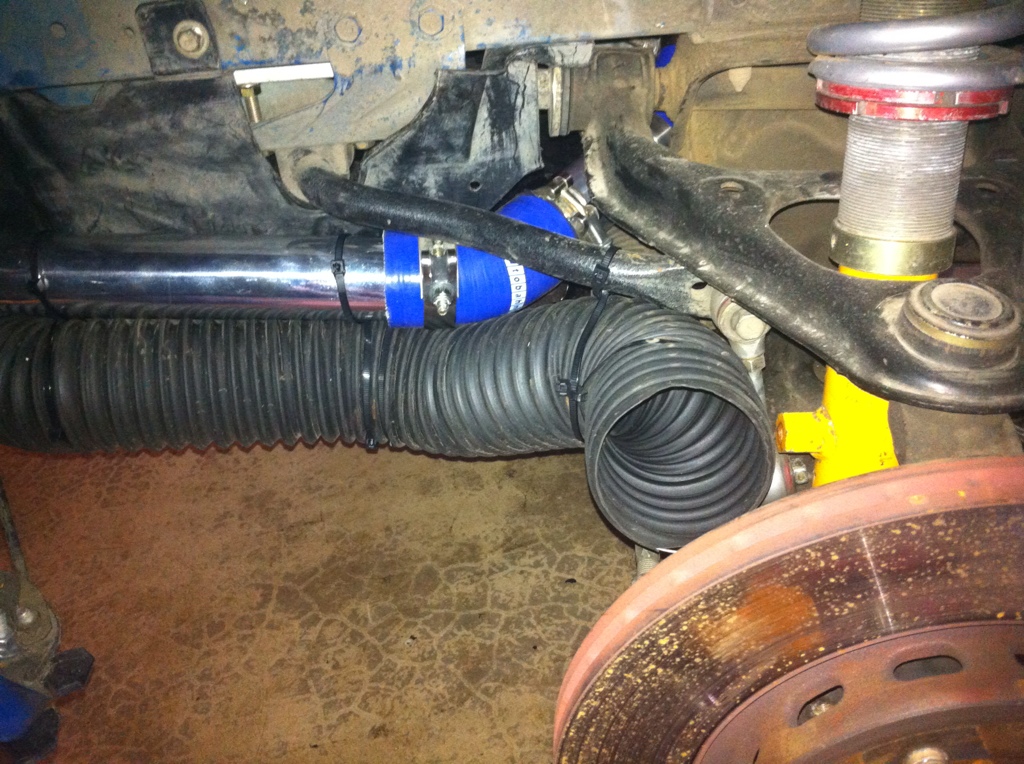

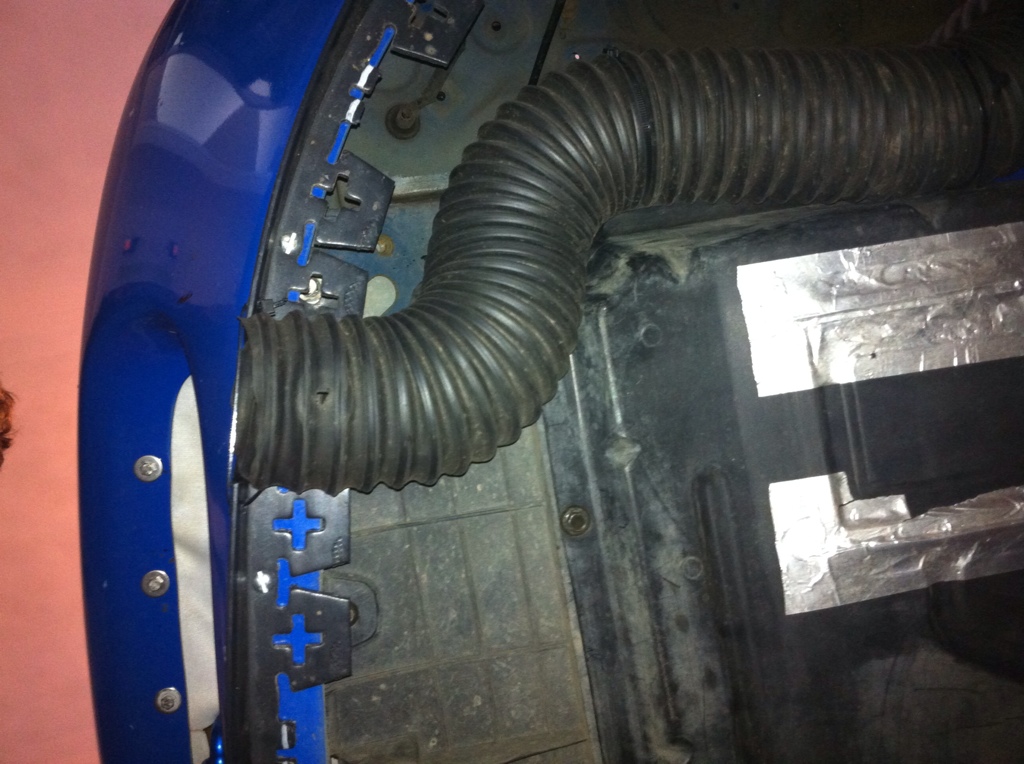

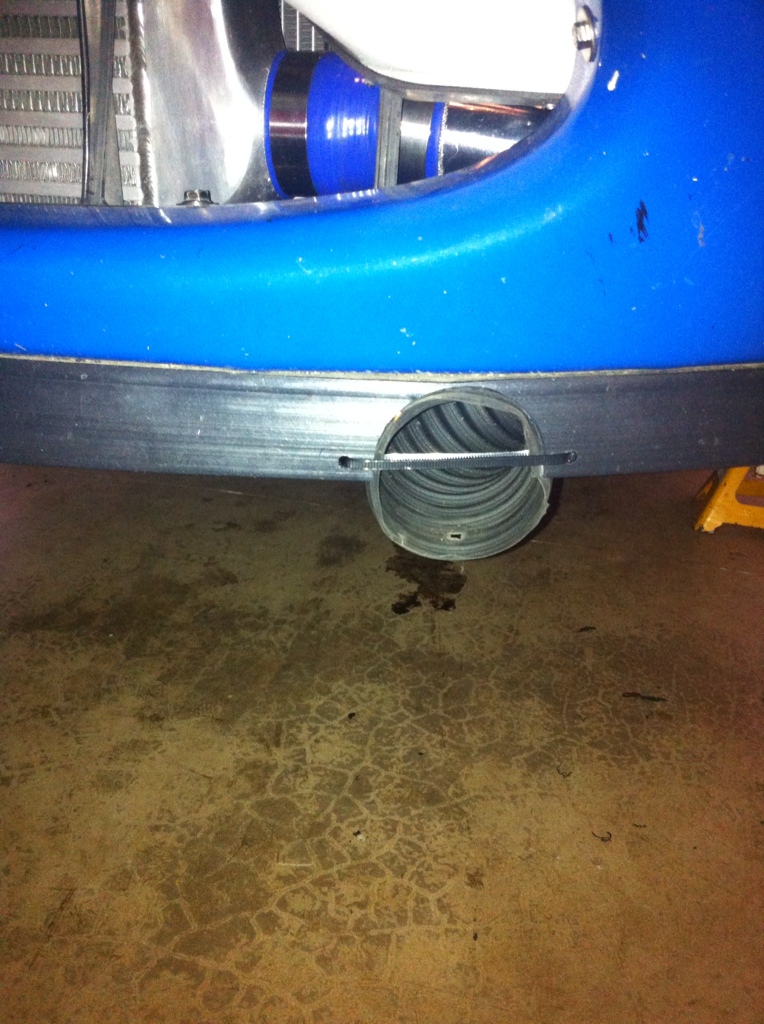

Here's my DIY ducting. Probably not the most effective, but it's better than nothing I hope. Got the idea from 949, not sure where the photo is, his is a little prettier.




Just be sure to zip tie it to your under tray to keep it away from the tire at full lock. I lost a piece of tubing that way.
Attached Thumbnails
Last Minute DIY Brake Ducting-db97f5c0.jpg   Last Minute DIY Brake Ducting-f7384b8e.jpg   Last Minute DIY Brake Ducting-bc9014f1.jpg
curly is offline   Reply With Quote
Old 04-16-2012, 10:35 PM   #6
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 782
Total Cats: 23
Default

Ahh, thanks curly. I have been trying to find photo's like that for ages!!!

Do you know if it has made any difference to your car?
mx5-kiwi is offline   Reply With Quote
Old 04-16-2012, 10:58 PM   #7
Junior Member
iTrader: (1)

Join Date: Apr 2010
Location: On, Canada
Posts: 81
Total Cats: 1
Default

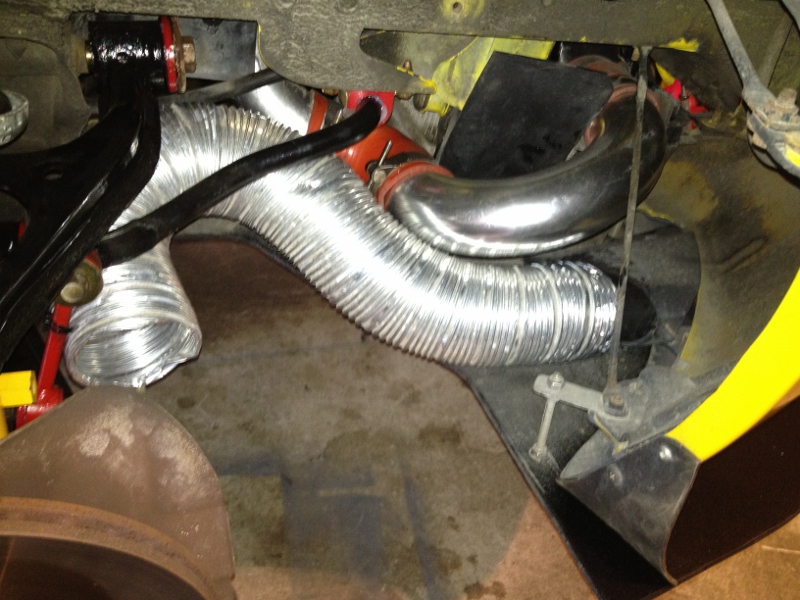

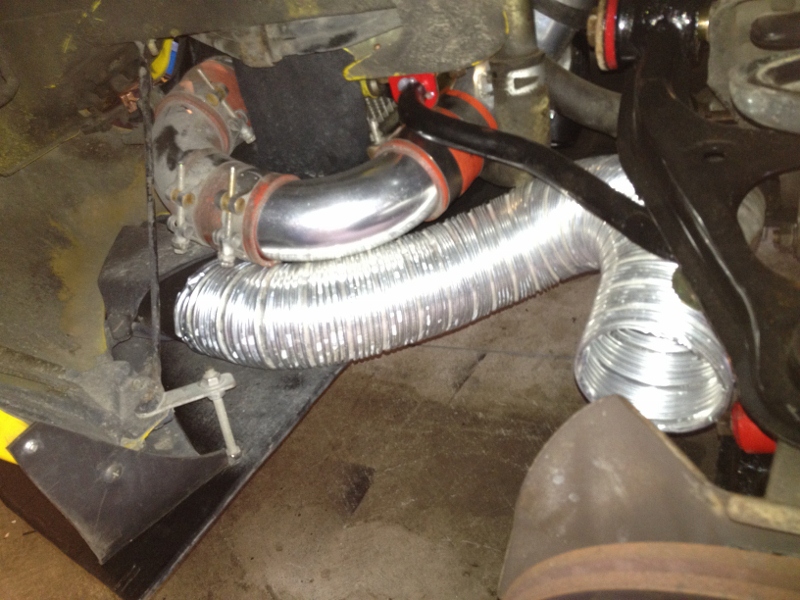

this is what i just did, used 3" direct vent gas piping. it expands and stays where you put it only needed a few zip ties to stay in place. i figured any air blowing in the wheel is better than none.
Attached Thumbnails
Last Minute DIY Brake Ducting-img_0330-800x600-.jpg   Last Minute DIY Brake Ducting-img_0331-800x600-.jpg
uavjeep is offline   Reply With Quote
Old 04-16-2012, 11:37 PM   #8
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Do you not have big brakes? I doubt it would cost $250 to have a BBK shipped from TSE to you in a few days. It's easy to install too. I'd say budget an hour each side just for safetys sake and bleed them. Good 2 go.
falcon is offline   Reply With Quote
Old 04-17-2012, 04:10 AM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by mx5-kiwi View Post
Ahh, thanks curly. I have been trying to find photo's like that for ages!!!

Do you know if it has made any difference to your car?

I added the Wilwoods and 11" Corrado rotors at the same time, so I'm not sure. They haven't faded in two track days with only Hawk HP+ pads, but I'm not very aggressive in my braking zones.
curly is offline   Reply With Quote
Old 04-17-2012, 05:12 AM   #10
Junior Member

Join Date: Aug 2009
Posts: 186
Total Cats: 1
Default

Do you guys know what temps I should see if I measure the caliper body/rotor surface? I'm fading Hawk HP+ on 1.6L brakes on all seasons! I have 1.8L brackets, but i figure if 1.6s w/ ducts work fine, I can save the weight penalty so Im trying to measure BEFORE I add ducts to make sure it does something. My current $5 IR temp doesn't read anything above 200 degrees.
greeenteeee is offline   Reply With Quote
Old 04-17-2012, 07:23 AM   #11
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Read Hustler's build thread, he has his data in there somewhere. He's using stick on thermometers, reading 500+ in the rears, and 250ish in the fronts with his TSE biggest big brake kit. IIRC.
curly is offline   Reply With Quote
Old 04-17-2012, 09:16 AM   #12
Junior Member
Thread Starter

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

Thanks guys.

Falcon: No big breaks yet, the car was built for hill climbs, which are really easy on brakes. Believe me, I checked on over-nighting a TSE BBK, its $250.

Codrus: I have new XP10's, fresh Motul 600, new 1.8 rotors and new SS Lines.

The weather is calling for rain, so I may get lucky. I'm sure that I'm the only driver hoping it rains, lol. Even if it doesn't rain, I don't mind babying the brakes most of the time and just laying down one or two fast laps each session... but if I can throw some makeshift ducts on there that might help, I figure I might as well.
Handy Man is offline   Reply With Quote
Old 04-17-2012, 06:00 PM   #13
Junior Member

Join Date: Mar 2010
Location: Durham, NC
Posts: 406
Total Cats: 19
Default

Quote:
Originally Posted by greeenteeee View Post
Do you guys know what temps I should see if I measure the caliper body/rotor surface? I'm fading Hawk HP+ on 1.6L brakes on all seasons! I have 1.8L brackets, but i figure if 1.6s w/ ducts work fine, I can save the weight penalty so Im trying to measure BEFORE I add ducts to make sure it does something. My current $5 IR temp doesn't read anything above 200 degrees.
Get real pads before you dump money into your brakes. HP+s are ---- compared to a proper track pad.
FatKao is offline   Reply With Quote
Old 04-18-2012, 11:52 PM   #14
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Quote:
Originally Posted by greeenteeee View Post
Hawk HP+
Here's your problem.
MartinezA92 is offline   Reply With Quote
Old 04-19-2012, 02:14 AM   #15
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 782
Total Cats: 23
Default

Is XP10 a "proper" track pad?
mx5-kiwi is offline   Reply With Quote
Old 04-19-2012, 02:44 AM   #16
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Yes.
curly is offline   Reply With Quote
Old 04-19-2012, 04:59 AM   #17
Junior Member

Join Date: Aug 2009
Posts: 186
Total Cats: 1
Default

I hardly call a DIY brake duct ''dumping money'' into the brakes. If anything, a new set of pads is "dumping money" into it when the HP+ still have life left.
greeenteeee is offline   Reply With Quote
Old 04-19-2012, 09:37 AM   #18
Junior Member
Thread Starter

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

After hunting through all the local hardware stores I decided that Codrus was right, they don't sell anything that would work. I ordered some legit brake duct hose and some NACA ducts from Summit for just $25 overnight shipping. Got the dust covers off the hubs last night, will be installing the ducts tonight.
Handy Man is offline   Reply With Quote
Old 04-19-2012, 10:50 AM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Handy Man View Post
After hunting through all the local hardware stores I decided that Codrus was right, they don't sell anything that would work. I ordered some legit brake duct hose and some NACA ducts from Summit for just $25 overnight shipping. Got the dust covers off the hubs last night, will be installing the ducts tonight.
Oh, so I was right the whole ------- time?!?!?! What a ------- surprise, ----------ers. ---- yeah. Never ------- doubt me.
hustler is offline   Reply With Quote
Old 04-19-2012, 10:51 AM   #20
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

get the silicone. it is more expense but will last longer. It is really hard to keep vent hoe in good shape if the car sees any street time so not a problem for you. if use zip tie you should think about reinforce the hose so it does not rip with gorilla tape or something similar.

also I also like Alcon temp strips. that way you can really see how hot the calipers get though it really for overall system health. to see if they are getting up to temp, or how overheated they get. but its just a tool, caliper temps say nothing of rotor pad surface temps.

the paint for rotors like ABC does is cool but its kinda expensive.
