Default Looking for a 4" tacho gauge

I've been looking everywhere for a tacho with the following characteristics:

- 4" (can be smaller, say up to 3.5")
- Rev range up 9K RPM (I don't have a problem if it goes to 10k but I don't like the 0-4-10.5 gauges that Stack makes)
- 0 position at 6 o'clock (not at 4 or 5).
- White face (but I can live with a black face if all of the above are met)
- I don't want a shiftlight in it
- Up to $300 but can pay a tad higher if I can't find anything else.

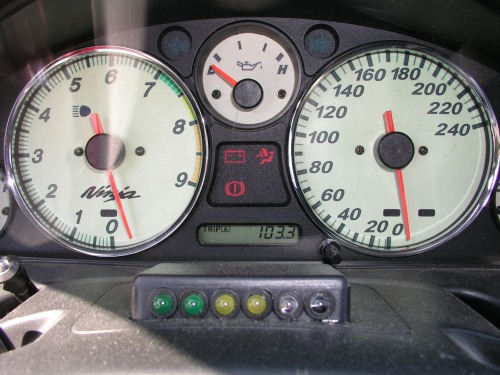

I already have this:

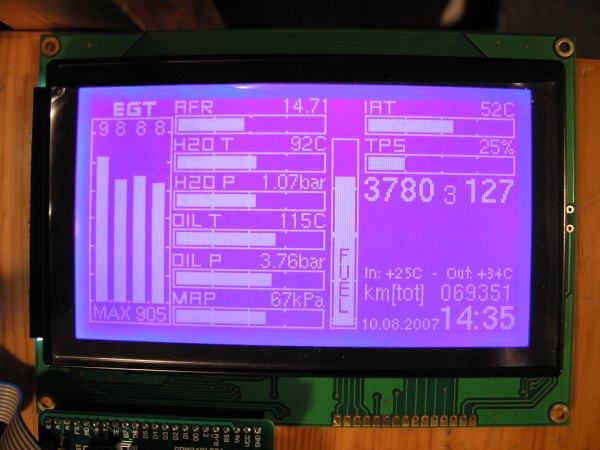

which I want to remove entirely and replace it with the tacho described above and this next to the tacho:



Anything readily available out there?
Attached Thumbnails
Looking for a 4" tacho gauge-p1010012_1.jpg   Looking for a 4" tacho gauge-engine_mode.jpg
Reverant is online now   Reply With Quote
Old 09-27-2011, 08:00 AM   #2
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,392
Total Cats: 58
Default

I know you know how to google but something similar to this?
http://www.egauges.com/vdo_mult3.asp...r&Series=Nexus
Egauges have a decent overview and filtering function.

http://www.egauges.com/vdo_mult3.asp...eries=DI_White (but that's a 0-3-11 one).

But you are no stranger to custom. Get a stepper motor one and change the needle and face and you get what you want.
NiklasFalk is offline   Reply With Quote
Old 09-27-2011, 08:09 AM   #3
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Metric for the win!
timk is offline   Reply With Quote
Old 09-27-2011, 08:16 AM   #4
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,392
Total Cats: 58
Default

Oops, the Autometer Nexus series needs a $250 control box (one box for all gauges) too...

If you would be modding anyway, there are cheap stuff to start with
http://www.summitracing.com/parts/SUN-CP7914/ (not the best quality internals I guess)

Last edited by NiklasFalk; 09-27-2011 at 08:37 AM.
NiklasFalk is offline   Reply With Quote
Old 09-27-2011, 08:47 AM   #5
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

The Autometer Nexus series would be a winner if it was in white, didn't have the silly futuristic look, and was a little bigger (it is 3 3/8", so smaller than the stock tacho!). I like the Defi one better but it is a little too big (4 1/2"), and may not fit. It also requires a seperate controller to work, which adds clutter and introduces potential failure points. On the bright side, the idle region is covered in detail so that is ok, I'm not really interested in the 2-3k region. It also looks clean, which I like. I may actually get that, thanks!
Reverant is online now   Reply With Quote
Old 09-27-2011, 08:50 AM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

What's wrong with stock? All the customization you're doing, and you don't think you can get it to work with your new setup?
curly is offline   Reply With Quote
Old 09-27-2011, 09:04 AM   #7
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

I'm throwing away all the stock cluster, because with what I want to do, there is not enough room for the stock parts to fit.
Reverant is online now   Reply With Quote
Old 09-27-2011, 09:07 AM   #8
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,392
Total Cats: 58
Default

Quote:
Originally Posted by curly View Post
What's wrong with stock? All the customization you're doing, and you don't think you can get it to work with your new setup?
Just guessing but the stock gauge cluster is hard to chop down to make room for the square display and still have some parts of the cluster work. It does not look modular IIRC.

In my cluster Kronos replaced the stock tacho with a Stack Clubman one (0-4-10.5), but that one is sticking out trough the stock clear plastic, so the cluster circuit board is untouched.
NiklasFalk is offline   Reply With Quote
Old 11-13-2011, 03:50 PM   #9
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

And the winner is...

Defi 4".

I purchased a new Thurlby-Thandar function generation last week, so I was able to test it on the bench. It is good, better than I actually expected. Obligatory video:

Reverant is online now   Reply With Quote
Old 11-13-2011, 06:19 PM   #10
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Zoom into the video at 20 seconds, take a screen shot of the gauge, and post it along with the MS sales saying "can your miata do this?"

Heh there was some one that used that as an advertisement yet all the other gauges showed 0.
triple88a is offline   Reply With Quote
Old 11-14-2011, 12:19 PM   #11
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Want to sell me your old 9000RPM Ninja gauge? I need that.
Faeflora is offline   Reply With Quote
Old 11-14-2011, 03:03 PM   #12
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

Can be arranged once I have this bad mean mother in the dash.
Reverant is online now   Reply With Quote
Old 11-14-2011, 03:09 PM   #13
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

OK thanks. It would be perfect for me. I would replace the "N" in Ninja with "M" so it would read "Minja".
Faeflora is offline   Reply With Quote
Old 05-03-2012, 02:23 PM   #14
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

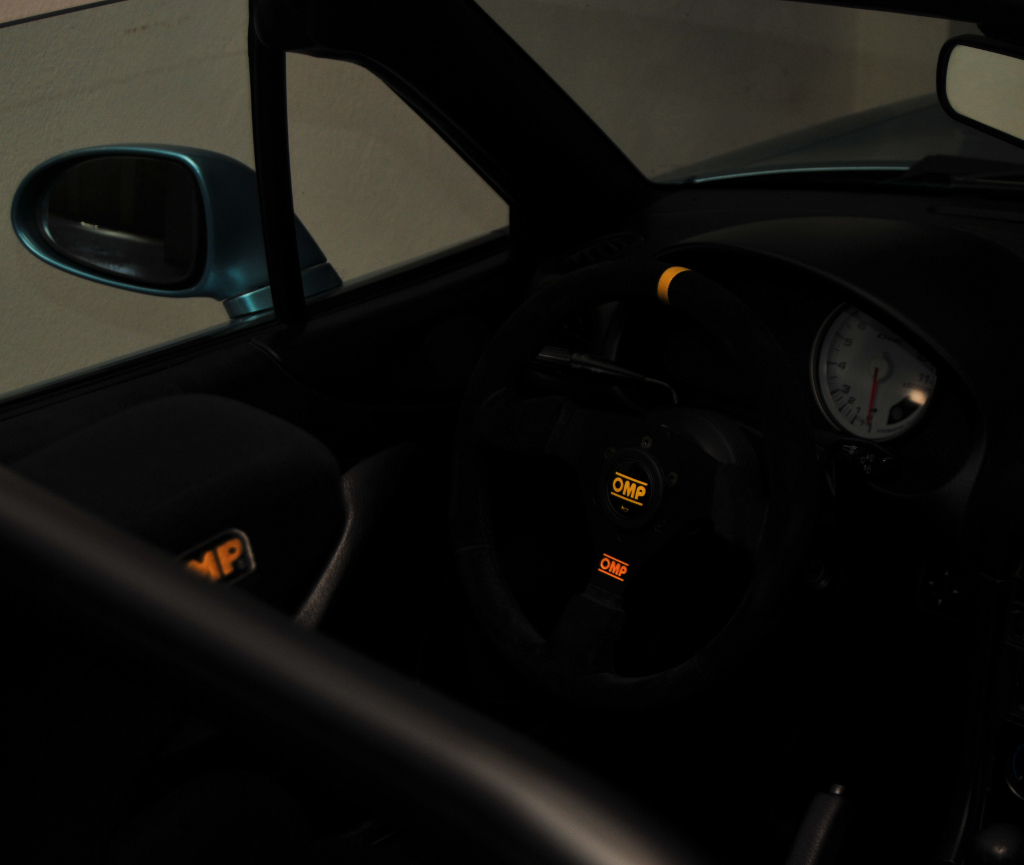

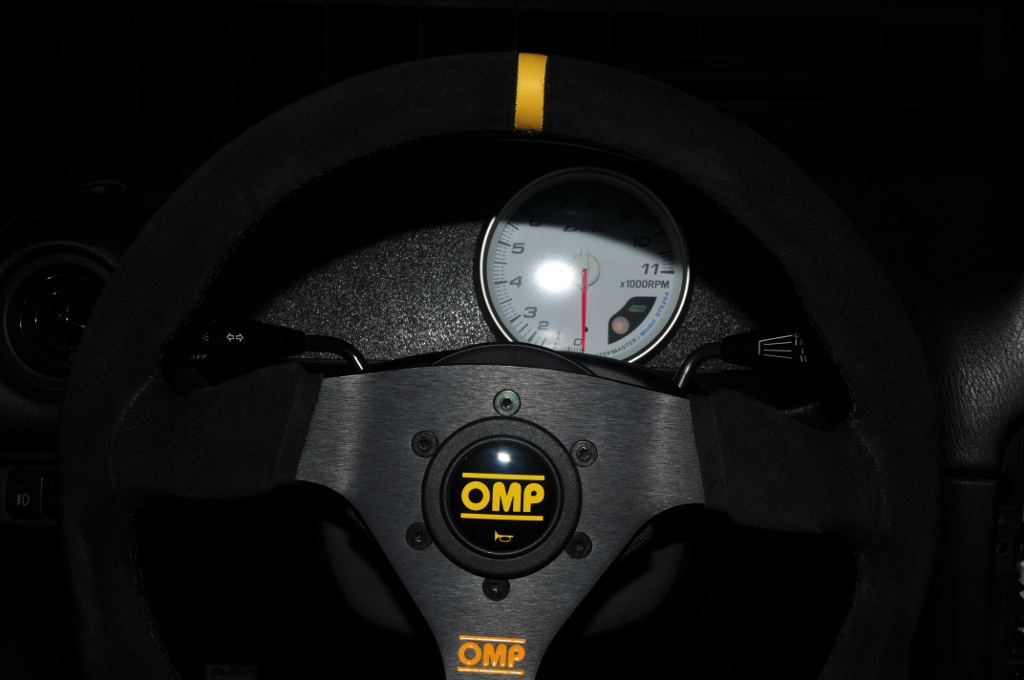

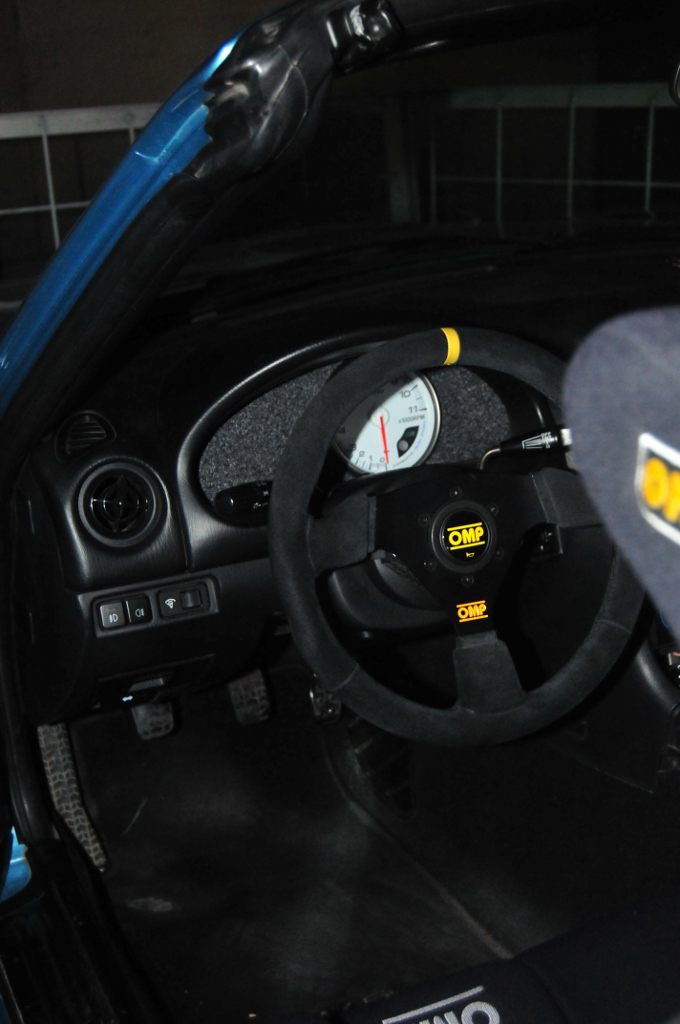

Almost tempted to leave it like this...





Attached Thumbnails
Looking for a 4" tacho gauge-dsc_5449_1.jpg   Looking for a 4" tacho gauge-dsc_5459_1.jpg   Looking for a 4" tacho gauge-dsc_5464_1.jpg
Reverant is online now   Reply With Quote
Old 05-03-2012, 04:11 PM   #15
Senior Member
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Hell yeah that is ballin with just the one gauge!

on a threadjack, What wheel is that/hows it feel? and what shift light is that? Ive been thinking of doing something identical to that as far as the shift light goes. I really like how it looks there.
Gryff is offline   Reply With Quote
Old 05-03-2012, 04:21 PM   #16
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

The wheel is the OMP Targa. Feels awesome and I love it. I use it with the Works Bell hub and Works Bell QRS quick release.

The shift light is just a custom built unit I made. It is gone now but I am toying with the idea of adding shift lights around the tacho.
Reverant is online now   Reply With Quote
Old 05-03-2012, 05:14 PM   #17
Senior Member
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Sweet, Ill look into it.

The unit, box and all looks really good! its exactly what I was planning on doing sans the position of the lights.
Gryff is offline   Reply With Quote
