Old 12-20-2012, 07:20 AM   #21
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

This is the projector housing I used:
Bi-xenon: Morimoto Mini H1 5.0 - HID Projectors from The Retrofit Source Inc

Here are the bulbs:(had to be VERY slightly modified to fit the housing)
HELLA H83115001 H1 12V/55W Halogen Bulb : Amazon.com : Automotive HELLA H83115001 H1 12V/55W Halogen Bulb : Amazon.com : Automotive


and here is the relay kit:
Bi-xenon: 'MotoControl 9003/H4/HB2 - Relay Harnesses from The Retrofit Source Inc

I wasn't interested in Xenon lights so this was all I needed.

If you want Xenon lights just buy this entire kit:
Bi-xenon Morimoto Mini Stage III Kit (H1) - Complete Retrofit Kits from The Retrofit Source Inc
TNTUBA is offline   Reply With Quote
Old 12-20-2012, 10:14 AM   #22
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

Can you get some shots of the output on a wall of just one projector with you parked around 30-40ft? I'm very intrested to see how they preform with a halogen bulb.
Dot3 is offline   Reply With Quote
Old 12-20-2012, 11:20 AM   #23
Junior Member
iTrader: (1)

Join Date: Feb 2012
Location: Hagerstown, MD
Posts: 140
Total Cats: 0
Default

Quote:
Originally Posted by wildo View Post
I have these 60mm projectors ...

This allowed complete removal of all the stock headlight junk and the stock headlight lids (heavy)...
Any idea how much weight you saved?
ericwh is offline   Reply With Quote
Old 12-20-2012, 08:45 PM   #24
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

I saved 17 lbs
TNTUBA is offline   Reply With Quote
Old 12-20-2012, 08:50 PM   #25
Junior Member
iTrader: (1)

Join Date: Feb 2012
Location: Hagerstown, MD
Posts: 140
Total Cats: 0
Default

Nice. To-do list.
ericwh is offline   Reply With Quote
Old 12-20-2012, 10:48 PM   #26
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Tntuba, can you post the mounting setup a bit better please. I already have the projectors I just need mounting ideas!
FowlerMotorsports is offline   Reply With Quote
Old 04-04-2013, 10:55 PM   #27
Junior Member
iTrader: (1)

Join Date: Feb 2012
Location: Hagerstown, MD
Posts: 140
Total Cats: 0
Thumbs up

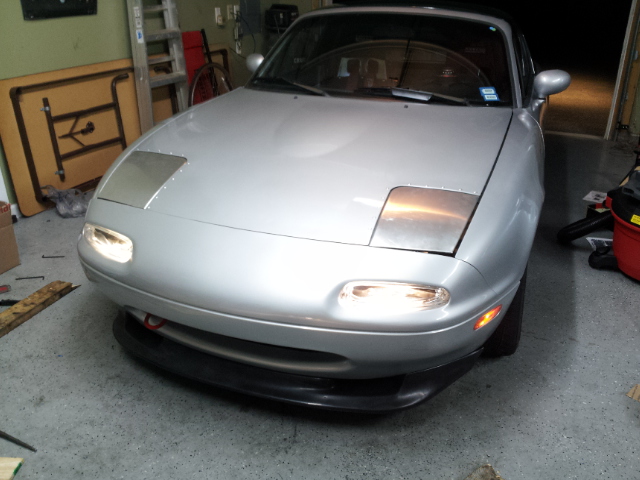

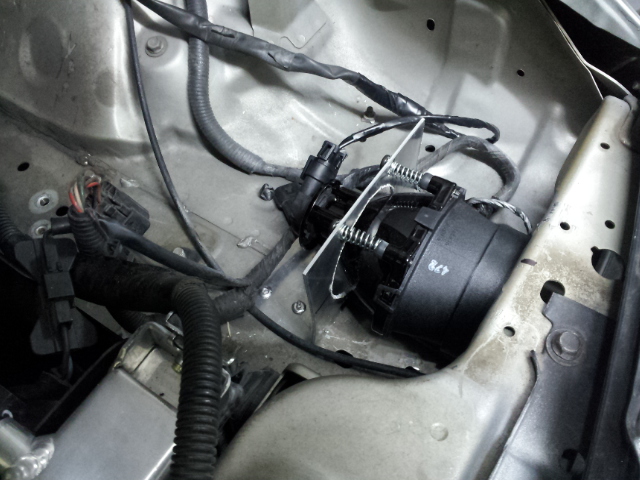

Finished my setup tonight. I am happy with the weight savings and they give me plenty of light or what I need. The brackets were scrapped together from some spare aluminum and you can see the beam vibrating at idle in the garage but nothing you can notice while driving.

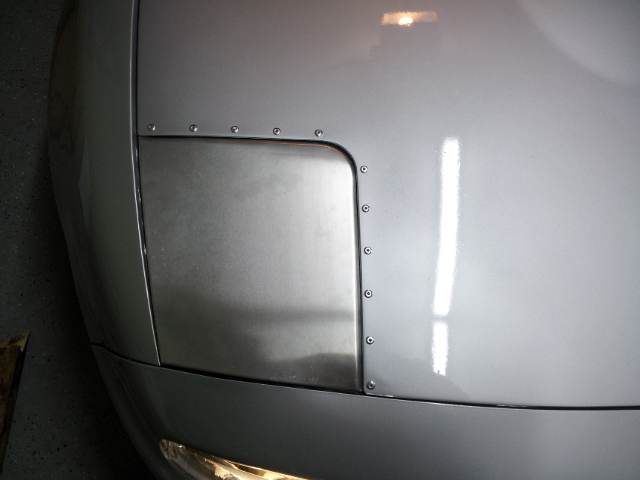

Headlight covers courtesy of Wildo's contact
Low beam projectors courtesy of Wildo's link

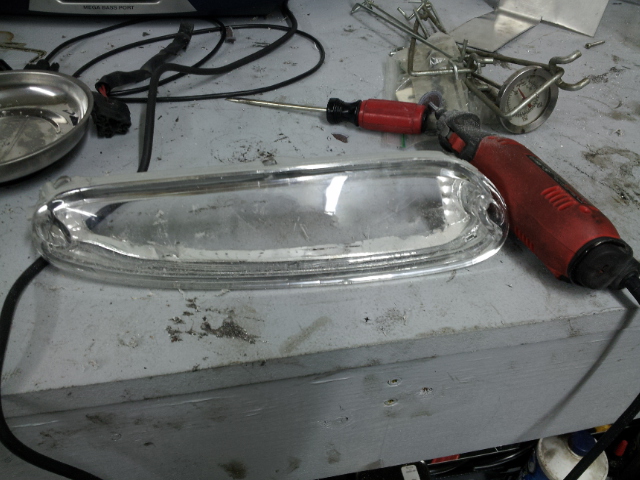

Ebay clear turn signals hacked with a dremel to be just clear covers







Attached Thumbnails
NA lighting-20130404_205453.jpg   NA lighting-20130404_205531.jpg   NA lighting-20130402_211210.jpg   NA lighting-20130404_205443.jpg
ericwh is offline   Reply With Quote
